Description

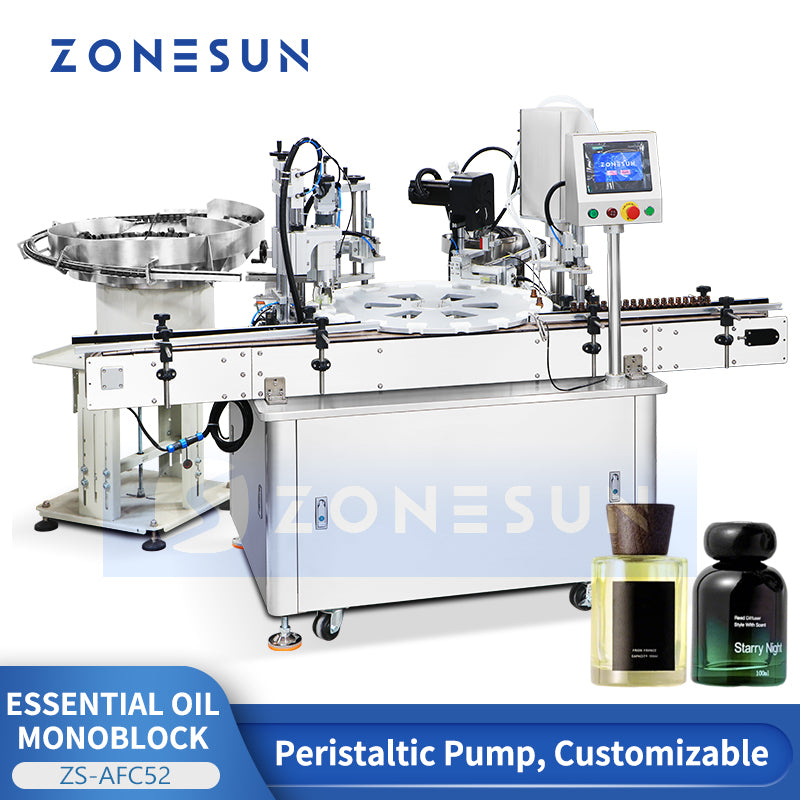

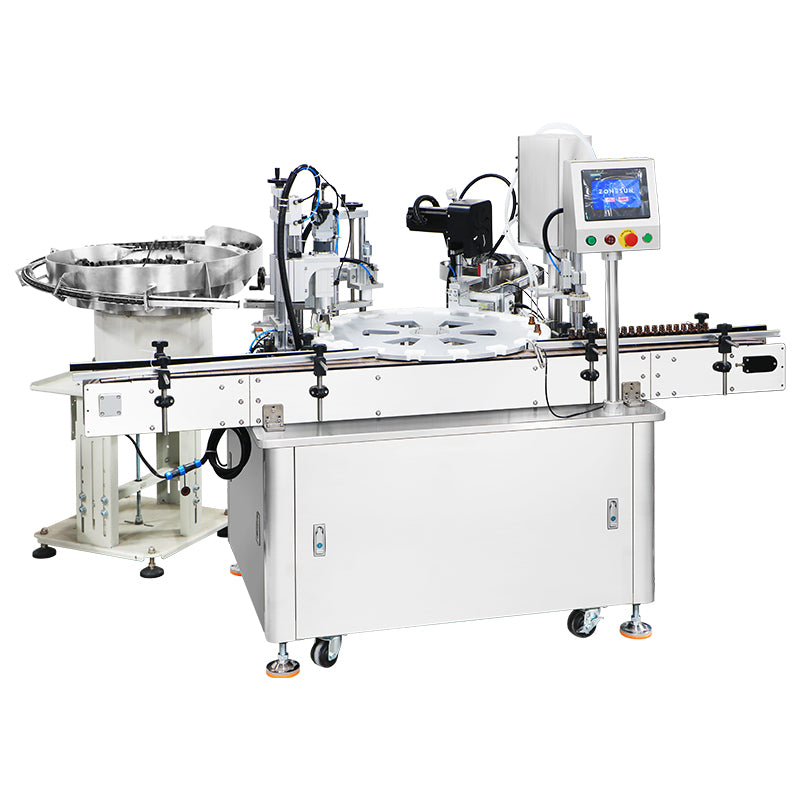

The ZONESUN ZS-AFC52 is a fully automatic monoblock filling and capping machine designed for essential oils, perfumes, air fresheners, and similar liquid products. It integrates bottle sorting, liquid filling, stopper feeding and pressing, outer cap feeding, and screw-capping into one compact, synchronized system.
Equipped with a high-precision peristaltic pump and a rotary working station, the ZS-AFC52 delivers fast, stable, and accurate bottle handling. Bottle sizes, filling ranges, and production configurations are fully customizable to meet your specific production requirements.
Technical Specifications
- Model: ZS-AFC52
- Voltage: 110V / 220V, 50–60Hz, 2.8KW
- Filling Material: Liquid
- Filling Range: Customized
- Conveyor Size (L×W): 1920mm × 100mm
- Bottle Height: Customized
- Bottle Diameter: Customized
- Bottle Cap Diameter: Customized
- Working Speed: About 20–30 bottles/min (varies by liquid and filling range)
- Machine Weight: 455 kg
- Packaging Weight: 576 kg

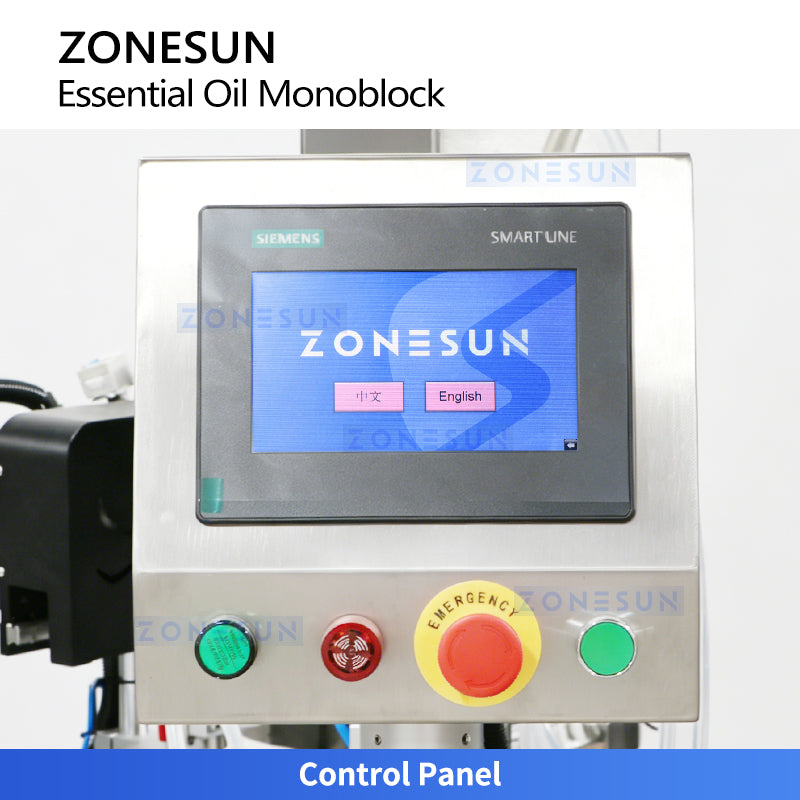

Control Panel
Centralizes filling and capping control, enabling quick parameter adjustment, start/stop operation, and safe emergency shutdown.

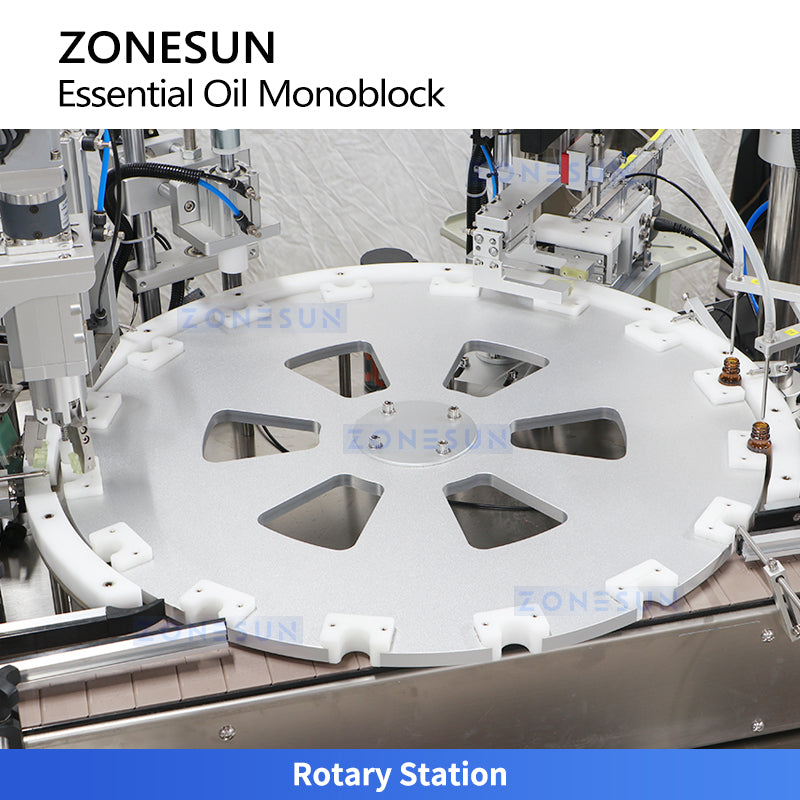

Rotary Station
Performs liquid filling, stopper feeding and pressing, outer-cap feeding and screw-capping in a synchronized rotary system to ensure fast, precise, and stable bottle processing.

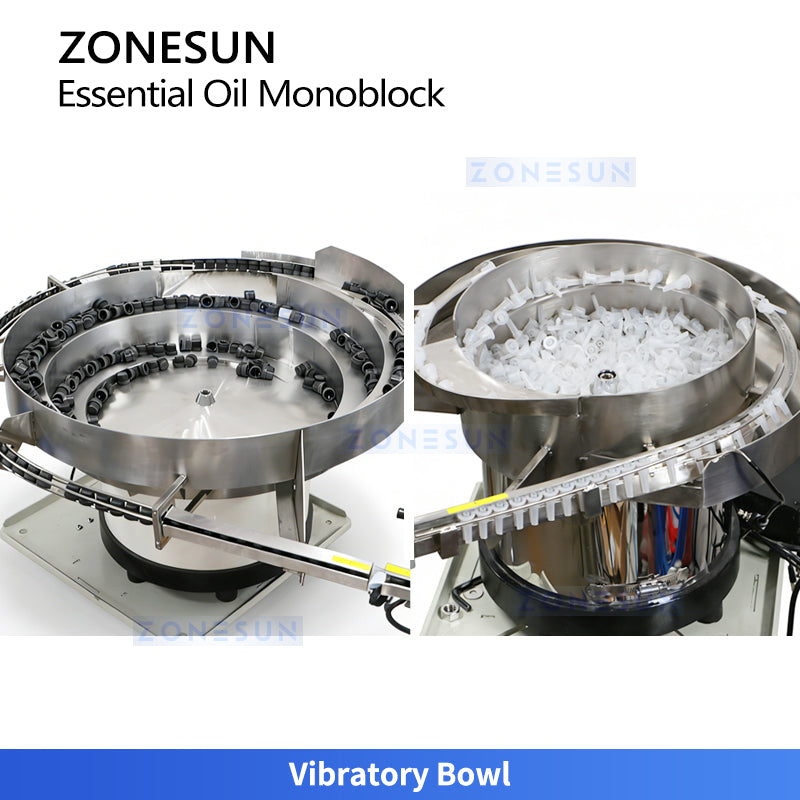

Vibratory Bowl
Automatically sorts, orients, and feeds stoppers and outer caps in a continuous, stable flow to ensure smooth, uninterrupted capping operations.

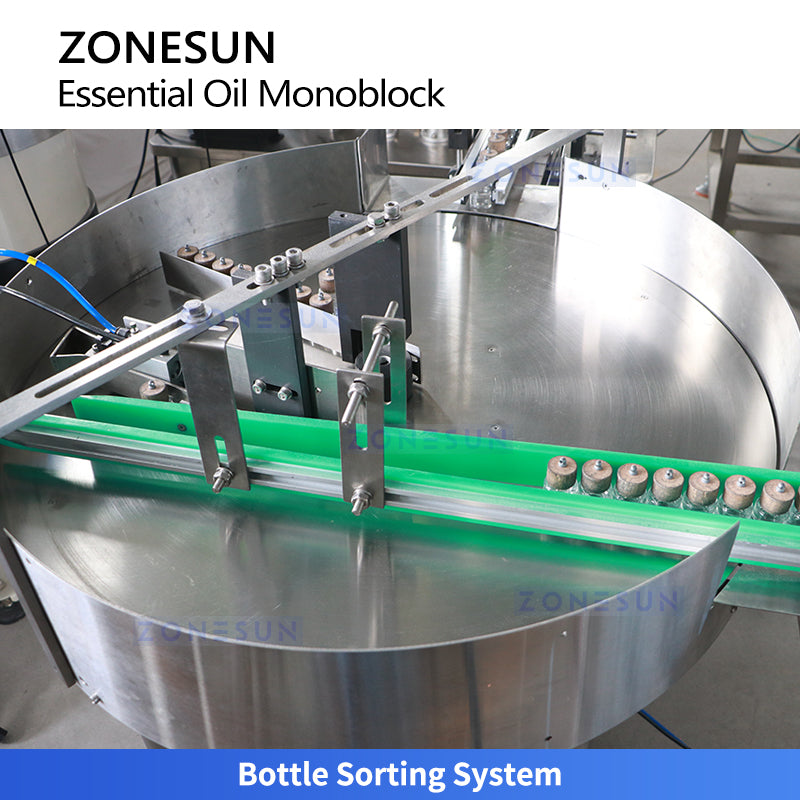

Bottle Sorting
Automatically sorts and orients bottles into a single, orderly feeding lane to ensure smooth, continuous transfer into the filling and capping stations.

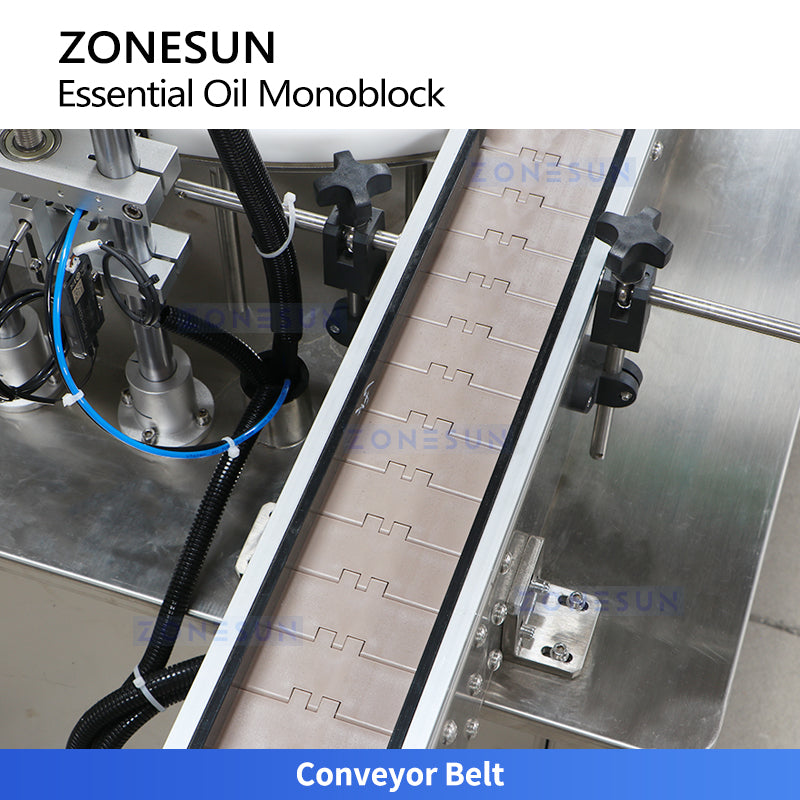

Conveyor Belt
Transfers bottles smoothly through the filling and capping stations, ensuring stable positioning and continuous, efficient operation.
Why Choose the ZS-AFC52?
- ✅ All-in-One Monoblock Design: Bottle sorting, filling, stopper pressing, and screw-capping in a single compact machine
- ✅ High-Precision Peristaltic Pump: Accurate, gentle liquid handling ideal for essential oils and perfumes
- ✅ Synchronized Rotary Station: Fast and stable multi-step processing at 20–30 bottles/min
- ✅ Fully Customizable: Bottle size, filling range, cap diameter, and bottle height all configurable to your product
- ✅ Vibratory Bowl Feeding: Continuous, automated stopper and cap feeding for uninterrupted production
- ✅ Centralized Control Panel: Easy parameter adjustment, start/stop, and emergency shutdown in one interface
- ✅ Worldwide Voltage: 110V / 220V, 50–60Hz compatible
Ideal Applications
- Perfume & Fragrance: Eau de parfum, eau de toilette, cologne, fragrance blends
- Essential Oils: Aromatherapy oils, carrier oils, diffuser blends, massage oils
- Air Care Products: Air fresheners, room sprays, linen sprays
- Cosmetics & Personal Care: Serums, toners, facial mists, hair oils
- Pharmaceutical & Chemical: Dropper bottle liquids, reagents, specialty solvents
