Description

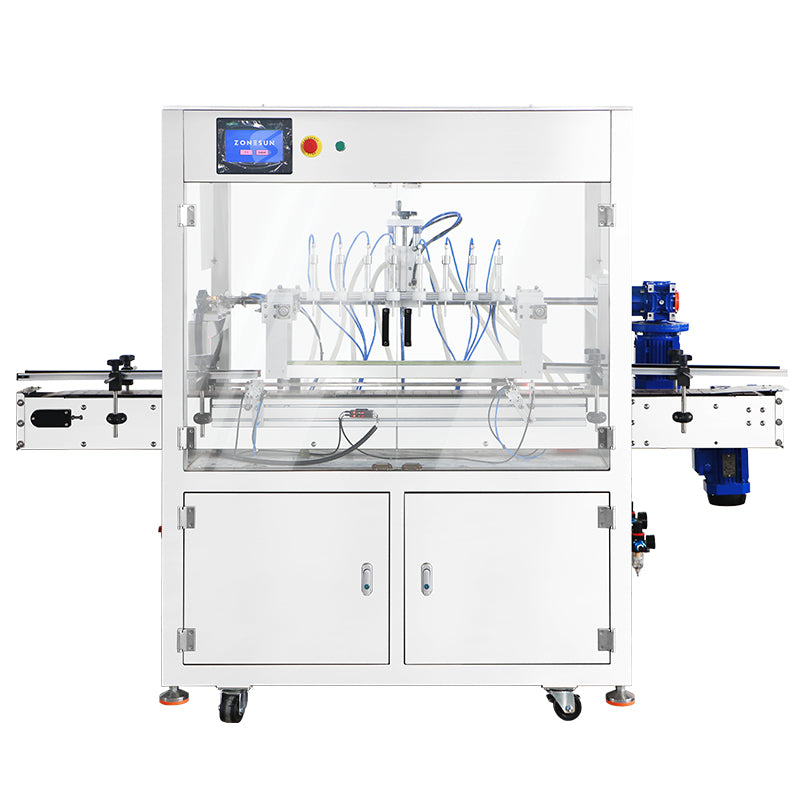

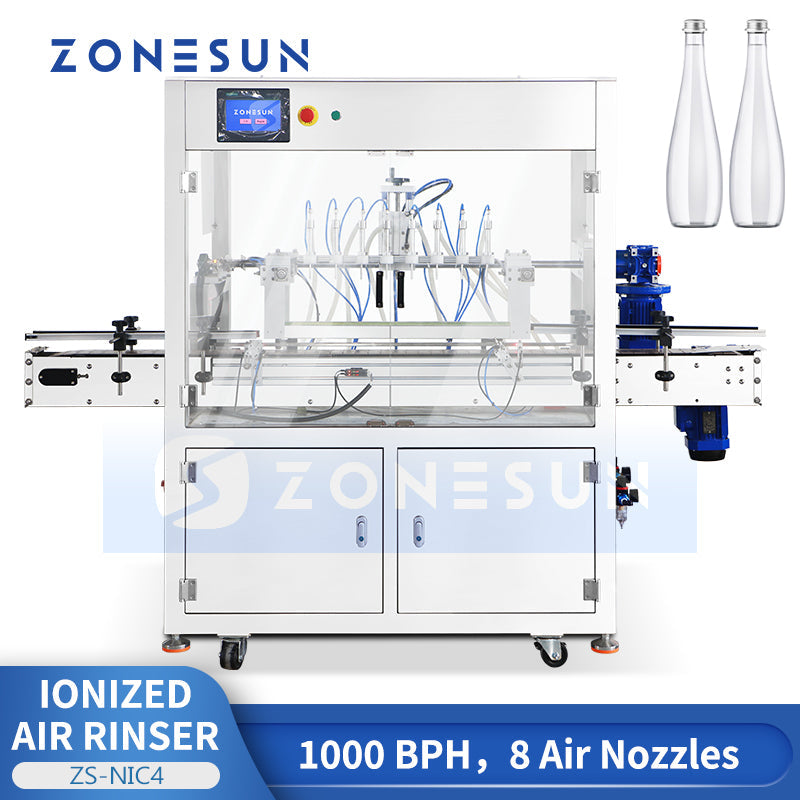

The ZONESUN ZS-NIC4 is an advanced ionized air rinsing machine designed to remove dust and static from PET, glass, PP, and HDPE bottles. With an inverted bottle design and 8 high-pressure ionized nozzles, it ensures thorough internal and bottom cleaning while preventing contamination. Powered by a PLC system with HMI touch panel, this unit supports high-speed operation at up to 1000 bottles per hour. Ideal for pre-filling cleaning in cosmetics, food, and chemical packaging lines, the system combines precision, efficiency, and broad bottle compatibility.
Parameter
- Machine Name: ZS-NIC4
- Bottle Type: Round & irregular bottles
- Max Bottle Height: 300mm
- Rinsing Method: High-pressure ionized air
- Number of Air Nozzles: 8 nozzles
- Air Pressure: 0.4–0.6MPa
- Rinsing Speed: 1000 bottles/hour
- Control System: Siemens PLC + HMI
- Material Compatibility: PET, Glass, PP, HDPE
- Power Supply: AC 220V / 50Hz
- Power Consumption: 1.5–3.0KW
- Dimensions: 200 × 100 × 165 cm
- Net Weight: 600kg

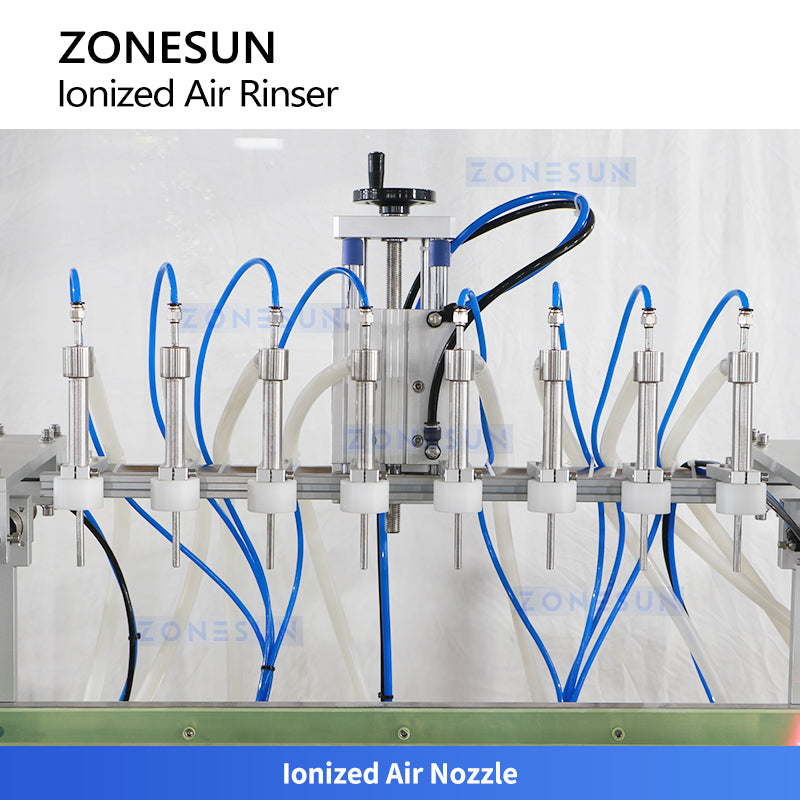

IONIZED AIR NOZZLE
Precisely directs high-pressure ionized air into bottle openings to remove static and fine dust.
BOTTLE HOLDER
Prevents movement during ionized air rinsing for stable, efficient cleaning. The inverted design allows thorough bottom rinsing and full-surface dust/static elimination, maximizing system effectiveness.

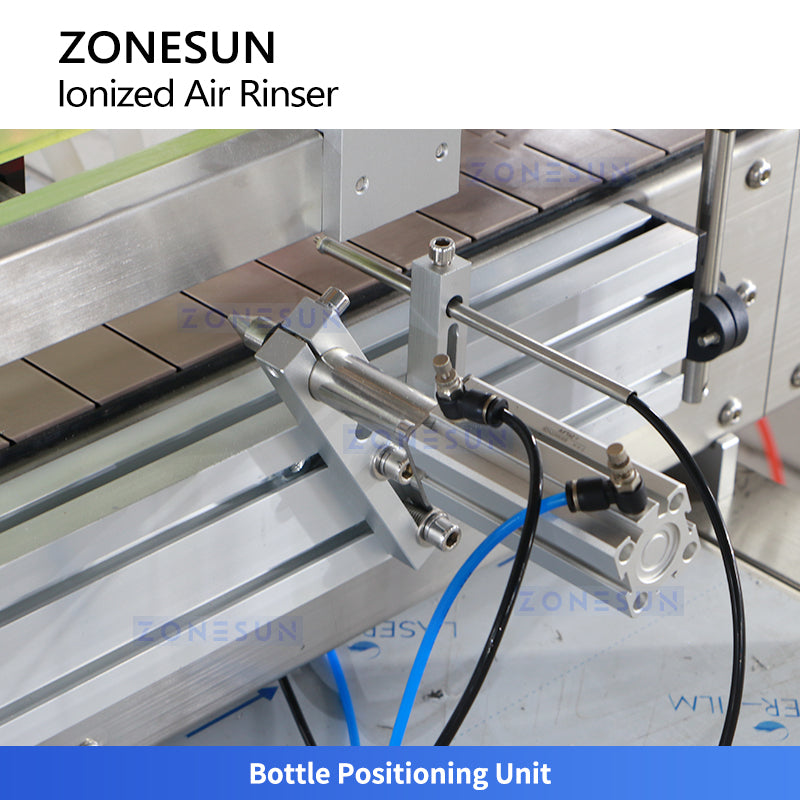

POSITIONING UNIT
Accurately stops bottles at the ionized air cleaning station, where sensor signals activate ionized nozzles for efficient bottle treatment.

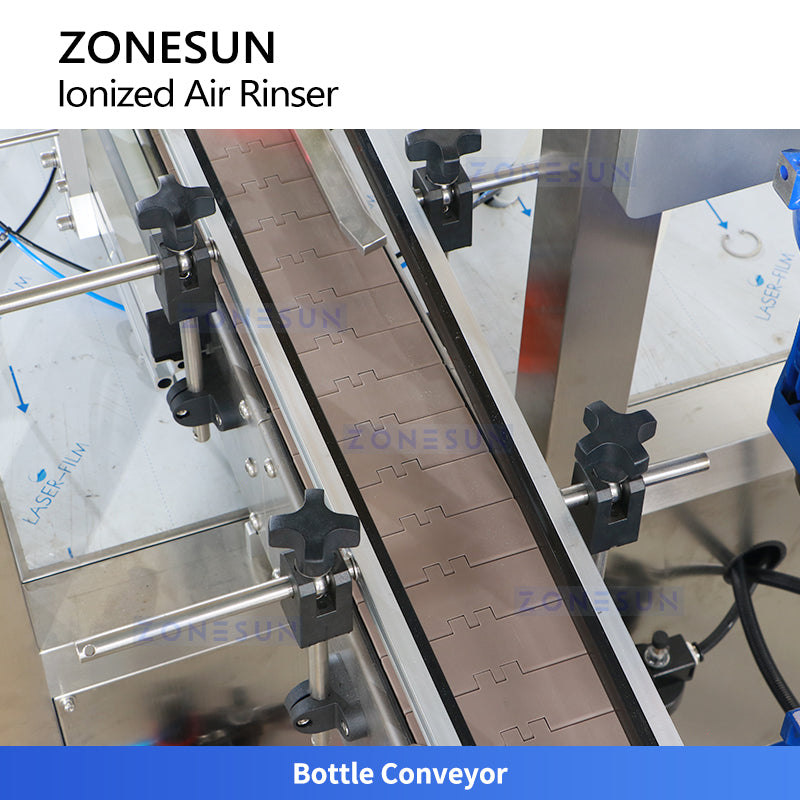

BOTTLE CONVEYOR
Transports bottles steadily to the rinsing station with consistent timing. Coordinates with positioning units to ensure nozzle alignment accuracy.

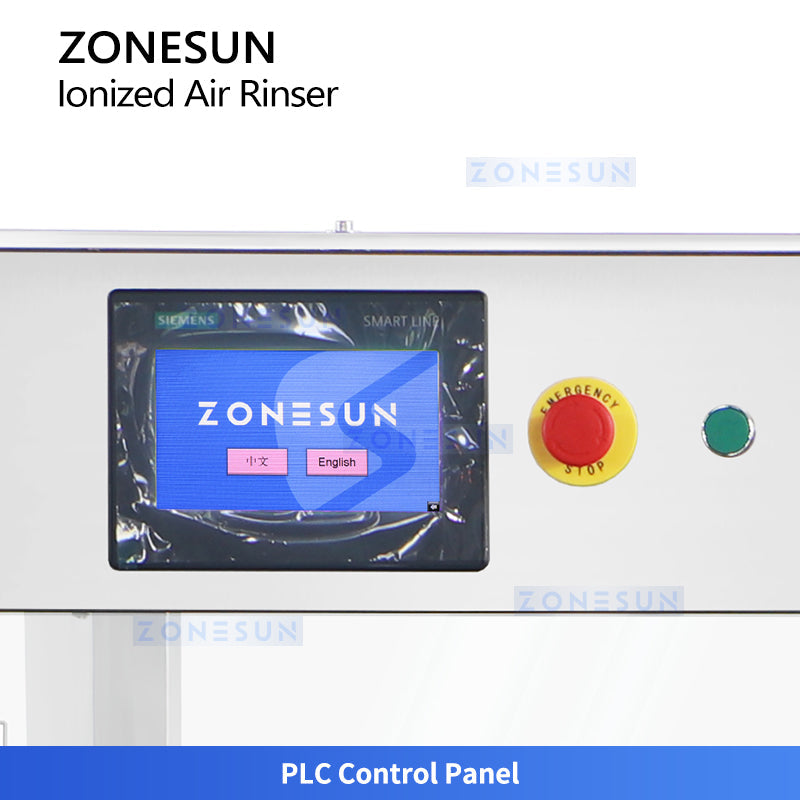

CONTROL PANEL
Controls rinsing flow, rhythm, and functions. Touchscreen allows program selection and real-time adjustment.
