DESCRIPTION

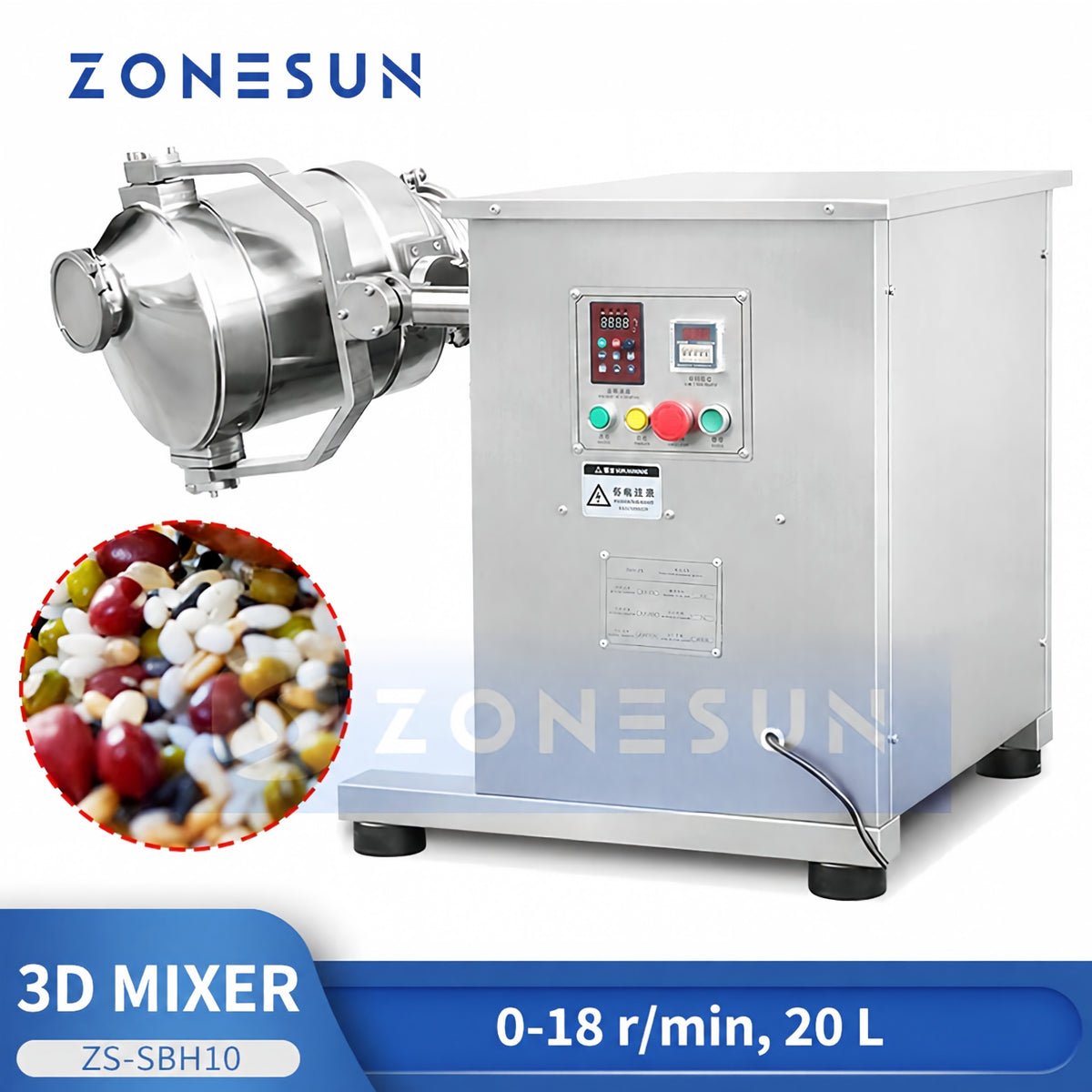

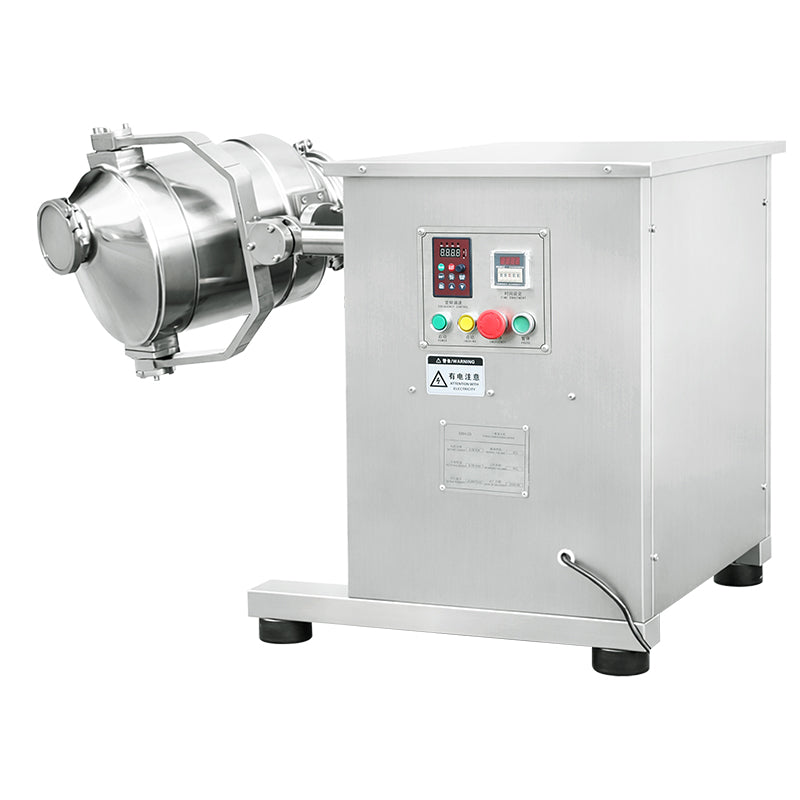

The ZONESUN ZS-SBH10 is a 3D dry powder and granule mixer designed for uniform blending through multi-directional vessel movement. Its triangle swing and rotational motion continuously tumbles and redistributes materials while the sealed vessel helps reduce dust during operation. The series is suitable for dry powders, free-flowing granules, food ingredients, pigments, cosmetic powders and similar materials.
PARAMETER
ZS-SBH10
- Tank Volume: 10 L
- Recommended Working Volume: 8 L
- Reference Batch Weight: Up to approx. 5 kg*
- Spindle Speed: 0–15 rpm
- Motor Power: 0.75 kW
- Machine Size: 800 × 1200 × 1000 mm
- Machine Weight: 135 kg
ZS-SBH20
- Tank Volume: 20 L
- Recommended Working Volume: 14 L
- Reference Batch Weight: Up to approx. 10 kg*
- Spindle Speed: 0–15 rpm
- Motor Power: 0.75 kW
- Machine Size: 880 × 720 × 750 mm
- Machine Weight: 150 kg
ZS-SBH50
- Tank Volume: 50 L
- Recommended Working Volume: 40 L
- Reference Batch Weight: Up to approx. 25 kg*
- Spindle Speed: 0–15 rpm
- Motor Power: 1.1 kW
- Machine Size: 1000 × 1400 × 1200 mm
- Machine Weight: 300 kg
*Reference batch weight varies with material bulk density, particle size and flowability. Please provide your material information and target batch weight for model selection.

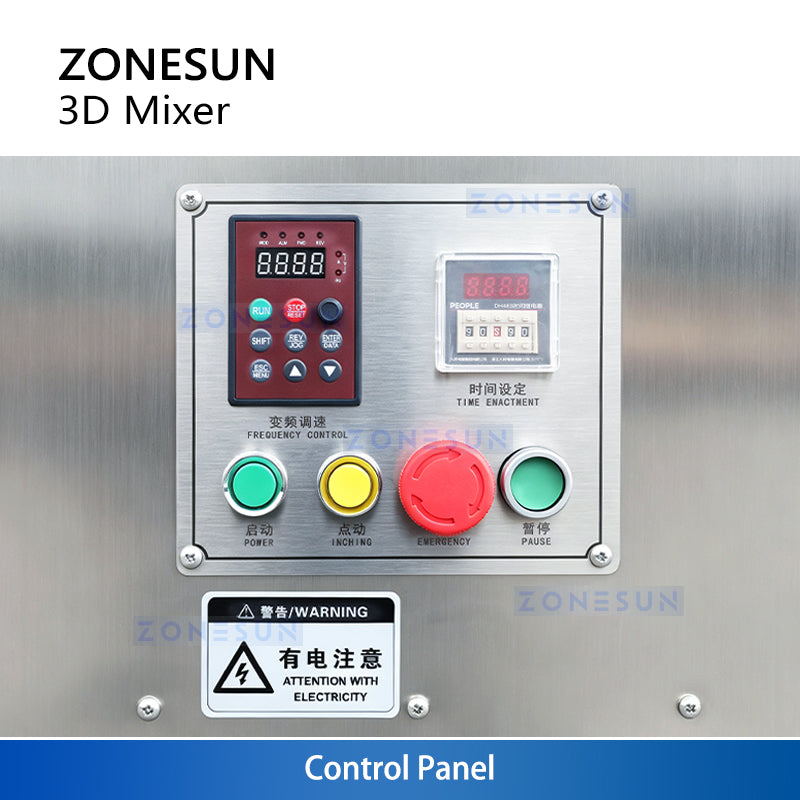

Control Panel
Allows operators to set mixing speed and operating time while providing convenient start and stop control.

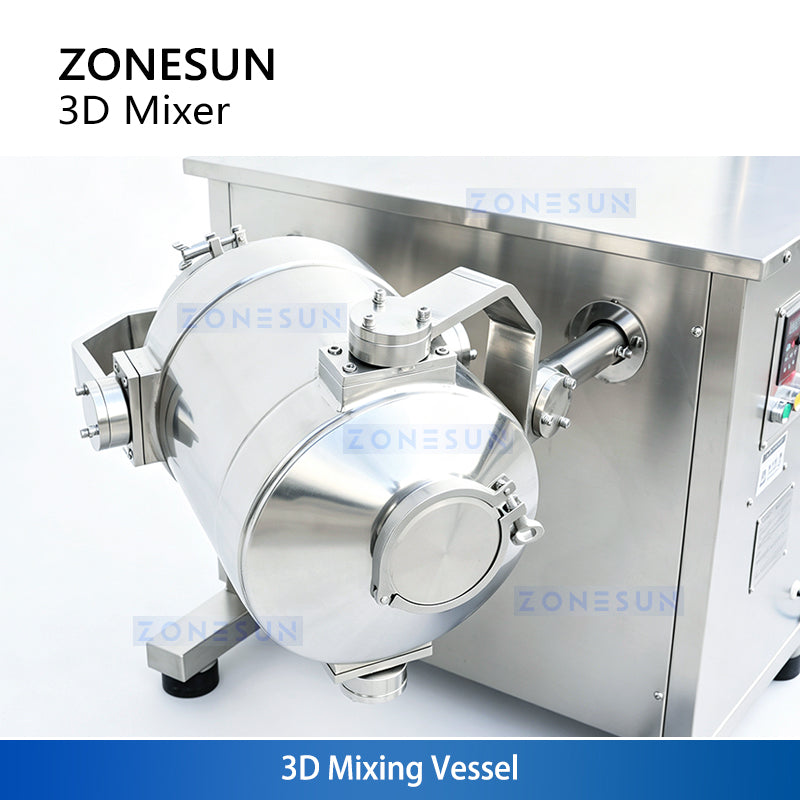

3D Mixing Vessel
The sealed mixing vessel moves in multiple directions to continuously tumble and redistribute powders or granules, promoting fast and uniform mixing.

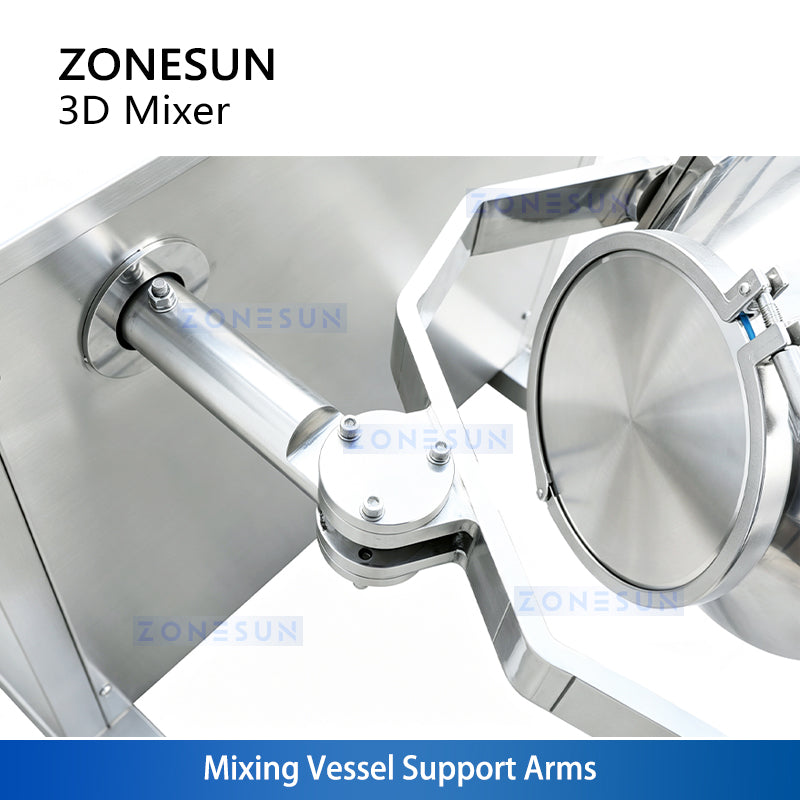

Mixing Vessel Support Arms
Securely support the mixing vessel and transmit multi-directional motion from the drive system for stable operation.

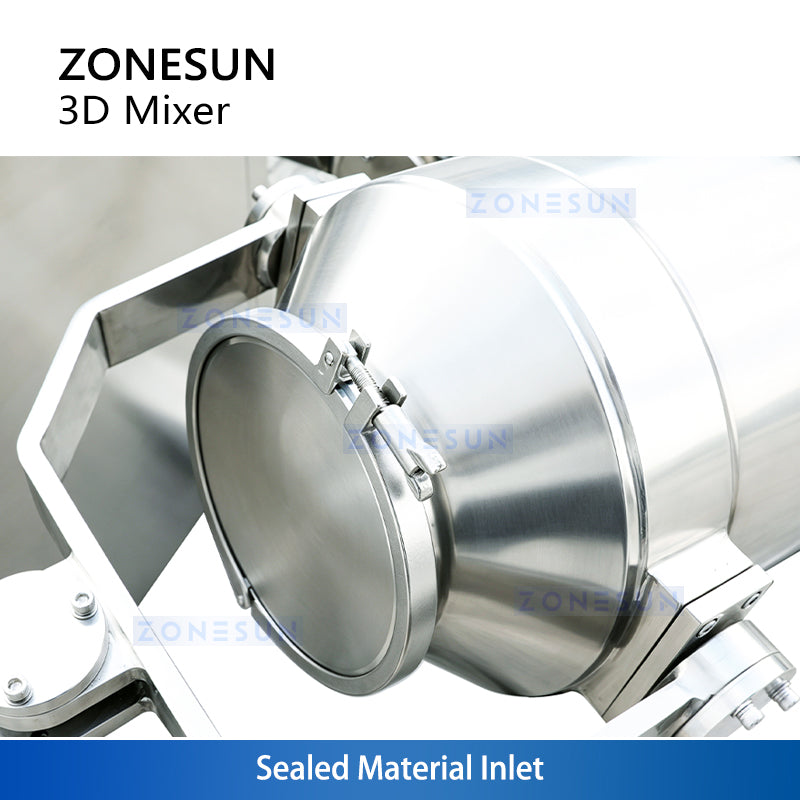

Sealed Material Inlet
Provides convenient material loading while maintaining an enclosed mixing environment to help reduce dust and external contamination.

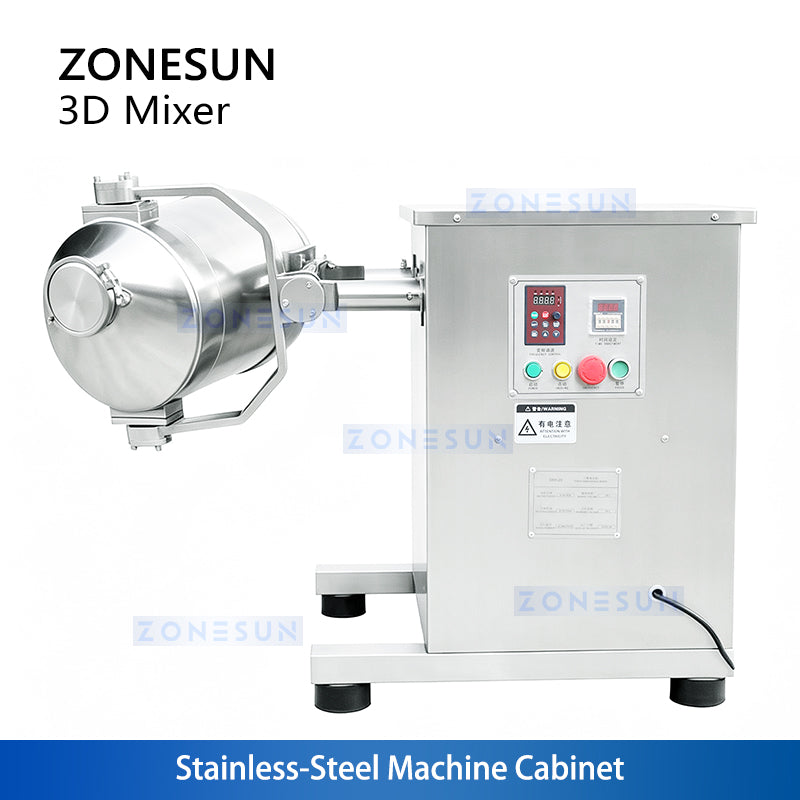

Stainless-Steel Machine Cabinet
Provides stable structural support while protecting the internal drive and electrical components.
How the 3D Mixing Motion Works
The mixing vessel combines triangle swing and rotational movement, causing dry materials to tumble and change direction continuously. This multi-directional motion helps redistribute powders and granules throughout the vessel for more consistent blending than simple single-axis tumbling.
Key Advantages
- Multi-Directional Mixing: 3D vessel movement improves material redistribution and helps reduce uneven blending.
- Sealed Mixing Vessel: Enclosed mixing helps reduce airborne dust and limits exposure to the surrounding environment.
- Gentle Mixing Action: Low-speed vessel movement is suitable for dry powders and granules that do not require high-shear processing.
- Three Batch Sizes: SBH10, SBH20 and SBH50 provide 10 L, 20 L and 50 L vessel options for different production volumes.
- Easy Cleaning: Simple vessel structure supports faster cleaning and product changeover between batches.
- Stainless-Steel Construction: Durable structure for routine industrial production and easier surface maintenance.
Choose the Right SBH Model
| Model | Tank Volume | Recommended Volume | Reference Batch Weight* | Typical Use |
|---|---|---|---|---|
| SBH-10 | 10 L | 8 L | Up to approx. 5 kg | R&D / small batch |
| SBH-20 | 20 L | 14 L | Up to approx. 10 kg | Small production |
| SBH-50 | 50 L | 40 L | Up to approx. 25 kg | Medium batch |
*Actual batch weight depends on bulk density. For low-density powders, the usable batch weight can be much lower than the reference value.
Suitable Materials & Applications
- Food Ingredients: spice blends, seasoning powders, starches, flour-based dry blends, drink powders and similar dry ingredients.
- Chemical Powders: pigments, detergent powders, additives and other compatible dry chemical blends.
- Cosmetic Powders: talc, mica, pigment blends and other dry cosmetic formulations.
- R&D / Small-Batch Production: formulation testing, pilot batches and repeated dry-material blending.
Note: This machine is intended primarily for dry powders and free-flowing granules. Sticky materials, high-viscosity pastes, wet mixing processes or materials requiring high-shear dispersion should be evaluated separately.
Before Ordering, Please Confirm
To select the correct model and verify mixing suitability, please send us:
- Material name
- Bulk density (kg/L), if available
- Target batch weight
- Particle size or approximate powder condition
- Whether the material is sticky, oily, moisture-sensitive or easy to agglomerate
- Required cleaning or material-contact standard
Frequently Asked Questions
How do I choose between SBH10, SBH20 and SBH50?
Choose by usable vessel volume and your material bulk density rather than tank volume alone. Send us the target batch weight and bulk density for a more accurate recommendation.
Can different-density powders be mixed?
The 3D multi-directional motion is designed to improve redistribution of dry materials with different particle characteristics. Final mixing performance still depends on the formulation, density difference, particle size and mixing time.
Is the mixer suitable for liquid or paste products?
It is primarily designed for dry powder and free-flowing granule mixing. Liquid, paste and high-shear applications normally require a different mixing structure.
Can ZONESUN test my material before I order?
For suitable projects, you can provide material information, packaging requirements and target batch size so our team can evaluate the application and recommend a configuration.
Need Help Selecting a Model?
Send us your material name, bulk density and target batch weight. We can help determine whether SBH-10, SBH-20 or SBH-50 is the better fit for your process. Use the chat window on this page to contact ZONESUN.
