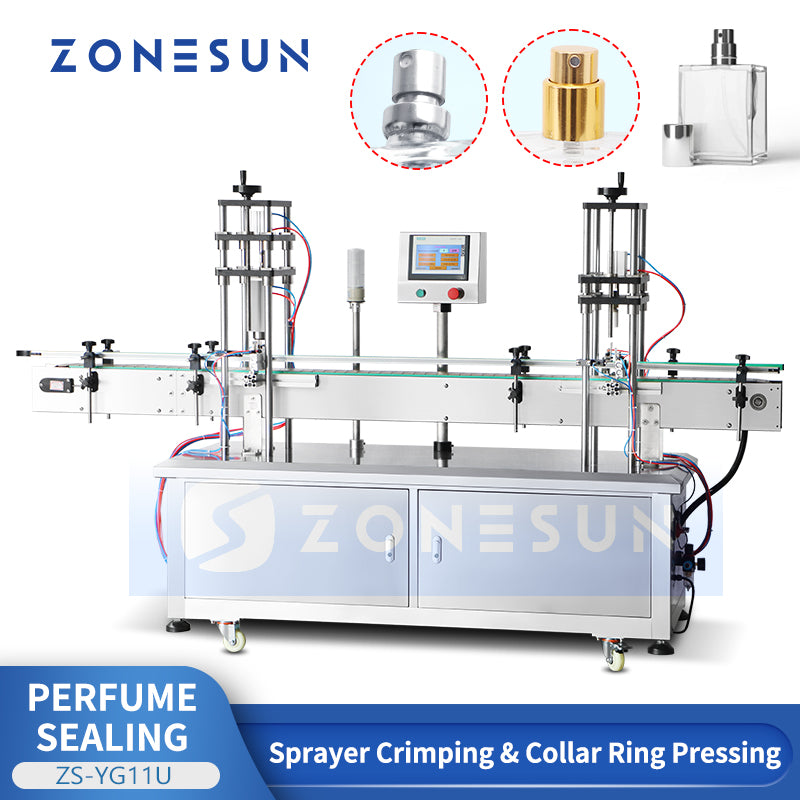

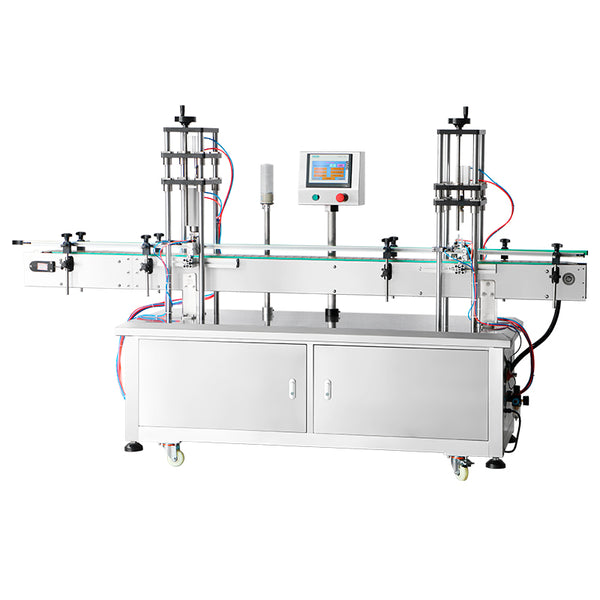

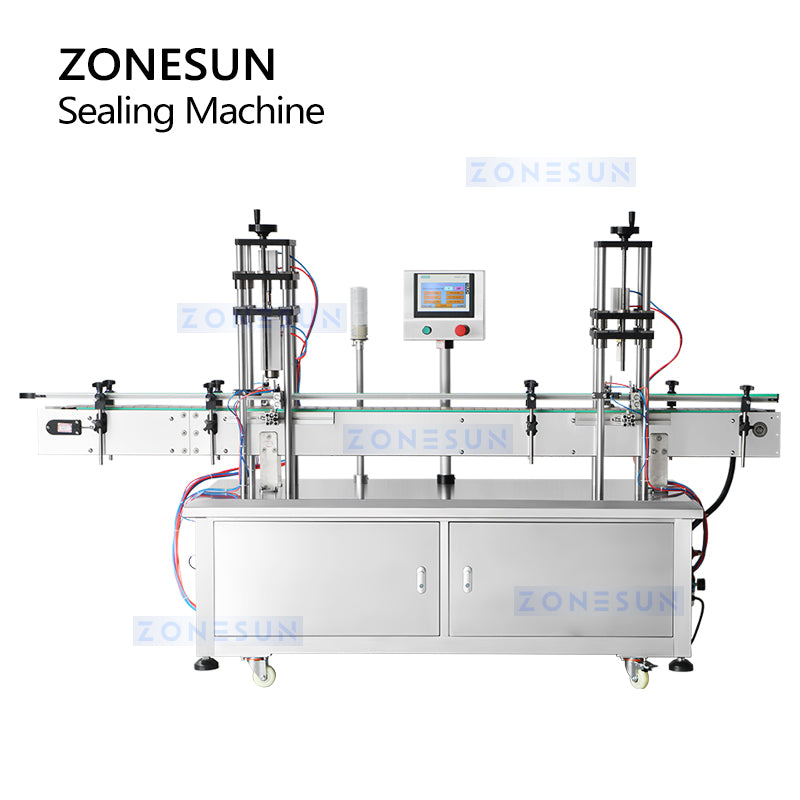

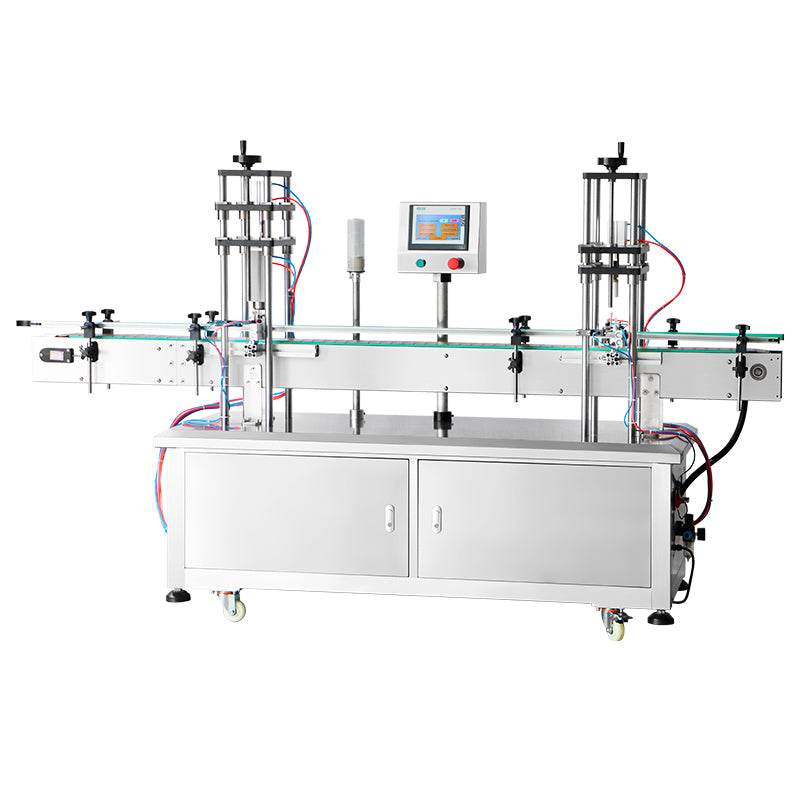

The ZS-YG11U is a fully automatic perfume capping machine designed to press spray pumps and collars onto bottles with precision and consistency. Featuring an integrated conveyor and electronic control system, it ensures smooth operation and uniform sealing. Its adjustable settings accommodate various bottle shapes and sizes, making it ideal for fragrance manufacturers seeking a professional, finished look with minimal manual effort.
ZS-YG11U Automatic Capping Machine – Technical Parameters
Parameter Specification
Machine Model ZS-YG11U
Voltage 220V / 110V, 50–60Hz
Power Consumption 1.5kW
Capping Speed Approx. 20 bottles/min (varies by bottle/cap size)
Suitable Bottle Height 50–200mm
Cap Diameter Range 15–22mm
Bottle Mouth Diameter 14–20mm
Bottle Diameter Range 40–110mm
Conveyor Dimensions 113 × 2400mm
Machine Dimensions Approx. 2600 × 760 × 1700mm

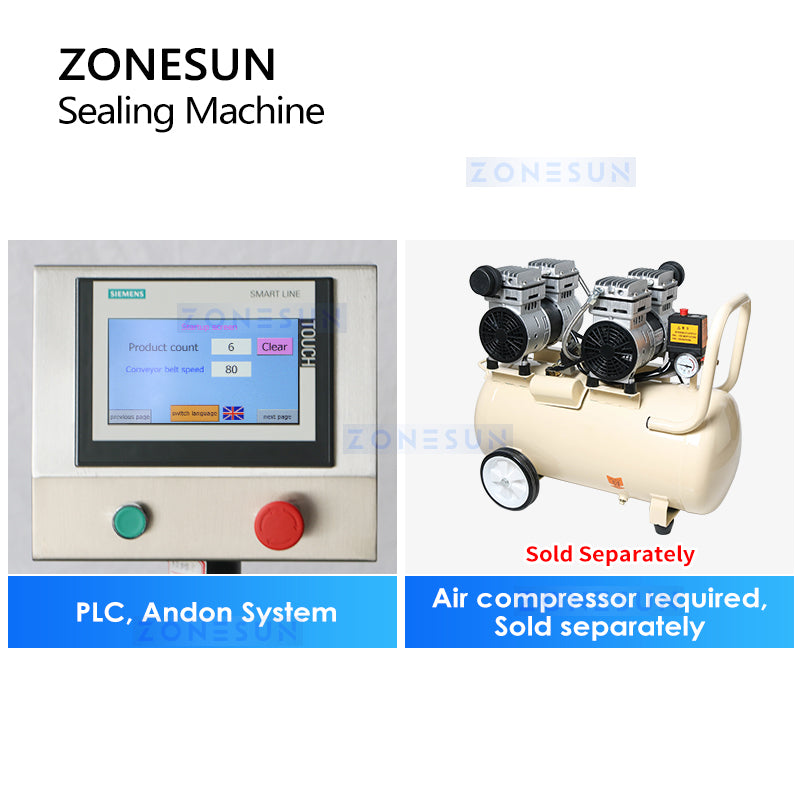

PLC Control System
The touchscreen control panel provides centralized machine operation and status monitoring. An air compressor is required and sold separately.

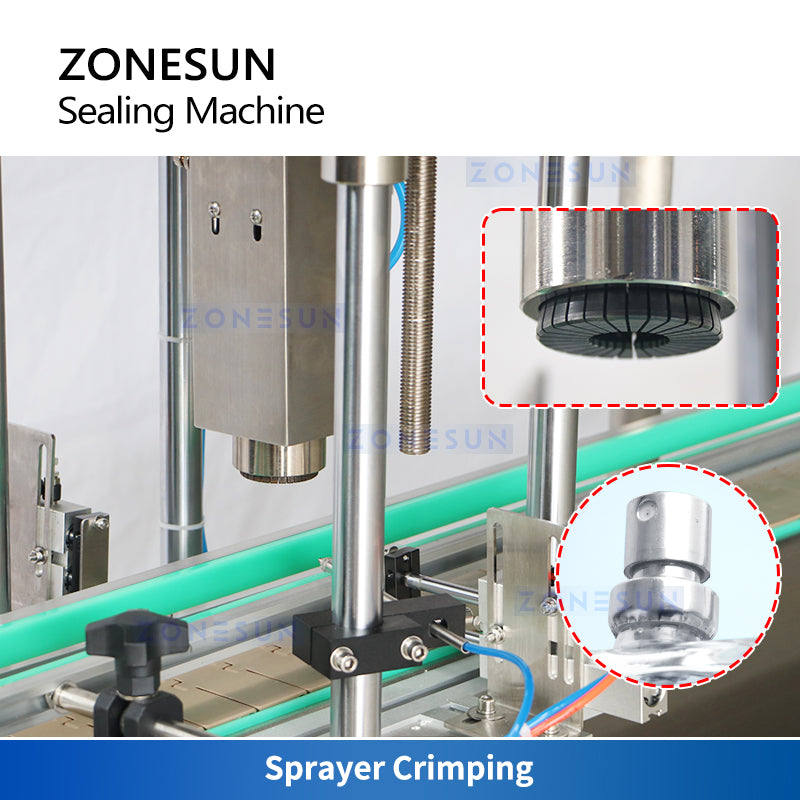

Sprayer Crimping Station
The height-adjustable station uses a custom crimping head to secure perfume sprayers on bottles of different sizes.

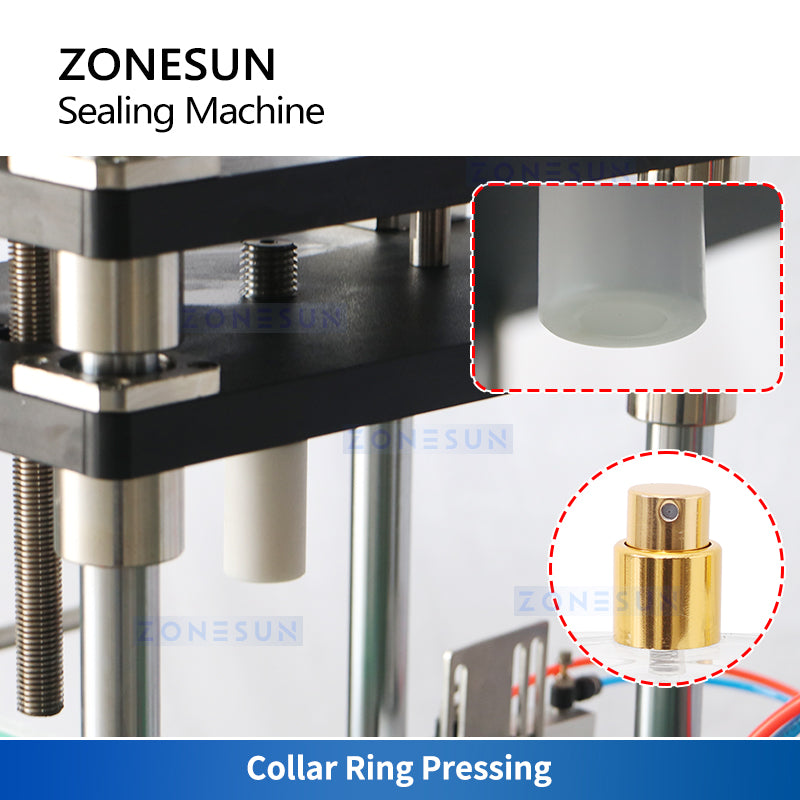

Collar Ring Pressing Station
The height-adjustable pressing station uses a custom head to press collar rings onto compatible perfume bottles.

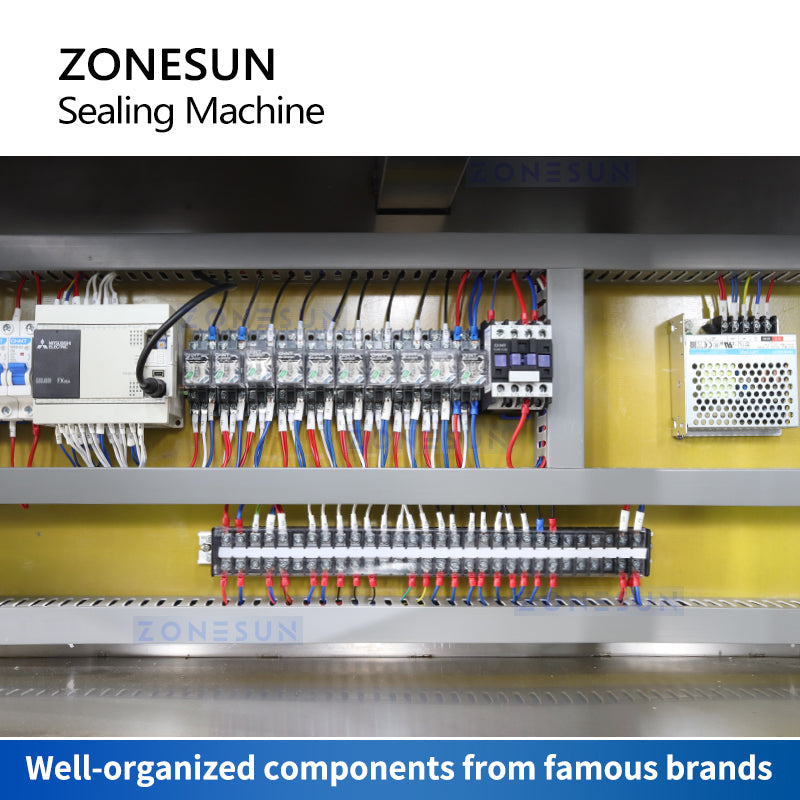

Organized Electrical Components
The electrical components are arranged in a clear layout for easier inspection and maintenance. Servo motor customization is available.
