Preis
$279

Please click "Buy It Now". Shipping will be calculated at checkout.

Model:MY-380F
Voltage:110V
Ship from:Ship from CN
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

Depending on the selected shipping method, import duties, customs clearance fees, local taxes, and other destination charges may apply. These charges are determined by the relevant authorities and service providers at the destination.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

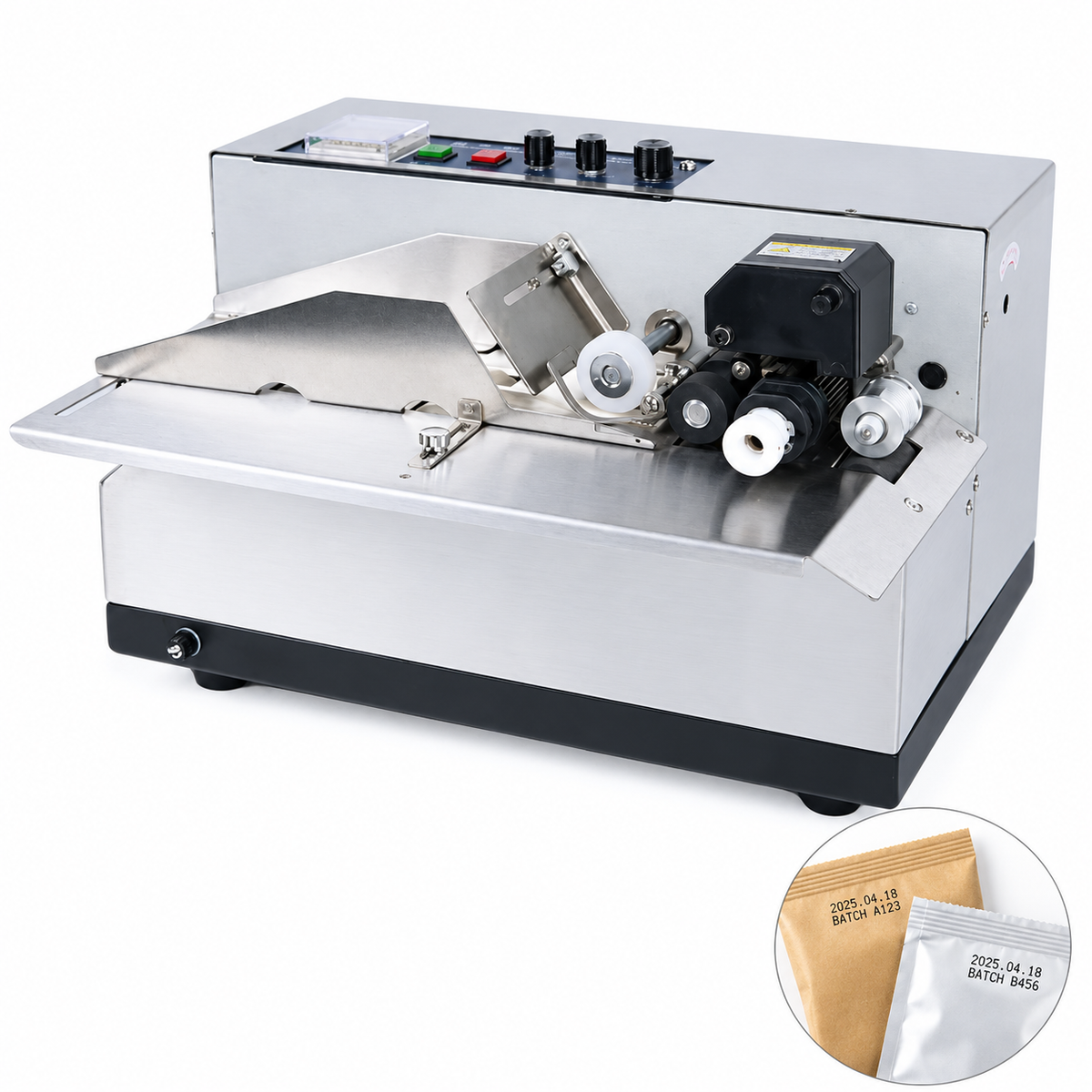

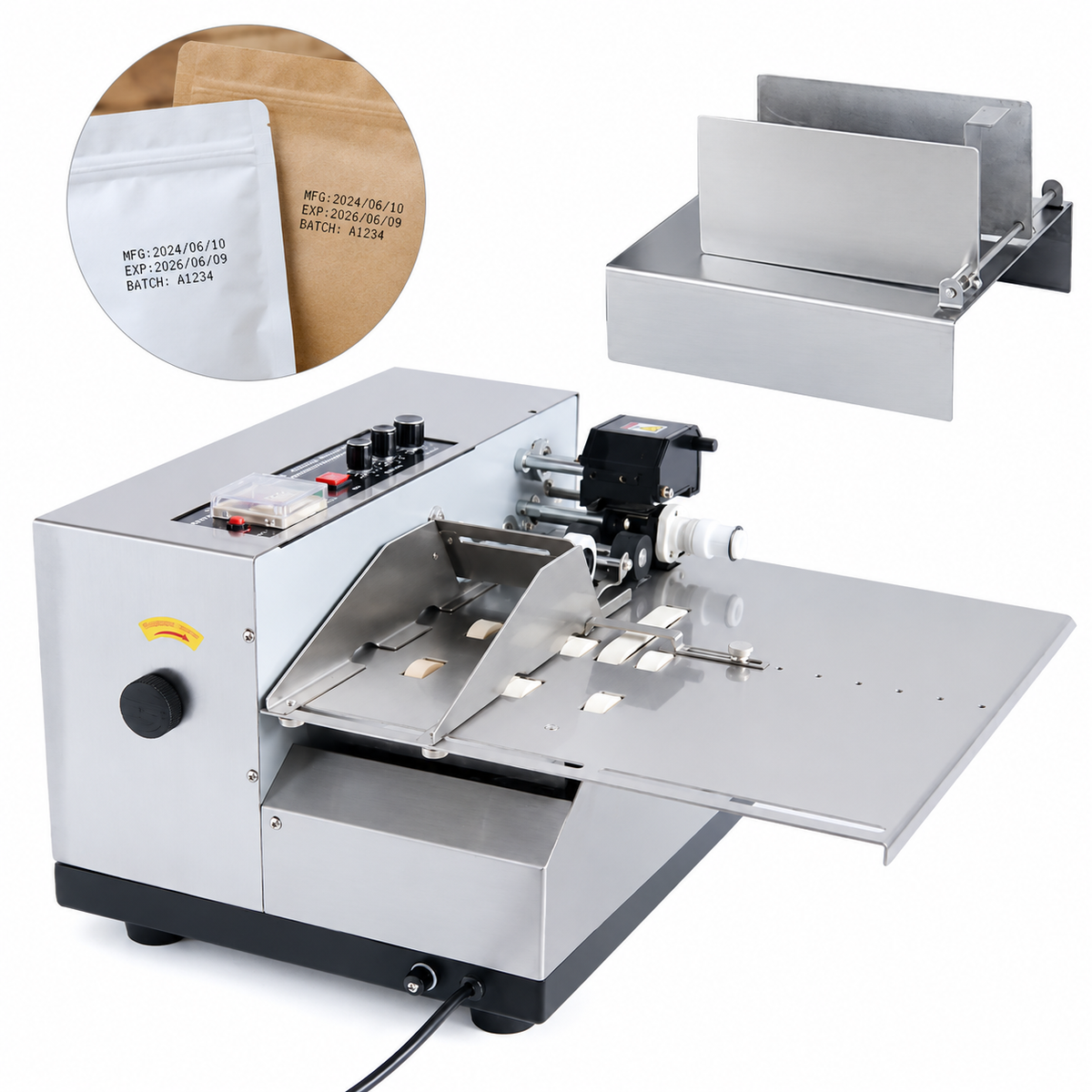

ZONESUN MY-380F / MY-380FW Automatic Solid Ink Roll Date Coding Machine

The ZONESUN MY-380F series combines automatic paging and solid-ink roll coding for compatible flat packaging materials. It prints dates, batch numbers, lot codes and short alphanumeric information on paper, labels, cards, thin cardboard, plastic film and aluminum foil, using interchangeable characters and a solid ink roll.

Photoelectric control, automatic temperature regulation, counting and adjustable print positioning support routine coding. Choose the MY-380F standard version for products up to the listed 190 mm width or the MY-380FW wider version for products up to 300 mm width. Print clarity, drying and adhesion depend on the material, ink roll and operating settings.

Ordering Notes

Specify the required ink-roll size, color and character size when ordering. One machine is supplied with one selected ink-roll and character type; default specifications apply if no alternative is agreed. Select the correct 110 V or 220 V option and confirm the plug. The original supply note states that unspecified orders default to 220 V with a European plug.

Applications

For coding on compatible flat bags, labels, cards, paper, thin cardboard, plastic film and aluminum-foil packaging. Send the material, dimensions, required text and print-position details for compatibility checks. Curved bottles and containers require a separate coding-equipment assessment.

ZONESUN MY-380F series solid ink roll date coding machine detail 1 ZONESUN MY-380F series solid ink roll date coding machine detail 2 ZONESUN MY-380F series solid ink roll date coding machine detail 3 ZONESUN MY-380F series solid ink roll date coding machine detail 4 ZONESUN MY-380F series solid ink roll date coding machine detail 5 ZONESUN MY-380F series solid ink roll date coding machine detail 6

Machine Details

Paging and Coding

The paging mechanism separates compatible flat products and presents them for coding in one process.

Solid Ink Roll and Characters

The solid ink roll supplies ink to the character arrangement for printing short text and codes. Ink-roll and character selection determine the applicable setup.

Print Position and Thickness Adjustment

Mechanical adjustments support alignment and handling of the selected material. Confirm the adjustment range with actual samples.

Key Features

  • Solid-ink roll printing for compatible flat packaging
  • Automatic paging, temperature control and counting
  • Photoelectric control and adjustable print position
  • Standard and wider machine versions
  • Listed working speed of 12.5 m/min and printing rate of ≤300 impressions/min, subject to application confirmation

How the Coding Process Works

  1. Confirm the model, product material, dimensions and desired code.
  2. Install the selected characters and compatible ink roll according to the operating manual.
  3. Adjust the feeding arrangement, print position and temperature for the material.
  4. Run test pieces and inspect code clarity, position and adhesion.
  5. Begin paging and coding after confirming results, and monitor the print and feeding quality during production.

How to Choose the Right Configuration

Provide the product length, width and thickness, material sample, printed text, line count and desired position. Confirm model width, character dimensions, ink-roll size and color, voltage and plug. Validate paging and finished-piece output using actual materials rather than choosing only from the stated impression rate.

Frequently Asked Questions

What is the difference between MY-380F and MY-380FW?

The standard MY-380F lists a minimum product size of 55 × 30 mm and maximum of 500 × 190 mm. The wider MY-380FW lists 50 × 30 mm minimum and 500 × 300 mm maximum. Their machine dimensions and weights also differ.

What can the machine print?

Dates, batch numbers, lot codes and short text using the selected characters. The listed character set includes numbers 0–9 and letters A–Z. Confirm the exact supplied characters and required layout before ordering.

How many lines can it print?

The original specification states a maximum of 11 lines and “15 pcs letters” based on 2 × 3.5 × 6.8 mm characters. Confirm the allowable characters per line and complete layout against your required text.

Does 300 impressions/min mean 300 finished pieces/min?

The table lists ≤300 printing impressions/min and 12.5 m/min working speed, while an earlier feature description cites up to 30 pieces/min. These references do not establish one finished-piece throughput. Confirm sustained output with the actual material, size and feeding setup.

Which ink roll and characters are included?

The listed default ink roll is φ36 × 32 mm and default character size is 2 × 3.5 × 6.8 mm (T). Other listed sizes require confirmation. One machine includes one selected type of ink roll and characters.

Can it print on bottles or act as an inkjet printer?

This is a solid-ink roll coder with interchangeable characters for compatible flat products. Curved bottle coding or other print technologies require a separate equipment selection.

Related Coding Equipment

For material tests, model selection, ink-roll and character options or a quotation, use the online chat window on this page to speak with ZONESUN.
