Description

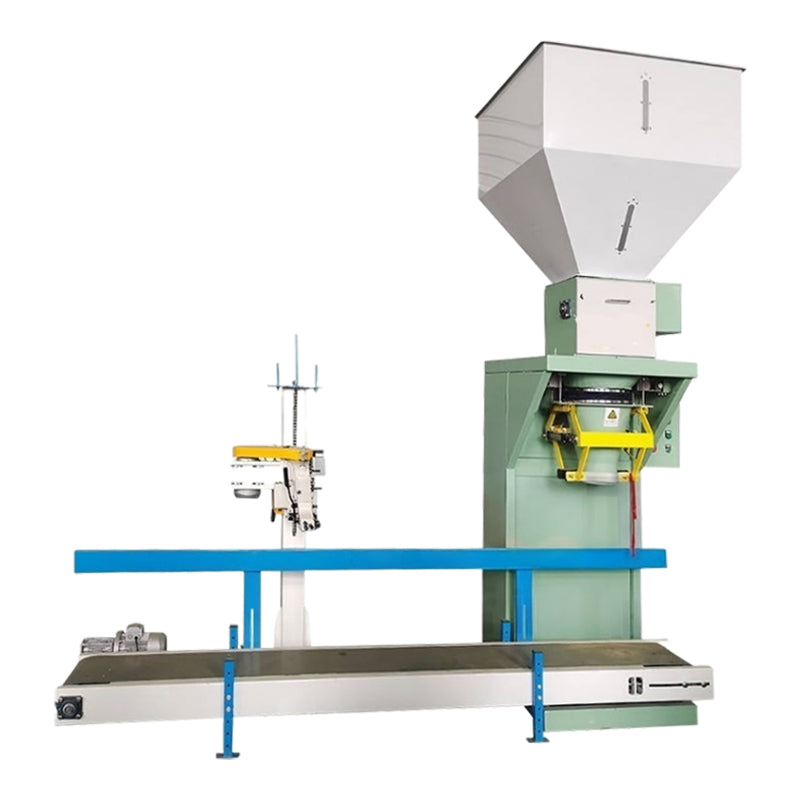

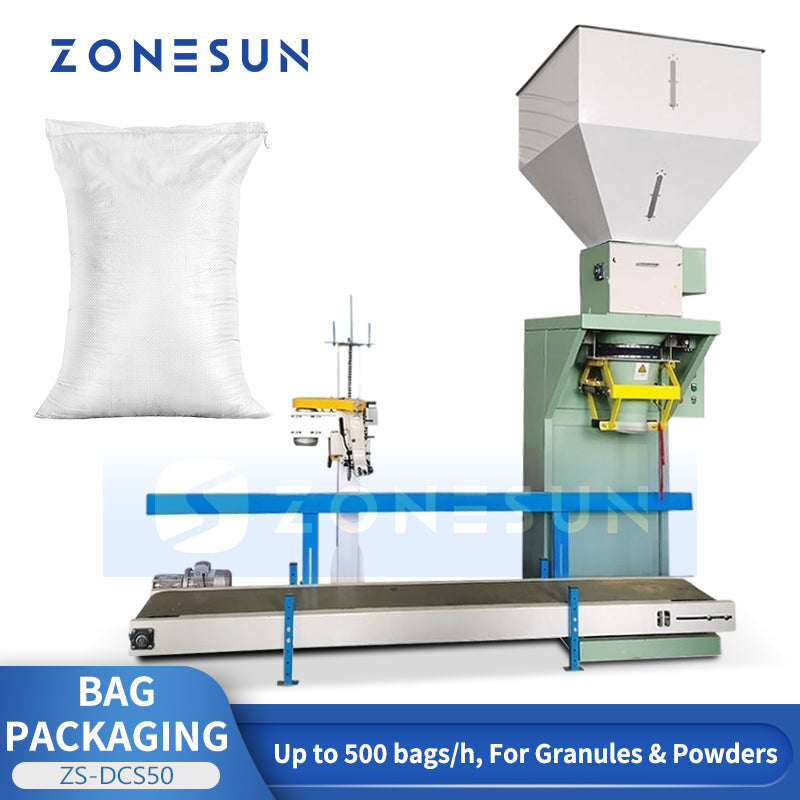

The ZONESUN ZS-DCS50 is a fully automatic large bag packing machine for granules and powders, with a throughput of up to 500 bags per hour. Built with SUS304 contact parts and PLC control, it ensures precise weighing, dust‑free filling, and secure sealing. Common packaging ranges include 15 kg, 25 kg, and up to 50 kg. The machine integrates automatic feeding, weighing, bag clamping, filling, and stitching or heat‑sealing into one streamlined workflow, delivering efficient, consistent, and hygienic performance for feed, fertilizer, grains, quartz sand, and chemical materials.
Parameter
- Model: ZS‑DCS50A
- Type: Single Work Station
- Material: SUS304 contact parts
- Gross Weight: 870 kg
- Packing Capacity: 150–300 bags/h
- Packing Range: 5–50 kg (customizable)
- Packing Accuracy: ±0.2%
- Power: 5.0 kW
- Voltage: AC 220 V / 380 V, 50 Hz, 1P/3P (customizable)
- Air Source: 0.4–0.6 MPa, 0.36 m³/min
Parameter
- Model: ZS‑DCS50B
- Type: Double Work Station
- Material: SUS304 contact parts
- Gross Weight: 960 kg
- Packing Capacity: 350–500 bags/h
- Packing Range: 5–50 kg (customizable)
- Packing Accuracy: ±0.2%
- Power: 7.0 kW
- Voltage: AC 220 V / 380 V, 50 Hz, 1P/3P (customizable)
- Air Source: 0.4–0.6 MPa, 0.36 m³/min

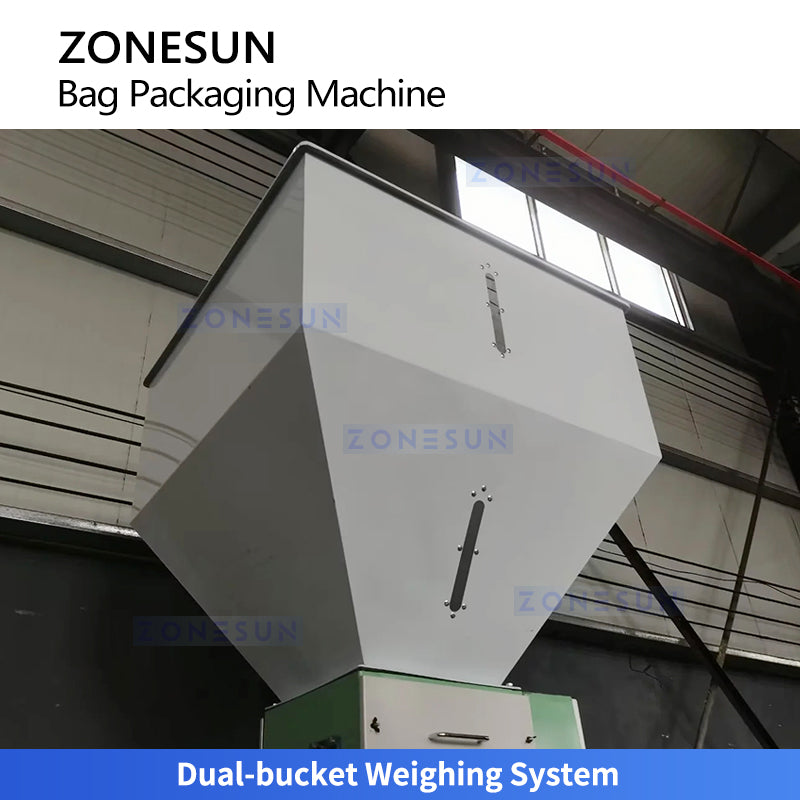

DUAL-BUCKET WEIGHING
Enables alternating measurement and cyclic filling, significantly shortening cycle times and achieving a throughput of over 600 bags per hour.

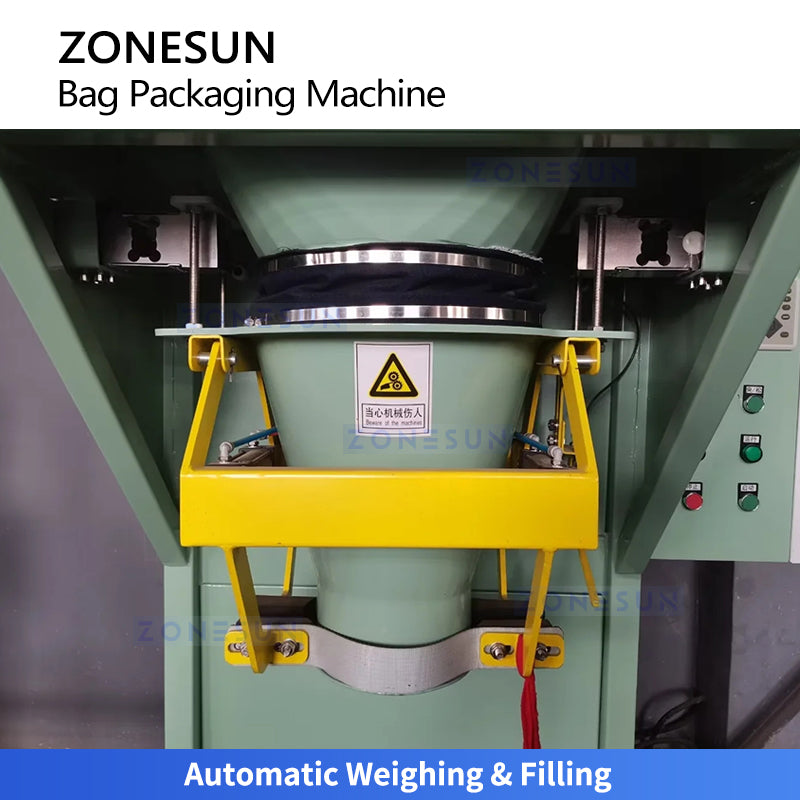

WEIGHING & FILLING
Automatic weighing of bulk materials according to preset targets and accurately fills them into bags via the clamping device, ensuring a dust-free filling process.

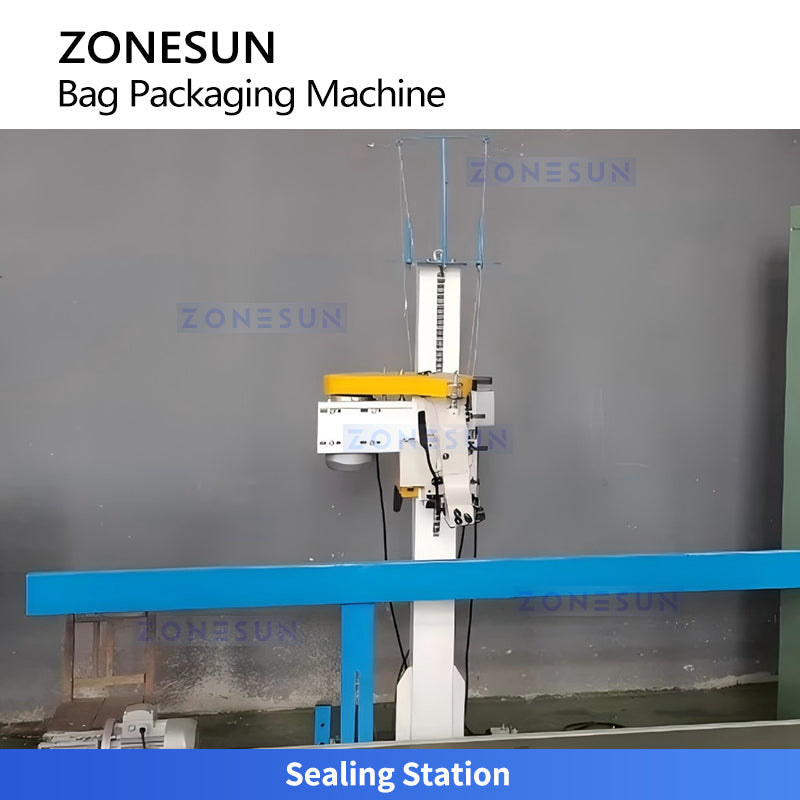

SEALING STATION
After filling, bags are automatically conveyed to the sealing station for stitching or heat-sealing, ensuring large bags are neatly sealed and securely closed.

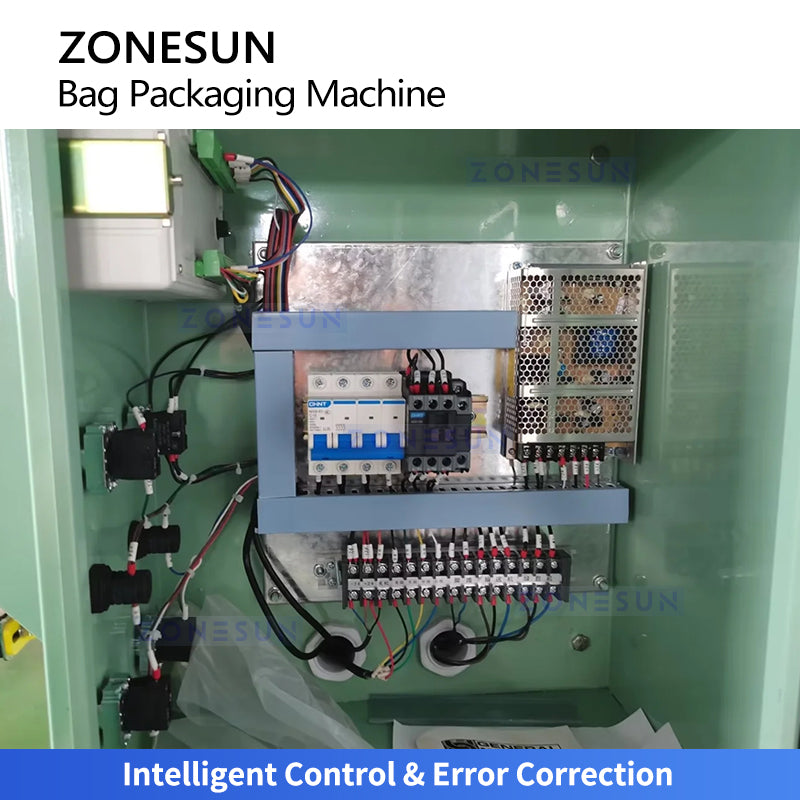

INTELLIGENT CONTROL
Real-time adjustment of feeding speeds based on material flow and automatic correction of weighing deviations ensure consistent weight for every bag.

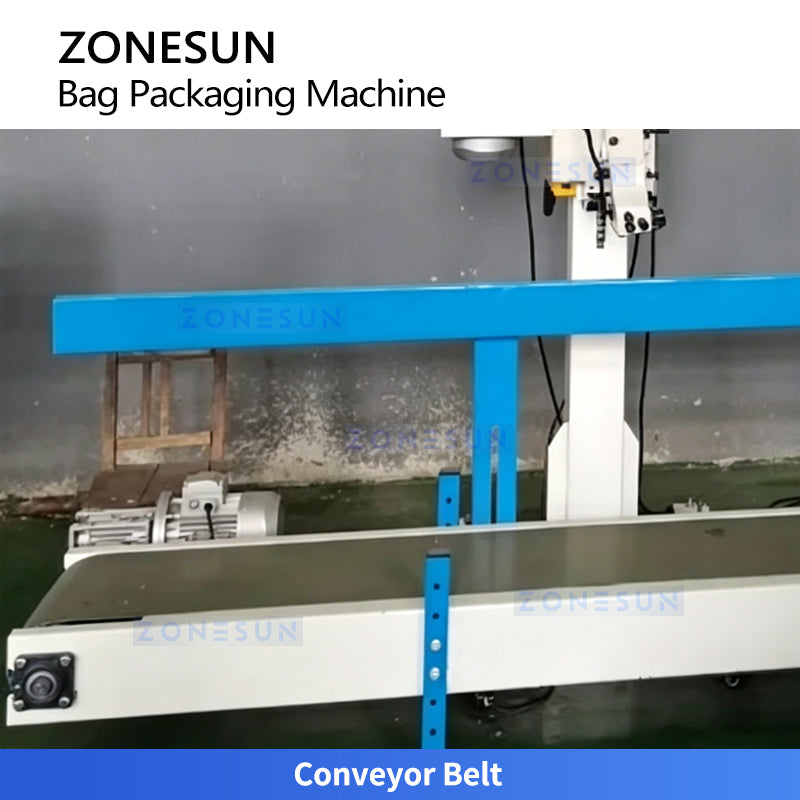

CONVEYOR BELT
Transfers filled bags smoothly and steadily to the sealing station, ensuring continuous operation and reliable downstream processing.
