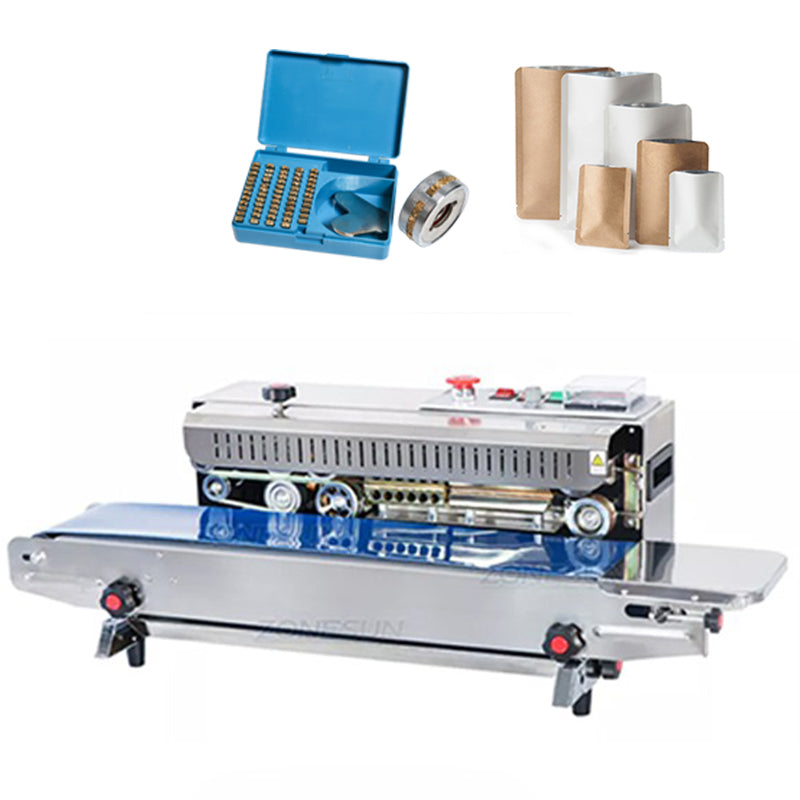

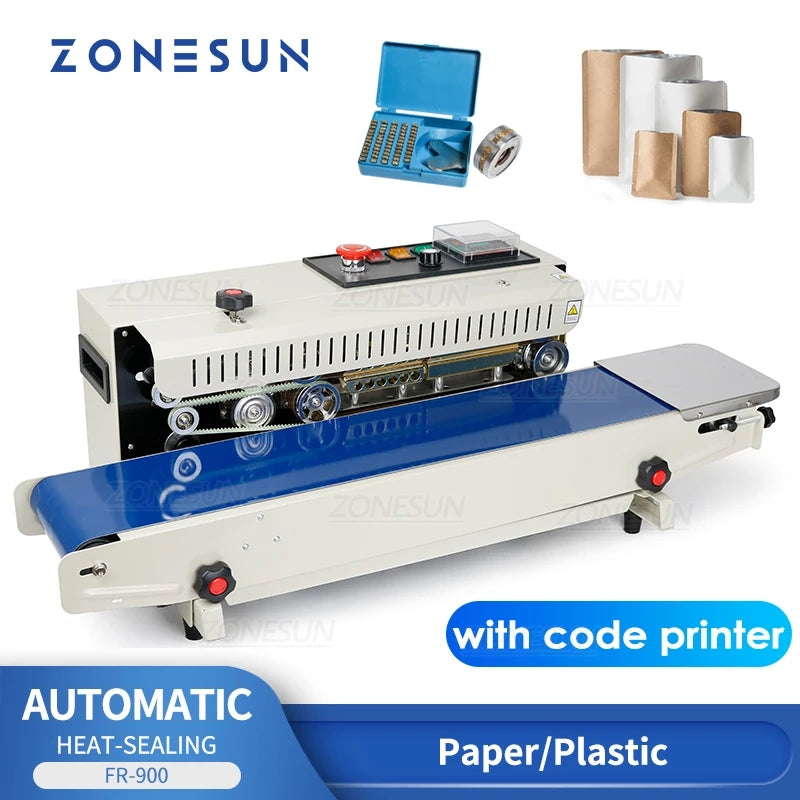

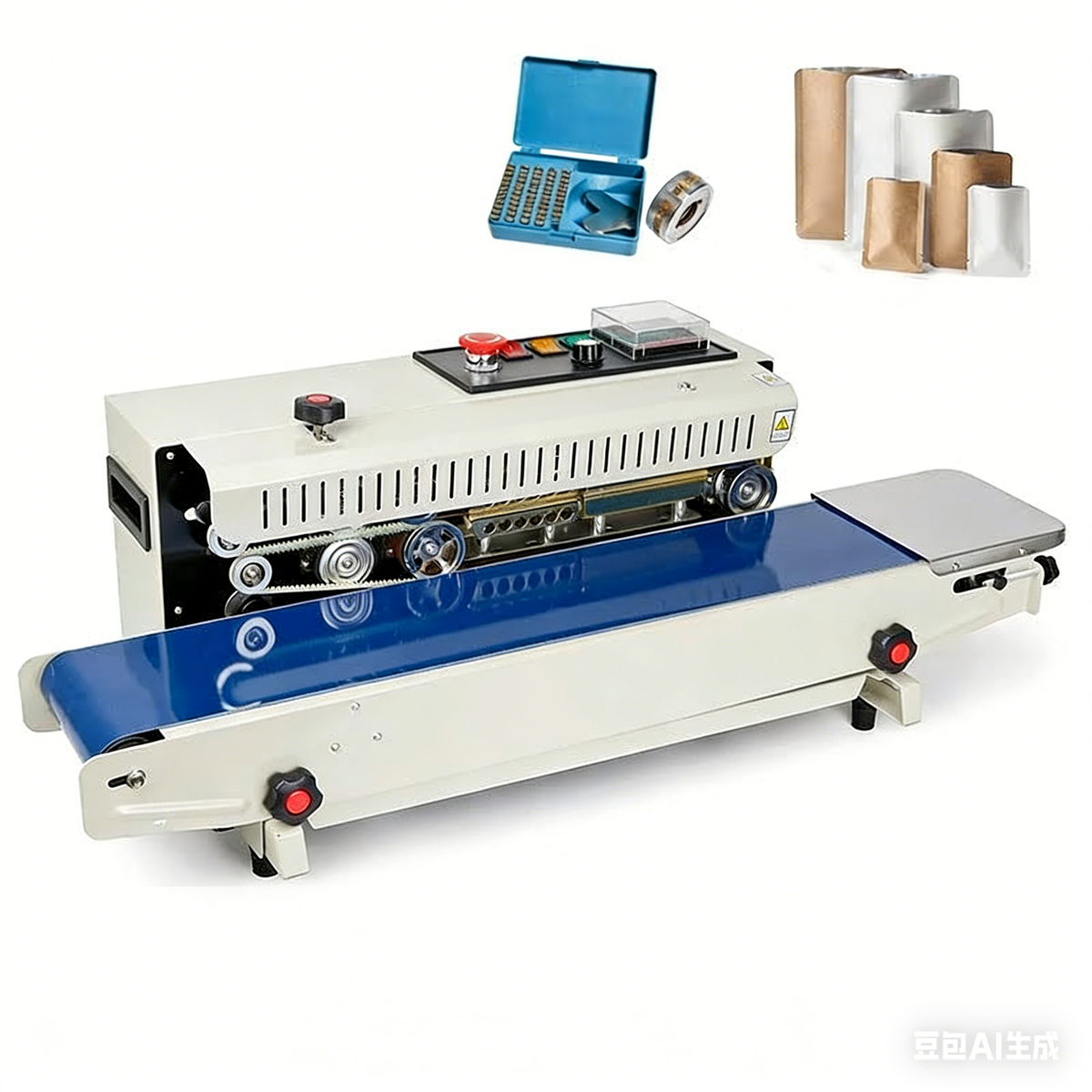

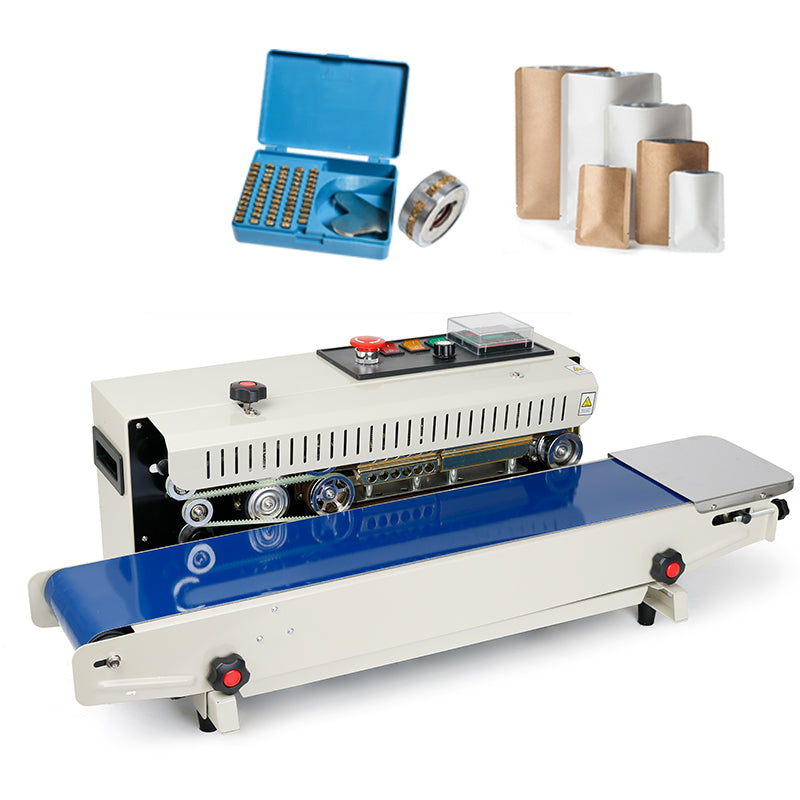

The ZONESUN ZS-FR900 Automatic Continuous Sealing Machine is designed for efficient sealing of kraft paper bags, aluminum foil bags, and storage pouches. Equipped with a built-in printing wheel, it can print production dates or batch numbers directly onto the packaging, streamlining your workflow and enhancing traceability. With adjustable sealing speed up to 12 m/min and a temperature range of 0–300 ℃, it ensures consistent, secure seals across various materials. Ideal for food, pharmaceutical, and industrial packaging applications.
Parameter
Machine Model FR-900
Voltage 220V / 110V, 50–60Hz
Power 500W
Sealing Speed 0–12 m/min
Sealing Width 6–12 mm
Temperature Range 0–300 ℃
Conveyor Size About 130 × 665 mm (Effective Length)
Number of Characters About 13
Conveyor Weight Capacity ≤3 kg

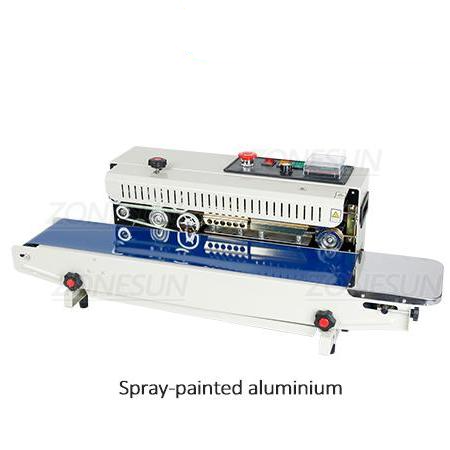

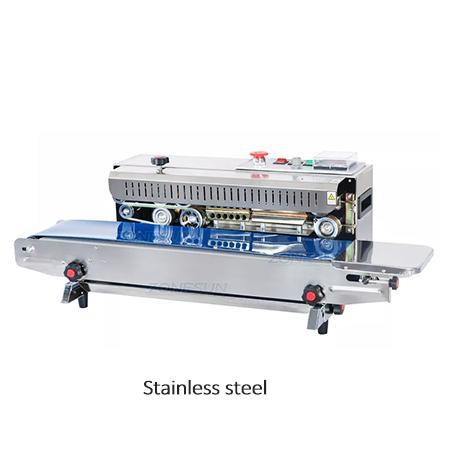

Machine Case Stainless Steel / Spray-Painted Aluminum
Machine Size About 840 × 380 × 265 mm
Machine Weight About 15 kg
Package Size About 900 × 420 × 340 mm
Package Weight About 16.5 kg

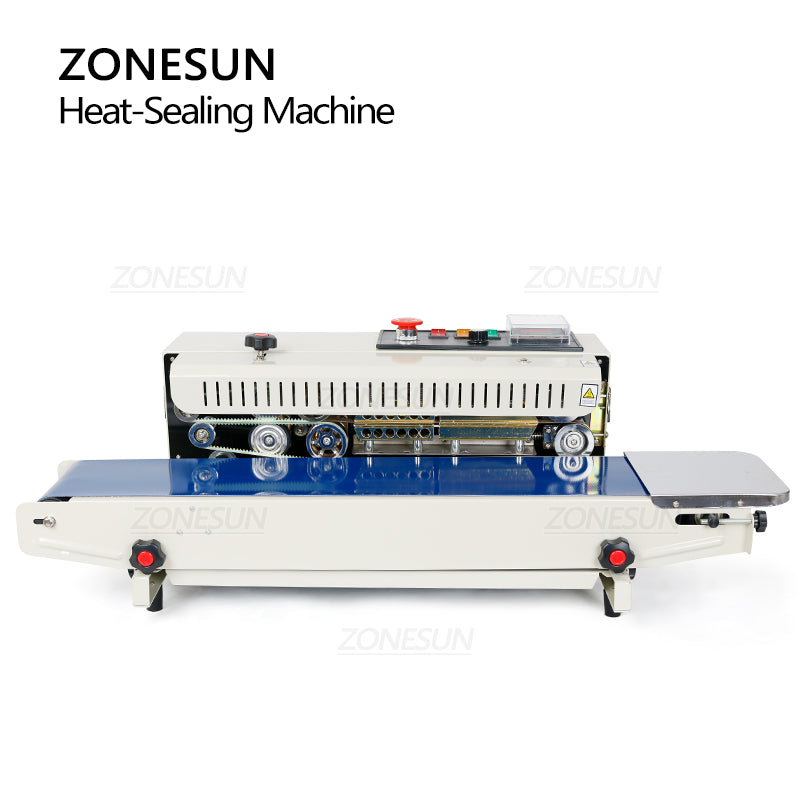

Automatic Continuous Heat Sealing
This machine continuously transfers and heat-seals packaging bags, using replaceable components for routine operation.
Bag Applications
Suitable for sealing the paper, plastic, and laminated packaging bags shown in the image.
Sealing Effects
The replaceable pattern wheels create the sealing and embossed patterns shown in the image.

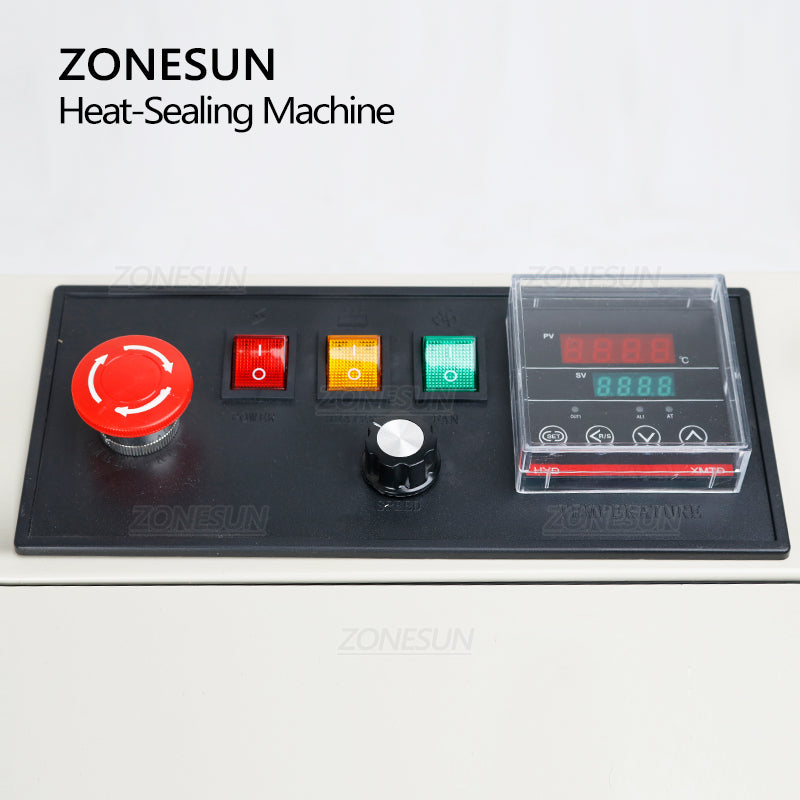

Control Panel
The simple control panel provides convenient access to machine operation and temperature settings.

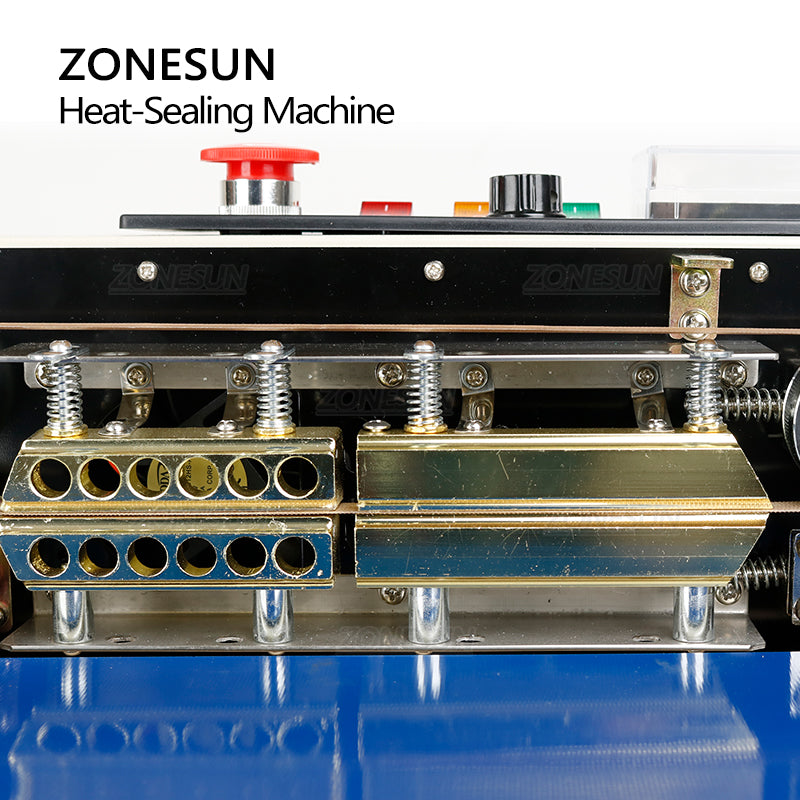

Heating and Cooling Blocks
Pure-copper heating and cooling blocks heat up and cool down quickly during continuous sealing.
Replaceable Embossing Wheel
The embossing wheel can be replaced to suit different sealing and coding requirements.
Pressure Adjustment
The rotary knob adjusts the working pressure applied by the embossing wheel.

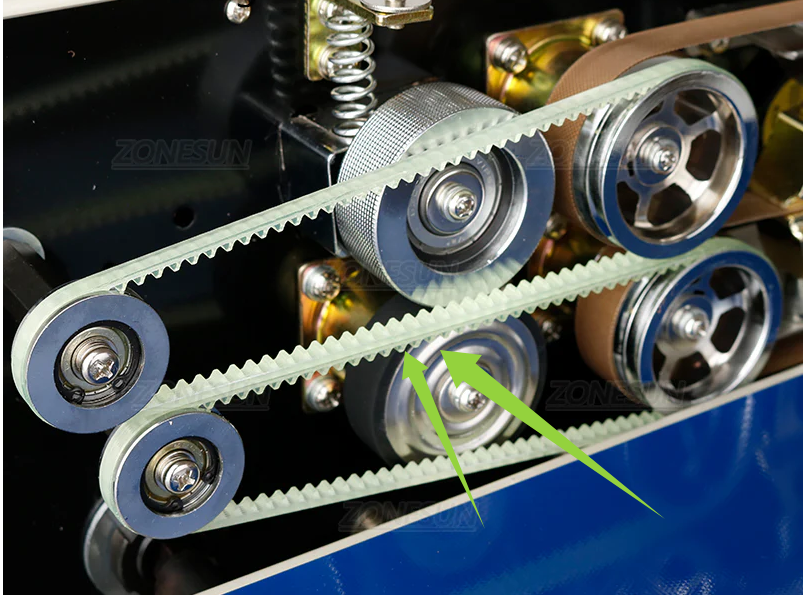

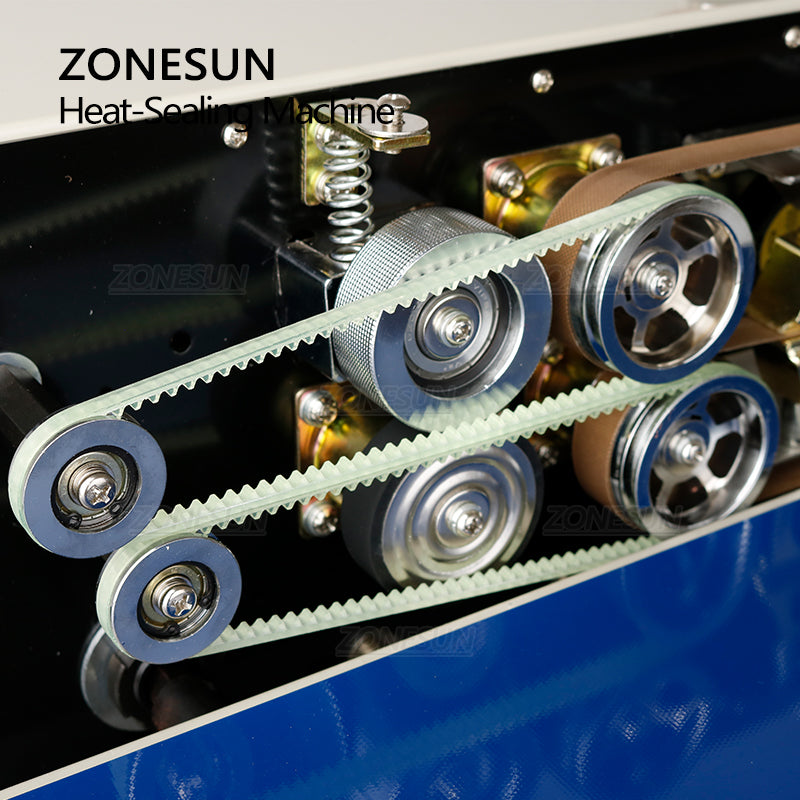

Wear-Resistant Conveyor Belt
The abrasion-resistant conveyor belt transfers bags steadily through the sealing area.
