Description

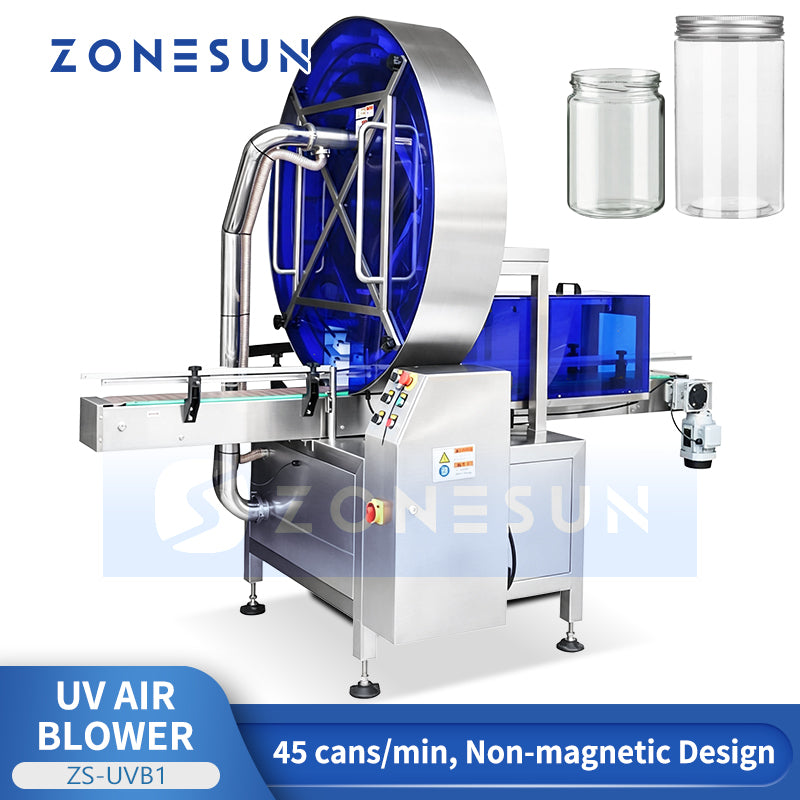

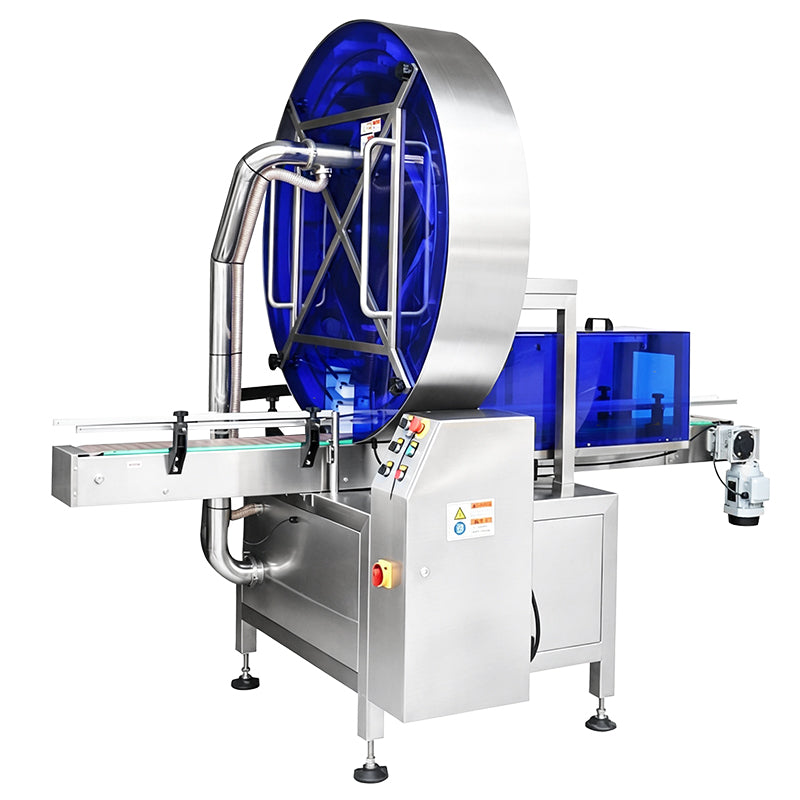

The ZONESUN ZS-UVB1 is a fully automatic UV bottle sterilization and air blowing machine designed to clean bottles, jars, and similar containers before filling. It combines sterile compressed air blowing with 7-lamp UV treatment to remove dust, loose particles, and microorganisms from container interiors, ensuring hygienic packaging conditions.
A rotary handling system guides containers continuously through the cleaning and sterilization process, supporting stable operation at up to 45 containers per minute with adjustable sterilization time of 30–60 seconds. Compatible with containers from Φ76–150mm diameter, 80–200mm height, the ZS-UVB1 integrates seamlessly into milk powder, food, pharmaceutical, and other hygienic packaging lines requiring container pre-filling cleaning and sterilization.
Parameter
- Model: ZS-UVB1
- Container Sizes: Φ76–150 mm diameter, 80–200 mm height (Slight speed reduction for square containers with diagonal ≤150 mm)
- Production Rate: ≤45 cans/min, variable speed
- Sterilization System: 7 × 25W internal UV lamps (Note: UV cannot penetrate cover; do not open during operation)
- Sterilization Time: 30–60 sec, adjustable (40 sec ≈ 30 cans/min efficiency)
- Motor Power: Vacuum/blow: 0.5 kW; Conveyor: 0.37 kW; Turntable: 0.18 kW; UV lamps: 7×25W; Total: 1.1 kW
- Power Supply: 3-phase 380V, 50–60 Hz
- Conveyor Dimensions: 2.5 m length × 0.9 m height × 190 mm width
- Machine Size (L×W×H): 2400 × 1300 × 2200 mm
- Packing Size (L×W×H): 2600 × 1450 × 2400 mm
- Weight: 350 kg

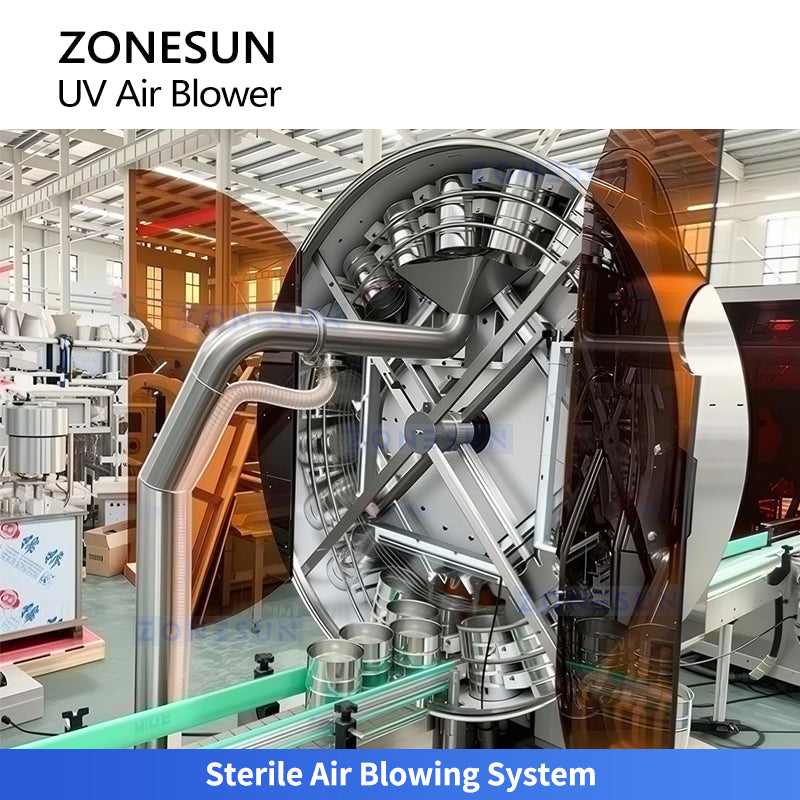

Sterile Air Blowing System
Using clean compressed air to remove dust and particles inside bottles, ensuring a hygienic interior and improving filling cleanliness.

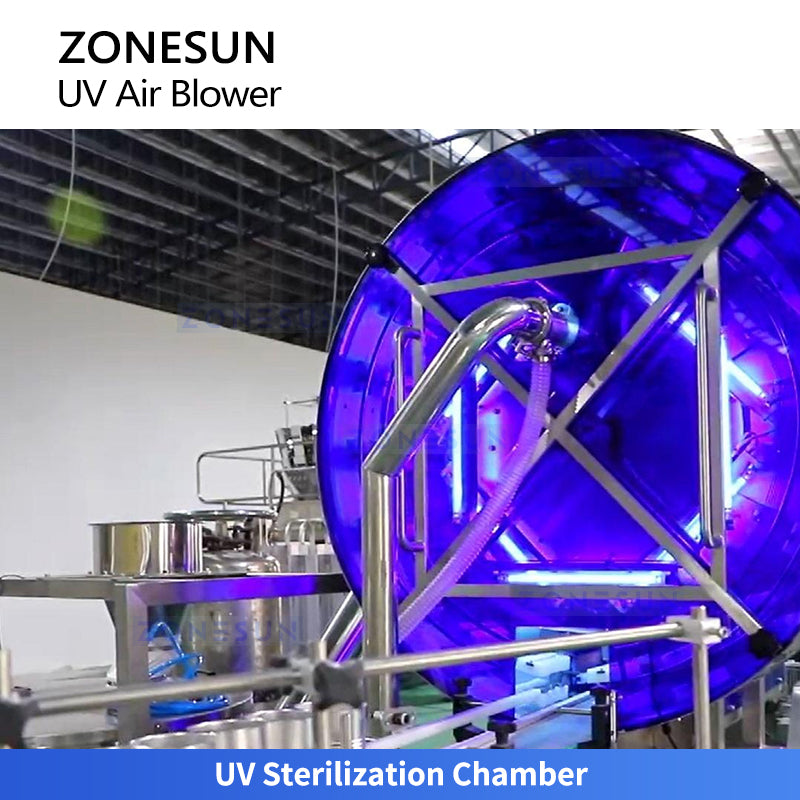

UV Sterilization Chamber
Using UV lamps to sterilize the inside of bottles, effectively reducing microbial contamination and ensuring hygienic packaging conditions.

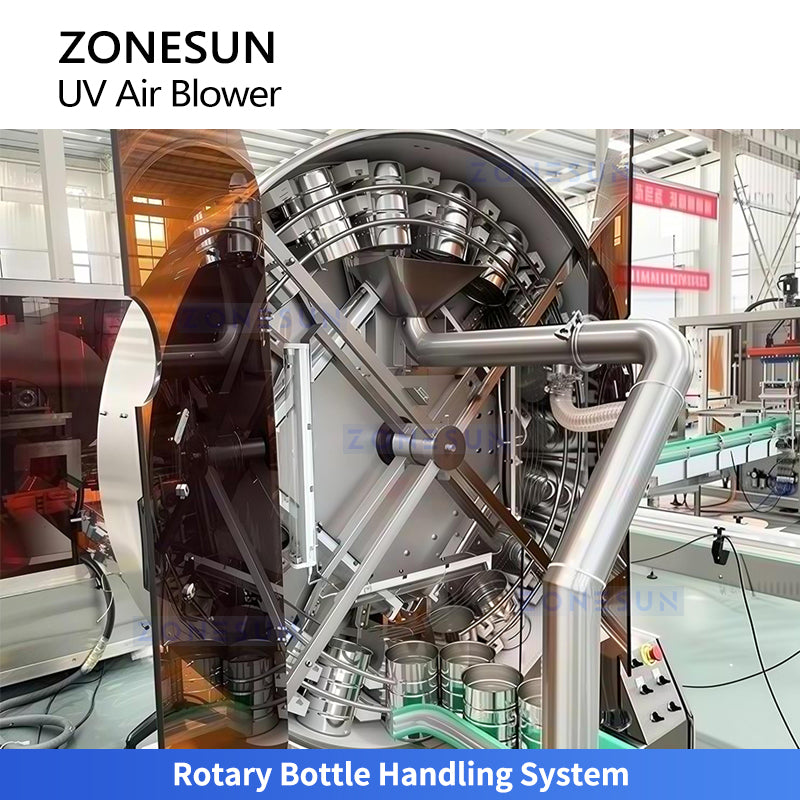

Rotary Bottle Handling System
Using a rotary handling system to smoothly invert and transport bottles, ensuring uniform air blowing and UV sterilization with customized grooves for different container sizes.

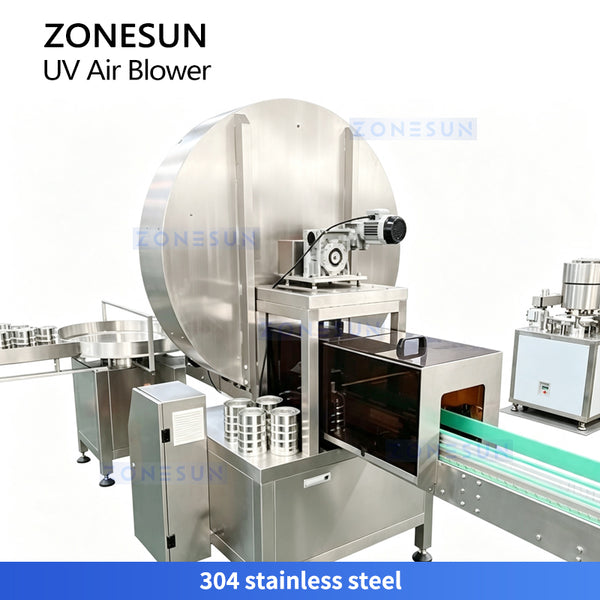

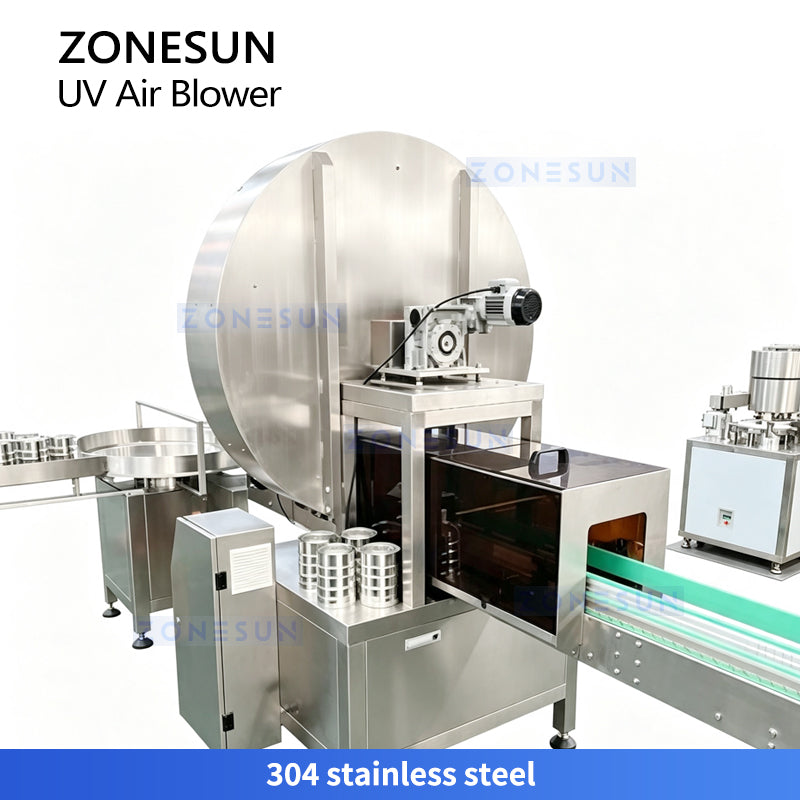

304 Stainless Steel Construction
Using 304 stainless steel construction to ensure durability, easy maintenance, and hygienic operation in clean production environments.

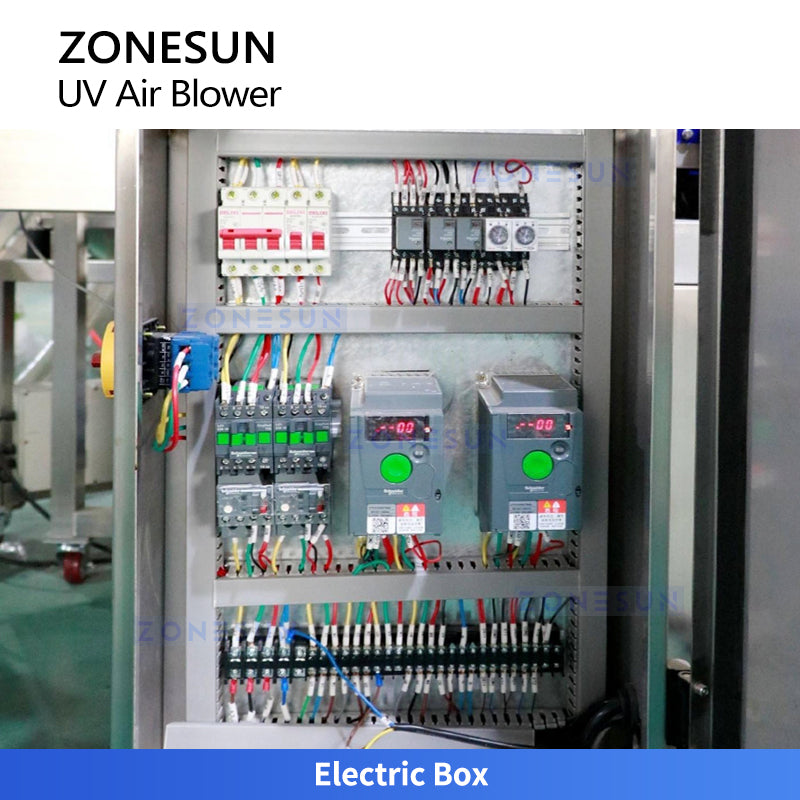

Electric Control Box
Equipped with an integrated electrical control system to manage UV sterilization, air blowing, and bottle handling operations, ensuring smooth and automated production.
Why Choose the ZS-UVB1?
✅ Dual-Action Cleaning — Sterile Air Blowing + UV Sterilization: Combines sterile compressed air blowing to remove physical contaminants (dust, particles) with 7-lamp UV irradiation to reduce microbial contamination — providing comprehensive container interior cleaning in a single automated pass before filling
✅ 7 Internal UV Lamps — Thorough Sterilization Coverage: Seven UV lamps positioned inside the sterilization chamber ensure comprehensive UV irradiation coverage of container interiors, with adjustable sterilization time from 30–60 seconds to match different container sizes and hygiene requirements
✅ Rotary Inversion Handling — Uniform Interior Treatment: Rotary handling system smoothly inverts containers during processing, ensuring sterile air blowing and UV irradiation reach all interior surfaces uniformly — eliminating untreated zones that could harbor contamination before filling
✅ ≤45 Containers/Min Variable Speed — Flexible Production Rate: Variable speed operation from 10 to 45 containers per minute accommodates different production line speeds and container sizes, with speed adjustable to match downstream filling machine throughput for seamless line integration
✅ Wide Container Compatibility (Φ76–150mm, 80–200mm Height): Accommodates round containers from 76mm to 150mm diameter and 80mm to 200mm height, plus square containers with diagonal ≤150mm — covering milk powder cans, food jars, pharmaceutical bottles, and other standard container formats
✅ SUS304 Stainless Steel — Hygienic & Durable: Full SUS304 stainless steel construction meets food-grade and pharmaceutical hygiene standards, providing corrosion resistance, easy cleaning, and long-term durability in clean production environments
✅ Seamless Filling Line Integration: Designed for direct integration into milk powder, food, pharmaceutical, and other hygienic packaging lines as a pre-filling container cleaning station, with conveyor dimensions (2.5m × 190mm) compatible with standard filling line conveyor systems
Ideal Applications
Milk Powder & Dairy Container Preparation: Pre-filling UV sterilization and air blowing of milk powder cans, infant formula containers, and dairy product jars requiring hygienic interior cleaning before powder or liquid filling in food-grade production environments
Pharmaceutical Bottle Pre-Filling Cleaning: UV sterilization and sterile air blowing of pharmaceutical bottles, supplement containers, and nutraceutical jars requiring microbial reduction and particle removal before filling in GMP-compliant packaging lines
Food & Beverage Container Sterilization: Pre-filling cleaning of food product jars, sauce containers, condiment bottles, and beverage containers requiring dust removal and UV sterilization before filling in hygienic food packaging operations
Nutritional Product Container Preparation: UV sterilization and air blowing of protein powder containers, sports nutrition jars, vitamin supplement bottles, and health food containers requiring clean, sterile interiors before filling
Cosmetic & Personal Care Container Cleaning: Pre-filling sterile air blowing and UV treatment of cosmetic jars, cream containers, and personal care product bottles requiring hygienic interior cleaning before filling in cosmetic manufacturing environments
