ZONESUN ZS‑GFYT320 Automatic Liquid Pouch Filling & Sealing Machine
Klicken Sie auf das Bild, um die erweiterte Ansicht zu öffnen
zonesun filling and sealing machine
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
zonesun filling and sealing machine
ZONESUN ZS‑GFYT320 Automatic Liquid Pouch Filling & Sealing Machine

ZONESUN ZS‑GFYT320 Automatic Liquid Pouch Filling & Sealing Machine

Preis
$9,899

Please click "Buy It Now". Shipping will be calculated at checkout.

Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

Depending on the selected shipping method, import duties, customs clearance fees, local taxes, and other destination charges may apply. These charges are determined by the relevant authorities and service providers at the destination.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

The ZONESUN ZS‑GFYT320 is a high‑efficiency automatic liquid pouch filling and sealing machine, ideal for products such as peanut butter, tahini, almond paste, chili sauce, and more. Built with a large hopper, a powerful 4 kW motor, and a wide outlet, it delivers excellent throughput in a space‑saving design. Made from durable 304 stainless steel, it supports multiple sealing formats — back side, three‑side, or four‑side — and works with various films including OPP/CPP, OPP/PE, and NILO PE. Featuring customizable filling volumes (50–500 ml), precise filling accuracy (≤ 0.3–1%), and adjustable conveying speed, this machine meets the demands of both food and daily chemical industries with reliability and flexibility.

PARAMETER

Machine Model

ZS-GFYT320

Voltage

110/220/380V 50-60Hz

Power

4kW

Suitable Film

OPP/CPP OPP/PE NILO PE

Filling Range

50-500ml(Can be customized)

Package Speed

5-60bags/min

(depend on liquid and bag's size)

Width of Film

Max 320mm

Size of Package Bags

(W)50-150mm*(L)50-400mm

Sealing Method

Back side/Three sides/Four sides (Customize)

Filling Accuracy

≤0.3-1%

Film Thickness

0.06-0.12mm

Air Pressure

0.65Mpa 0.7m³/min

Lifting Height

About 1200mm

Conveying Speed

50-300mm/s(Adjustable)

Machine Size

About 830*1080*1450mm

Machine Weight

About 289kg
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder

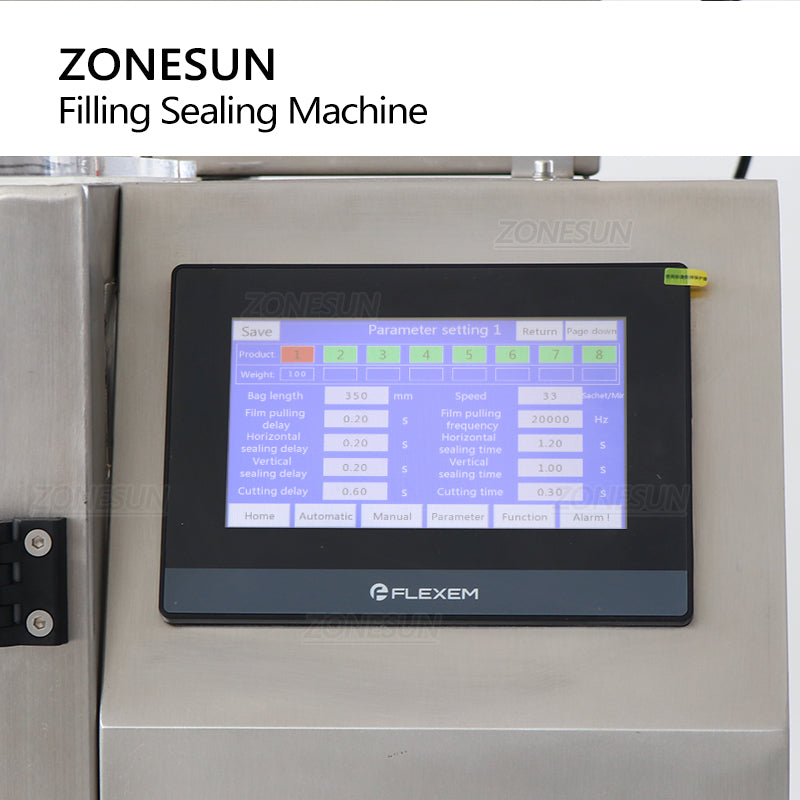

PLC Control Panel: The touchscreen makes working parameters easy to set and can be customized in language.

Piston Filling: The piston filling system provides efficient filling, with filling speed and interval adjustable for different filling ranges.

ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder

Sealing Area: The sealing jaws seal bags firmly, with adjustable sealing temperature.

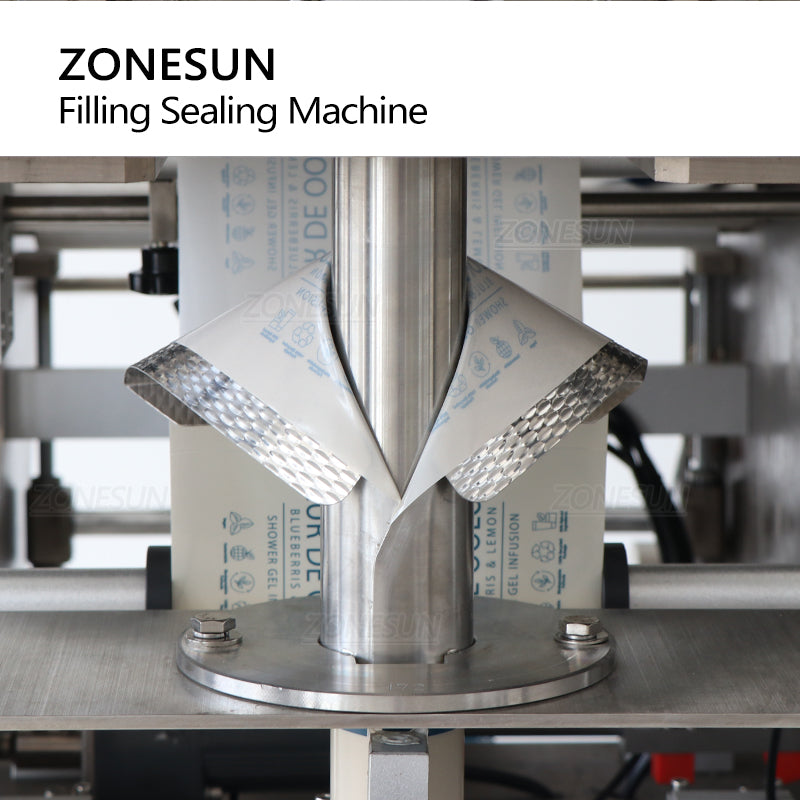

Bag Forming Structure: The forming structure shapes the pouch and can be configured to help improve production quality.

ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder

Date Coder: Prints production dates or batch numbers automatically.

ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder
ZONESUN ZS-GFYT320 Automatic Liquid Pouch Filling Sealing Machine With Date Coder

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
