DESCRIPTION

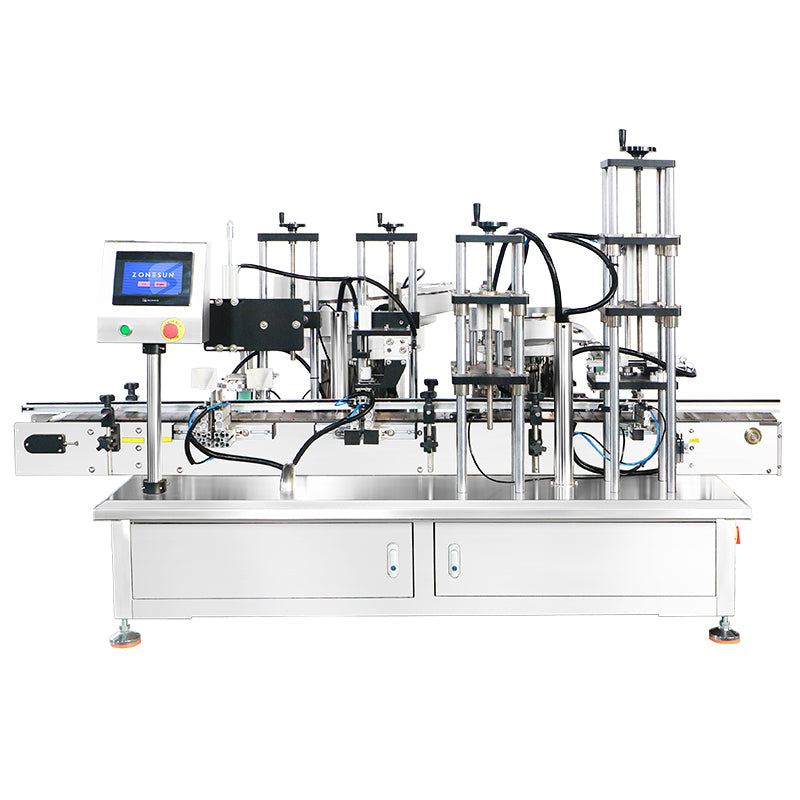

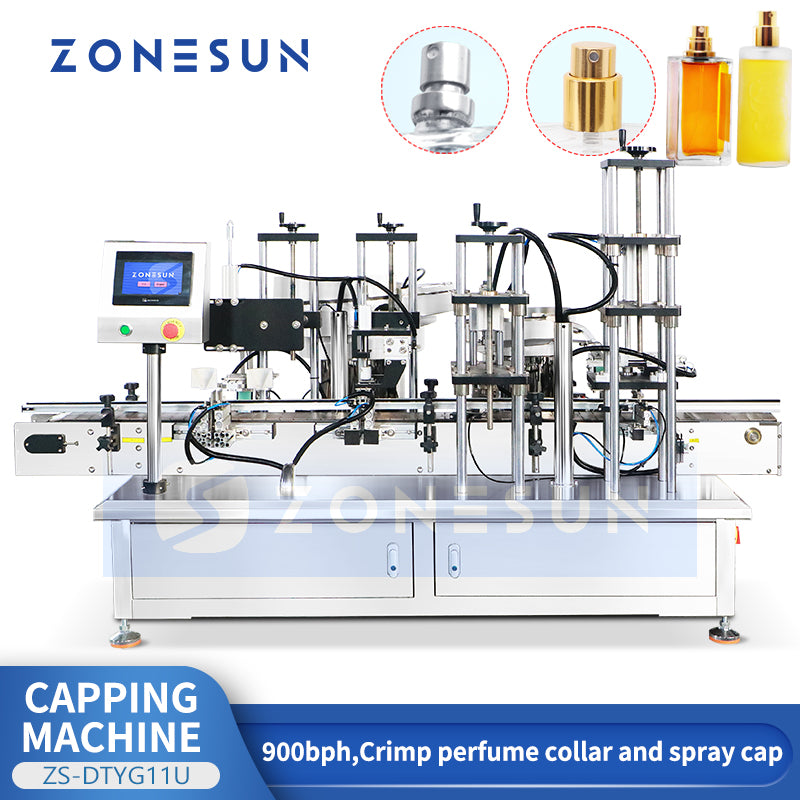

Maximize your perfume production efficiency with our automated tabletop capping machine. This high-speed machine boasts a capacity of 900 bottles per hour, featuring two bowl feeders for seamless spray cap and collar ring supply. Bottles are conveyed along a belt to the spray cap placing and positioning stations, followed by collar ring placement and pressing. Its compact design and user-friendly interface make it ideal for various production scales. Improve your output, reduce labor costs, and ensure consistent quality with this reliable and efficient capping solution.
Parameter
- Machine model: ZS-DTYG11U
- Voltage: 220V/110V 50-60Hz
- Power: 1.5 kW
- Capping Speed: About 10-15 Bottles/min (depending on bottle and cap size)
- Suitable Bottle Height: 50-200 mm
- Bottle Cap Diameter: 15-22 mm
- Bottle Mouth Diameter: 14-20 mm
- Suitable Bottle Diameter: 40-110 mm
- Machine Size:
- Main Machine: About 2300*750*1780 (LWH)
- Vibratory Bowl Sorter: About 440*440*1370
- Vibratory Bowl Sorter-1: About 350*350*1270
-

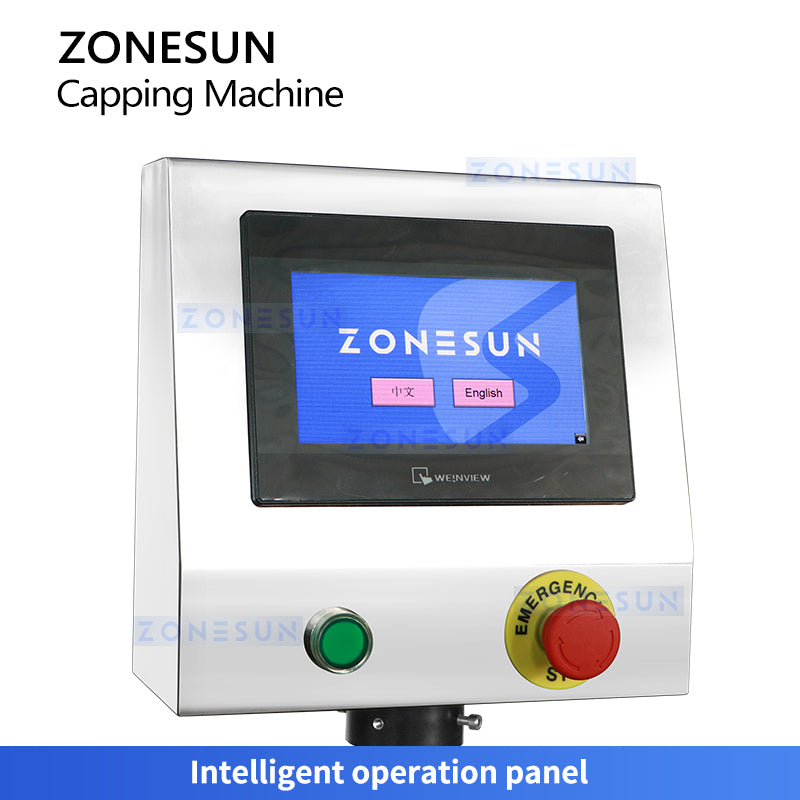

Touchscreen Parameter Control
The touchscreen simplifies parameter setting, machine adjustment, and fault checking.
-

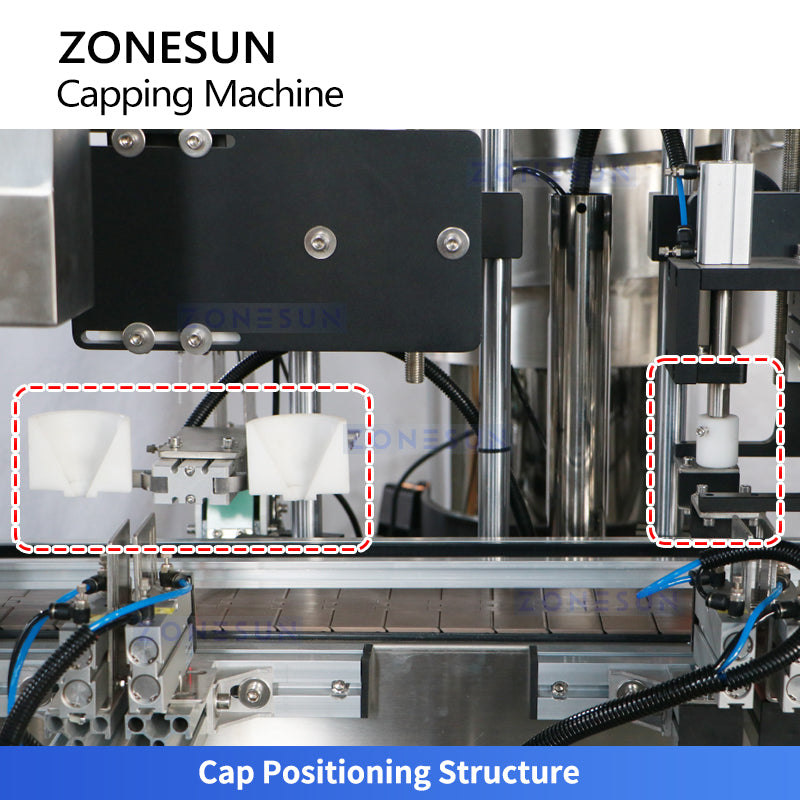

Automatic Spray-Cap Positioning
The positioning mechanism places and aligns spray caps before crimping to improve operating accuracy.
-

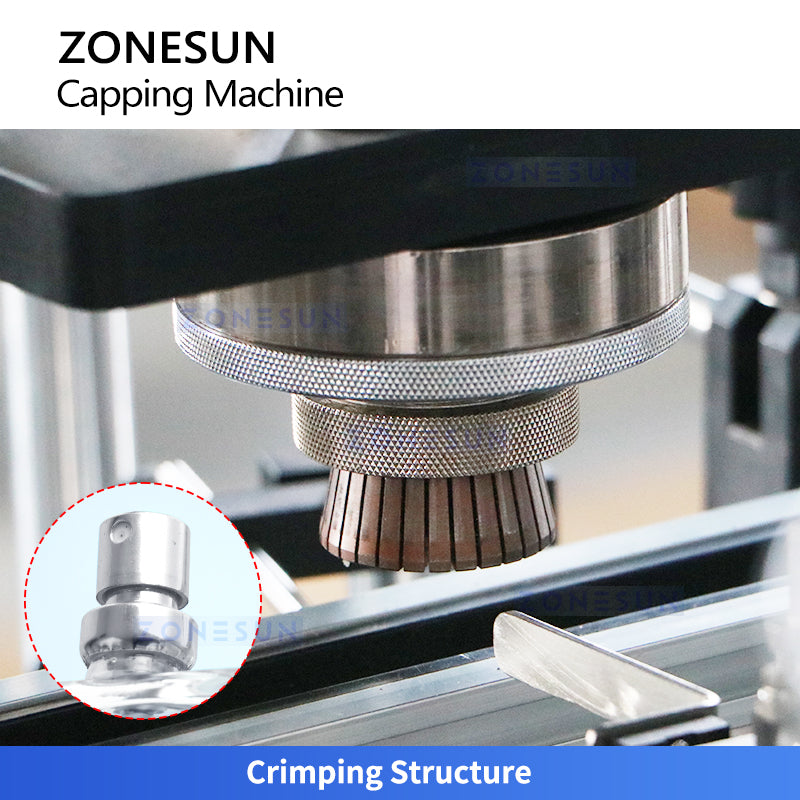

Interchangeable Crimping Head
The crimping head can be changed for different spray-cap sizes to expand the machine's application range.
-

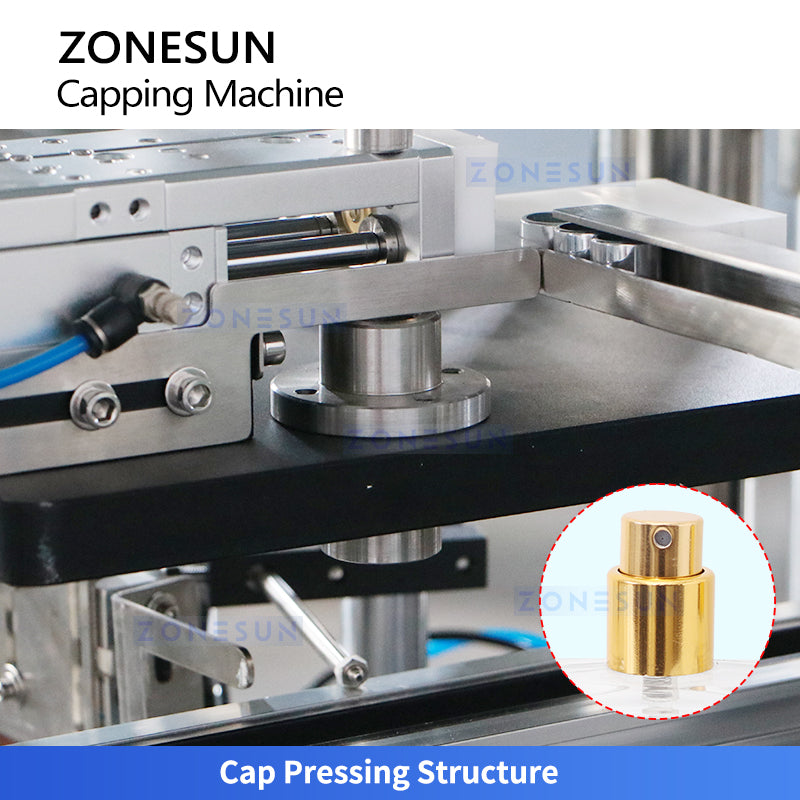

Collar and Press-On Cap Pressing
The pressing station installs collar rings and press-on spray caps, with tooling customizable for different cap sizes.
-

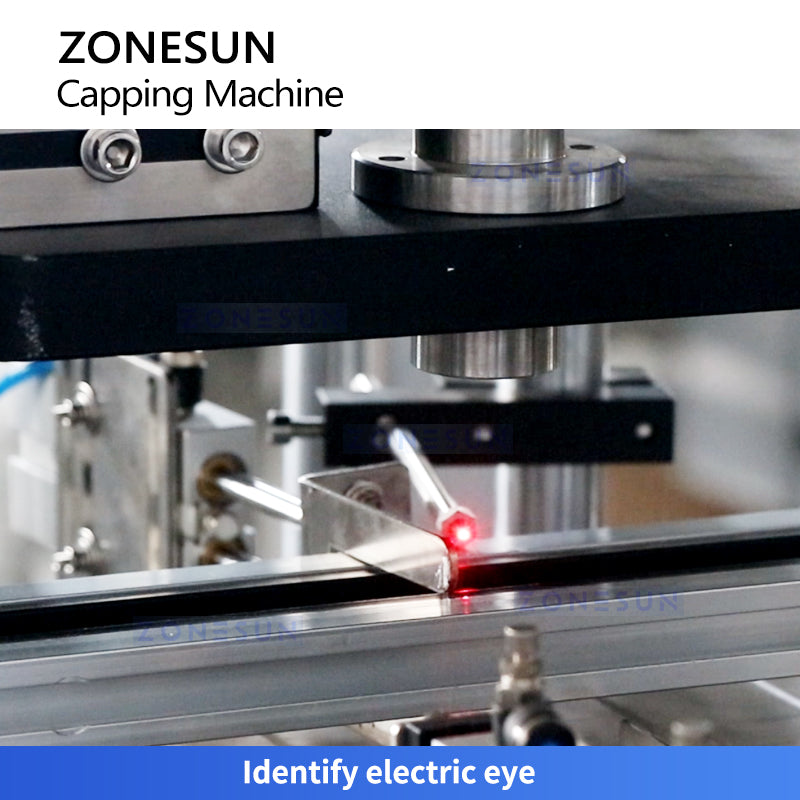

Photoelectric Bottle Detection
The photoelectric sensor detects passing bottles and triggers the automatic cap-crimping cycle.
-
