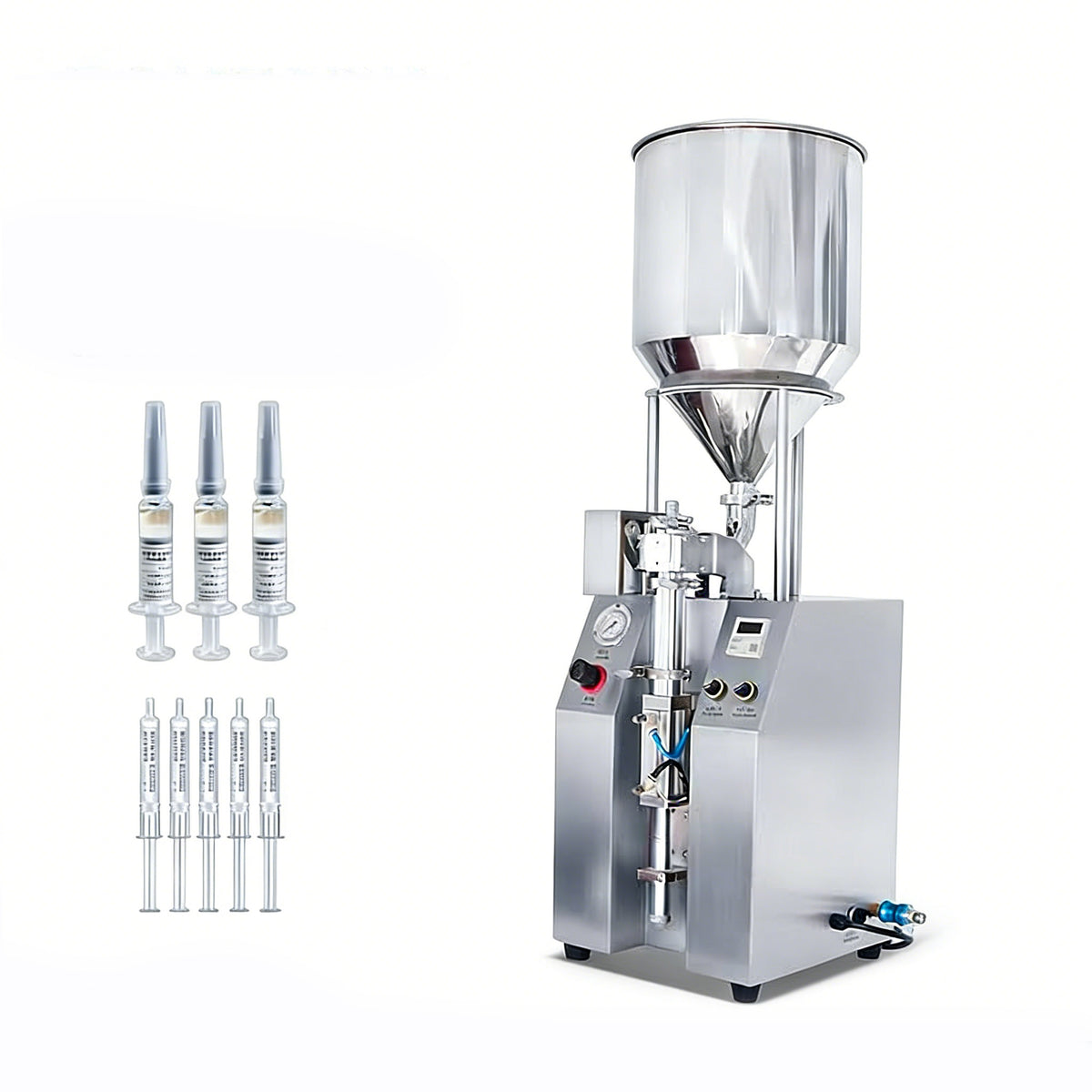

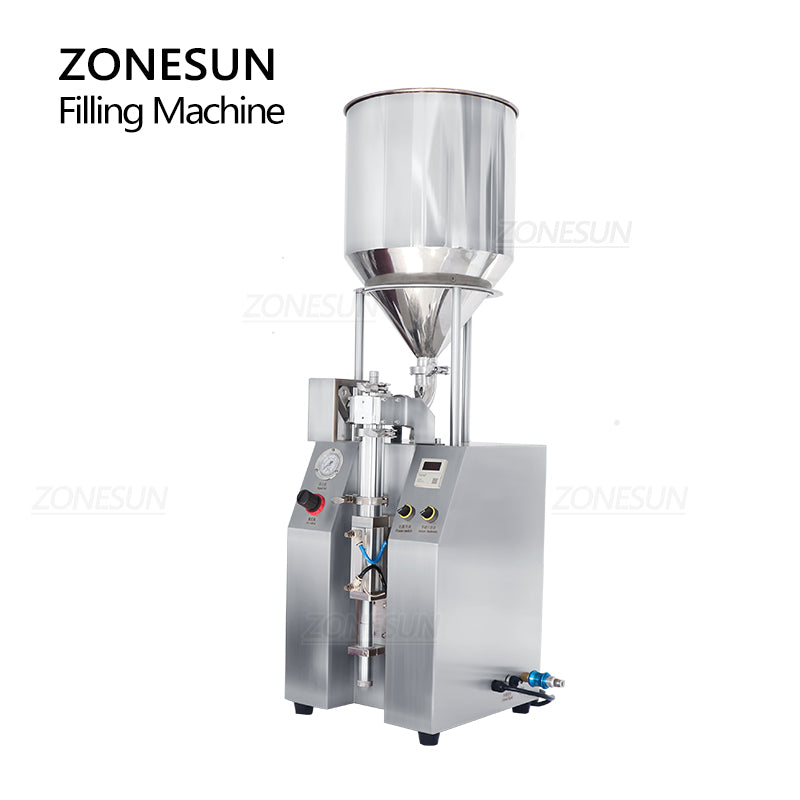

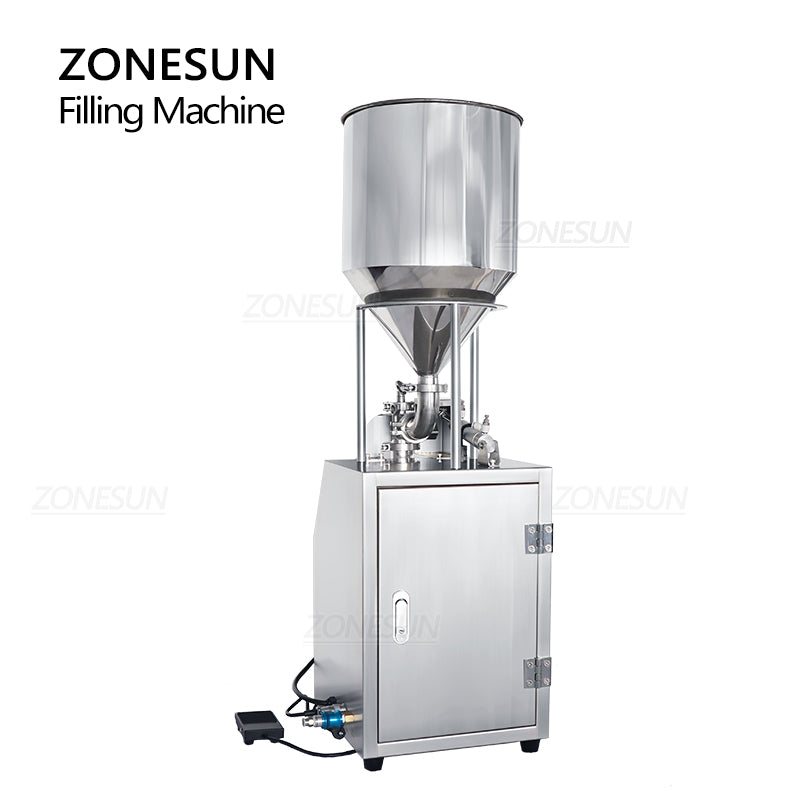

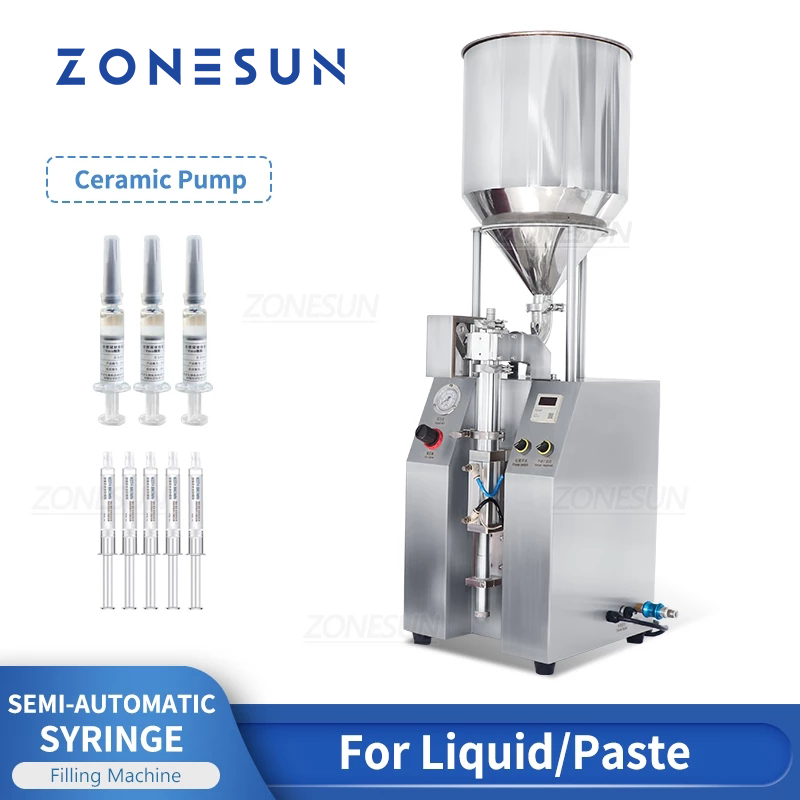

The ZONESUN ZS‑YTCP12V Pneumatic Syringe Filling Machine is a semi‑automatic unit equipped with a high‑precision ceramic plunger pump for accurate dosing of liquids and pastes. Designed for syringe filling, it achieves an accuracy of ≤ ±0.5 %, making it ideal for applications in cosmetics and medical industries. With multiple filling range options (1–12 ml, 2–25 ml, 5–50 ml), stainless steel construction, and a 20 L hopper, this compact and durable machine delivers consistent performance for small to medium‑scale production.
ZS‑YTCP12V — Specifications
Parameter Details
Machine Model ZS‑YTCP12V
Machine Pump Ceramic plunger pump
Voltage 110 V / 220 V, 50‑60 Hz
Filling Range 1 – 12 ml / 2 – 25 ml / 5 – 50 ml
Working Speed 0 – 60 pieces/min (based on liquid & volume)
Air Pressure 0.4 – 0.6 MPa
Hopper Size 20 L
Filling Accuracy ≤ ±0.5 %
Machine Material Stainless steel
Machine Size Approx. 325 × 325 × 1050 mm
Machine Weight Approx. 24 kg

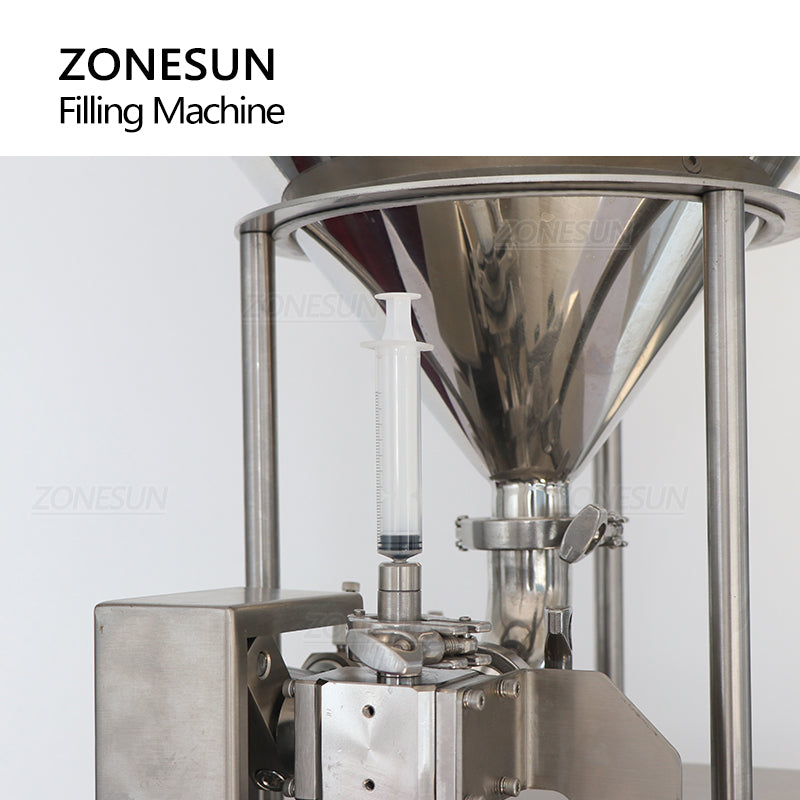

Feeding Hopper
The large hopper makes it convenient to load filling materials and supports fast feeding of liquid or paste.

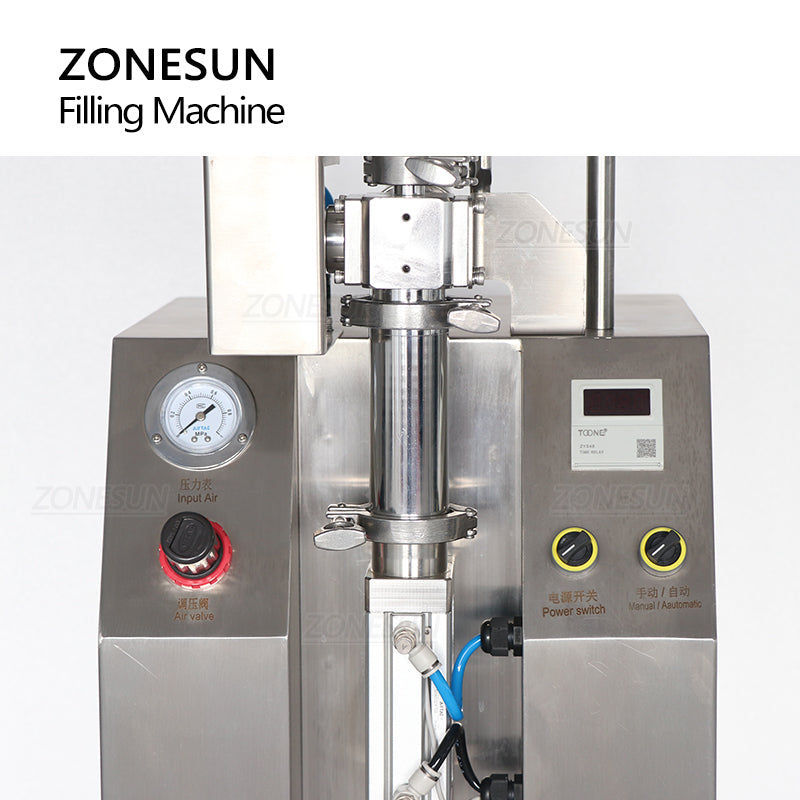

SIMPLE PANEL
The digital panels will show working parameters in real time, making it easy to control the machine. Easy and convenient.
CERAMIC PUMP
With ceramic pump, this machine can fill liquid/paste accurately, which is suitable for filling eye cream, serum, essential oil.

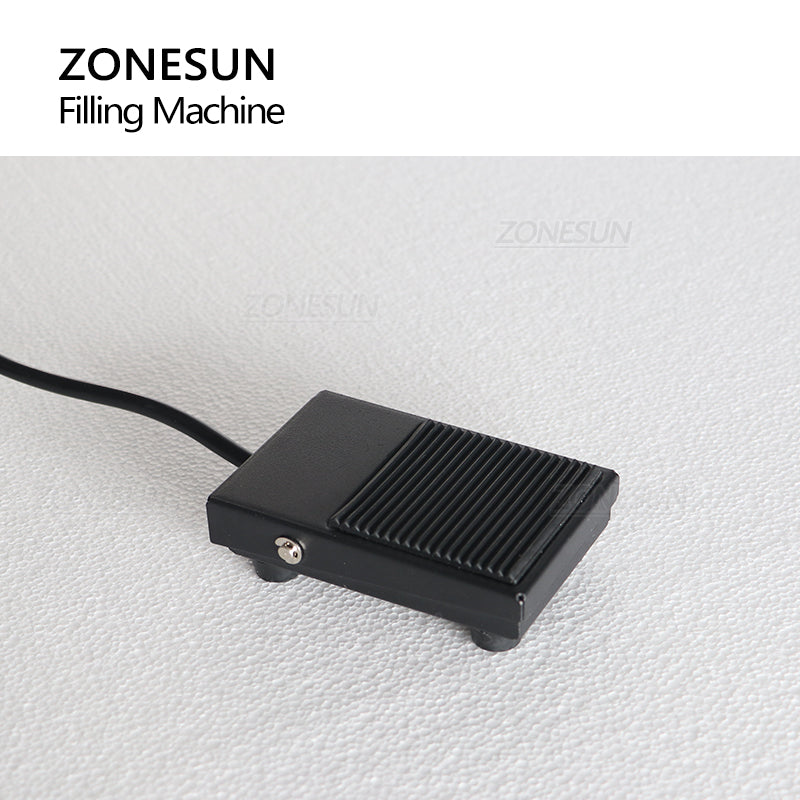

PEDAL SWITCH
This machine has automatic working mode and manual mode. In manual mode, you can press pedal switch to control the machine. Easy to operate.
