Description

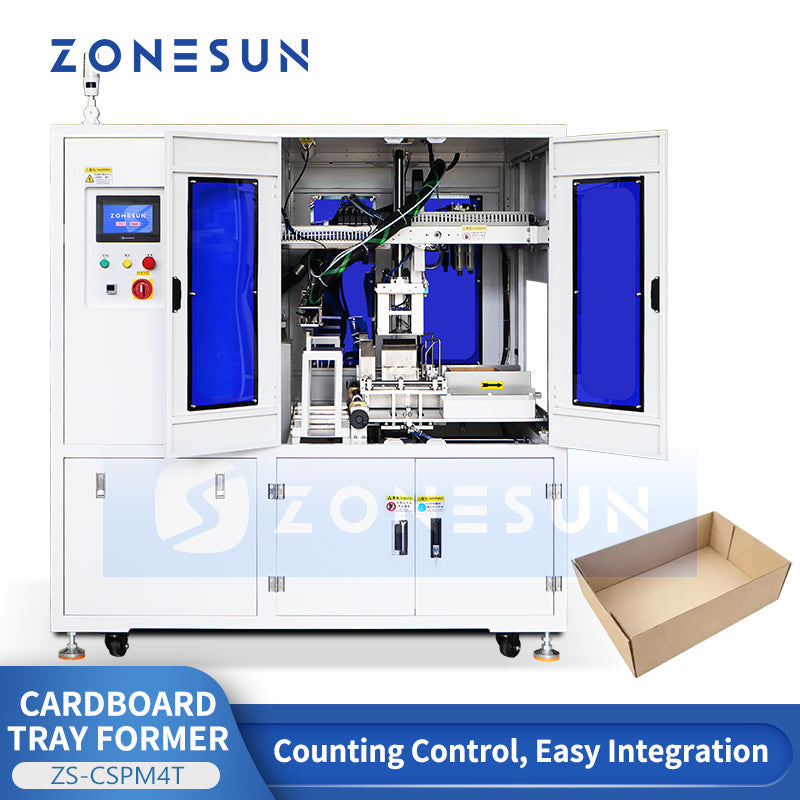

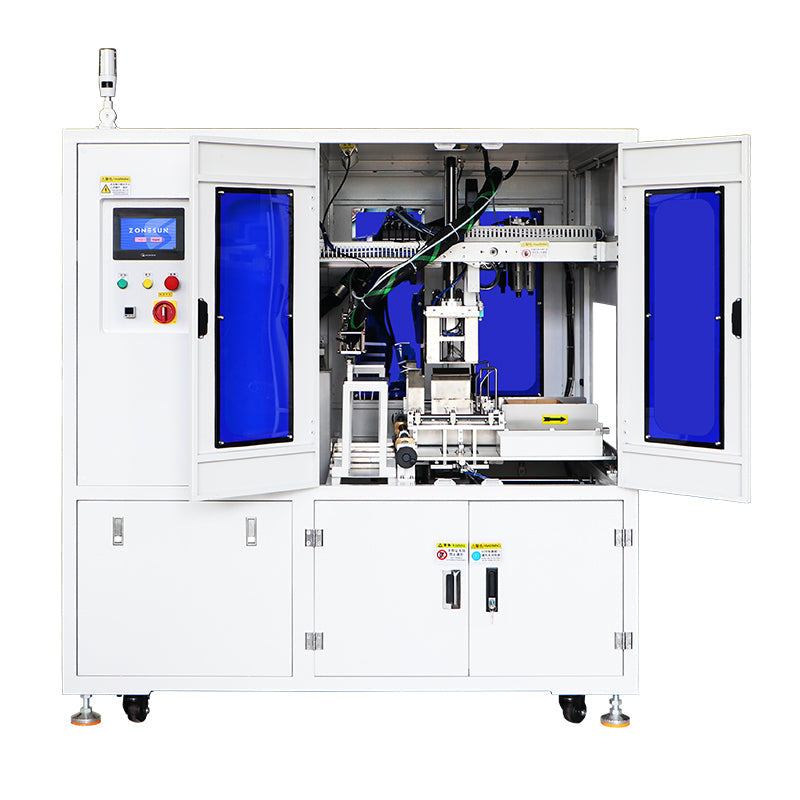

The ZONESUN ZS-CSPM4T is an automatic corrugated tray former for erecting and gluing cardboard trays from pre-cut flat blanks. The machine automatically picks and feeds each blank, applies hot melt adhesive and presses the material into the forming mold.
Replaceable mold tooling enables the system to produce trays in different sizes. Adjustment handwheels support convenient format changeovers, helping reduce setup time when switching between compatible packaging specifications.
The machine includes material-level monitoring and production-counting functions for easier operation. It can be integrated into automated tray loading, product grouping, wrapping, case packing and palletizing systems.
Main Advantages
- Continuous tray erecting process
- Stable flat-blank feeding
- Controlled hot melt glue application
- Interchangeable forming molds
- Convenient format adjustment
- Large-capacity blank storage
- Automatic low-stock notification
- Production quantity monitoring
- Compact inline integration
- Customized tray-forming solutions
Applications
Designed for corrugated display trays, transport trays, open-top cartons and other glued cardboard packaging used in food, beverage, daily chemical and industrial production lines.
Parameter
- Machine Model: ZS-CSPM4T
- Machine Voltage: 220 V, 60 Hz
- Machine Power: 5.4 kW
- Air Pressure: 0.5–0.8 MPa
- Air Consumption: 300 L/min
- Folding Speed: 6 Boxes/min (Depends on Carton Size)
- Suitable Box Size: Customizable
- Sample Box Size 1 (L×W×H): 210 × 140 × 55 mm
- Sample Box Size 2 (L×W×H): 265 × 175 × 65 mm
- Working Height: 900 ±20 mm
- Bin Storage Capacity: 300 Pieces (Based on 2 mm Cardboard Thickness)
- Package Size (L×W×H): About 1710 × 1460 × 1900 mm
- Package Weight: About 762 kg

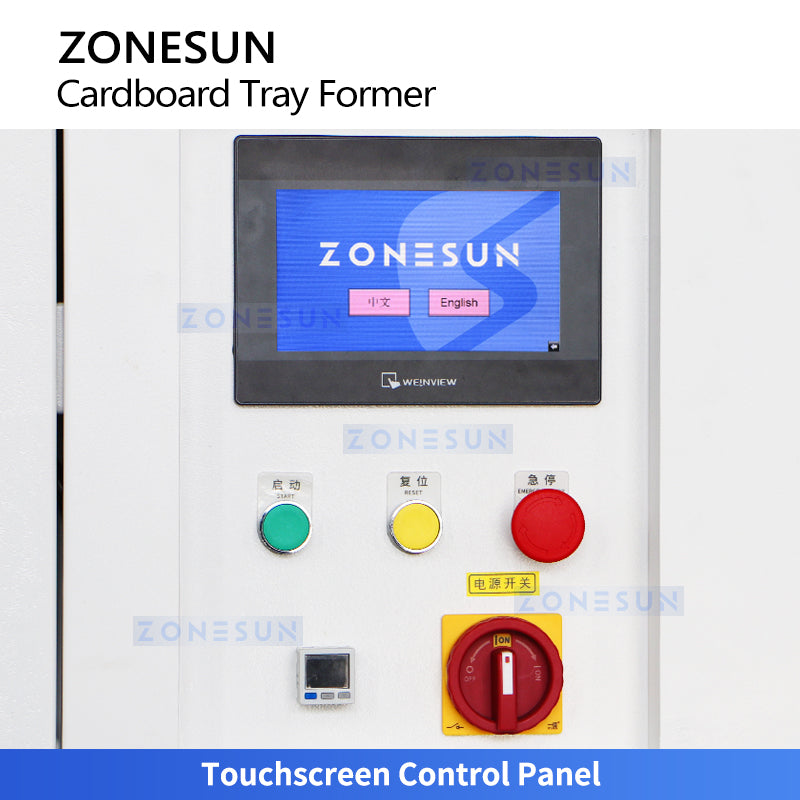

Touchscreen Control Panel
The control interface allows operators to set production quantities, monitor machine status and adjust operating parameters conveniently.

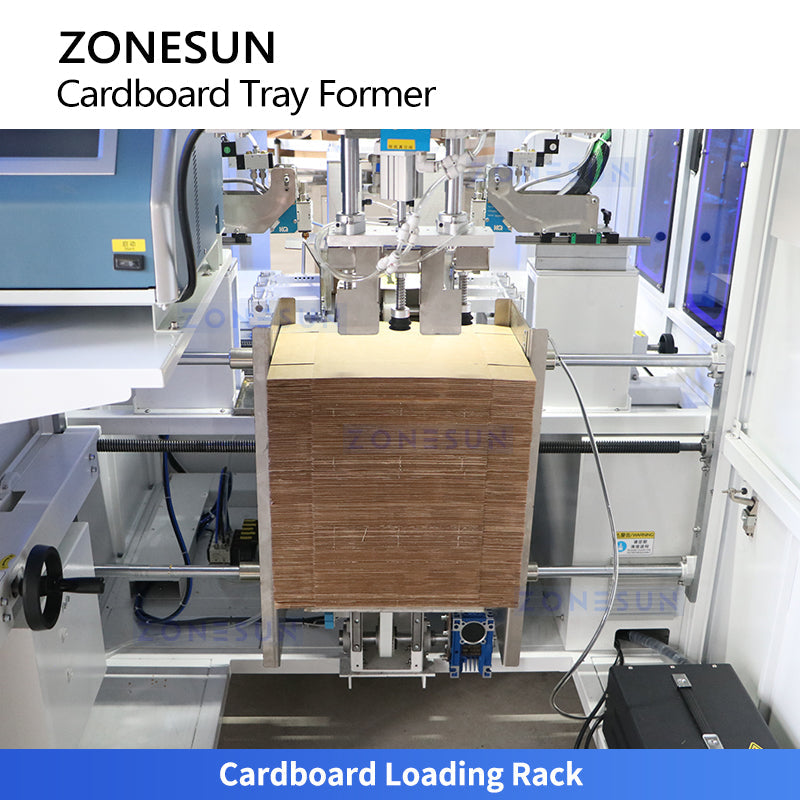

Cardboard Loading Rack
The storage rack holds flat cardboard blanks before forming and provides continuous material supply during production.

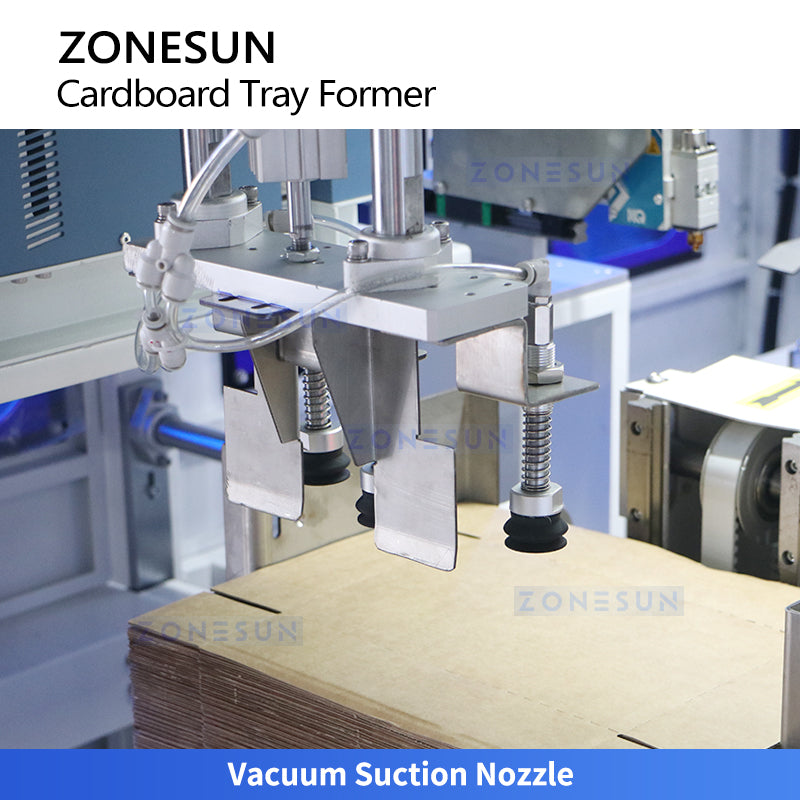

Vacuum Suction Nozzle
The suction nozzle picks and transfers cardboard blanks accurately from the loading area to the forming station.

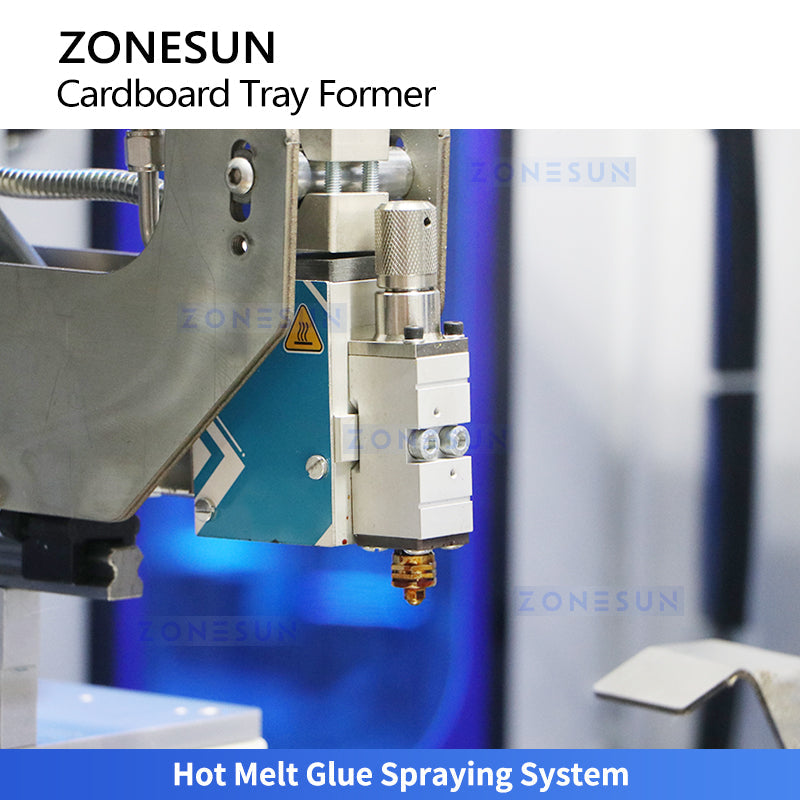

Hot Melt Glue Spraying System
The glue spraying unit applies hot melt adhesive to specific areas of the cardboard, ensuring secure bonding after forming.

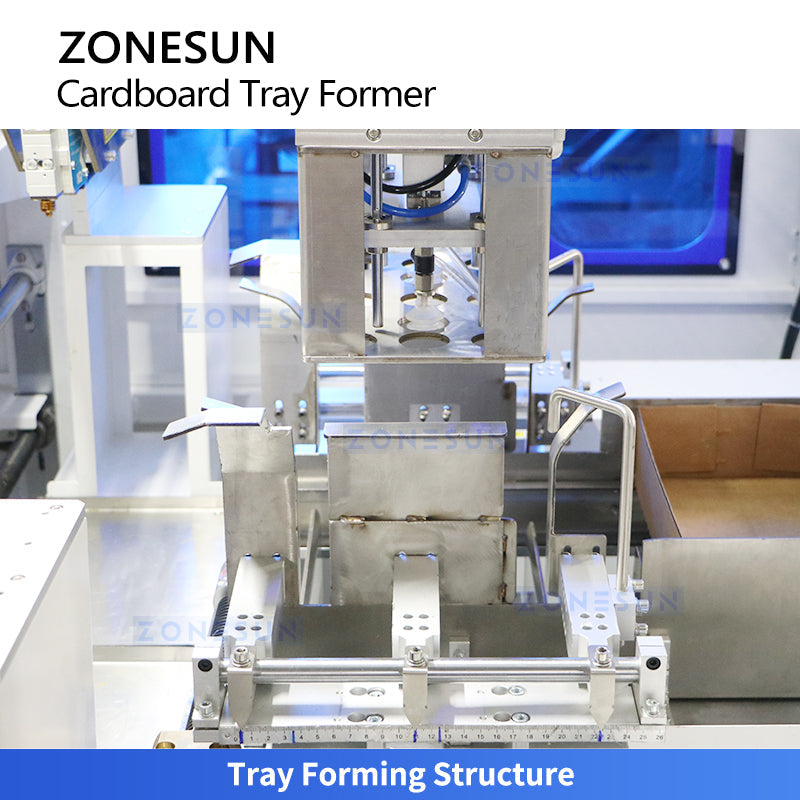

Tray Forming Structure
The forming mechanism folds and shapes the cardboard blank into the final tray structure. Different molds can be replaced for various tray sizes.
Why Choose the ZONESUN ZS-CSPM4T?
✅ 6 Boxes/Minute — Efficient Automatic Tray Forming: Designed for continuous cardboard tray production, the ZS-CSPM4T automatically completes blank feeding, transfer, hot melt glue application, folding, and forming at speeds of up to 6 boxes/min depending on carton size.
✅ Vacuum Suction Feeding — Accurate Cardboard Transfer: Vacuum suction nozzles pick individual flat cardboard blanks from the storage rack and accurately transfer them to the forming station for stable continuous operation.
✅ Hot Melt Glue System — Secure Tray Bonding: The automatic glue spraying unit precisely applies hot melt adhesive to specified cardboard areas, helping maintain strong bonding and stable tray structures after forming.
✅ Replaceable Forming Molds — Flexible Tray Sizes: Different forming molds can be installed according to tray specifications, allowing the machine to accommodate customized cardboard box and tray sizes.
✅ 300-Piece Loading Capacity — Continuous Material Supply: The storage rack holds approximately 300 pieces based on 2 mm cardboard thickness, reducing frequent manual replenishment and supporting longer production runs.
✅ Counting Control + Automatic Stop — Precise Production Management: Operators can preset required production quantities through the control system, allowing accurate finished-product counting and automatic stopping when the target is reached.
✅ Low Material Alarm — Reduced Production Interruptions: The machine automatically alerts operators when the cardboard supply is running low, helping prevent unexpected material shortages during continuous production.
Ideal Applications
Food Packaging Trays: Ideal for forming cardboard and corrugated trays used for food products, packaged foods, bakery items, fruits, beverages, and other secondary packaging applications.
Electronics Packaging: Suitable for producing cardboard trays and boxes used to organize, protect, or transport electronic products and components.
Pharmaceutical Packaging: Provides automatic tray forming for pharmaceutical and healthcare products requiring consistent secondary cardboard packaging.
Logistics & Shipping Trays: Suitable for forming corrugated trays and boxes used for product organization, transportation, distribution, and logistics applications.
Retail & Display Trays: Can produce customized cardboard trays used for retail display, product presentation, and shelf-ready packaging applications.
Automated Packaging Lines: Designed for standalone operation or integration with downstream product loading, conveying, case packing, and other automated packaging equipment.
