DESCRIPTION

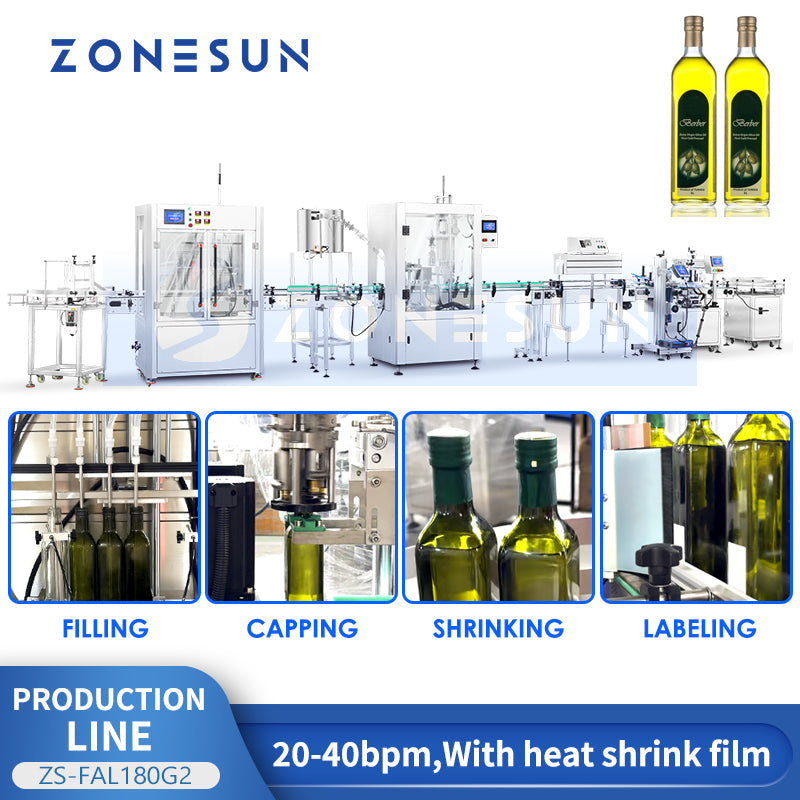

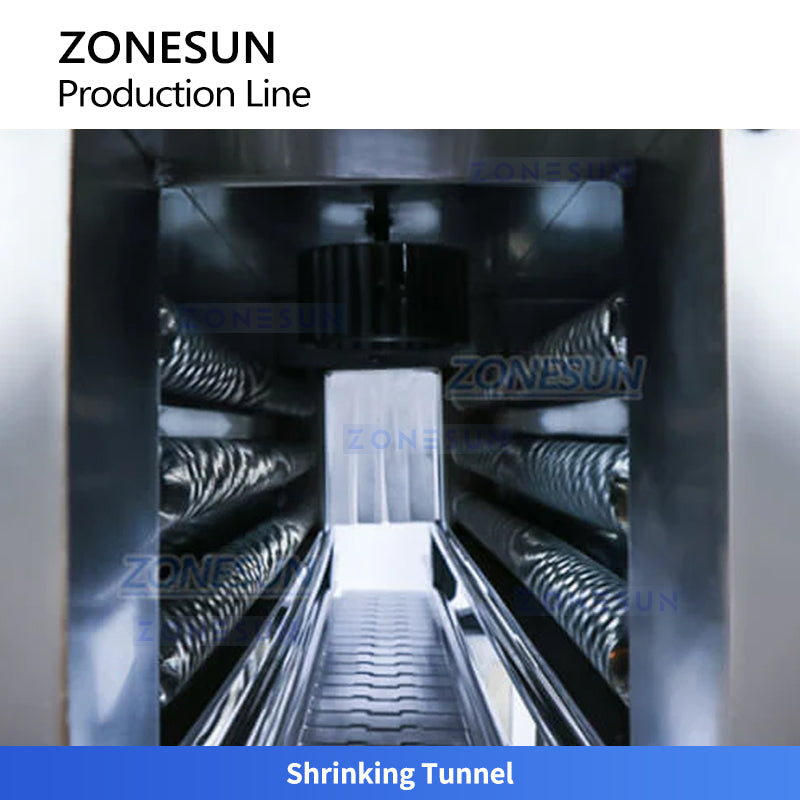

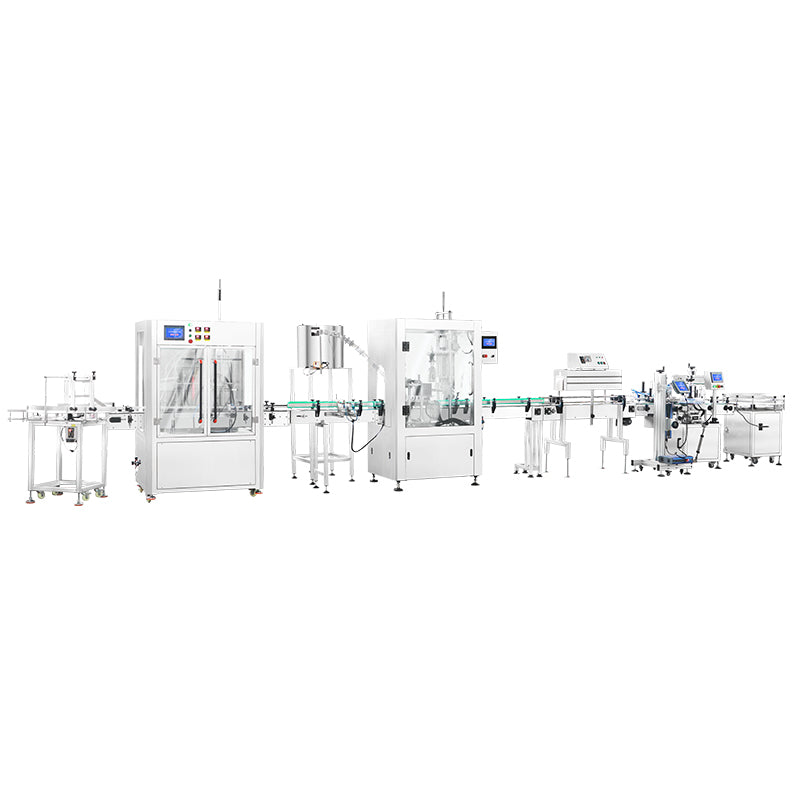

This automatic filling line is designed for efficient packaging of edible oil, such as olive oil, and includes a magnetic pump liquid filling machine, an inline ROPP bottle capping machine, a shrink sleeve labeling machine with heat shrink film, a laser coding machine, and a bottle sorting machine. The entire bottling line supports 20-40 bottles per minute (BPM) and ensures accurate and hygienic bottle filling, capping, shrinking, and labeling. Each component is customizable based on production needs, making this automatic oil bottle filling line ideal for medium to large-scale manufacturers.
Parameters
-
Machine Model: ZS-LP800N
-
Power Supply: 220V/110V, 50–60Hz, 200W
-
Turntable Diameter: 800 mm
-
Suitable Bottle Diameter: 20–100 mm
-
Suitable Bottle Height: 30–320 mm
-
Working Speed: 40–60 bottles/min (depending on bottle size)
-
Package Size: Approx. 1230 × 1010 × 1260 mm
-
Gross Weight: Approx. 141 kg

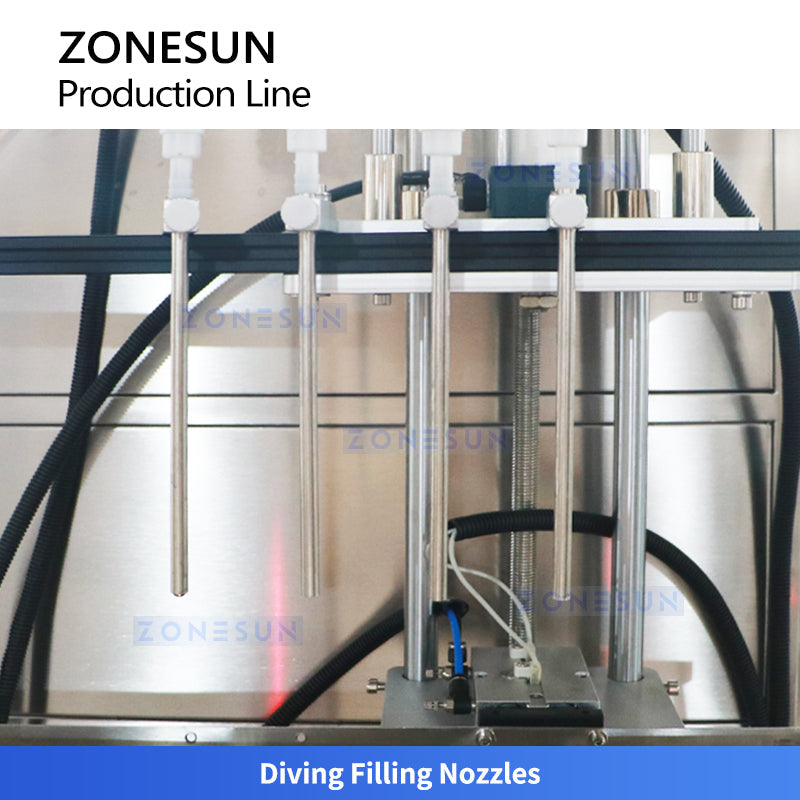

DIVING FILLING
MAGNETIC PUMP

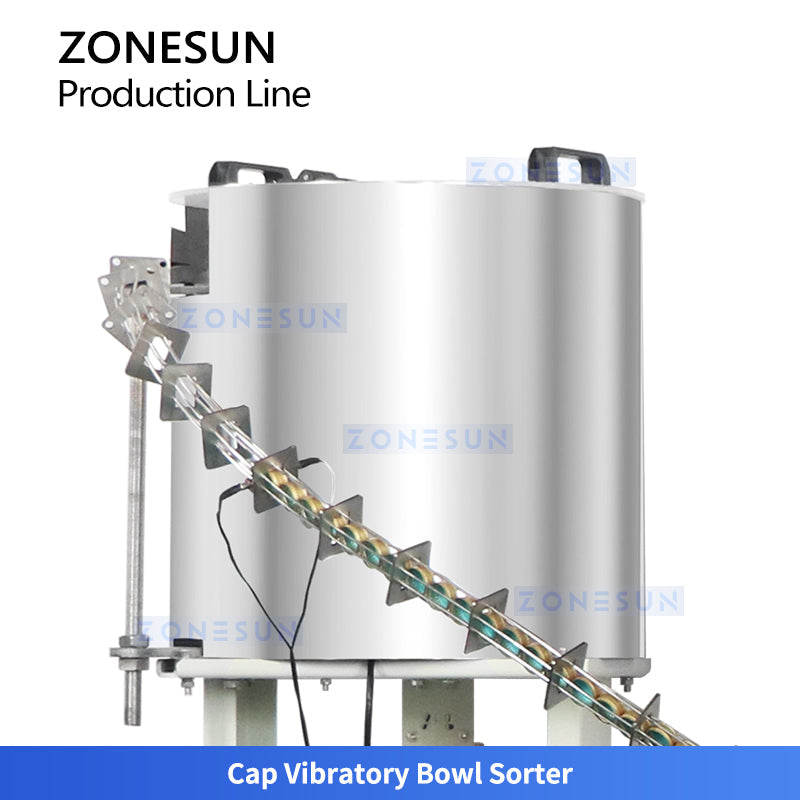

CAP VIBRATORY BOWL SORTER

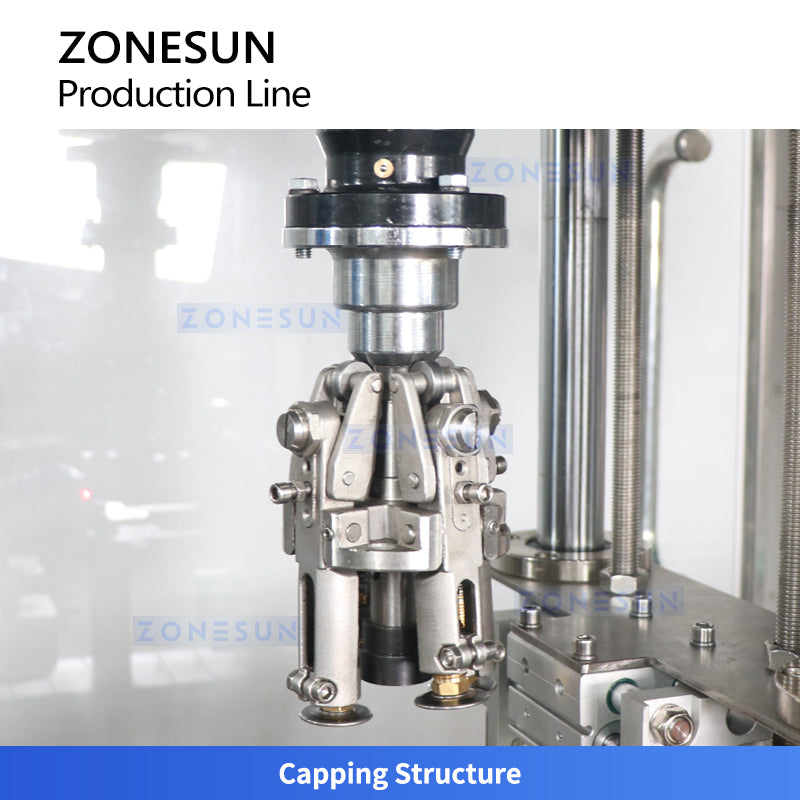

CAPPING STRUCTURE

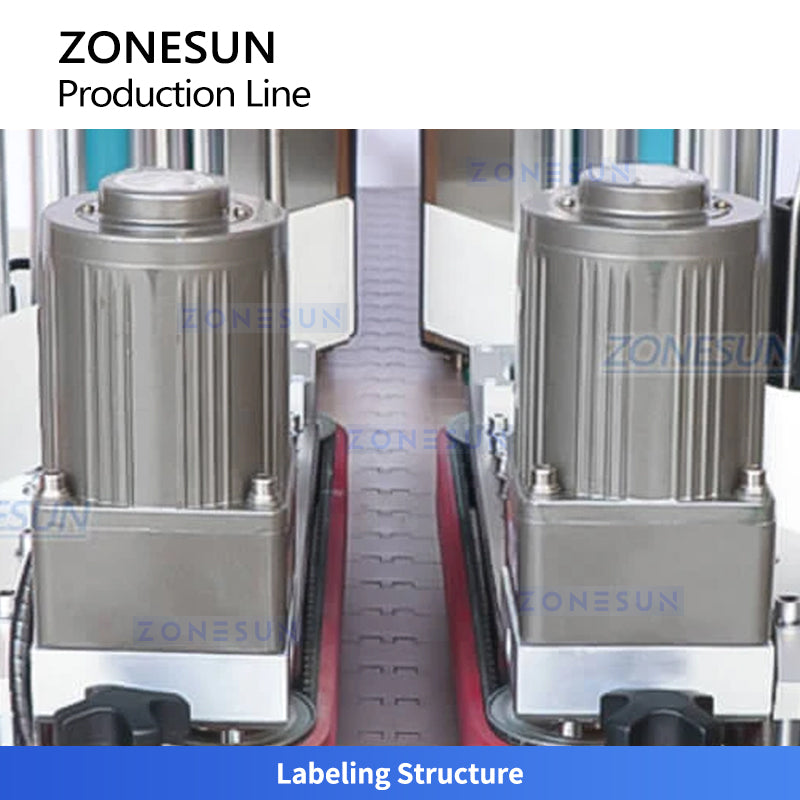

LABELING STRUCTURE
LASER CODING
