Description

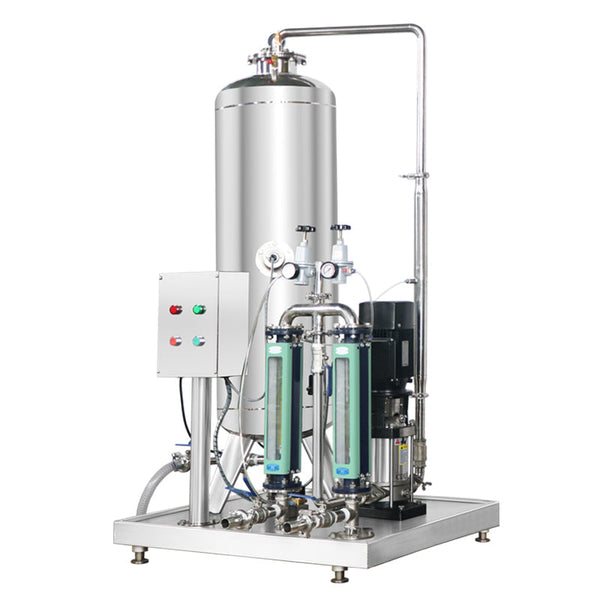

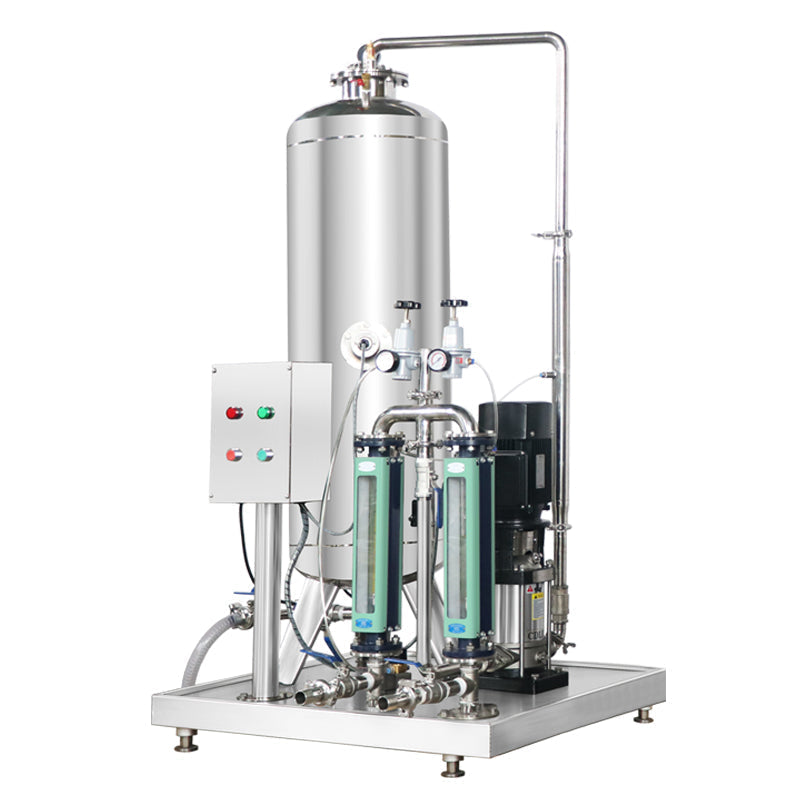

The ZONESUN ZS-CF is a high-efficiency carbonated beverage mixing machine designed for producing soda water, sparkling drinks, cola, and other carbonated beverages. With a capacity of 1.5-2 t/h, it mixes treated water, syrup, and CO₂ under controlled pressure to achieve precise carbonation and stable product quality. Equipped with rotameters, a multistage centrifugal pump, automatic level control, and a stainless-steel mixing tank, the system ensures accurate syrup-to-water ratios, efficient CO₂ dissolution, and consistent beverage performance. Compact, reliable, and easy to operate, it is ideal for small to medium-scale production lines.
Not compatible across different voltage and frequency options (110V 50Hz / 110V 60Hz / 220V 50Hz / 220V 60Hz).
ZS‑CF
Technical Requirements
- Production Capacity: 1.5–2 t/h
- Mixing Ratio (Syrup : Water): 1:2–1:8
- Outlet Temperature: < 6°C
- Outlet Pressure: 0.3–0.5 MPa
- Carbonation Level: 3 G.V
- Machine Dimensions: Approx. 900 × 820 × 1650 mm
- Mixing Tank Diameter: 400 mm
- Tank Total Height: 1100 mm
Raw Material Requirements
- Treated Water Inlet Pressure: 0.2 MPa
- Treated Water Inlet Temperature: < 6°C
- Syrup Inlet Temperature: < 4°C
- CO₂ Inlet Pressure: 0.28–0.35 MPa
- CO₂ Purity: > 99%
CONTROL PANEL

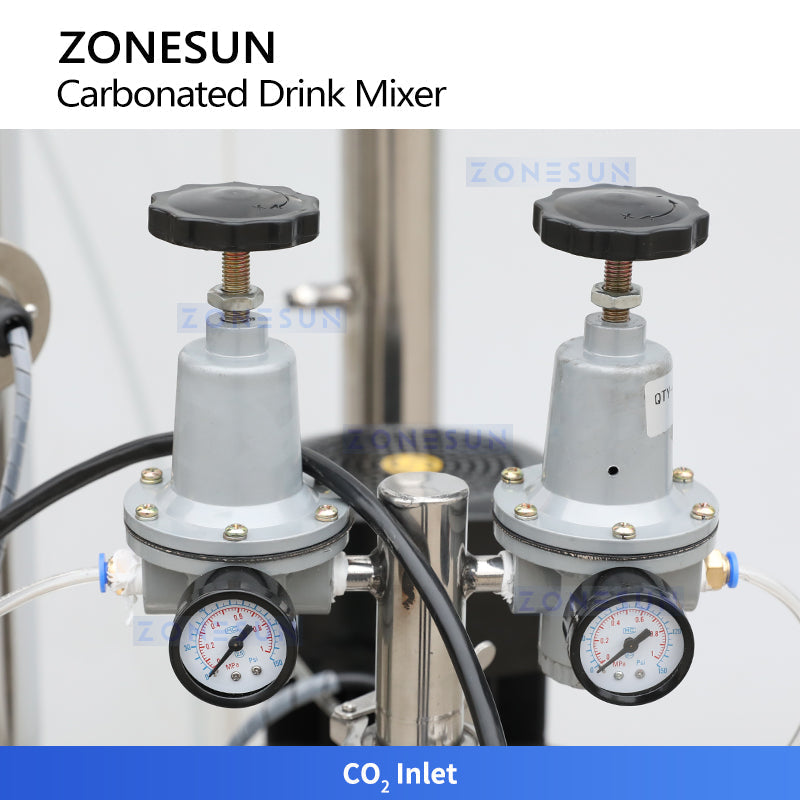

Regulating and supplying CO₂ into the mixing system to achieve accurate carbonation levels and ensure stable, consistent beverage quality.

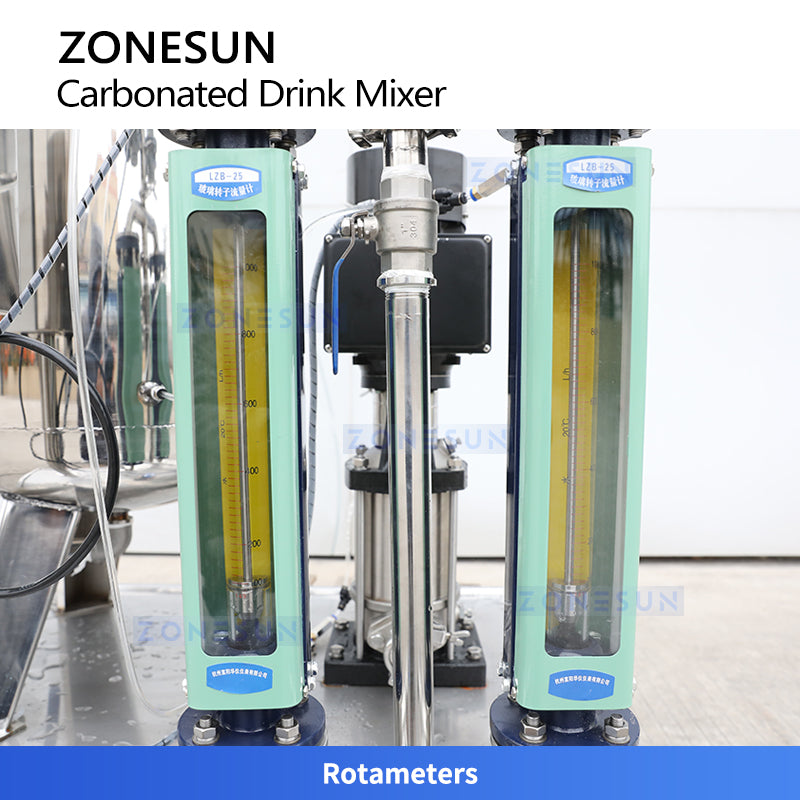

Ensures precise syrup to water ratio control for stable taste, consistent sweetness, and reliable carbonation performance.

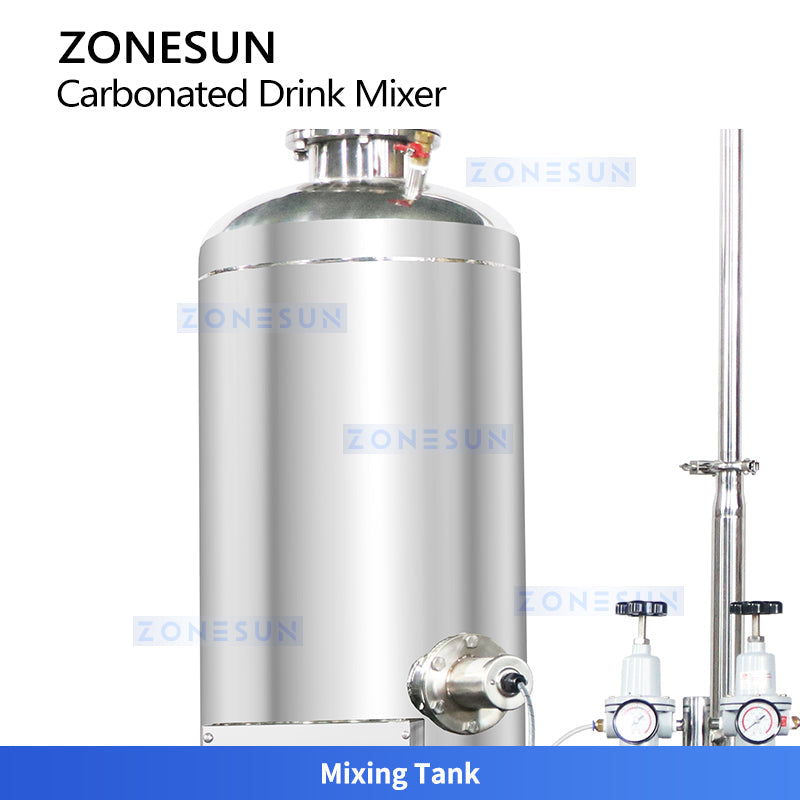

Mixing water, syrup, and CO₂ efficiently to ensure proper carbonation and create a stable, uniform beverage with consistent taste and bubble quality.

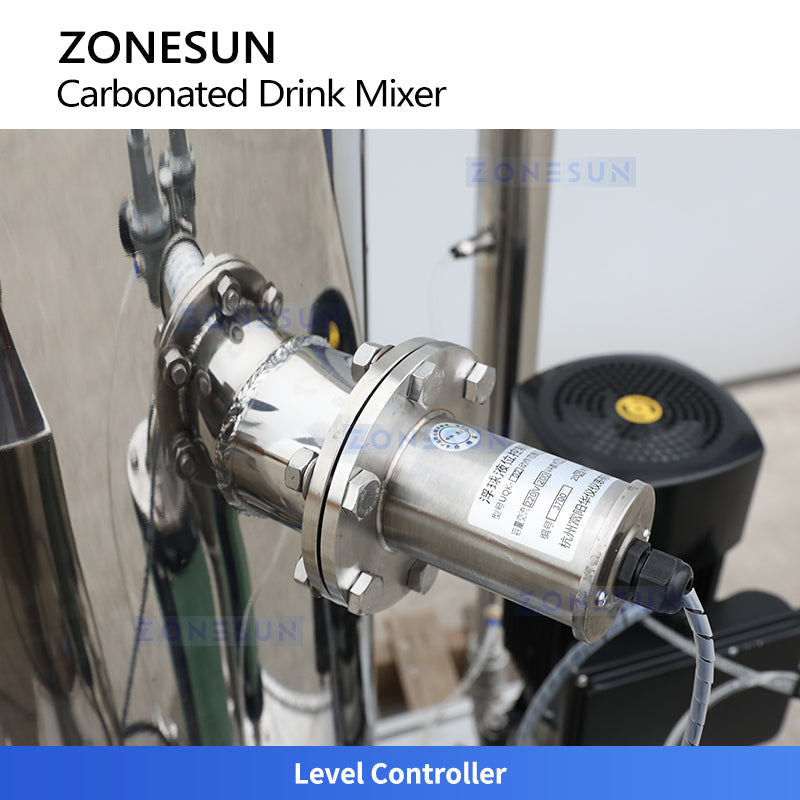

Automatically monitors the liquid level and controls the water pump to maintain stable filling, stopping at the preset capacity to ensure reliable beverage mixing performance.
Maintains the stable high pressure required for carbonation, helping CO₂ dissolve efficiently into the liquid and ensuring consistent beverage quality.
