ZONESUN ZS-DTMP4AL Automatic Magnetic Pump Liquid Filling Machine Small Bottle Filler
- Harga
- $2,999
Please click "Buy It Now". Shipping will be calculated at checkout.
Shipping Information
Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.
To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.
DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.
For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.
For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.
About Us
ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.
ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.
NOTE
Special discount is only applicable to this link. Quantity is limited, and the original price will be restored after sold out. Please contact customer service for details
Parameter
|
Model |
ZS-DTMP4AL |
|
Power Supply |
110/220V 50-60HZ 300W |
|
Max Flow Rate |
6L/min (Based on water) |
|
Working Speed |
20-30 bottles/min |
|
Air Pressure |
0.3-0.4MPa |
|
Filling Accuracy |
99% (For water) |
|
Nozzle Diameter |
6/8mm |
|
Count Range |
1-99999 |
|
Filling Volume |
3-1000ml |
|
Air compressor connector |
OD 8mm |
|
Conveyor Load |
≤12kg |
|
Size |
About 1100*580*1110mm |
|
Package Size |
About 1150*640*850mm |
|
Net weight |
About 74kg |
|
Gross weight |
About 91kg |
Description

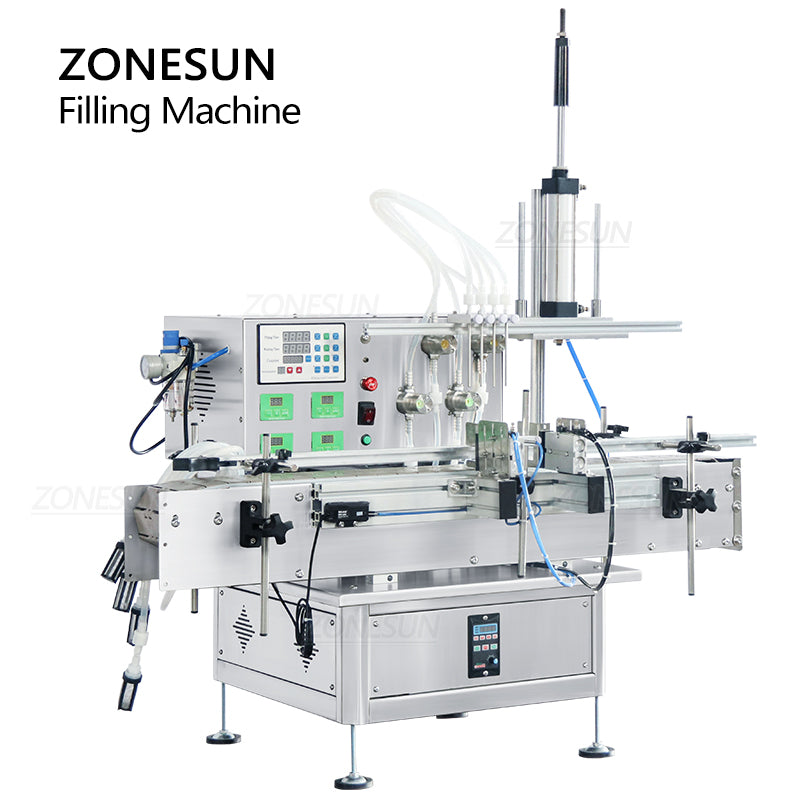

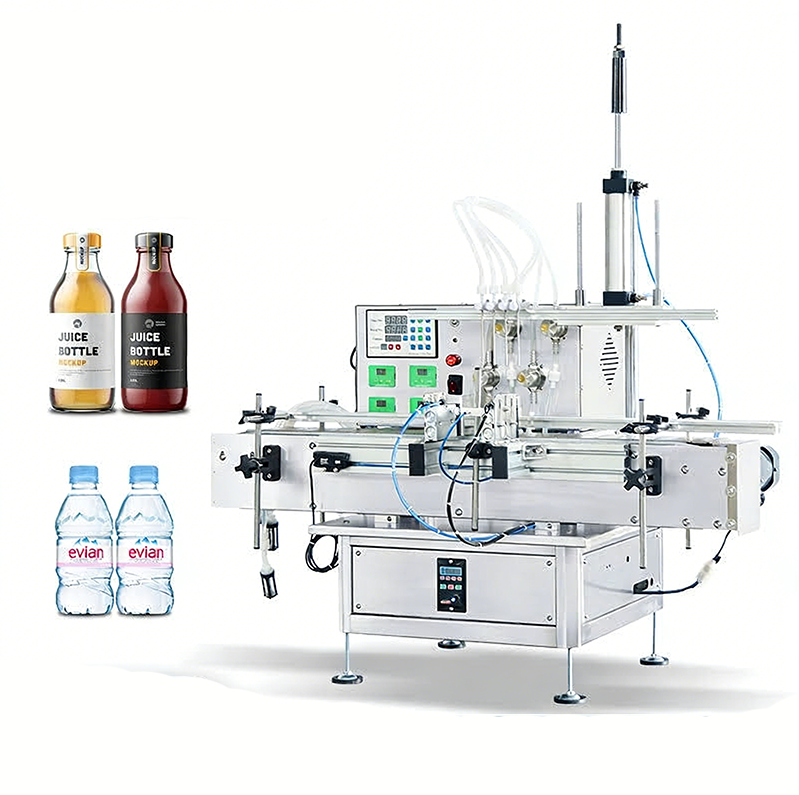

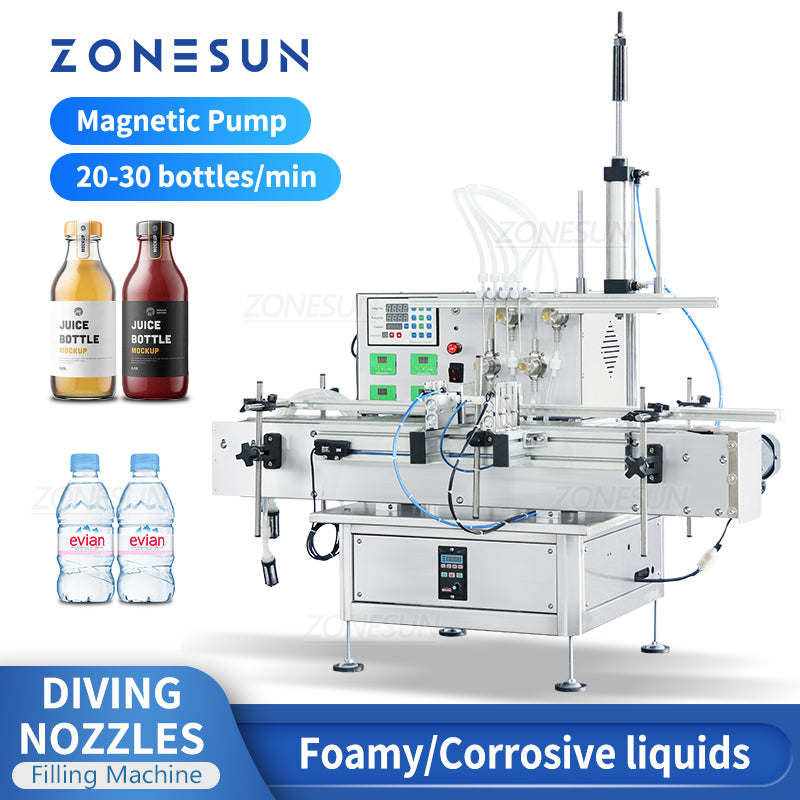

This tabletop automatic filling machine is suitable for foamy liquid, essential oil, perfume, beverage, etc. It is with chain conveyor, which has a high loading capacity. It can transport heavy products steadily and smoothly. With magnetic pumps, it can fill liquid accurately. The machine can work with tabletop labeling machine and capping machine, realizing automated production. Help to improve working efficiency.



PRODUCT DETAILS

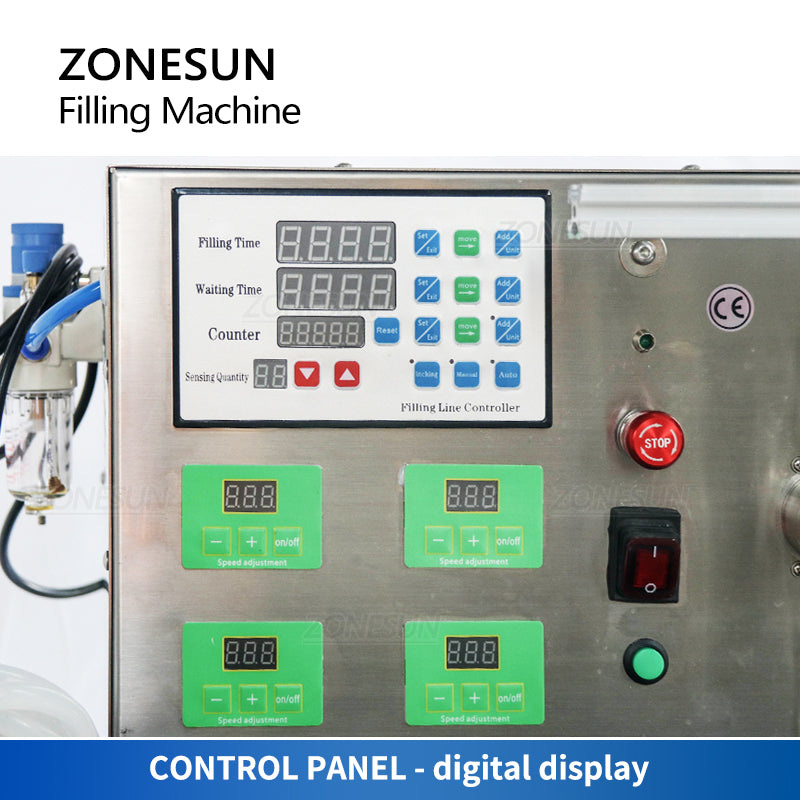

Digital Control System
The panel allows operators to set filling time, waiting time, speed, and cycle count for each channel.

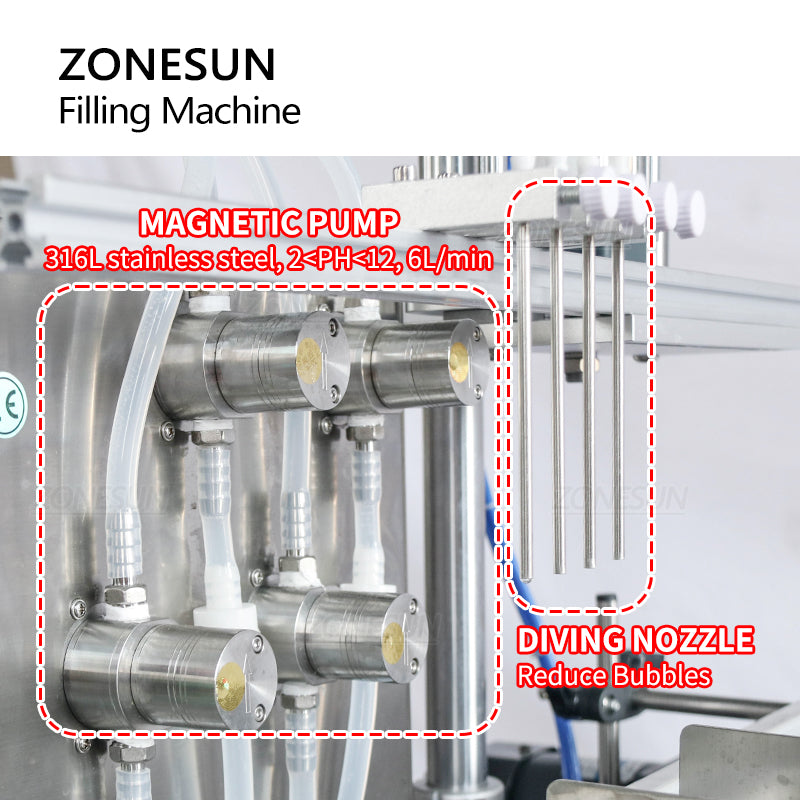

Independent Pump Adjustment
Individual controls support separate flow adjustment for the magnetic pump filling channels.

Diving Filling Nozzles
The nozzles rise and descend during filling to reduce foaming and splashing.

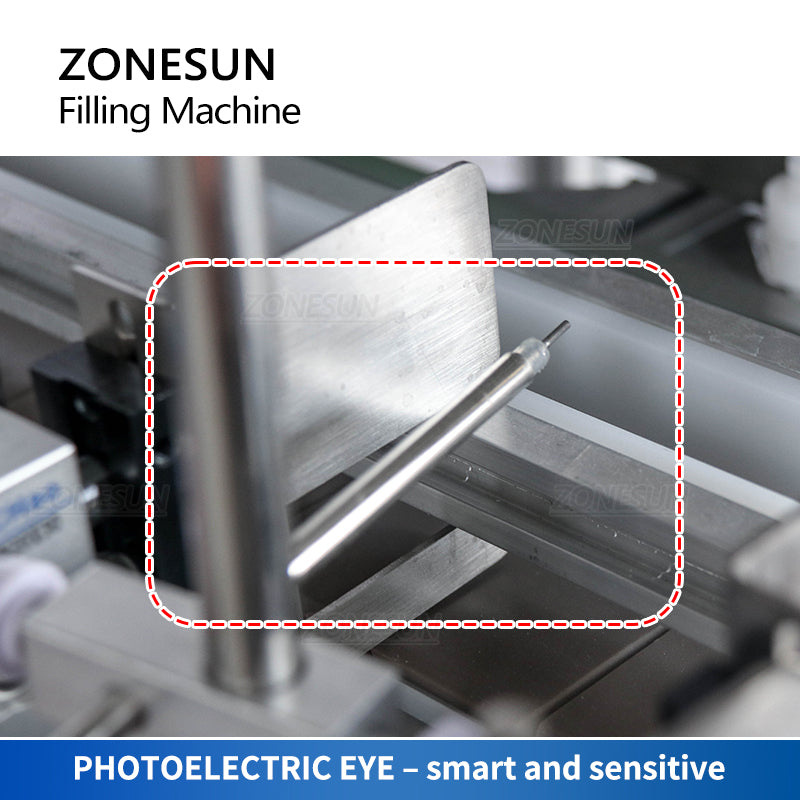

Bottle Positioning Baffle
The adjustable baffle keeps bottles correctly positioned beneath the filling nozzles.

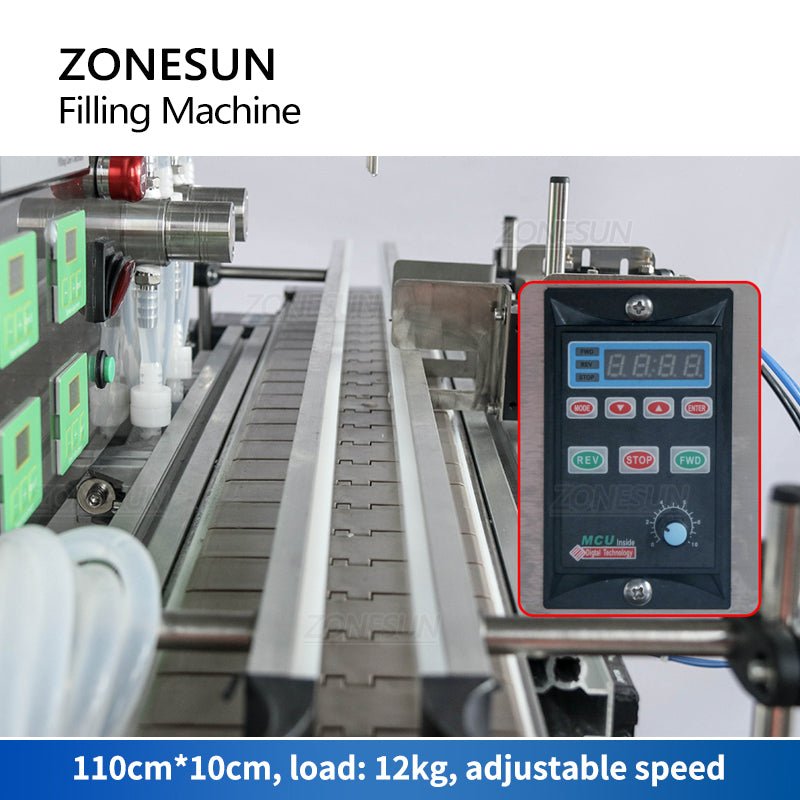

Conveyor Speed Controller
The variable-speed controller allows smooth conveyor adjustment for different production needs.
