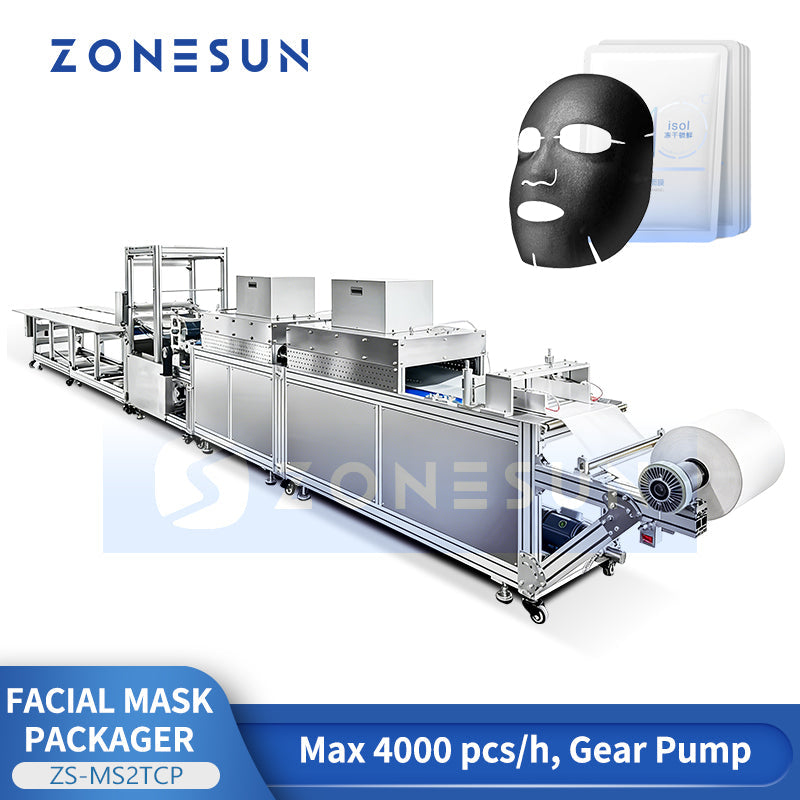

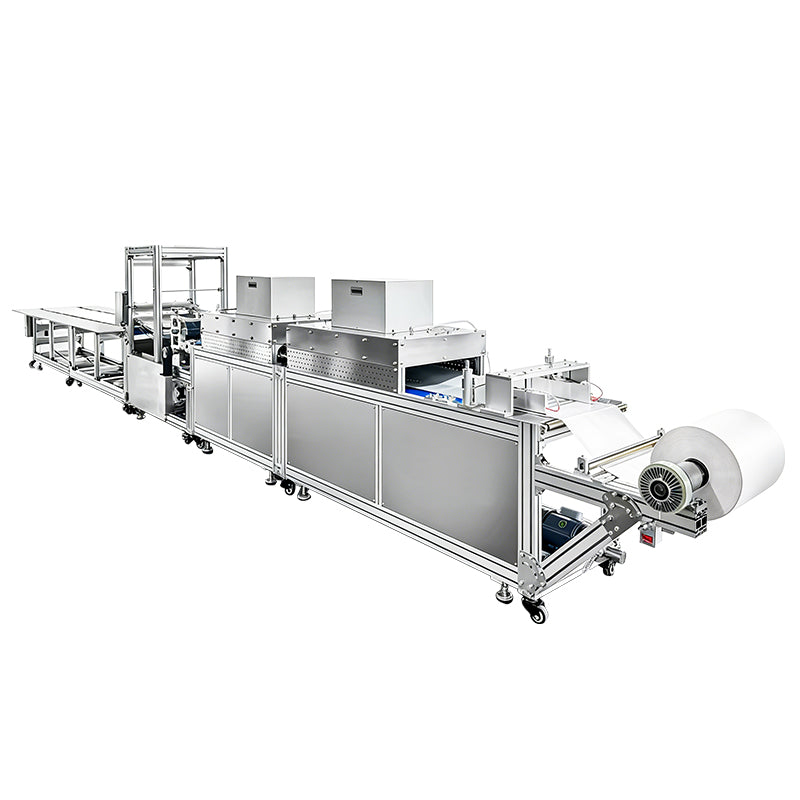

ZONESUN ZS-MS2TCP Automatic Hydrogel Gel Facial Mask Cutting Machine Sheet Mask Making Machine

Description

The ZONESUN ZS-MS2TCP is an automatic facial mask cutting and packaging machine designed for hydrogel mask production. With a capacity of up to 4000 pcs/h, it integrates gel coating, film unwinding, precision cutting, rapid cooling, and scrap recycling into one streamlined system. It can cut all kinds of films: pearlescent film, non-woven fabric, lace and other films, making it suitable for diverse mask-making materials. Equipped with a PLC touchscreen, gear pump, heated coating module, and customizable roller knife, it ensures stable operation, consistent mask thickness, and flexible mask size options. Ideal for medium to large-scale cosmetic manufacturing lines.

Parameter

• Model: ZS‑MS2TCP
• Work Capacity: 3000–4000 pcs/h
• Cutting Capacity: 2 pcs/time
• Applicable Mask Width: 480 mm(width of two facial mask)
• Power Supply: 220 V, 1‑phase
• Power: Approx. 4 kW (220 V three‑phase customizable)
• Air Pressure: 0.6–0.8 MPa
• Machine Size: 6650 × 600 × 2200 mm
• Weight: 1000 kg

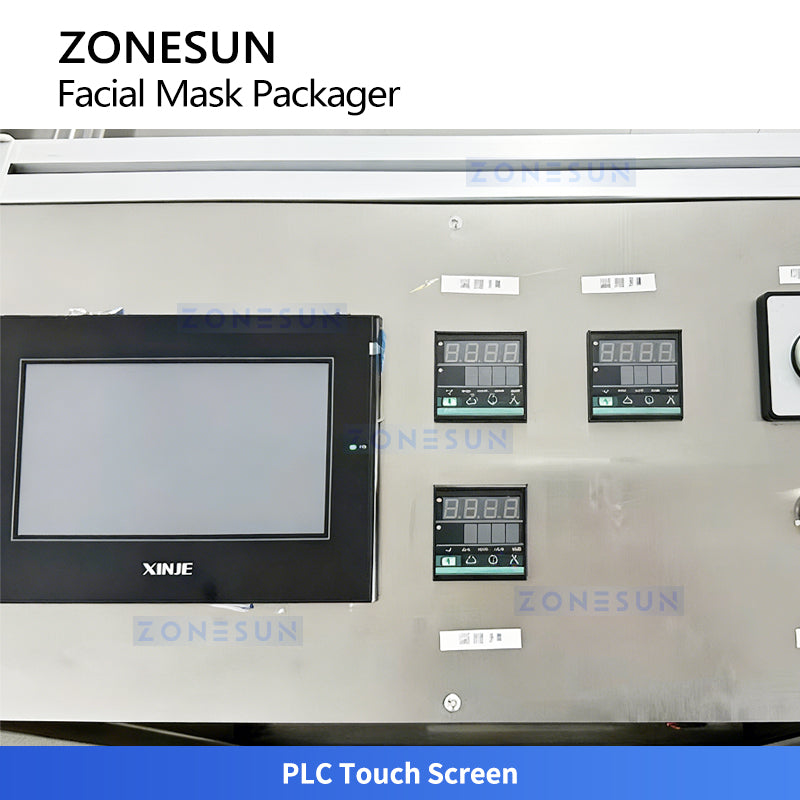

PLC TOUCH SCREEN

Ensures stable system control with an intuitive, easy-to-operate interface for real-time monitoring and parameter adjustment.

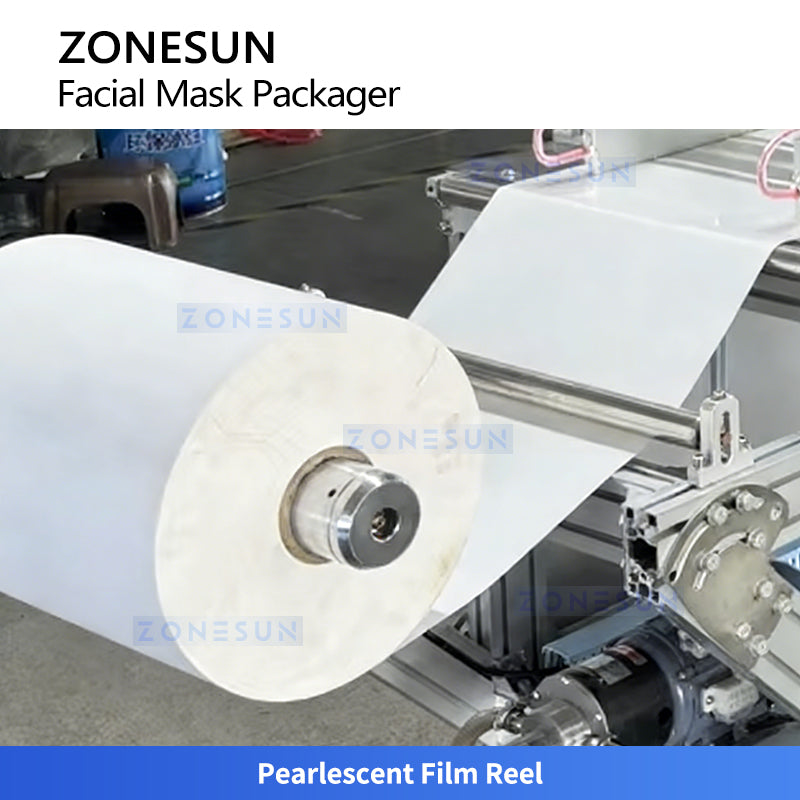

PEARLESCENT FILM REEL

Adjusts and stabilizes the pearlescent film to ensure even gel coating during the mask-making process.

GEAR PUMP

Provides strong self-priming performance to deliver stable, continuous transfer of high-viscosity gel liquids.

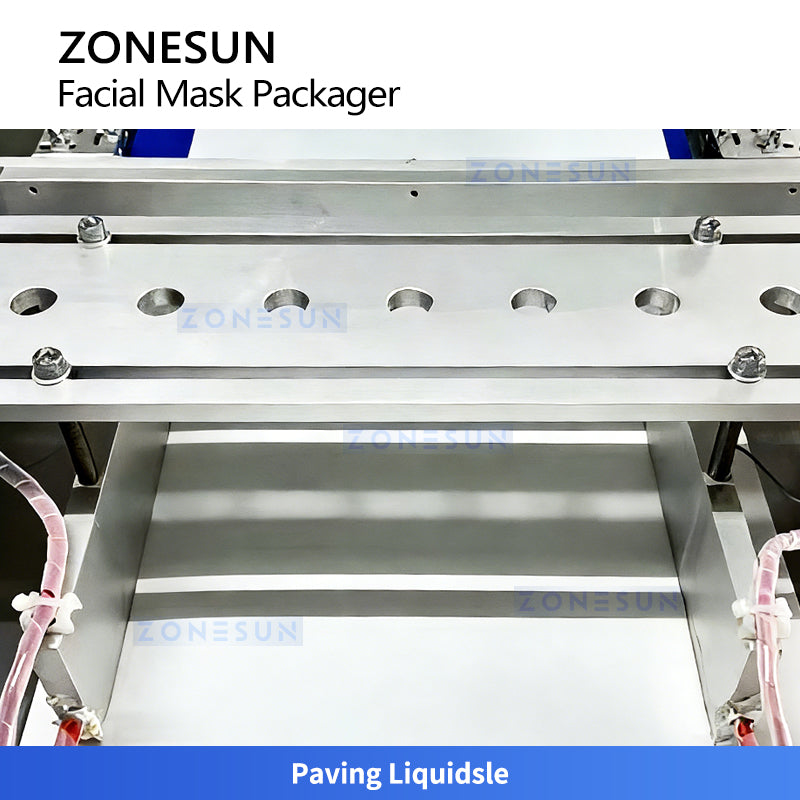

PAVING LIQUIDS

The notch has a heating function to prevent the liquid from cooling and ensure an even thickness of the mask.

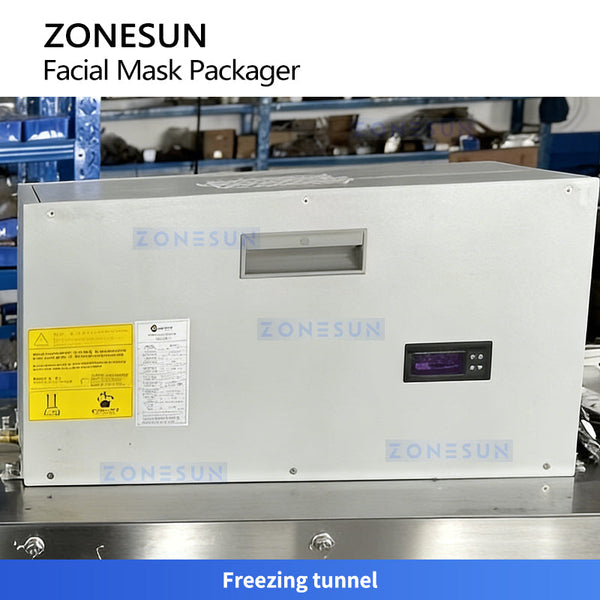

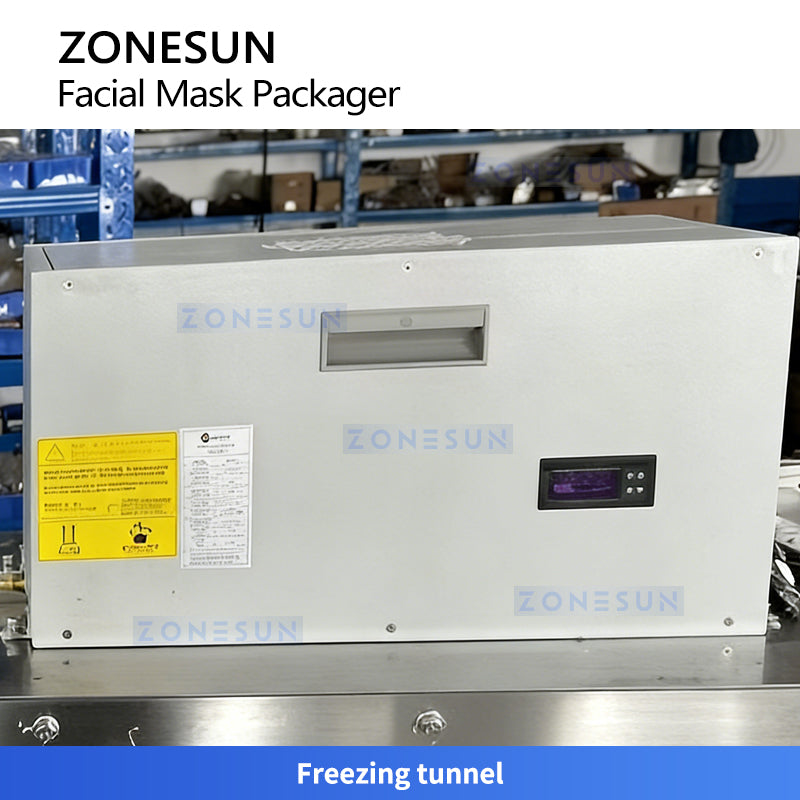

FREEZING TUNNEL

Can ensure the heating gel cool down quickly. In this working part, the film with liquid form gel will be coagulated into basic gel film.

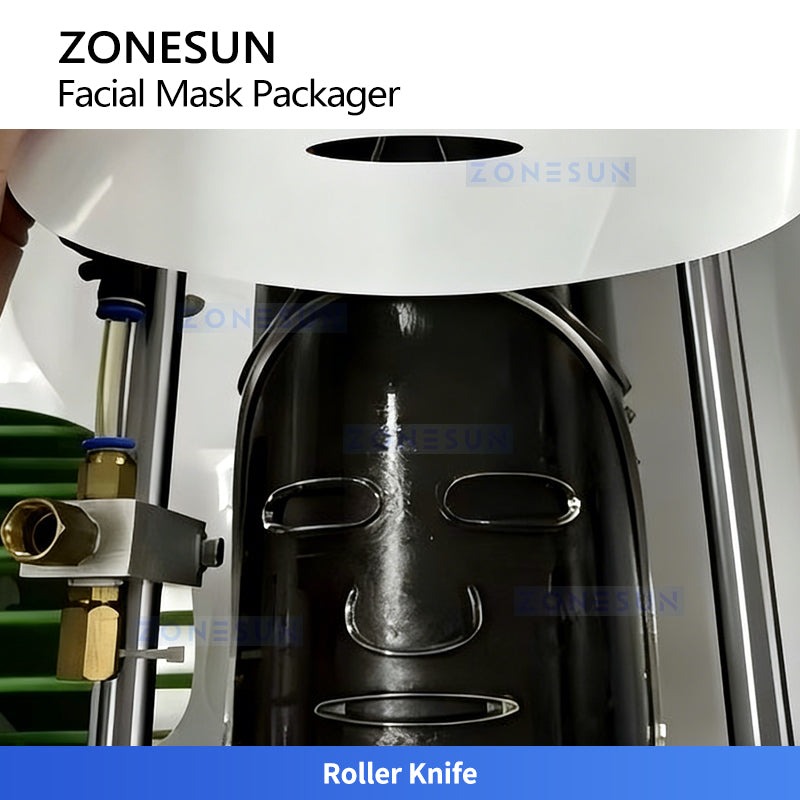

ROLLER KNIFE

 Cuts the gel into mask shapes with customizable sizes to meet different production requirements.

SCRAP RECYCLING

Collects and recycles cutting scraps for reuse to reduce material waste and improve production efficiency.
