Description

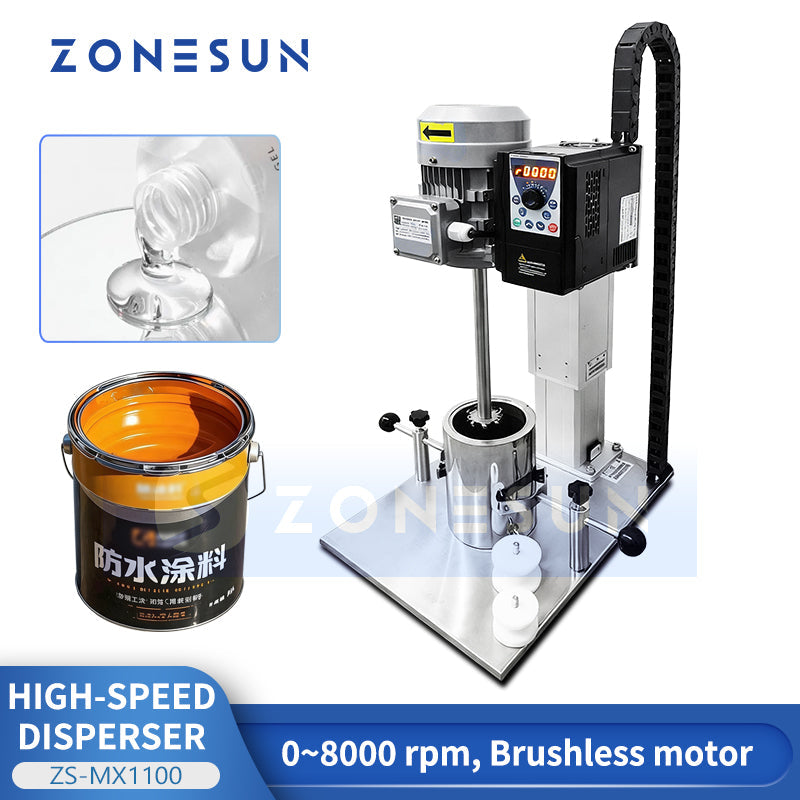

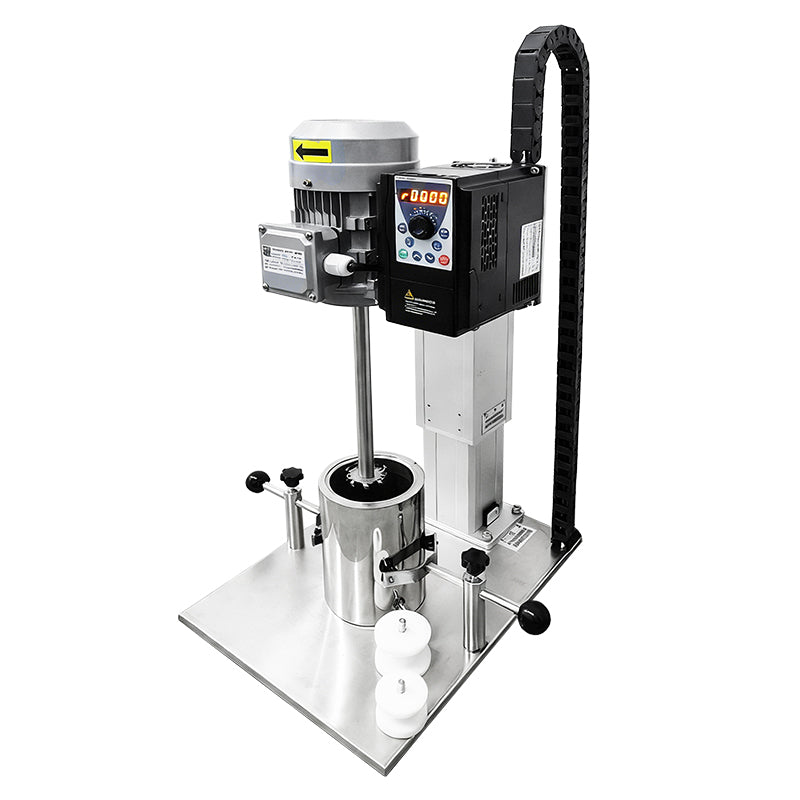

The ZONESUN ZS‑MX1100 is a laboratory electric lifting high‑speed disperser designed for mixing, emulsifying, and homogenizing liquid or liquid‑solid mixtures. Powered by a brushless motor with frequency conversion speed control, it operates up to 8000 rpm to deliver strong shear and impact forces through Cowles blades, ensuring rapid powder dissolution and uniform dispersion. Its electric lift system allows precise positioning, while durable stainless steel components and versatile accessories make it ideal for handling low to medium viscosity materials in industries such as paints, coatings, inks, chemicals, and pharmaceuticals.
Parameter
- Model: ZS‑MX1100
- Power: 1100 W (brushless motor, frequency conversion speed control)
- Power Supply: AC 220 V, 50 Hz
- Rotation Speed: 0–8000 rpm (digital display, frequency conversion)
- Speed Control Type: Digital display frequency conversion, stepless regulation
- Lift Type: Electric lift
- Standard Accessories (Dispersing Discs): Φ30, Φ50, Φ60, Φ80, Φ100 (1 pc each)
- Milling Discs: Φ45, Φ60, Φ80 (1 pc each)
- Stainless Steel Beakers/Tanks: 0.3 L, 0.5 L, 1 L, 1.5 L, 2 L, 6 L, 12 L, 20 L (8 pcs total)
- Shaft Material: 316 stainless steel

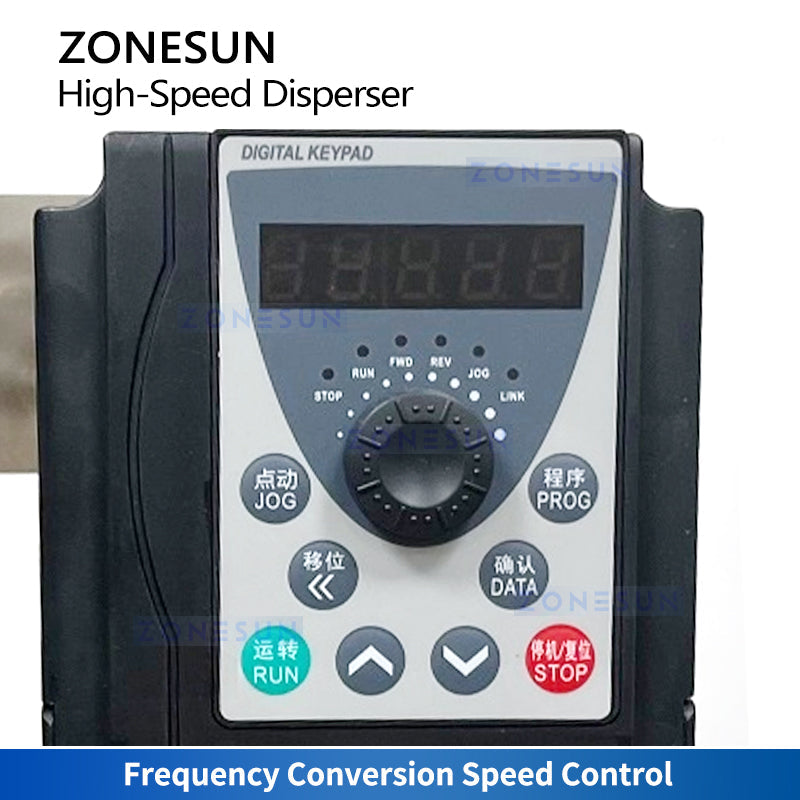

SPEED CONTROL
Uses frequency conversion for real-time speed adjustment by material viscosity, with digital display ensuring data consistency and repeatability during the experimental process.

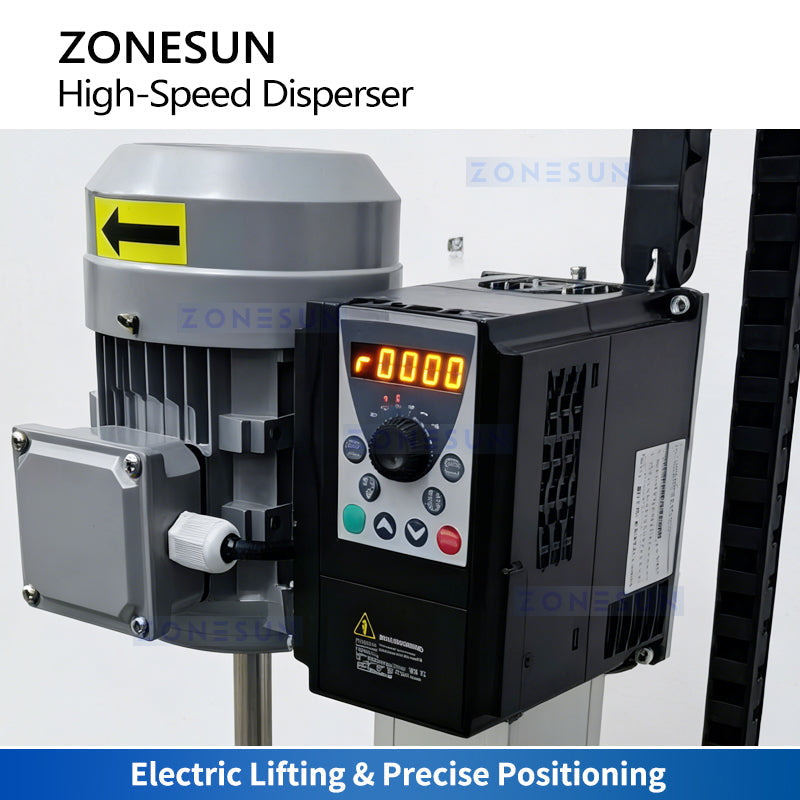

PRECISE POSITIONING
Equipped with an electric lifting system, the stirring head height adjusts smoothly with one touch for precise positioning by container size or liquid level depth.

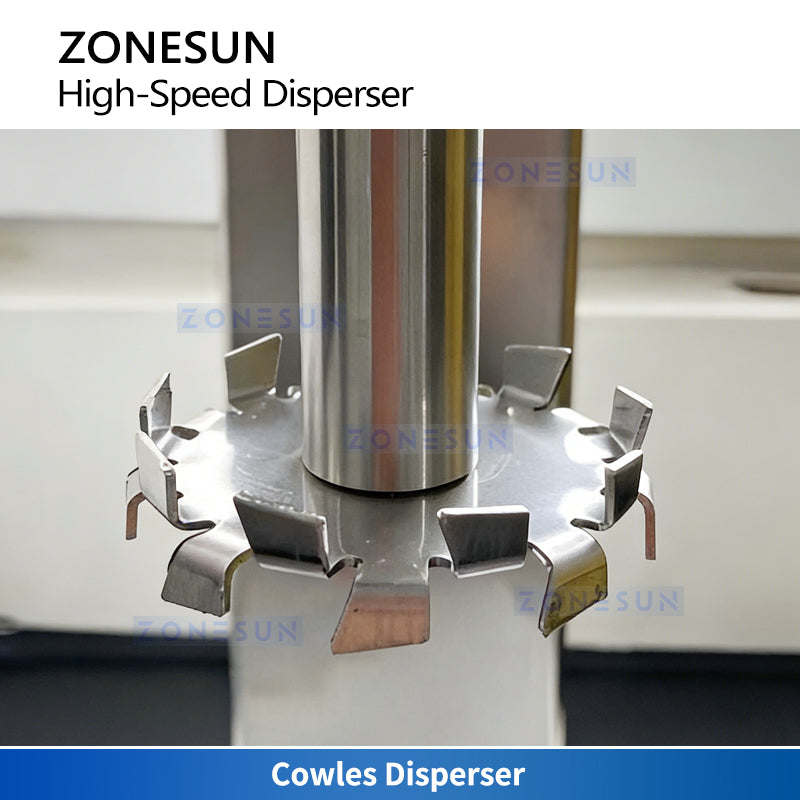

COWLES DISPERSER
High-speed Cowles blade creates intense shear forces and powerful laminar flow at serrated edges, quickly dispersing powders for complete dissolution

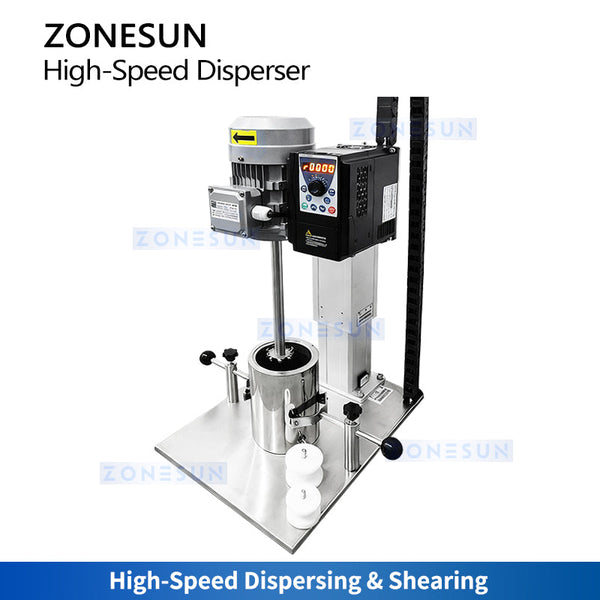

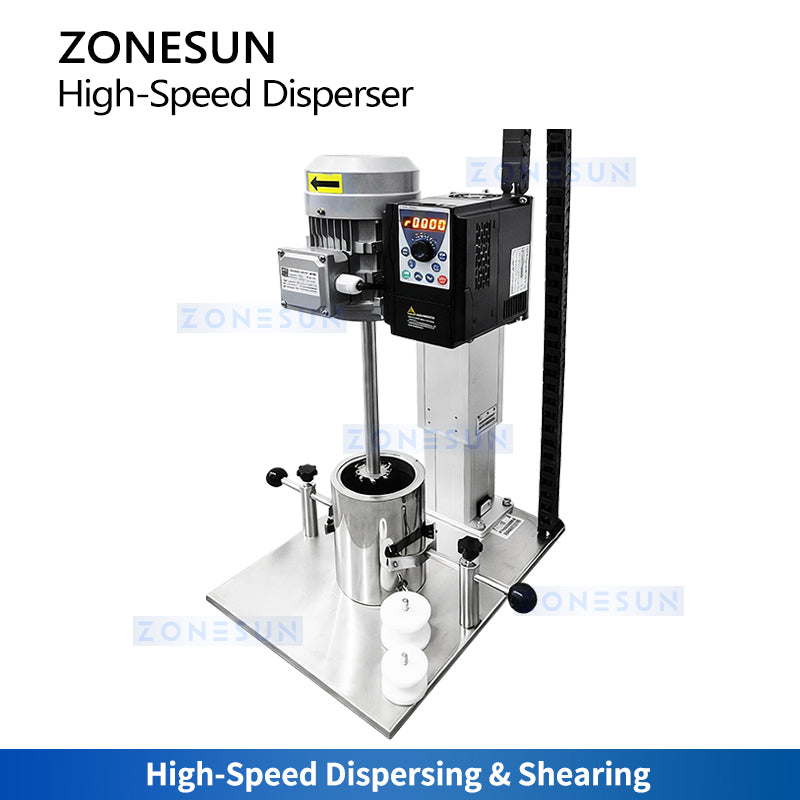

DISPERSING & SHEARING
High-speed dispersing disc generates powerful shearing and impact forces to quickly break down particles, achieving uniform dispersion of liquids and mixtures.
