DESCRIPTION

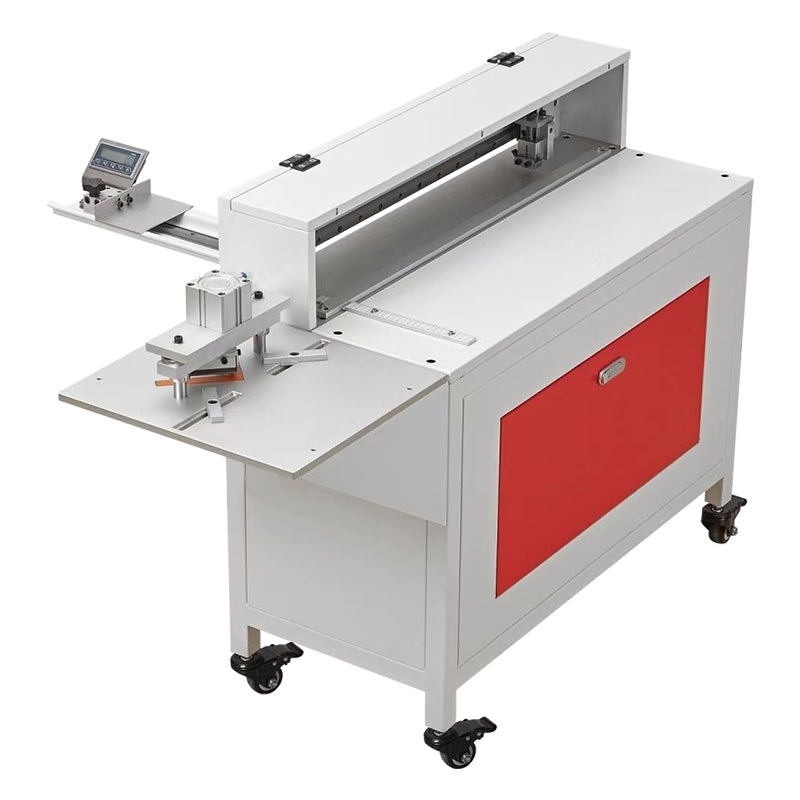

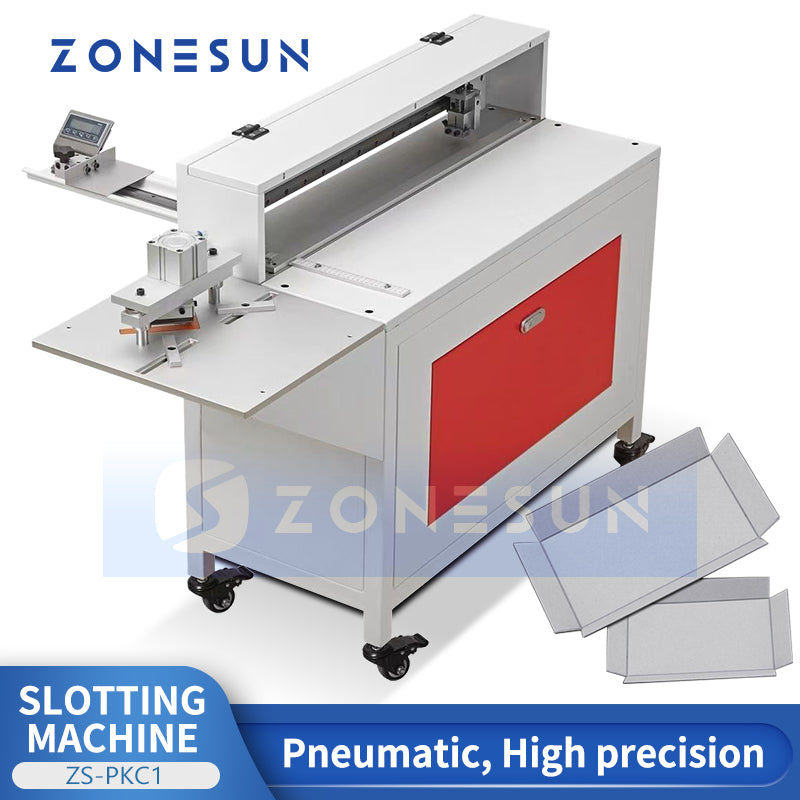

Introducing our V Grooving Machine for Cardboard, designed for precise grooving of gift boxes, wine boxes, and paperboard materials. Made of welded steel and sheet metal, the machine is both beautiful and durable. It features scoring capabilities as well as cutting functions, ensuring high precision with every operation. With its user-friendly design, the machine simplifies the slotting process, making it an effective solution for your packaging needs.
Parameter
- Model: ZS-PKC1
- Working principle: Electric and air pump
- Grooving outline: 0–670 mm
- Grooving thickness: 1–5 mm
- Grooving angle: 90° / 120° / 145°
- Die cutting length: 0–80 mm
- Power / Air pressure: 220V / 0.6 MPa
- Machine weight: 110 kg
- Machine size: L1400 × W450 × H970 mm

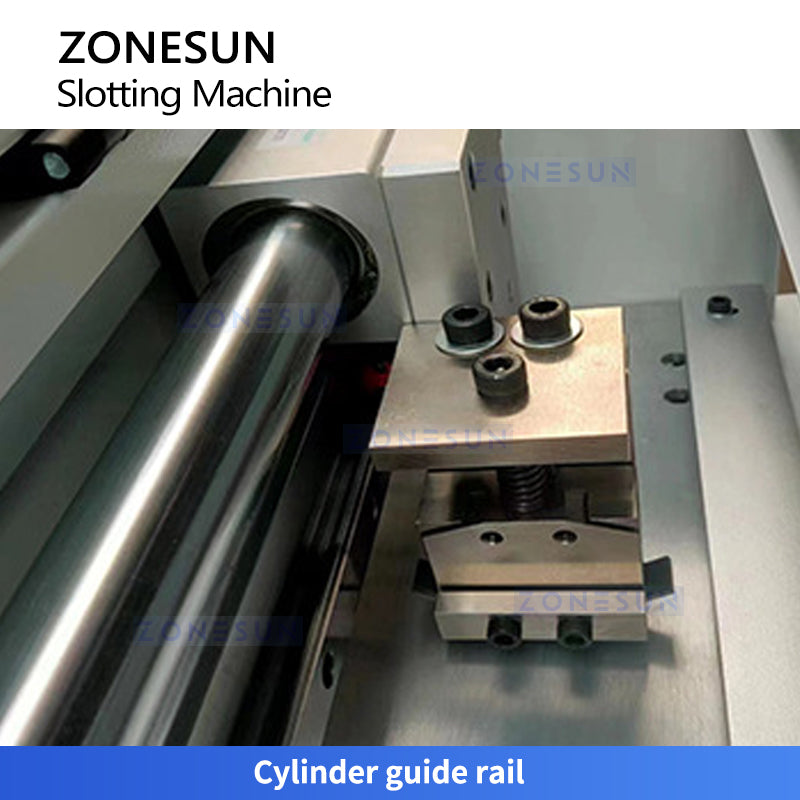

Stable Cylinder Guide Rail
The 32 mm cylinder and reinforced guide-rail support help reduce vibration for stable operation and consistent grooving results.

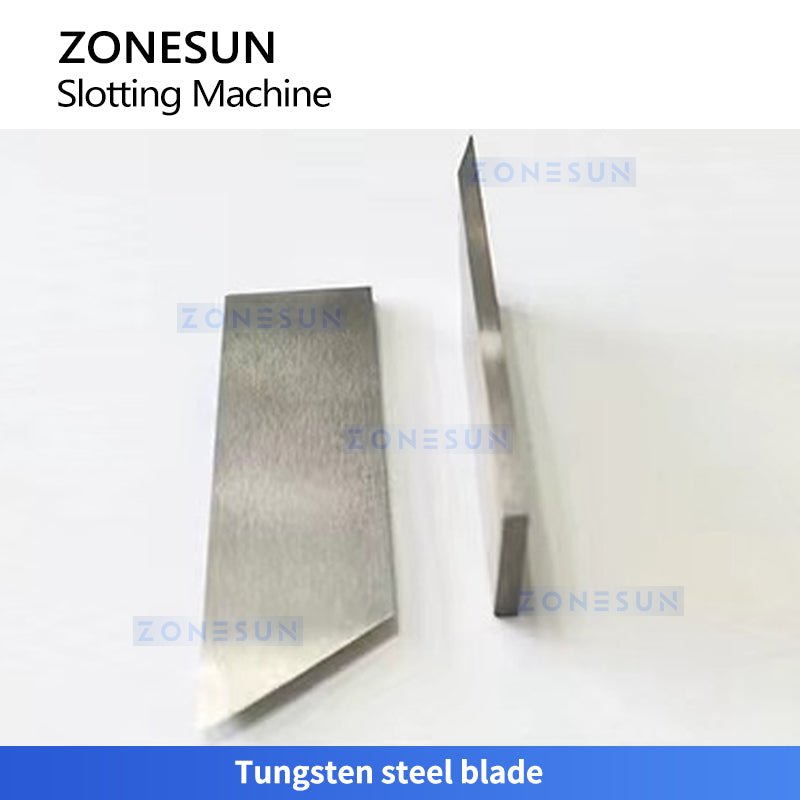

Durable Tungsten Steel Blade
The sharp, durable tungsten steel blade provides clean cutting, while the blade holder moves smoothly for easier adjustment during operation.

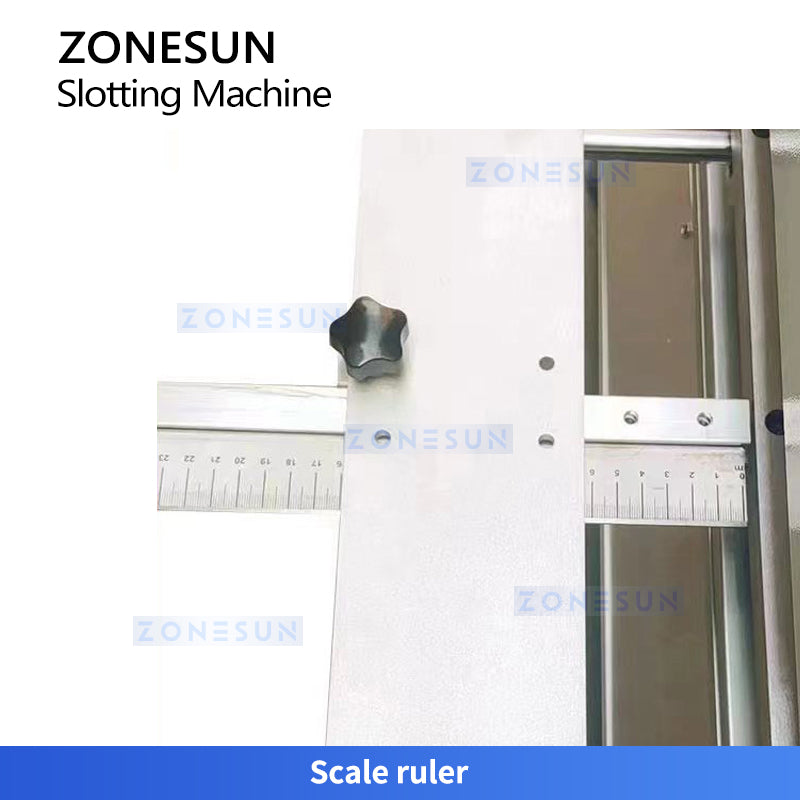

Positioning Scale
The pull-out scale allows the material position to be set quickly and accurately, improving grooving precision.

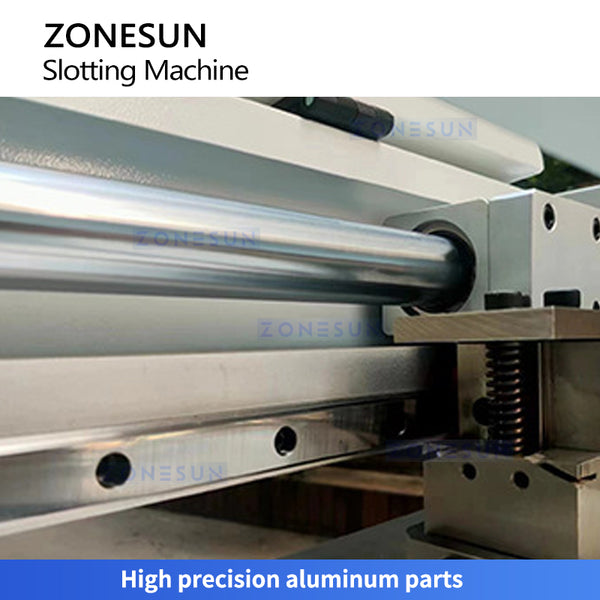

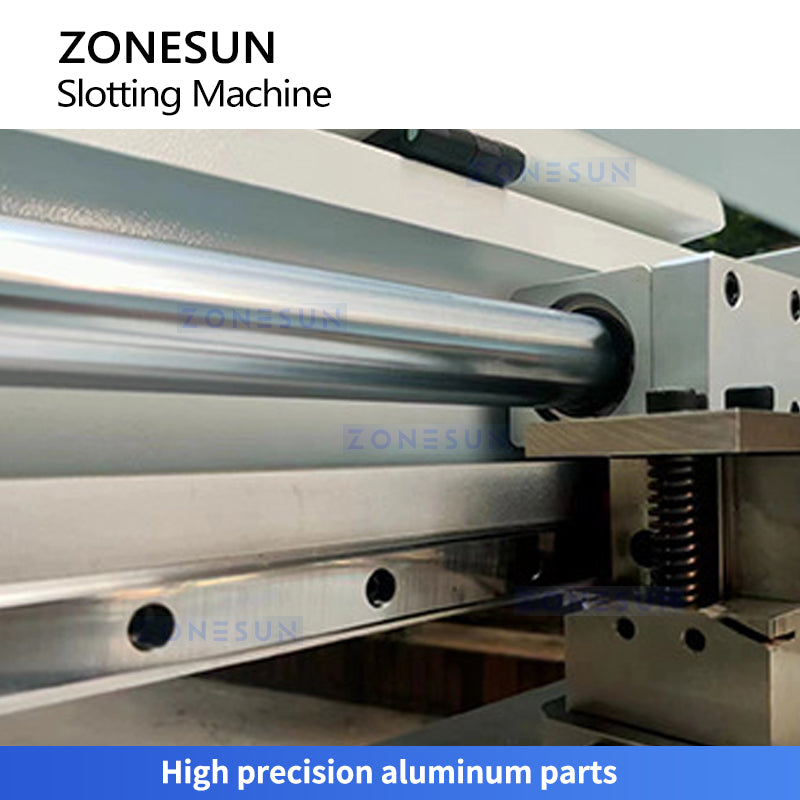

Precision Aluminum Components
High-precision aluminum components and the dual-track system help minimize misalignment during the grooving process.
