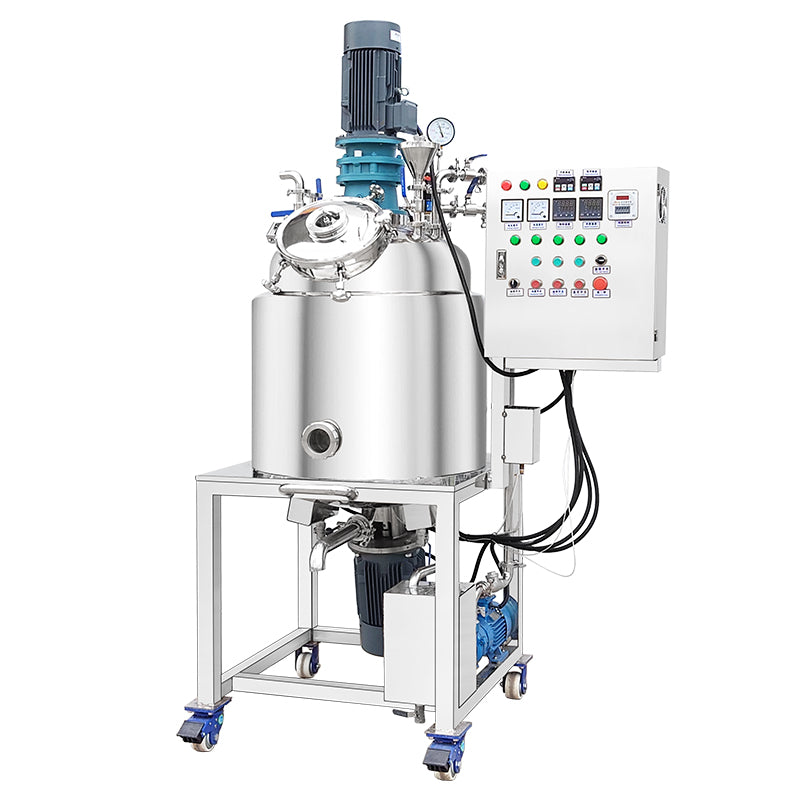

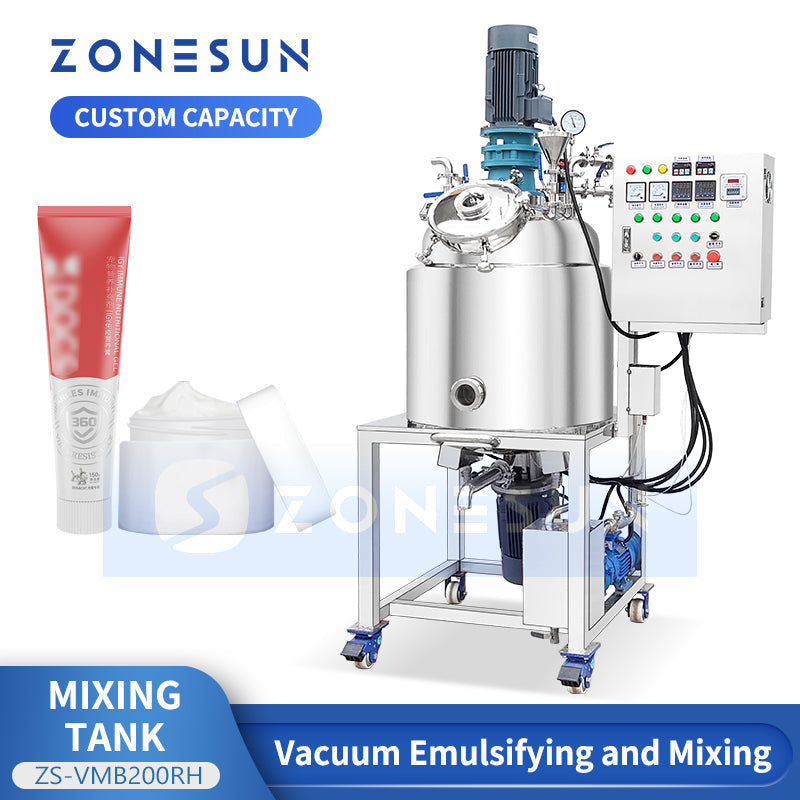

ZONESUN ZS-VMB200RH Cosmetic High Shear Mixer Vacuum Emulsifying Mixer Tank for Cream Lotion Ointment Sauce Homogenizing Heating Cooling

Harga
$11,699

Please click "Buy It Now". Shipping will be calculated at checkout.


voltage:380V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

Description

This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.

Parameter

Machine Model: ZS-VMB200RH
Voltage: 380V/220V 3-phase
Tank Capacity: 200L (customizable upon request)
Wall Thickness: Inner layer: 5 mm
Middle layer: 4 mm
Outer layer: 3 mm
Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
Heating Power: 18 kW
Mixing Motor Power: 2.2 kW
Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
Homogenizing Emulsifier Power: 5.5 kW
Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM
Vacuum Pump Power: 1.45 kW
Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa; Positive pressure: ≤ 0.3 MPa
Dimension: About 1512*1026*2619 mm
Package Size: About 1350*1060*2230 mm
Package Weight: About 591 kg

Cosmetic creams and lotions (e.g., moisturizers, sunscreens, BB creams)
Pharmaceutical ointments (e.g., medicinal gels, dermatological creams)
Food-grade pastes and sauces (e.g., mayonnaise, cheese paste, peanut butter) — requires food-grade stainless steel contact parts
Chemical emulsions and dispersions (e.g., detergents, paint additives, lubricants)
Personal care products (e.g., shampoo, conditioner, toothpaste)
👉If you need a customized vacuum mixing solution for your formulation, feel free to contact us for tailored configurations and capacity options!

Mixing Tank
Application
Mixing Tank

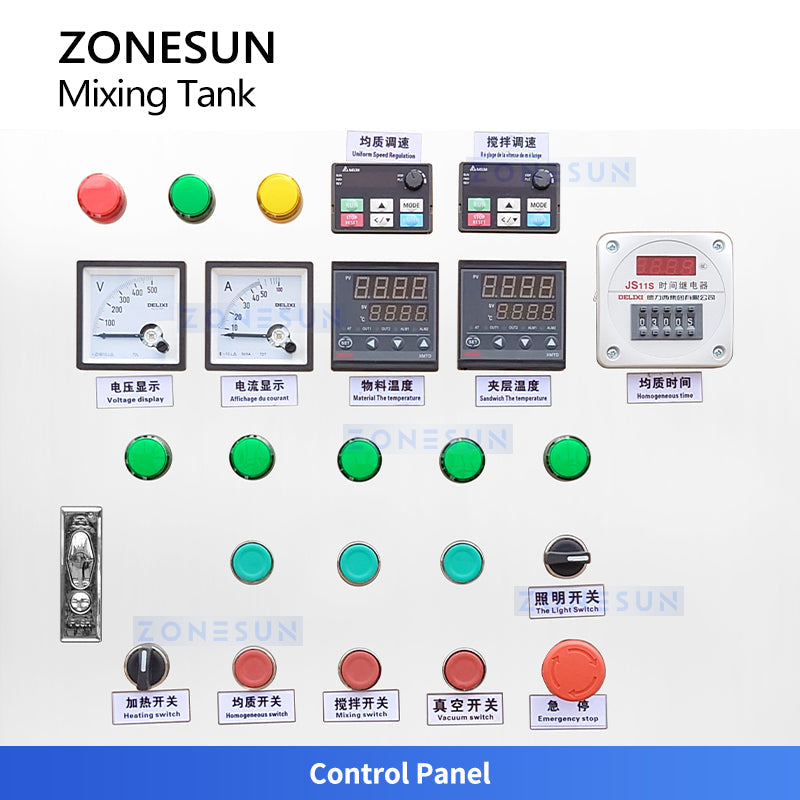

Products DetallCONTROL PANEL
User-friendly interface with clearly labeled functions. Dual temperature control system allows for precise and stable temperature regulation.

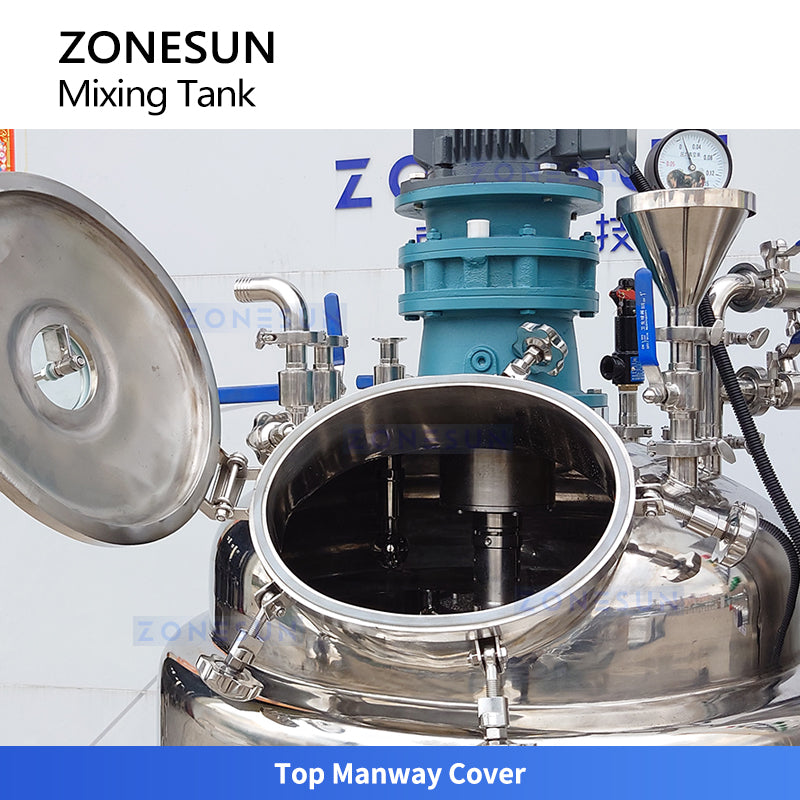

Top Manway CoverTOP MANWAY COVER

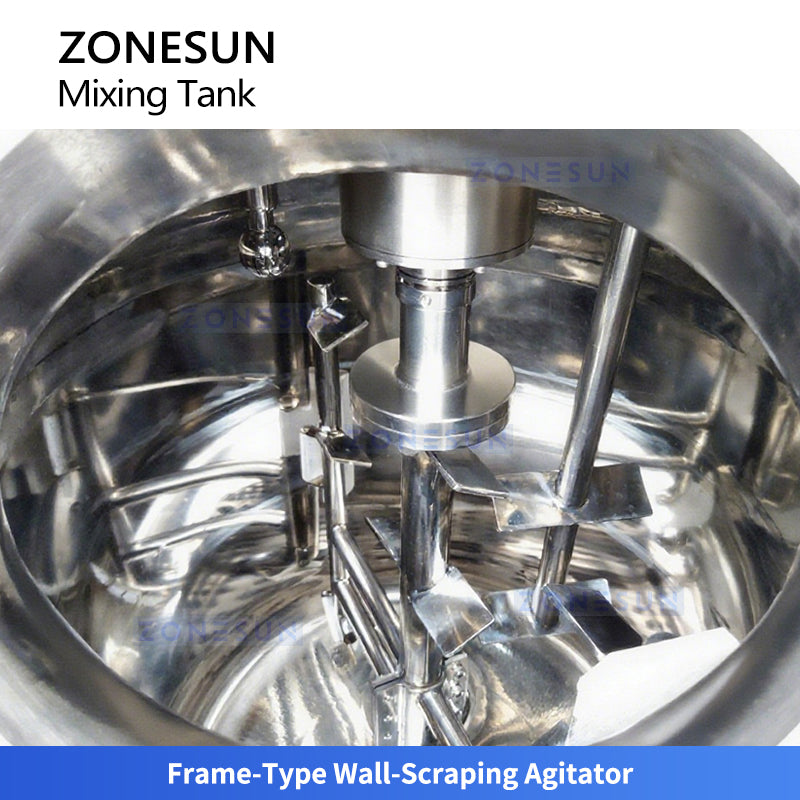

300×350 mm manway for manual feeding and easy cleaning of the mixing tank.Frame-Type Wall-Scraping AgitatorFRAME-TYPE WALL-SCRAPING AGITATOR
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.

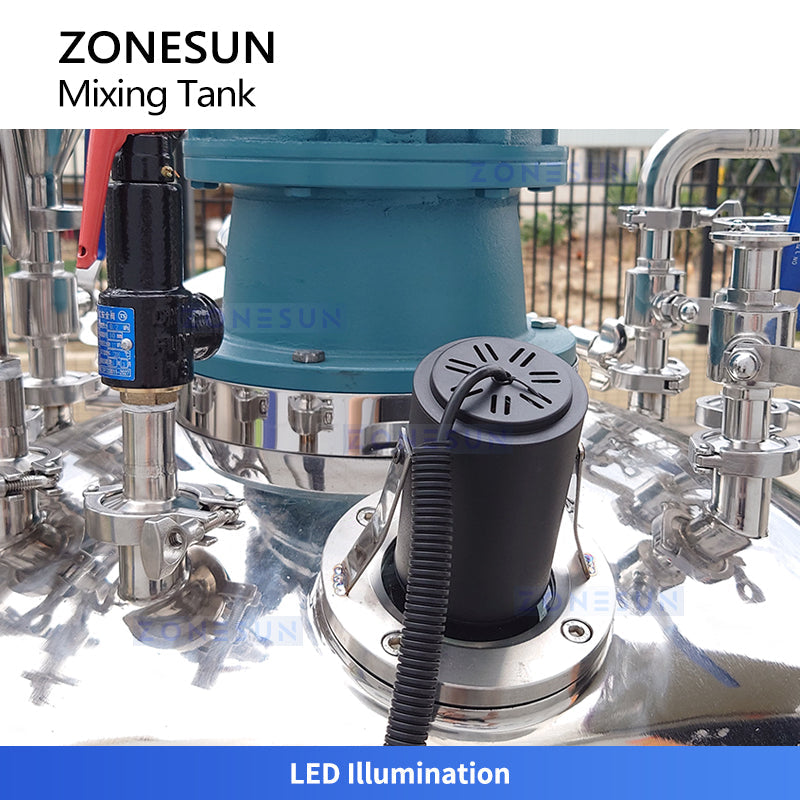

LED Illumination

LED ILLUMINATION

Integrated 3W LED light provides clear internal visibility during operation.

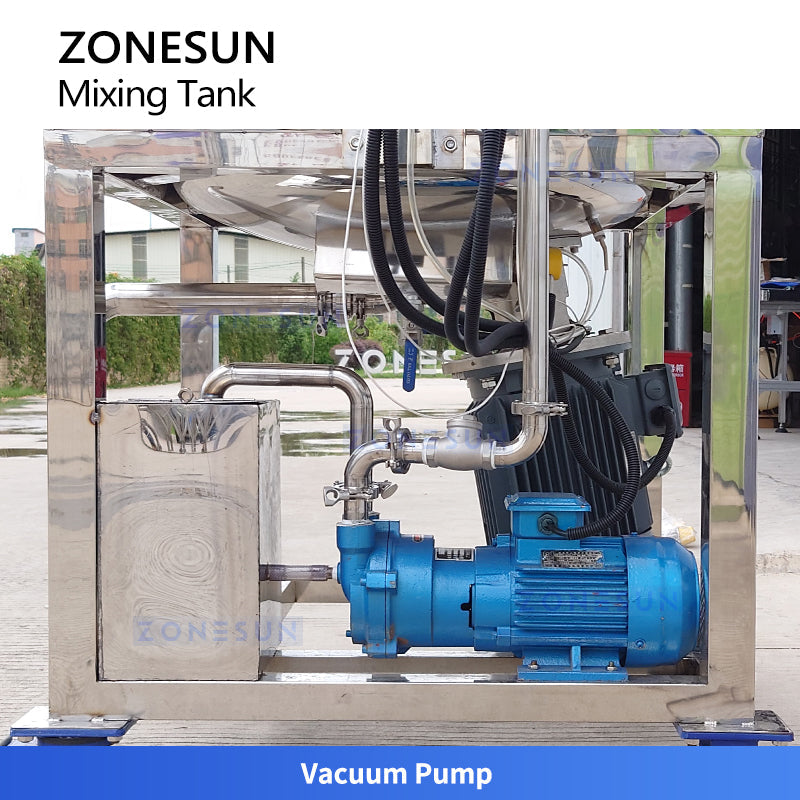

Vacuum PumpVACUUM PUMP
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
