ZONESUN ZS-VTFM1 Explosion-Proof 6-Nozzle Explosion-Proof Lubricant Oil Filling Machine

Harga
$22,999

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

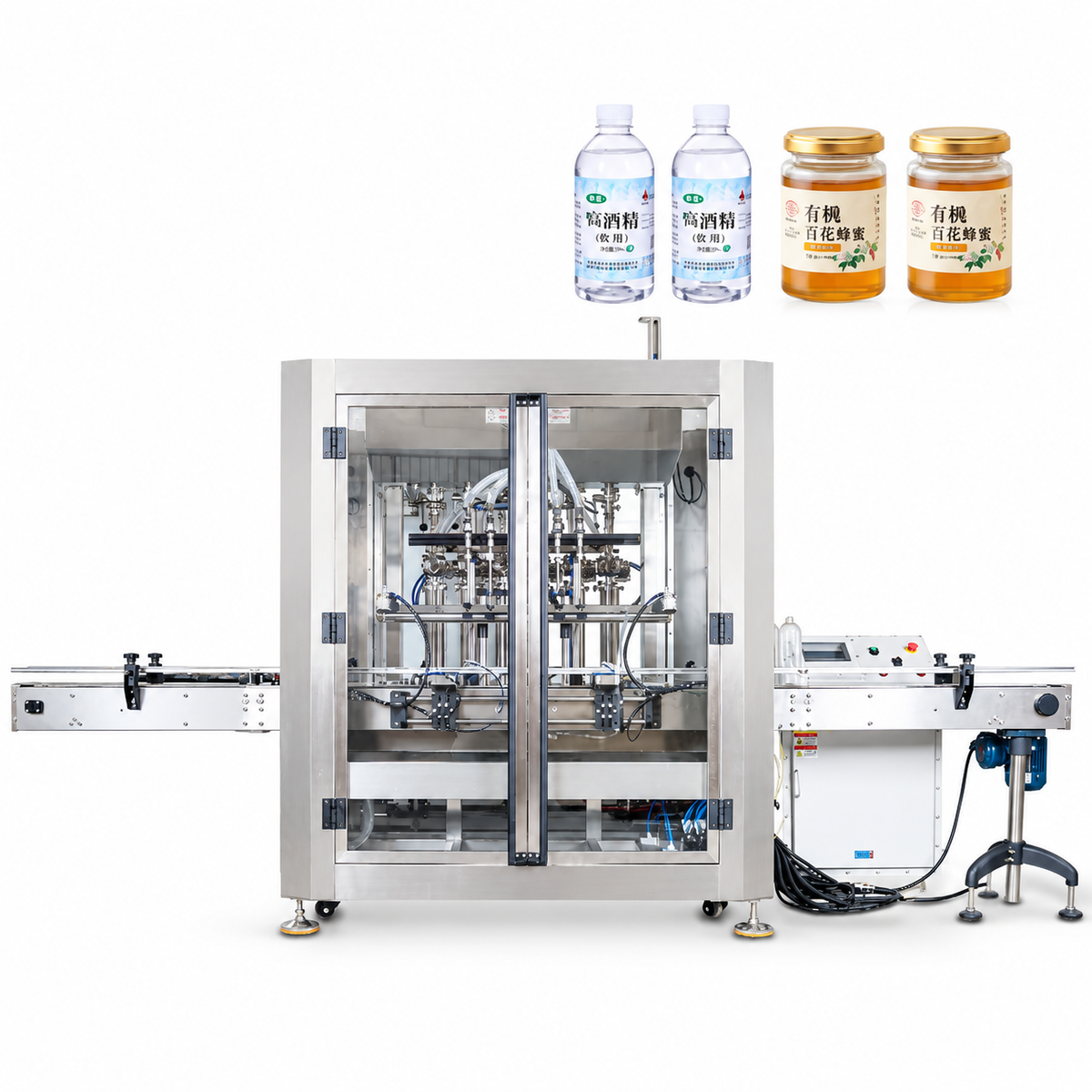

The ZS-VTFM1 is an explosion-proof automatic filling machine designed for flammable liquids and viscous products such as alcohol, kerosene, honey, and chocolate. It also handles beverages, perfumes, and shampoos with ease. Featuring a separate control box for enhanced safety, this machine offers volume-based filling without time setting, making operation simple and efficient. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.

Parameter Specification
Machine Model ZS-VTFM1
Machine Power 3KW
Filling Range 100–1000ml (can be customized)
Working Speed 20–40 bottles/min (based on 500ml)
Filling Accuracy ±1%
Air Pressure 0.8 MPa
Conveyor Size (L×W) 1140×100mm
Filling Nozzle Diameter OD 8mm
Package Size 2140×2110×1250mm (machine)
950×630×1200mm (electric control box)
Package Weight About 550kg (machine) + 100kg (electric control box)

ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine
ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine

ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine
ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine

Explosion-Proof Touchscreen Control

The touchscreen panel supports parameter settings and is enclosed by a protective casing for explosion-proof operation.

ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine

Six Filling Nozzles and Bottle Detection

Six anti-drip nozzles provide high-capacity filling, while the electric eye detects passing bottles to control filling accuracy.

ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine

Protective Dust Cover

The machine is enclosed by a dust cover to reduce falling materials and support cleaner production.

ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine
ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine
ZONESUN ZS-VTFM1 100-1000ml Automatic 6 Heads Ex-proof Liquid Paste Filling Machine

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
