ZONESUN ZS-YTCR10A Corrosive Filling Machine Diaphragm Pump Filler

Harga
$10,099

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

Depending on the selected shipping method, import duties, customs clearance fees, local taxes, and other destination charges may apply. These charges are determined by the relevant authorities and service providers at the destination.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

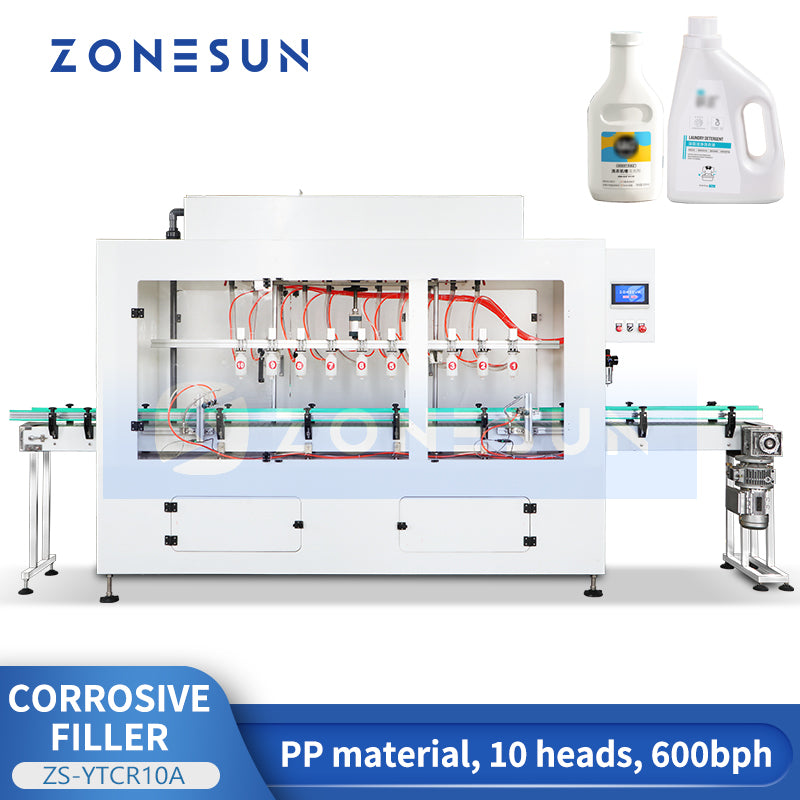

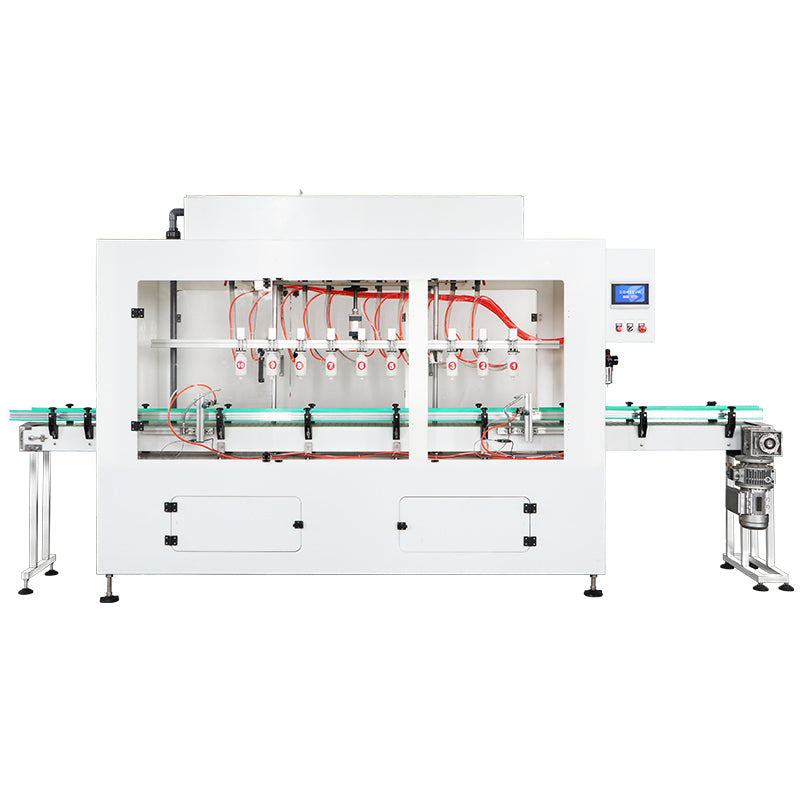

Introducing the 10-Head Corrosive Filling Machine, your ultimate solution for handling corrosive liquids and chemicals with precision, efficiency, and safety. This innovative machine features a robust construction with a PP material housing and contact parts, ensuring exceptional resistance to corrosion and chemical degradation.

Parameter

  • Machine Model: ZS-YTCR10A
  • Voltage: 110/220V 50–60Hz 1.5KW
  • Air Pressure: 0.4–0.7MPa
  • Suitable Bottle Diameter: φ60mm–φ120mm
  • Suitable Bottle Height: 150mm–350mm
  • Hopper Size: About 2000 × 350 × 300mm (Customized)
  • Filling Range: 100ml–3000ml
  • Filling Speed: 600 BPH (based on filling volume)
  • Machine Dimension: About 4365 × 991 × 2298mm
ZONESUN ZS-YTCR10A Corrosive Filling Machine
ZONESUN ZS-YTCR10A Corrosive Filling Machine
ZONESUN ZS-YTCR10A Corrosive Filling Machine

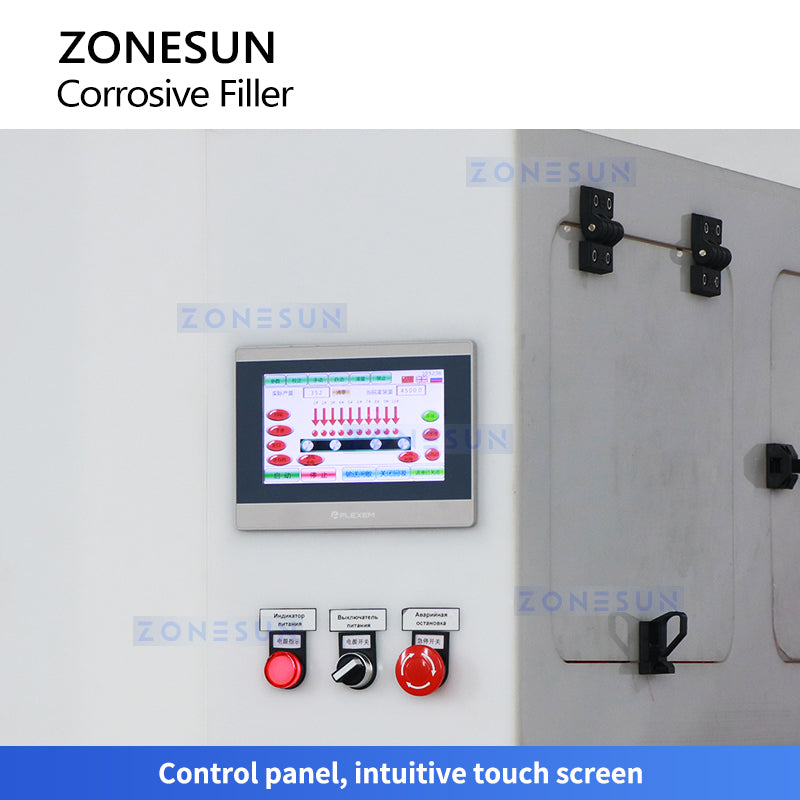

Touchscreen Control

The touchscreen panel makes operating parameters easy to set and monitor.

ZONESUN ZS-YTCR10A Corrosive Filling Machine

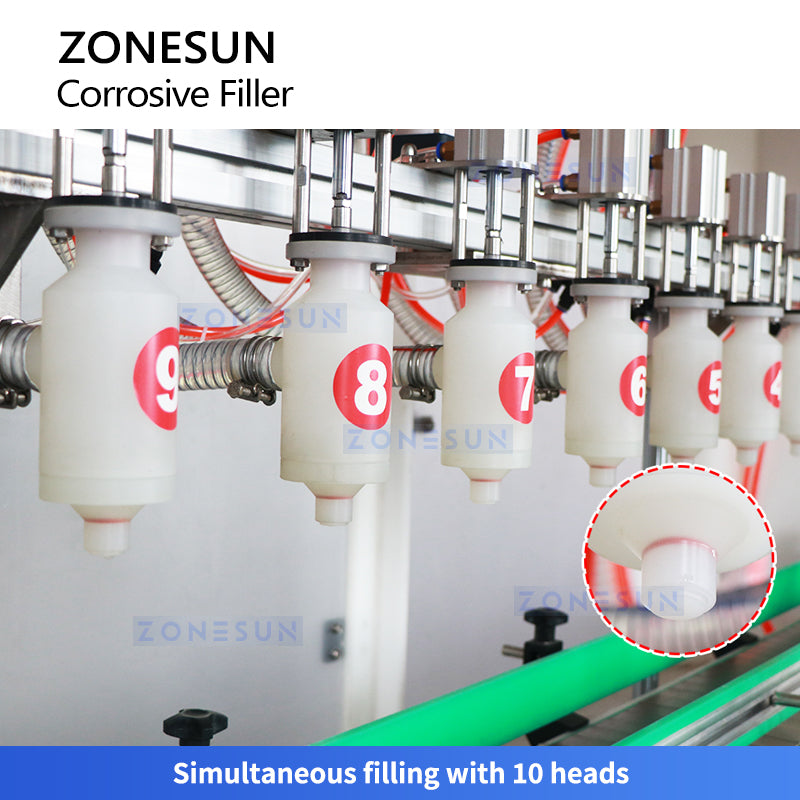

Anti-Drip Filling Nozzles

The filling nozzles are designed for controlled dispensing and reduced dripping during production.

ZONESUN ZS-YTCR10A Corrosive Filling Machine

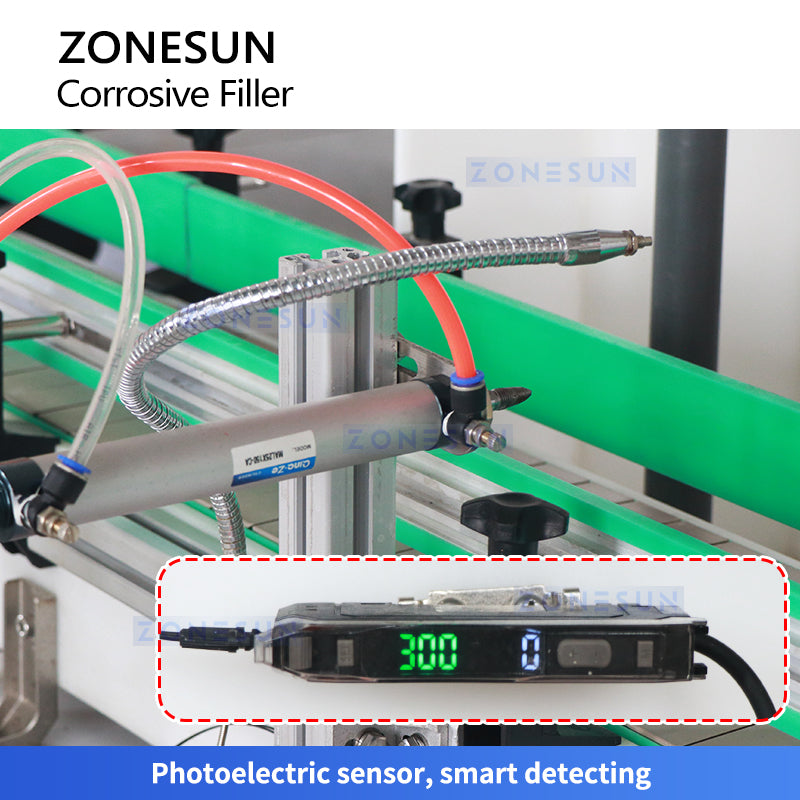

Bottle Detection Sensor

The electric eye detects bottles and coordinates the filling cycle for consistent operation.

ZONESUN ZS-YTCR10A Corrosive Filling Machine

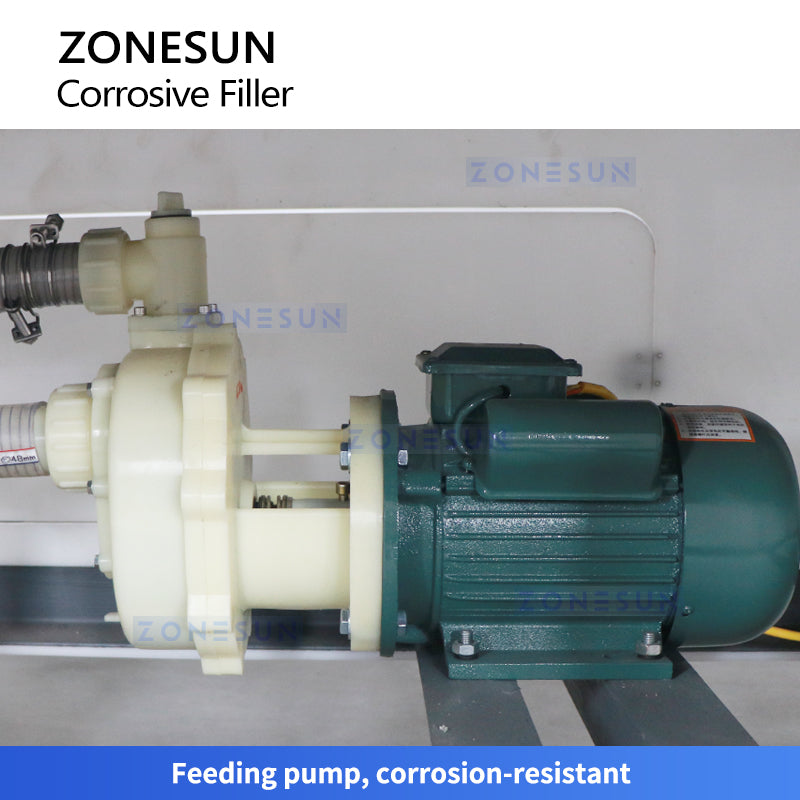

Diaphragm Pump Filling

The diaphragm pump is suitable for transferring and filling compatible corrosive liquids.

ZONESUN ZS-YTCR10A Corrosive Filling Machine

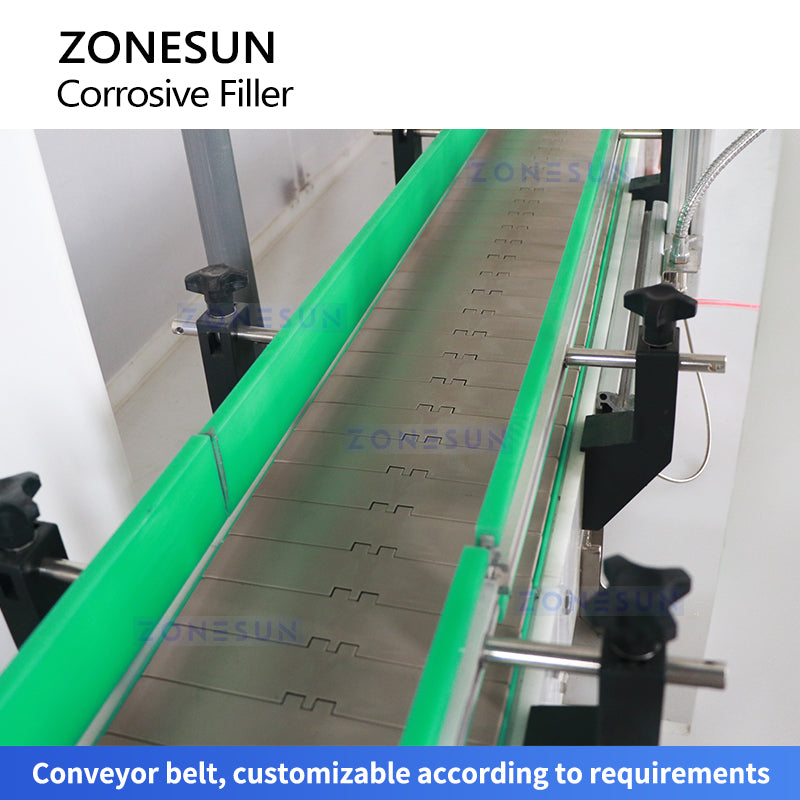

Chain Conveyor

The chain conveyor moves bottles steadily through the filling station.

ZONESUN ZS-YTCR10A Corrosive Filling Machine
ZONESUN ZS-YTCR10A Corrosive Filling Machine

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
