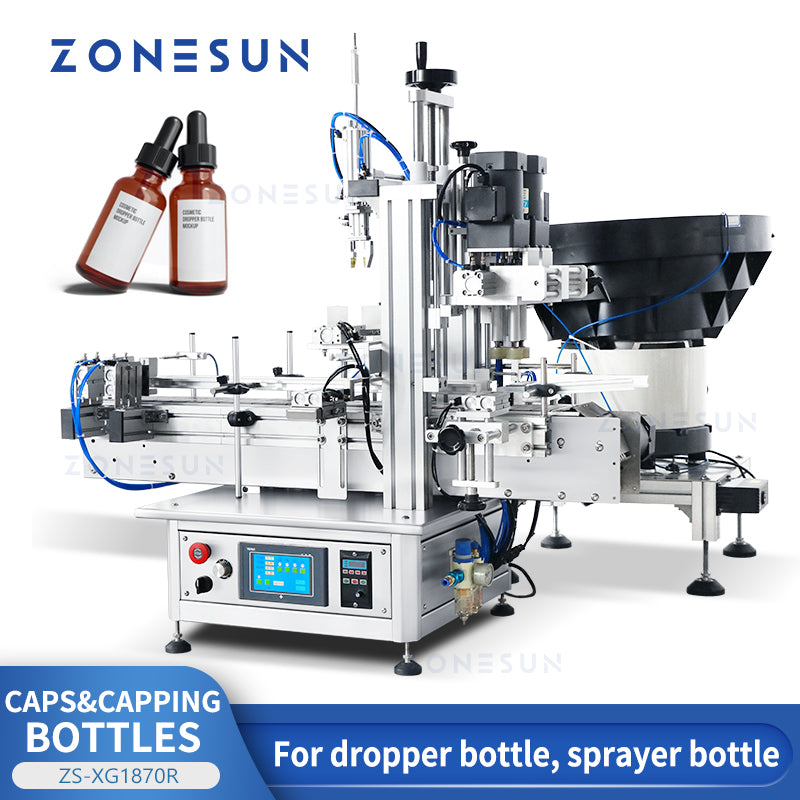

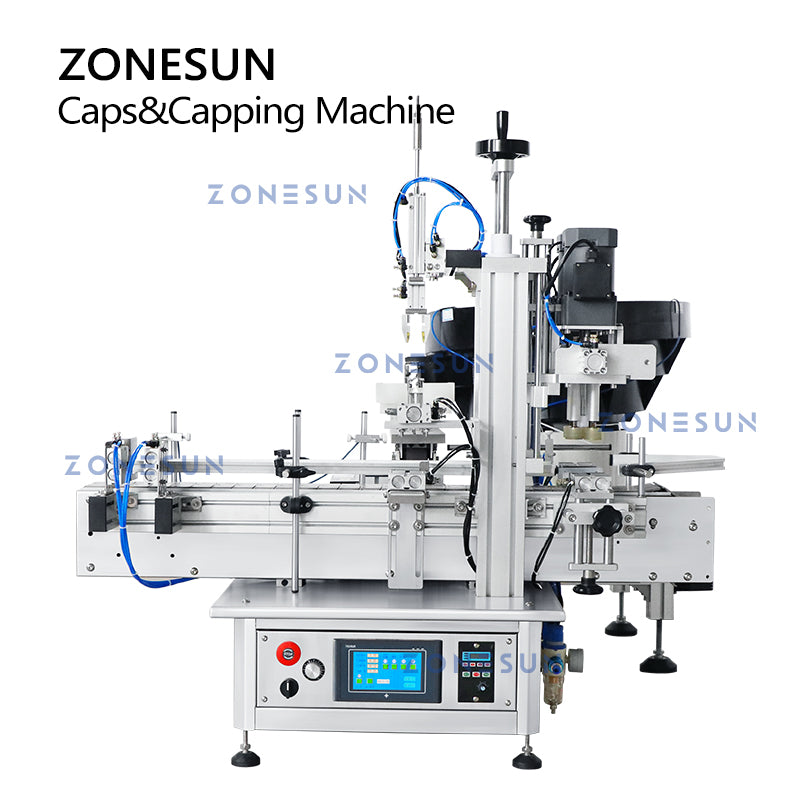

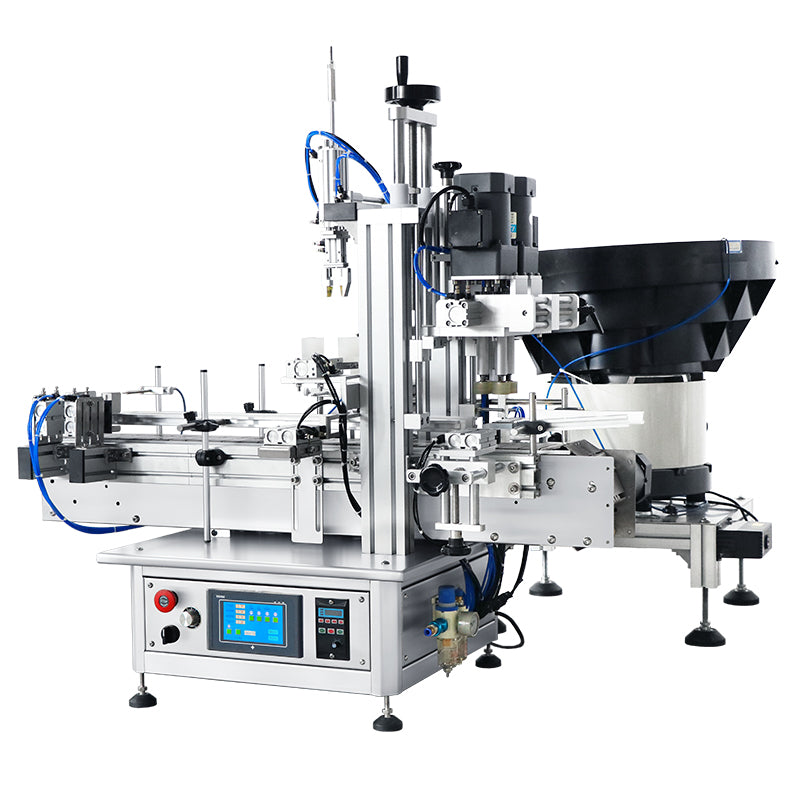

The ZONESUN ZS-XG1870R is a desktop automatic capping machine designed specifically for dropper bottles and sprayer bottles. It features a customizable vibratory bowl for cap sorting and feeding, ensuring smooth and efficient operation. With adjustable speed and pneumatic control, the machine can handle bottles ranging from 60–270 mm in height and caps from 18–70 mm in diameter. Operating at 20–40 bottles per minute, it’s ideal for cosmetic, pharmaceutical, and essential oil packaging lines. Compact, reliable, and built with stainless steel, this machine is a smart solution for small to medium-scale production.
-
Machine Type：Vibratory Bowl
-
Power Supply：110V / 220V, 50–60Hz
-
Material Stainless Steel：Suitable Cap Diameter Customized
-
Working Speed：Customized
-
Machine Size：Customized
Capping Machine -
Model：ZS-XG1870R
-
Working Voltage：AC 220V / 110V, 50–60Hz
-
Bottle Height Range：60–270 mm
-
Cap Diameter Range：18–70 mm
-
Working Speed：20–40 bottles per minute (varies by bottle and cap)
-
Working Pressure：0.4–0.6 MPa
-
Conveyor Length：1117 mm
-
Air Compressor Connector Size：Outer Diameter 8 mm
-
Machine Dimensions Approx.：1120 × 580 × 1110 mm
-
Package Dimensions Approx.：1160 × 610 × 1140 mm
- Package Weight Approx.：97.5 kg

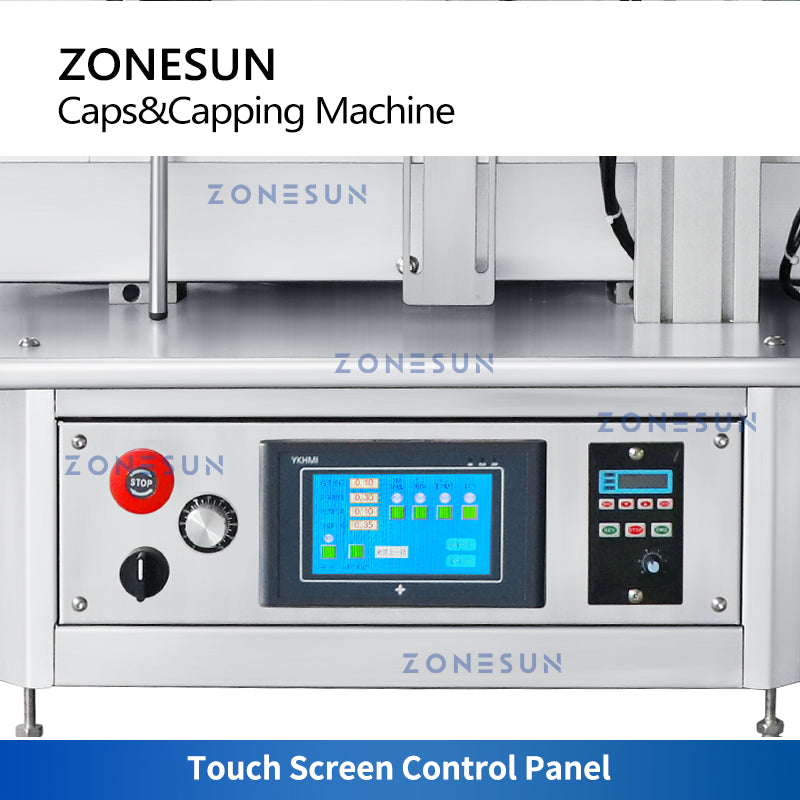

Touchscreen Control Panel
The touchscreen displays operating settings and provides centralized machine control.
Cap Placement Mechanism
The cap placement unit positions dropper caps above the bottle before tightening.
Customizable Capping Head
The four-rubber-wheel capping head tightens dropper caps and can be adjusted for compatible cap shapes.

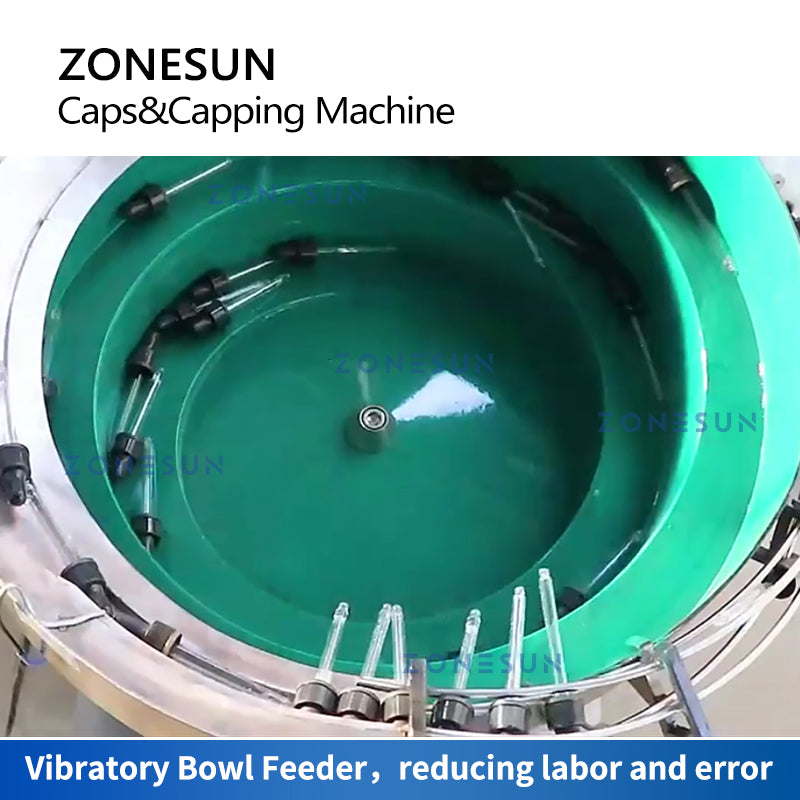

Vibratory Cap Feeder
The vibratory bowl sorts dropper caps and transfers them to the cap-loading mechanism.

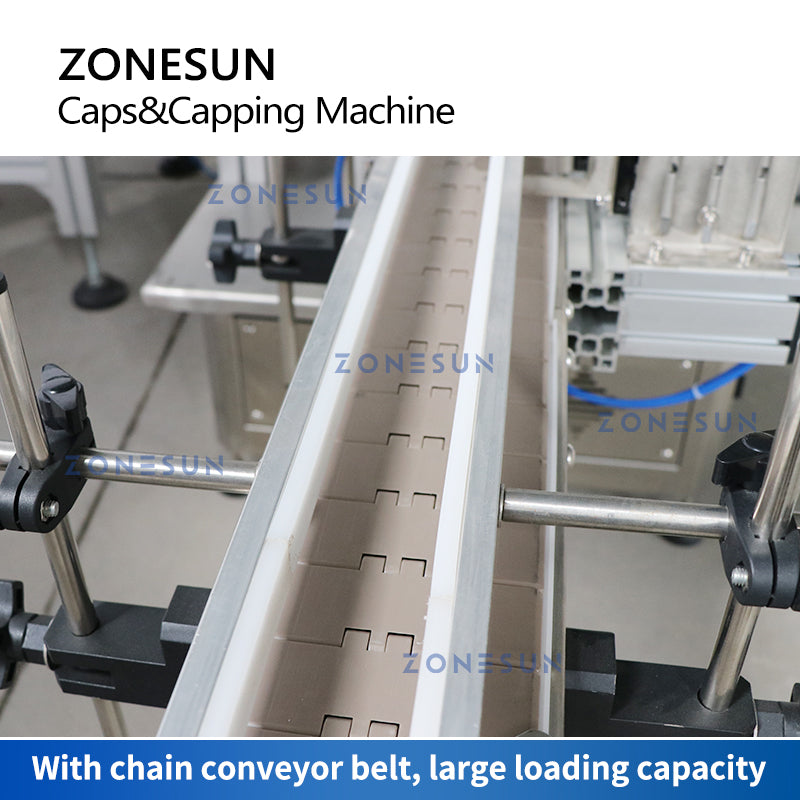

Chain Conveyor Unit
The chain conveyor moves containers through the capping stations. Its working speed can be adjusted as required.
