The ZONESUN 6-Head Liquid Filling and Cork Pressing Capping Machine is a compact, automated production line combining high-speed liquid filling and precise cork pressing. Equipped with a dust cover to ensure hygiene and product quality, this system is ideal for pharmaceutical, cosmetic, and beverage industries. The ZS-VTMP80D filling unit offers multiple flow rate options and high accuracy, while the ZS-XG16D capping unit handles a wide range of bottle and cap sizes. Both machines are customizable to meet specific production needs and can be integrated with an automatic labeling machine for full automation.
Parameter Specification
Machine Model ZS-VTMP80D Filling Machine
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min, 7500ml/min, 12000ml/min
Pump Material 304 Stainless Steel / 316 Stainless Steel
Filling Accuracy ≤100ml: deviation ≤1ml<br>>100ml: deviation ≤1% (based on water)
Filling Speed 20–50 pcs/min<br>25–60 pcs/min<br>50–70 pcs/min<br>(depends on bottle and liquid type)
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector 8mm
Machine Weight Approx. 285kg
Packing Weight Approx. 390kg
Packing Size Approx. 1970 × 1020 × 2050mm
Product Specifications: ZS-XG16D Automatic Capping Machine
Parameter Specification
Machine Model ZS-XG16D
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1800mm
Packing Size Approx. 1970 × 1020 × 2030mm
Net/Gross Weight Approx. 243kg / 350kg

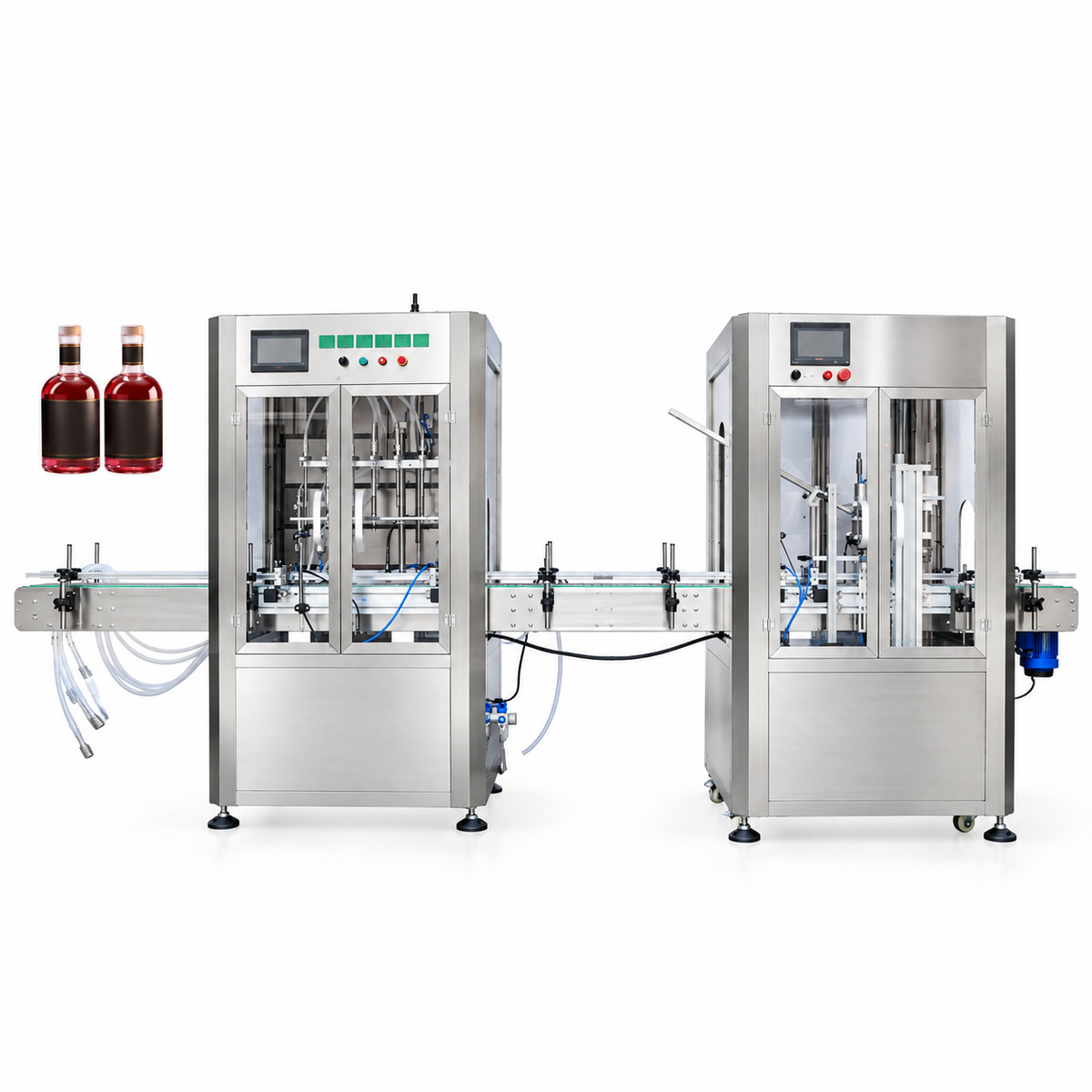

Six-Head Filling and Cork Capping Line
This automated line combines six-head liquid filling with cork pressing and capping under protective covers.
Product Applications
The line is suitable for liquid products in pharmaceutical, cosmetic, beverage, and other compatible packaging applications.
High-Precision Liquid Filling
The magnetic-pump filling unit supports multiple flow-rate options and accurate filling for different liquid volumes.
Six Filling Heads
Six filling heads support higher production throughput and can be configured according to production requirements.
Automatic Cork Pressing
The capping section automatically presses compatible corks onto bottles for consistent closure.
Protective Dust Cover
The protective enclosure helps reduce contamination during filling and capping operation.
