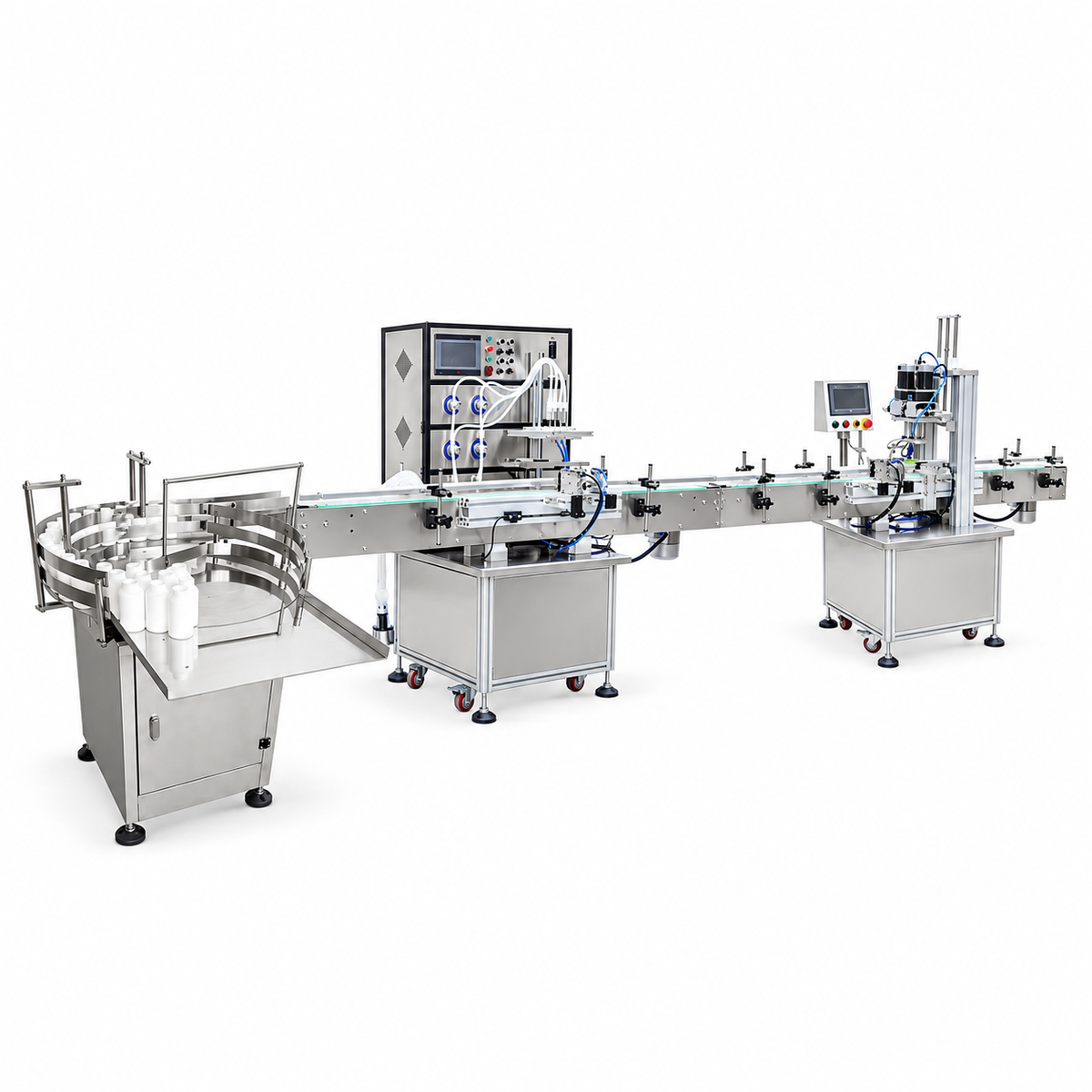

This compact production line integrates bottle arranging, liquid filling, and capping into one streamlined system. Designed for small to medium-scale operations, it boosts efficiency and ensures consistent product quality. Ideal for food, cosmetics, pharmaceuticals, and daily chemical industries, it helps reduce labor costs and save time. The system is customizable to match your container types and filling materials, making it a smart investment for growing businesses.
ZONESUN Bottle Unscrambler Specifications
Specification Value
Suitable Bottle Diameter 30–100 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Power 180 W
Power Supply 220V / 50–60 Hz
Machine Weight 65 kg
Full Automatic Liquid Filling Machine Specifications
Container Size Φ20–160 mm / Height 30–300 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Pump Material Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: ±1 ml / >100 ml: ≤ ±1% (based on water)
Filling Speed 20–40, 20–50, 20–50, 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Total Machine Power 2 KW
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Full Automatic Capping Machine
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Packing Size 2000 × 820 × 1760 mm
Machine Weight 150 kg
Liquid Packaging Applications
The line is suitable for arranging, filling, and capping compatible bottles used for beverages, cosmetics, daily chemicals, and pharmaceutical liquids.
