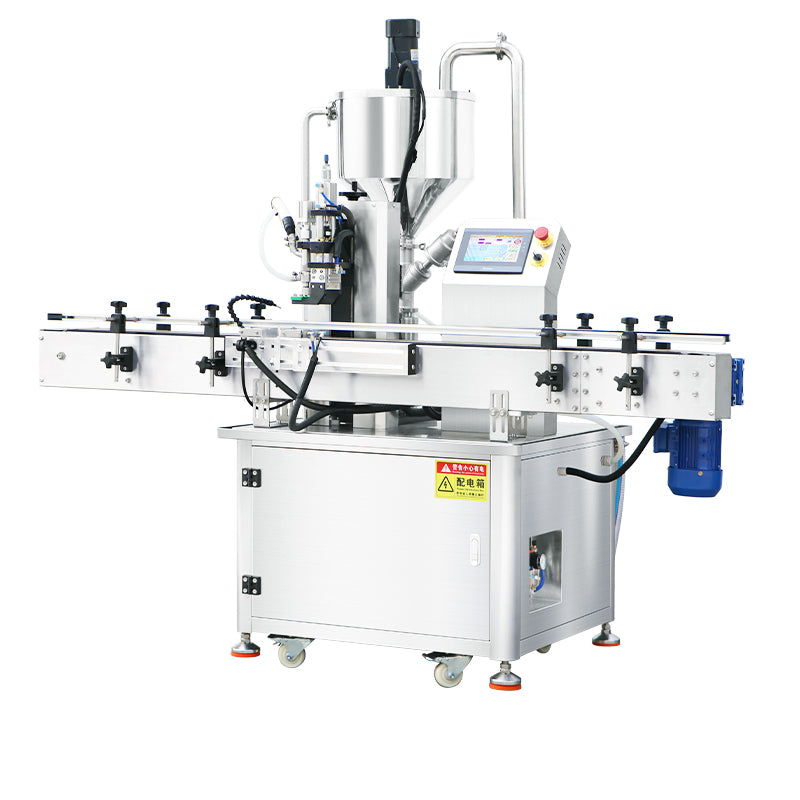

ZONESUN ZS-WCHJ1C Paste Filler | Heated Mixing & Water Circulation System

Prezzo di vendita
$3,899
Prezzo di listino
$4,480
Risparmi
$581 (13%)

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

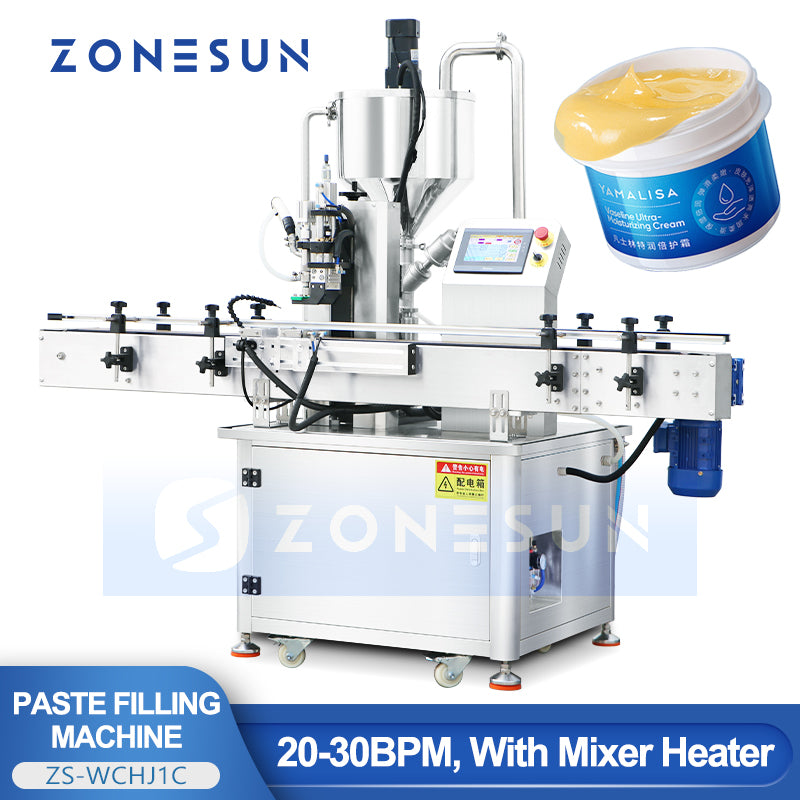

ZS-WCHJ1C is a high-efficiency paste filling machine designed for liquids and semi-liquids requiring consistent heating and mixing. Its advanced water circulation system ensures uniform temperature control, while the piston pump delivers precise filling with minimal error. Built with SUS304 stainless steel, it’s ideal for cosmetics, sauces, beverages, and daily chemical products. Compact, hygienic, and production-ready.

Parameter
Machine Model ZS-WCHJ1C
Power Supply 220V/110V, 50–60Hz, 4kW
Filling Speed Approx. 20–30 bottles/min (depends on filling range and material viscosity)
Suitable Bottle Diameter 4–150 mm
Suitable Bottle Height 10–200 mm
Filling Range 5–150 ml (customizable)
Filling Error ≤0.5%
Filling Pump Type Piston Pump
Air Pressure 5–8 kg/cm²
Material Contact Part SUS304 Stainless Steel
Machine Size Approx. 1800 × 800 × 1600 mm
Package Size Approx. 1900 × 880 × 1500 mm
Package Weight Approx. 232 kg
zonesun filling machinezonesun filling machinezonesun filling machinezonesun filling machine

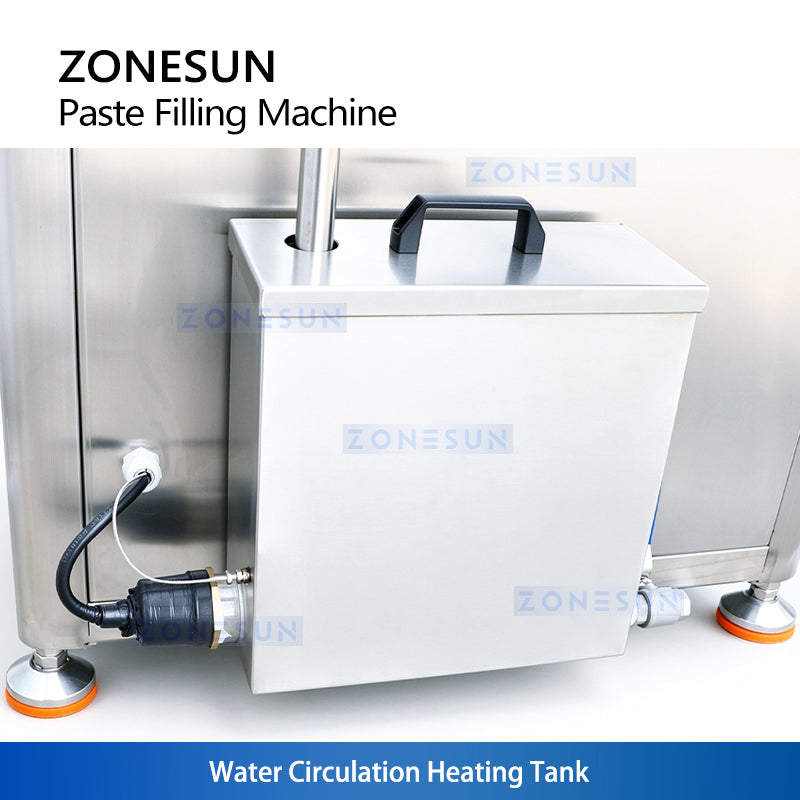

Water-Circulation Heating

The heated water jacket helps maintain suitable temperature and product consistency.

zonesun filling machine

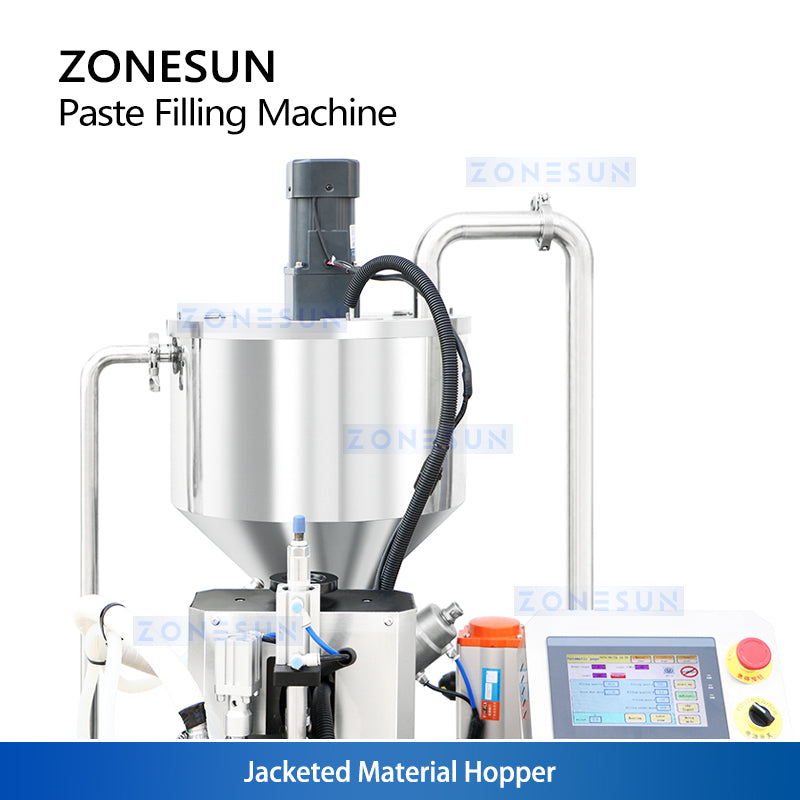

Heated Mixing Hopper

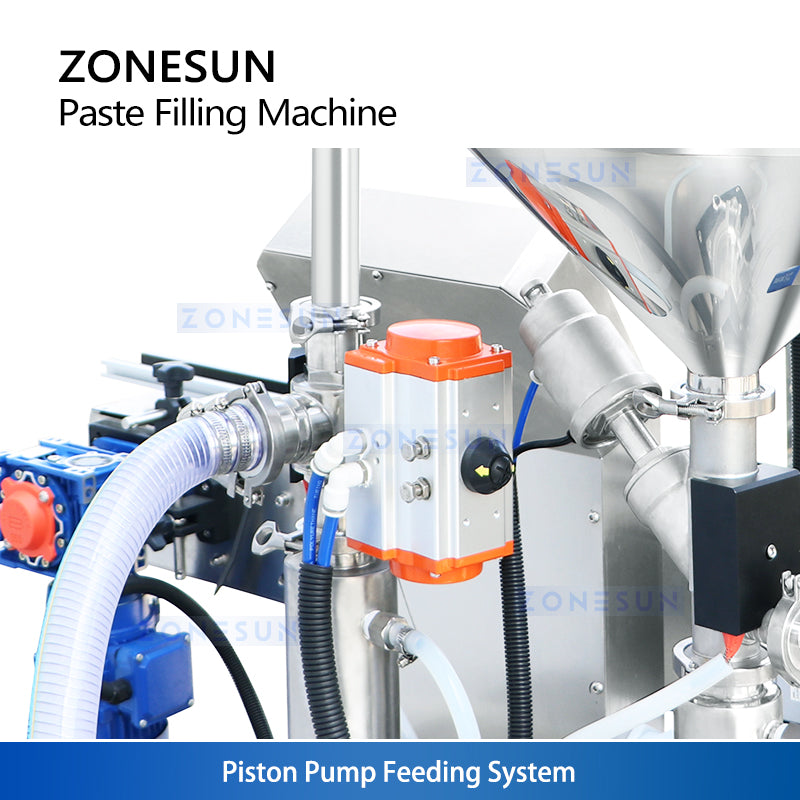

The stainless steel hopper combines heating, mixing, and piston-pump feeding.

zonesun filling machine

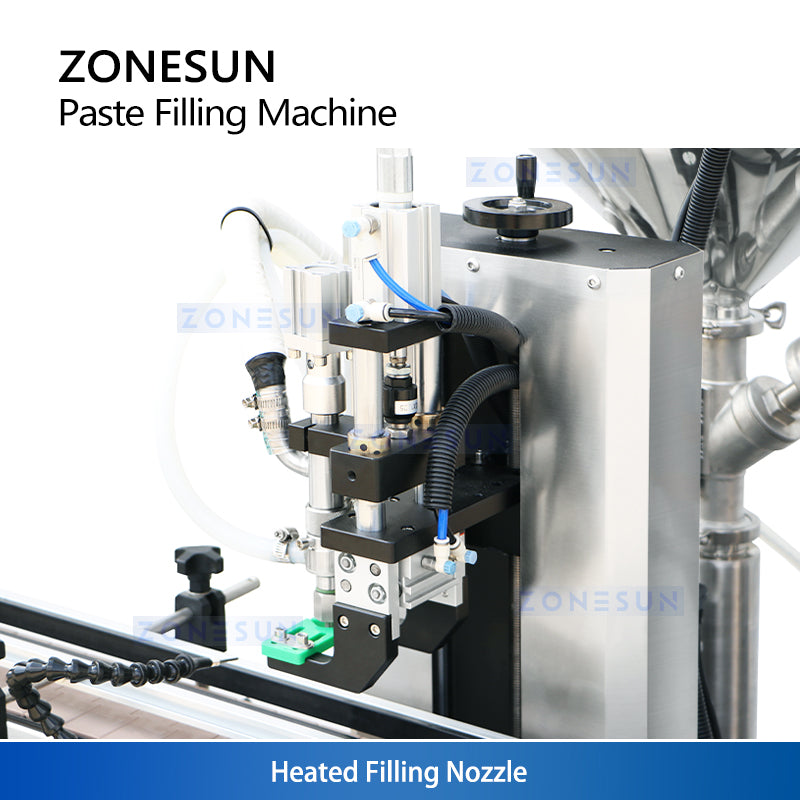

Pneumatic Filling Control

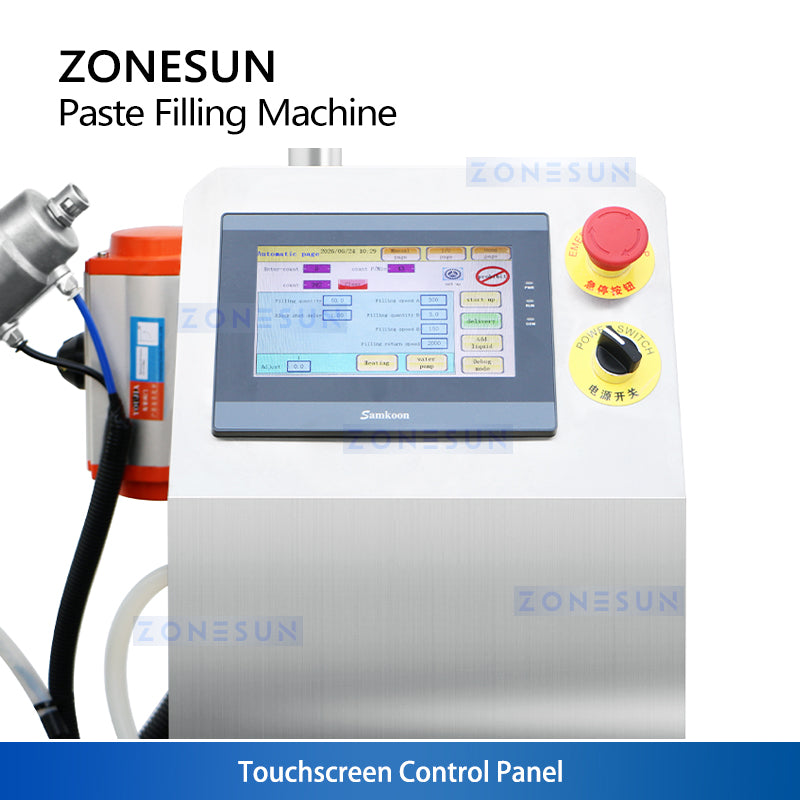

The filling head and PLC provide controlled dispensing for compatible paste products.

zonesun filling machinezonesun filling machine







About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
