Description

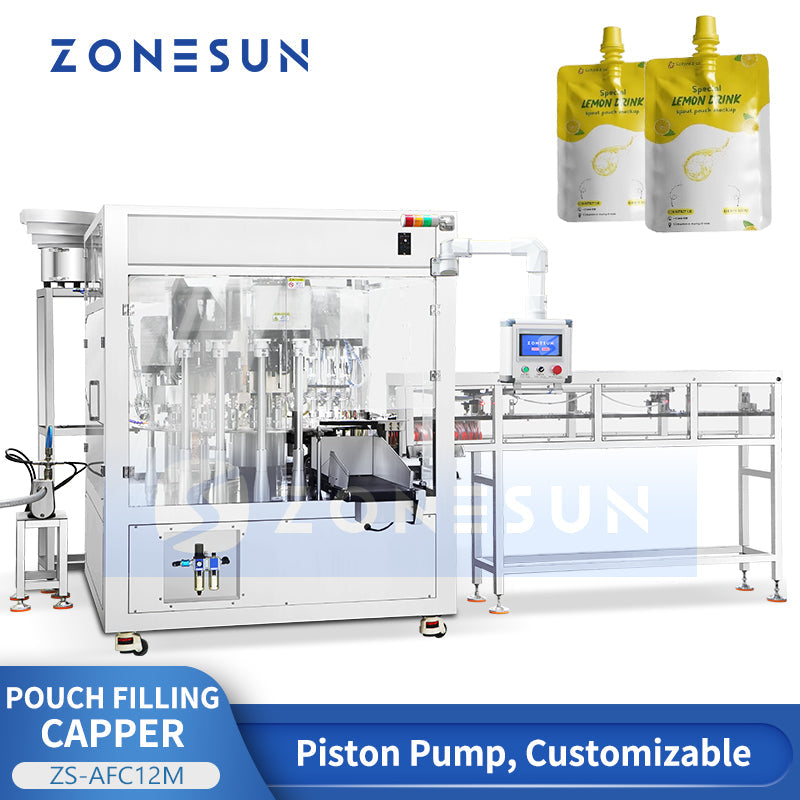

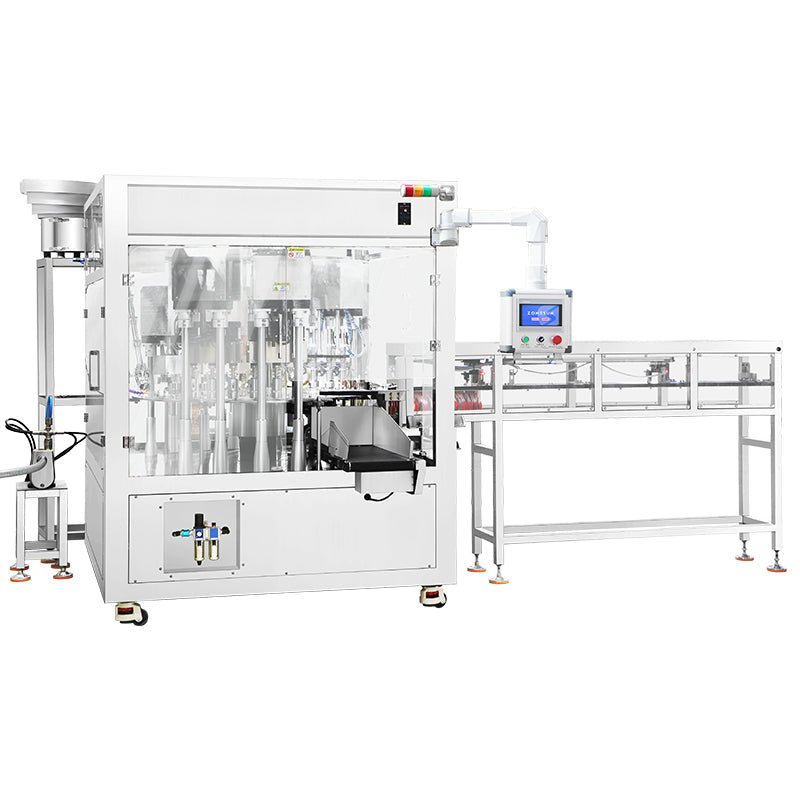

The ZONESUN ZS-AFC12M is a fully automatic spout pouch filling and capping machine designed for food, daily chemical, and automotive liquid products. Running at up to 120 bags per minute depending on filling volume, it adopts a servo piston pump system ensuring precise dosing and consistent sealing quality. Built with stainless steel materials, it withstands hygienic production requirements and integrates pouch feeding, cleaning, filling, cap placing, and capping in one system. With its multi-head design, customizable hopper, and pouch compatibility, it provides reliable, efficient, and long-lasting performance for medium to large-scale production lines.
Parameter
- Model: ZS‑AFC12M
- Voltage: 110 V / 220 V, 50–60 Hz
- Power: 5 kW
- Filling Range: 100–1000 ml (customizable)
-
Production Capacity:
- 30–50 g: 100–120 bags/min
- 200–300 g: 70–100 bags/min
- 500 g: 60–80 bags/min
- 1 L: About 50 bags/min (depends on filling volume)
- Filling Accuracy: ±1%
- Hopper Capacity: 120 L (customizable)
- Filling Pump: Piston pump
- Filling Nozzle Quantity: 6 (customizable)
- Suitable Cap Diameter: Customizable
- Suitable Pouch Size: Customizable
- Frame Material: SUS304 stainless steel
- Material Contact Parts: SUS316 stainless steel
- Machine Size (L×W×H): 3525 × 2400 × 2090 mm
- Machine Weight: 1000 kg
-
Package Size:
- Main machine: About 2100 × 1770 × 2230 mm
- Pouch feeding structure: About 2280 × 1230 × 2180 mm
-
Package Weight:
- Main machine: About 1030 kg
- Pouch feeding structure: About 549 kg

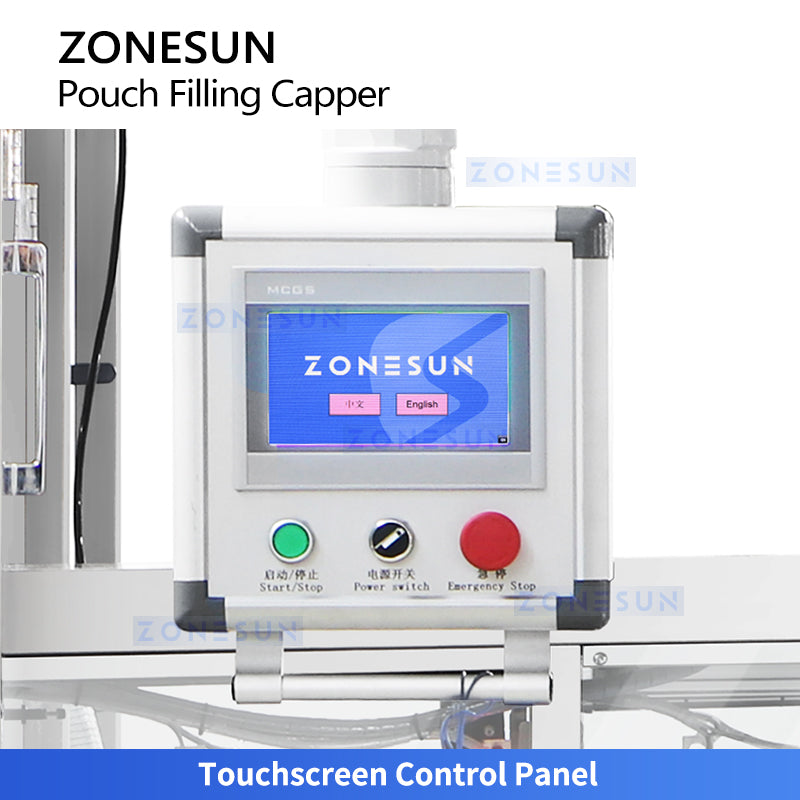

CONTROL PANEL

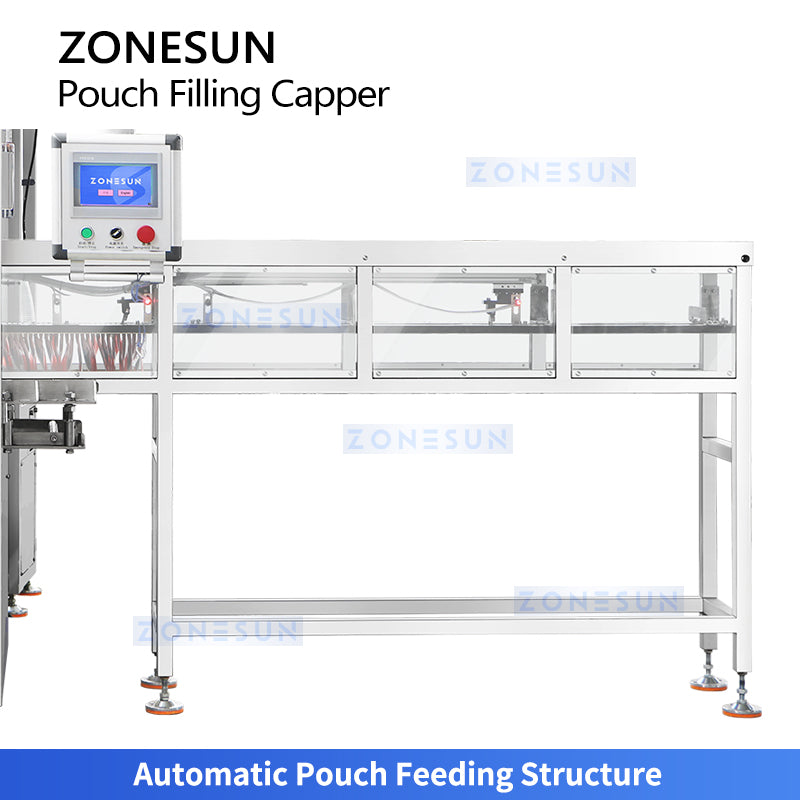

POUCH FEEDING

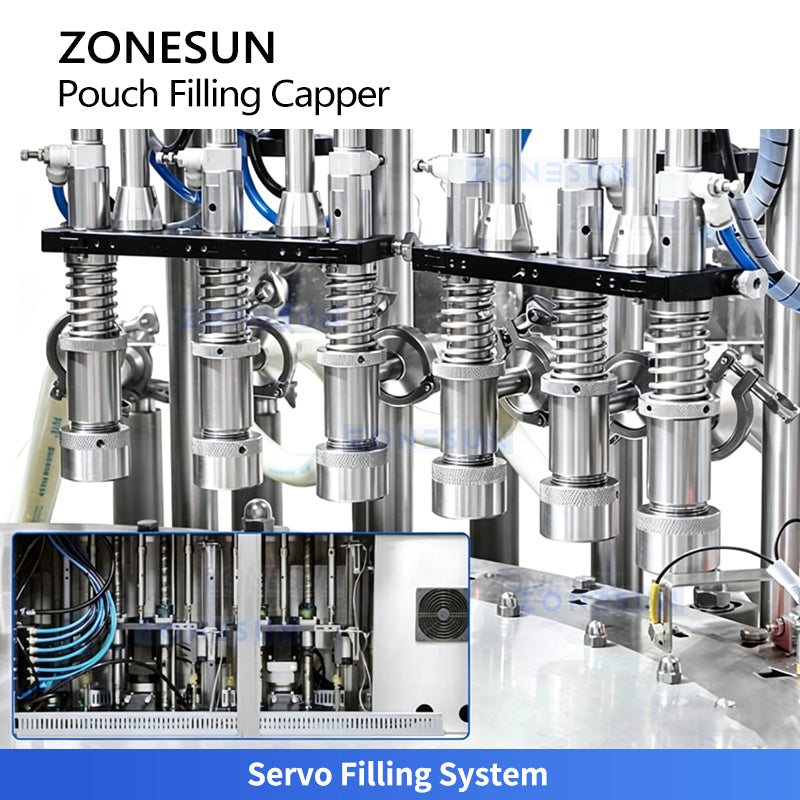

SERVO FILLING
Controlled by servo piston pump, customizable multiple filling nozzles. Using 304 & 316 stainless steel for hygienic filling.

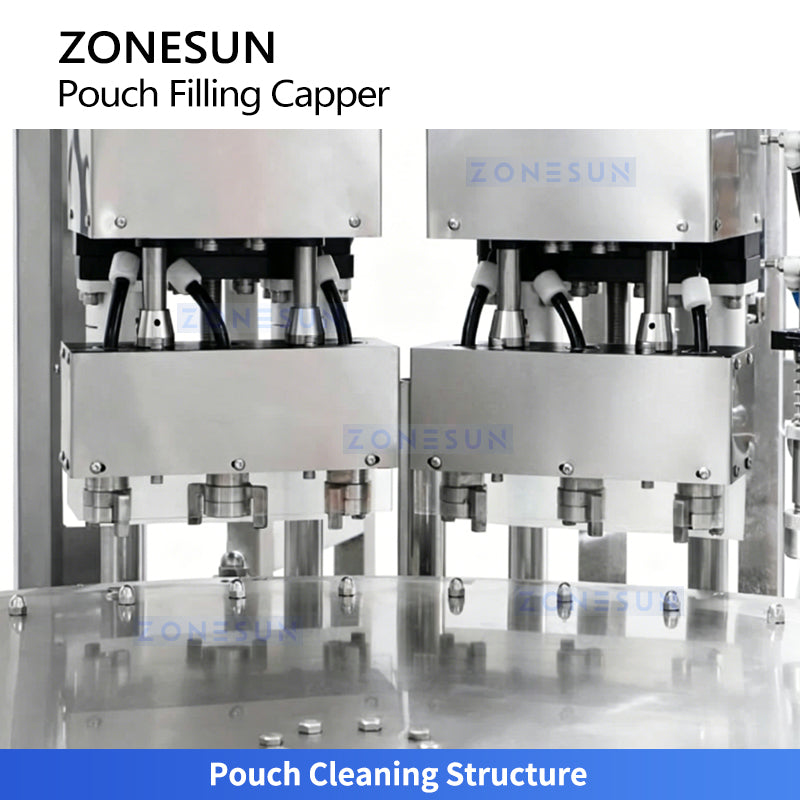

POUCH CLEANING

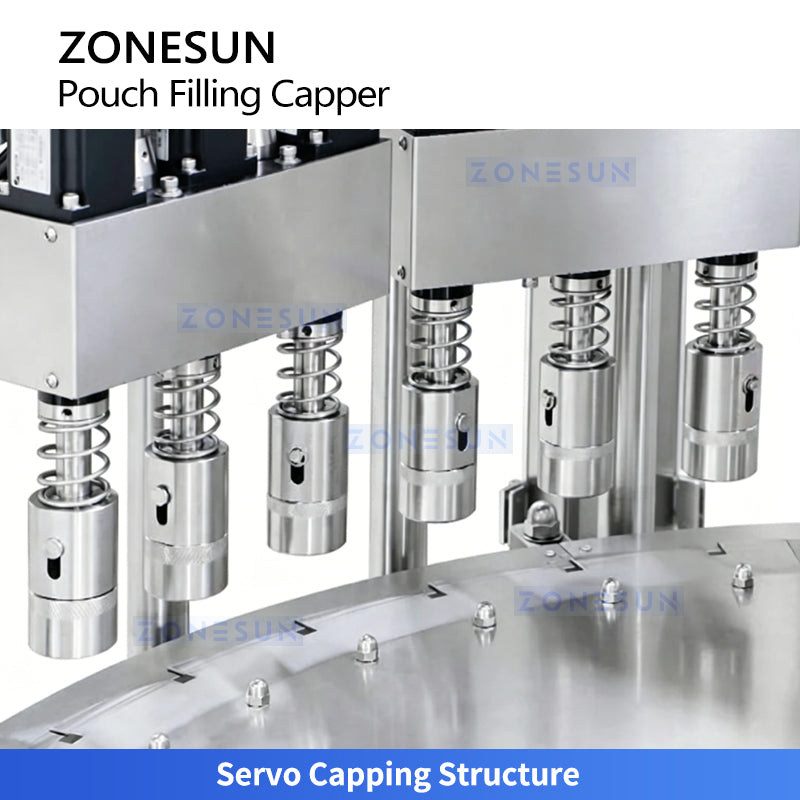

SERVO CAPPING
Independent servo-controlled capping heads apply consistent torque for secure, reliable seals while supporting stable high-speed machine operation.
