ZONESUN ZS-CSPM4T Automatic Hot Melt Glue Cardboard Tray Former Machine

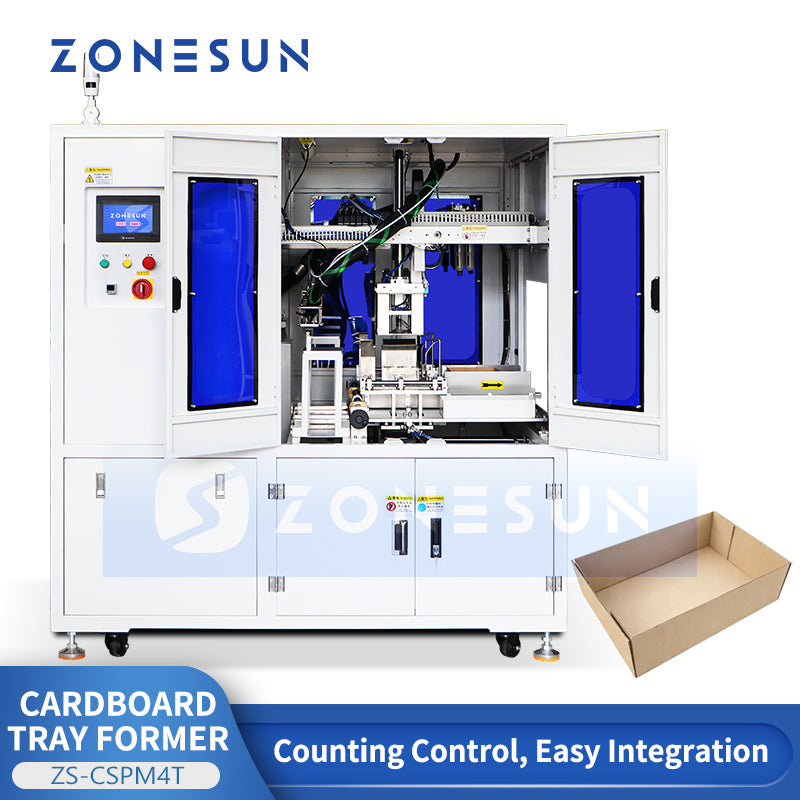

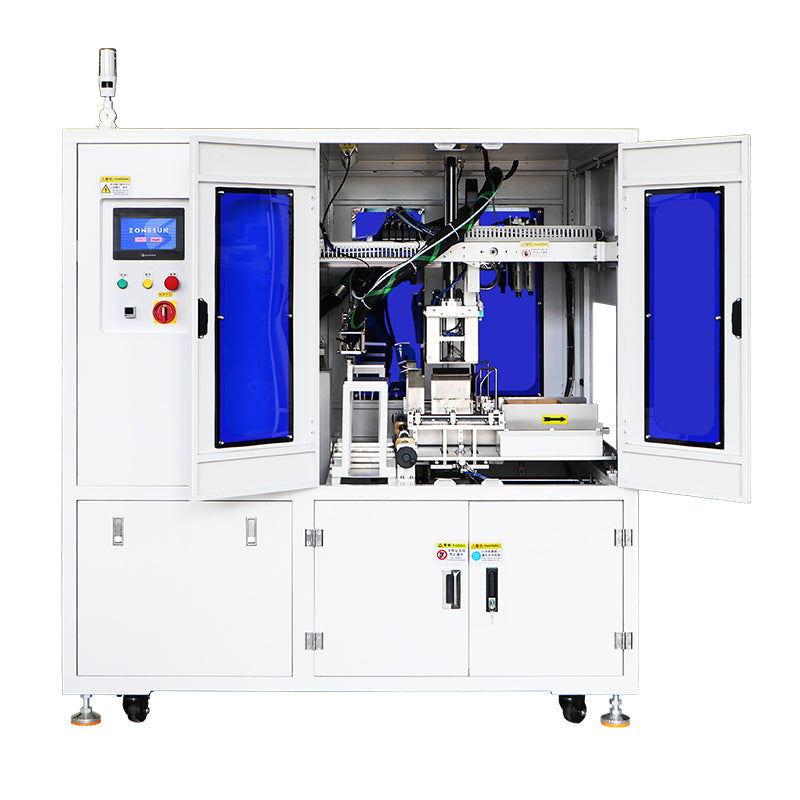

The ZONESUN ZS-CSPM4T is an automatic cardboard tray former designed for forming cardboard trays and boxes from flat corrugated paper blanks. It integrates cardboard feeding, hot melt glue spraying, and tray forming into one continuous process. By replacing forming molds, it handles different tray sizes to meet various packaging requirements. With adjustable storage capacity, low material alarms, preset production counting, and easy size changeover via handwheel adjustment, it can work as a standalone unit or connect with other automated packaging equipment.
Key Features
- Touchscreen Control Panel – Allows operators to set production quantities, monitor machine status, and adjust operating parameters conveniently.
- Cardboard Loading Rack – Holds up to 300 flat cardboard blanks (based on 2mm thickness) and provides continuous material supply with low material alarm.
- Vacuum Suction Nozzle – Picks and transfers cardboard blanks accurately from the loading area to the forming station.
- Hot Melt Glue Spraying System – Applies hot melt adhesive to specific areas of the cardboard for secure, reliable bonding after forming.
- Tray Forming Structure – Folds and shapes the cardboard blank into the final tray structure; different molds can be replaced for various tray sizes via handwheel adjustment.
Benefits
- Fully Automatic – Continuous feeding, gluing, and forming with minimal manual intervention.
- Flexible – Quick mold change and handwheel adjustment for different tray sizes without tools.
- Reliable Supply – 300-piece storage rack with low material alarm ensures uninterrupted production.
- Precise Counting – Preset production quantities with automatic stop when target is reached.
- Easy Integration – Works as a standalone unit or connects with downstream packaging equipment.
Technical Specifications
| Model | ZS-CSPM4T |
|---|---|
| Voltage | 220V, 60Hz |
| Power | 5.4 kW |
| Air Pressure | 0.5–0.8 MPa |
| Air Consumption | 300 L/min |
| Forming Speed | ~6 boxes/min (depends on carton size) |
| Sample Box Size (L×W×H) | (1) 210×140×55 mm (2) 265×175×65 mm |
| Working Height | 900 ± 20 mm |
| Storage Capacity | ~300 pcs (based on 2mm cardboard thickness) |
| Packed Dimensions | ~1710 × 1460 × 1900 mm (L × W × H) |
| Packed Weight | ~762 kg |
Applications
Ideal for automatic forming of cardboard trays and boxes used in the following industries:
- Food & beverage – fruit trays, bottle trays, snack packaging
- Pharmaceuticals – vial trays, blister pack trays
- Electronics – component trays, device packaging
- Warehousing & logistics – corrugated shipping trays
Suitable for corrugated or cardboard tray packaging requiring reliable, high-speed automatic forming.
Component Details

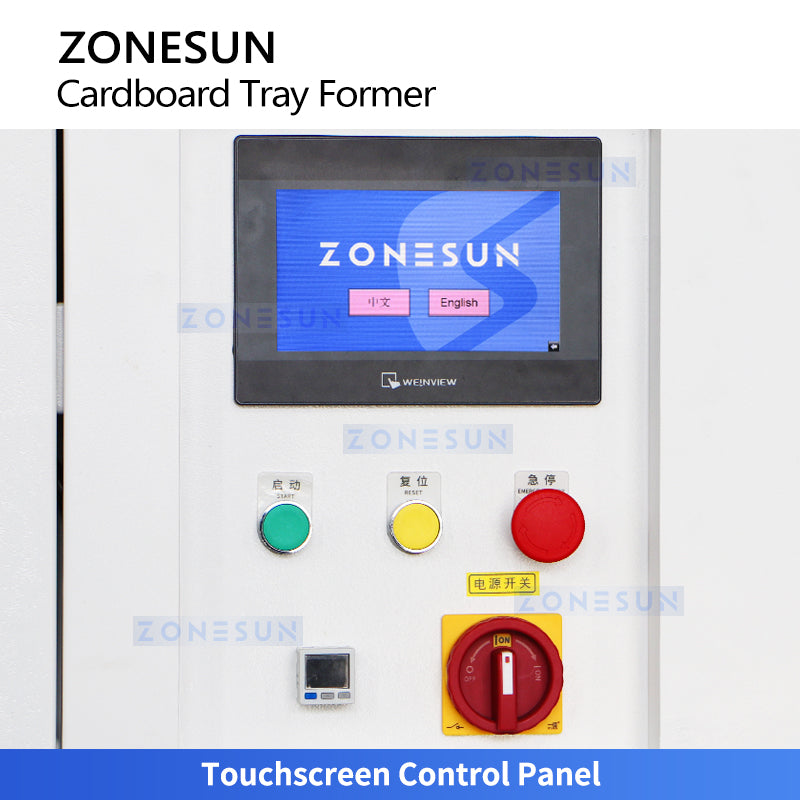

Touchscreen Control Panel
Allows operators to set production quantities, monitor machine status, and adjust operating parameters including forming speed and glue temperature for convenient and efficient operation.

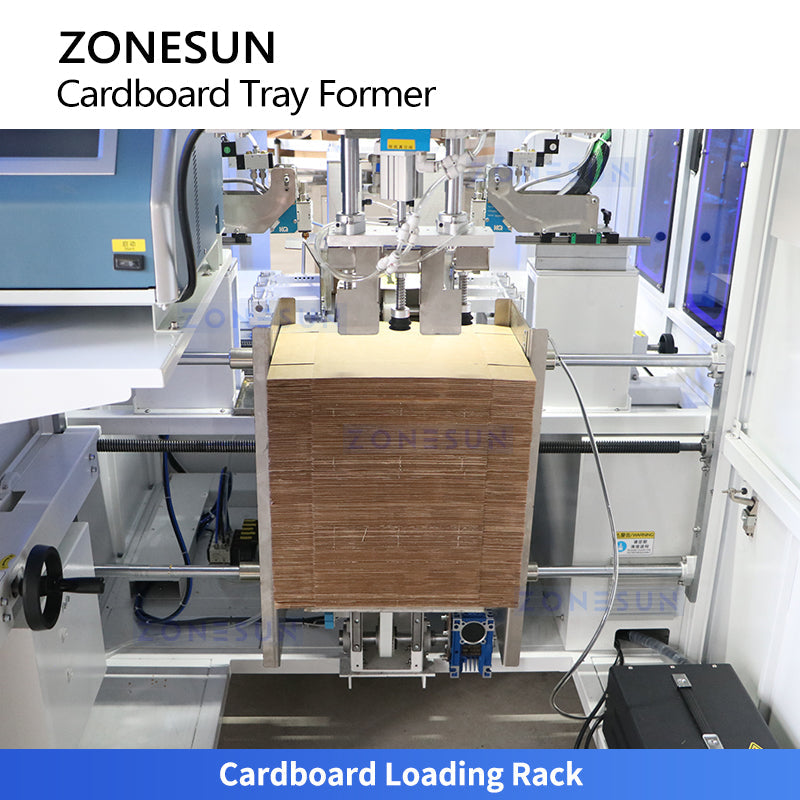

Cardboard Loading Rack
Holds up to 300 flat cardboard blanks (based on 2mm thickness) with a low material alarm to alert operators before the supply runs out, ensuring continuous uninterrupted production.

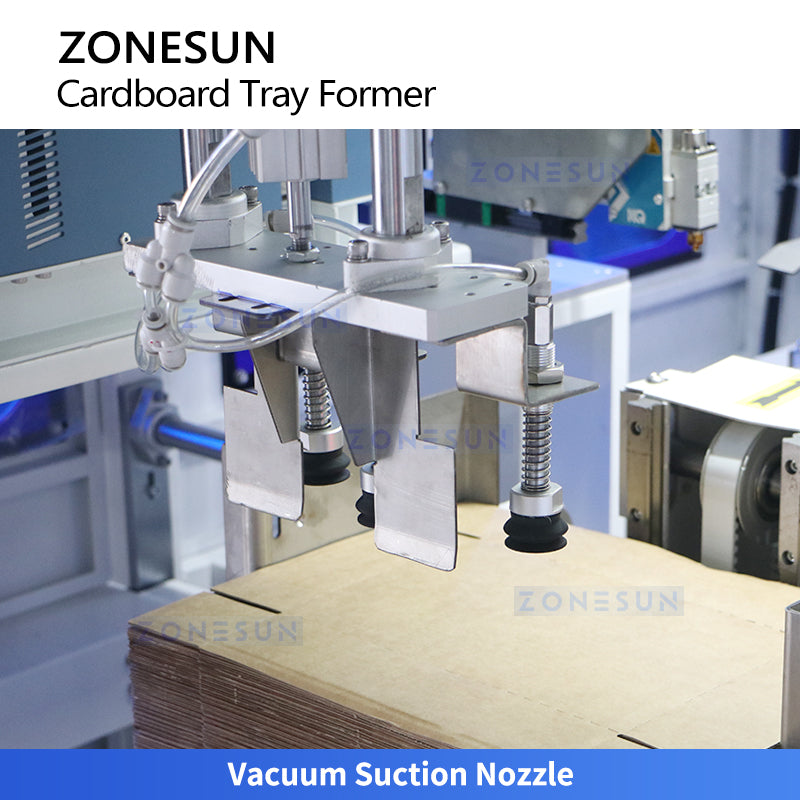

Vacuum Suction Nozzle
Accurately picks and transfers individual cardboard blanks from the loading rack to the forming station, ensuring precise positioning for consistent tray forming quality.

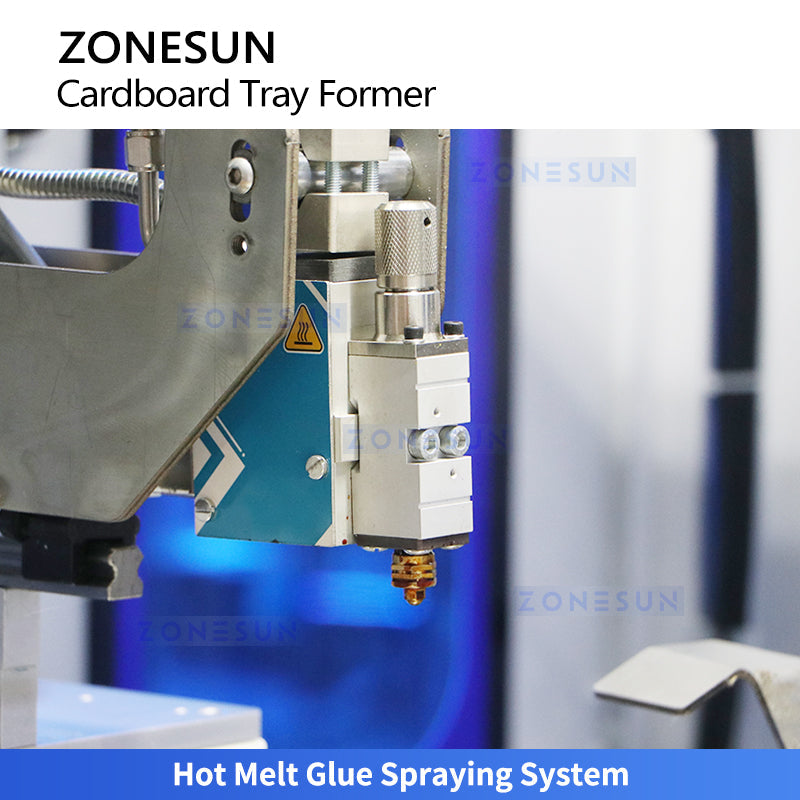

Hot Melt Glue Spraying System
Applies hot melt adhesive to specific fold areas of the cardboard blank for secure, reliable bonding after forming, ensuring strong tray structure and consistent adhesion quality.

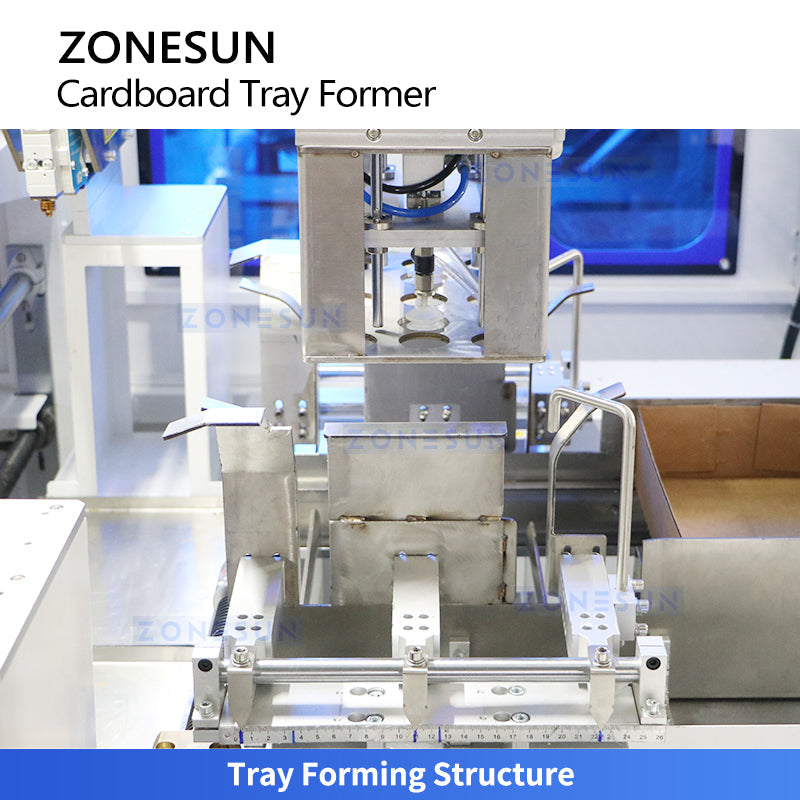

Tray Forming Structure
Folds and shapes the glued cardboard blank into the final tray structure using precision molds; different molds can be replaced quickly via handwheel adjustment for various tray sizes.
