Description

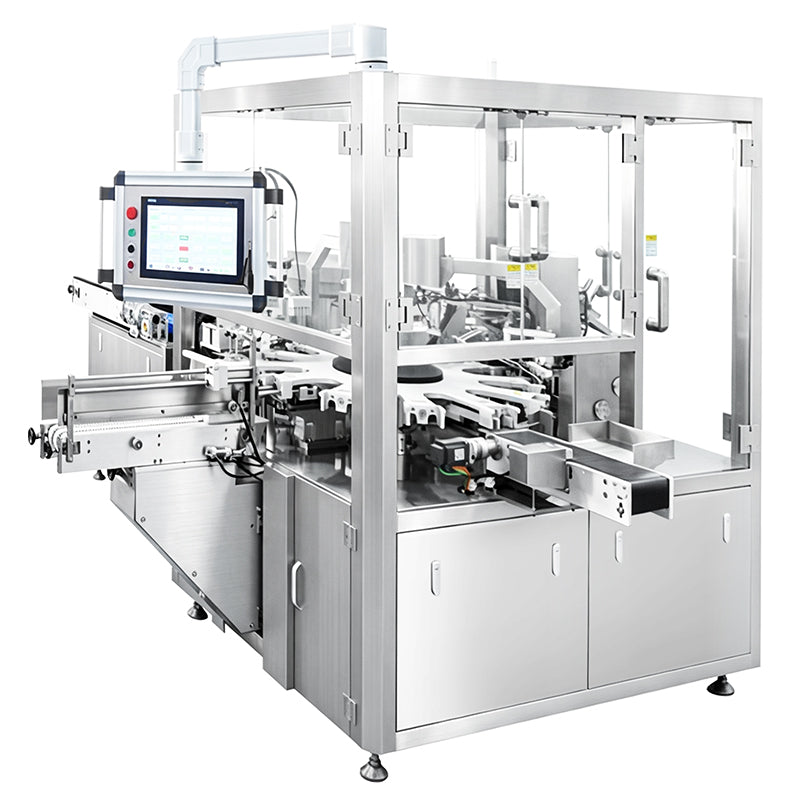

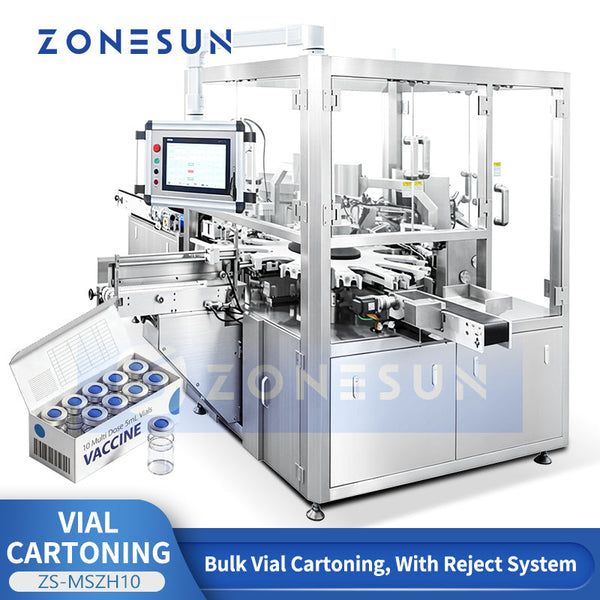

The ZONESUN ZS-MSZH10 is an automatic vertical cartoning machine designed for packaging glass vials. It combines carton feeding, forming, vial counting and loading, leaflet insertion, carton closing, vision inspection and rejection in one continuous process.
The vertical loading design is suitable for fragile glass vials. An optional tray loading function allows multiple vials to be arranged into trays before cartoning. Equipped with vacuum vial gripping and Keyence vision inspection, the machine operates at approximately 20–60 boxes/min.
Key Features
- Vision Inspection System – Keyence vision system automatically checks whether vials and leaflets are correctly loaded and rejects incomplete cartons before output.
- Carton Feeding & Forming Unit – Automatically supplies flat carton blanks and forms them into three-dimensional cartons before product loading.
- Vacuum Vial Loading System – Vacuum gripper securely picks and places vials into cartons; optional tray loading arranges multiple vials into trays first for stable, gentle handling.
- Leaflet Insertion System – Inserts pre-folded or unfolded leaflets beside the vials, supporting different instruction sheet sizes and requirements.
- Carton Closing System – Supports mechanical tuck-in closure or hot melt glue sealing according to packaging requirements.
Benefits
- Gentle Handling – Vertical loading and vacuum gripping protect fragile glass vials from breakage.
- Complete Automation – Integrates forming, loading, leaflet insertion, and closing in one continuous line.
- Quality Assurance – Vision inspection detects and rejects incomplete or incorrectly loaded cartons.
- Flexible – Supports different vial quantities, leaflet types, and sealing methods (tuck-in or hot melt glue).
- GMP Compliant – SUS304 stainless steel construction meets pharmaceutical production standards.
Technical Specifications
| Model | ZS-MSZH10 |
|---|---|
| Voltage | 380V, 50Hz |
| Total Power | 3.5 kW |
| Working Speed | 20–60 boxes/min |
| Carton Size Range | Min. 85×37×40 mm / Max. 180×60×65 mm |
| Unfolded Leaflet Size | 80–170 × 125–260 mm |
| Folded Leaflet Size | 80–170 × 30–60 mm |
| Leaflet Paper Weight | 55–70 g/m² |
| Carton Board Weight | 300–350 g/m² |
| Machine Dimensions | 7200 × 2600 × 1750 mm (L × W × H) |
| Machine Weight | 1,500 kg |
Applications
Ideal for automatic cartoning of pharmaceutical glass vials with leaflet insertion. Suitable for:
- Pharmaceutical glass vial bulk cartoning
- Injection vial & ampoule packaging lines
- Multi-vial tray cartoning with leaflet insertion
- Integration with vial filling, labeling, and downstream inspection equipment
Component Details

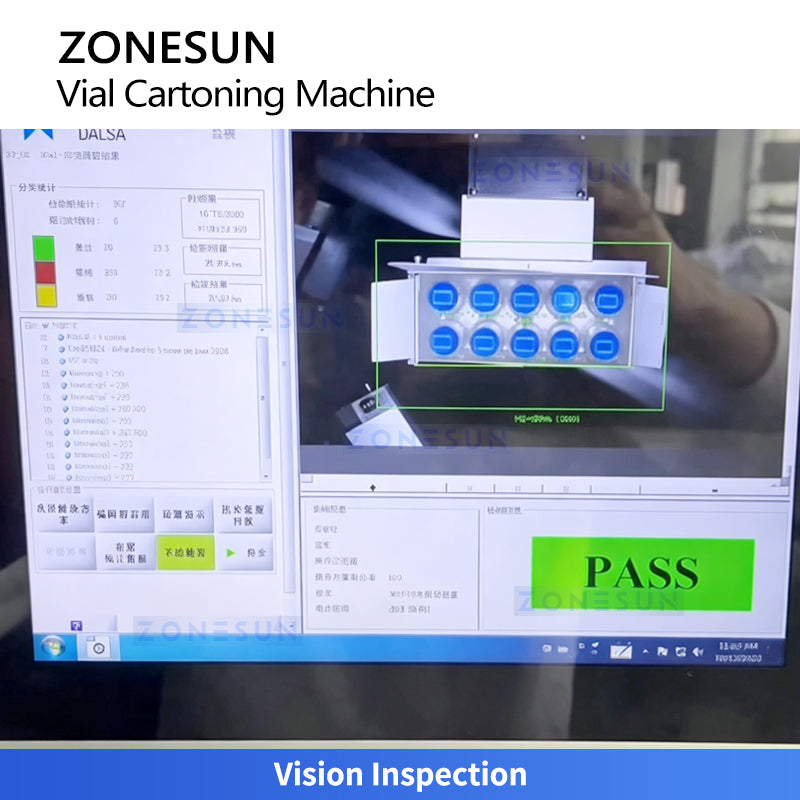

Keyence Vision Inspection System
Automatically checks whether vials and leaflets are correctly loaded into each carton, triggering the reject system to remove incomplete or incorrectly packed cartons before output.

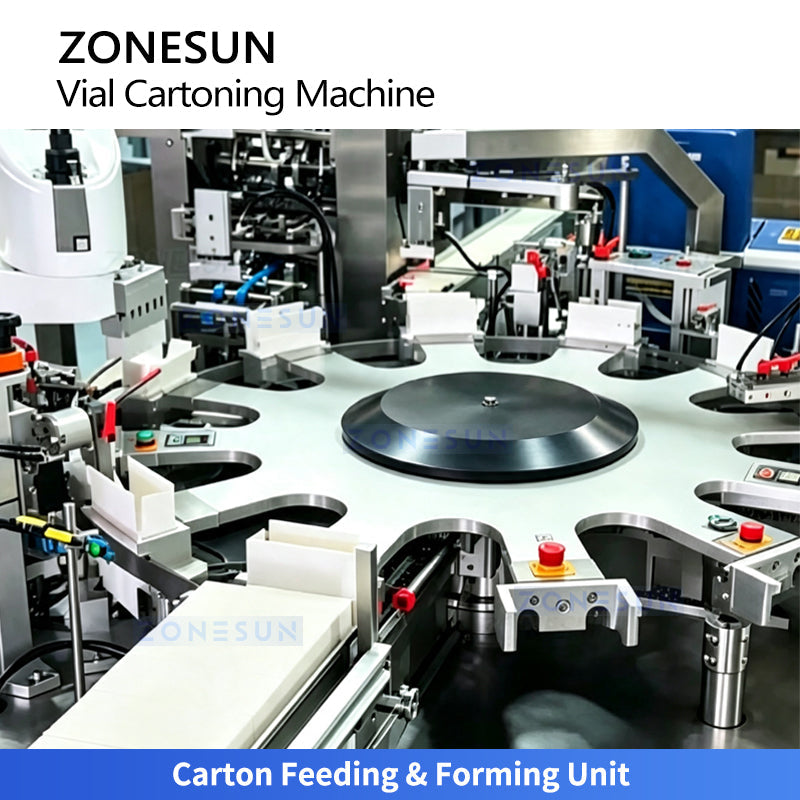

Carton Feeding & Forming Unit
Automatically supplies flat carton blanks from the magazine and forms them into three-dimensional cartons ready for product loading, ensuring continuous and stable carton supply.

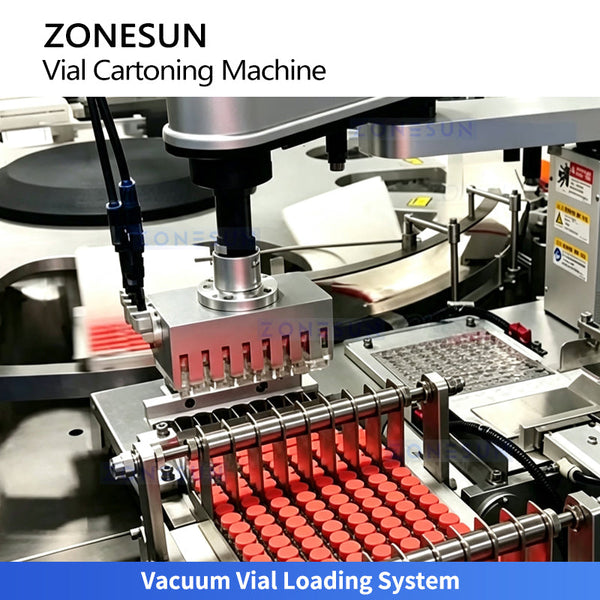

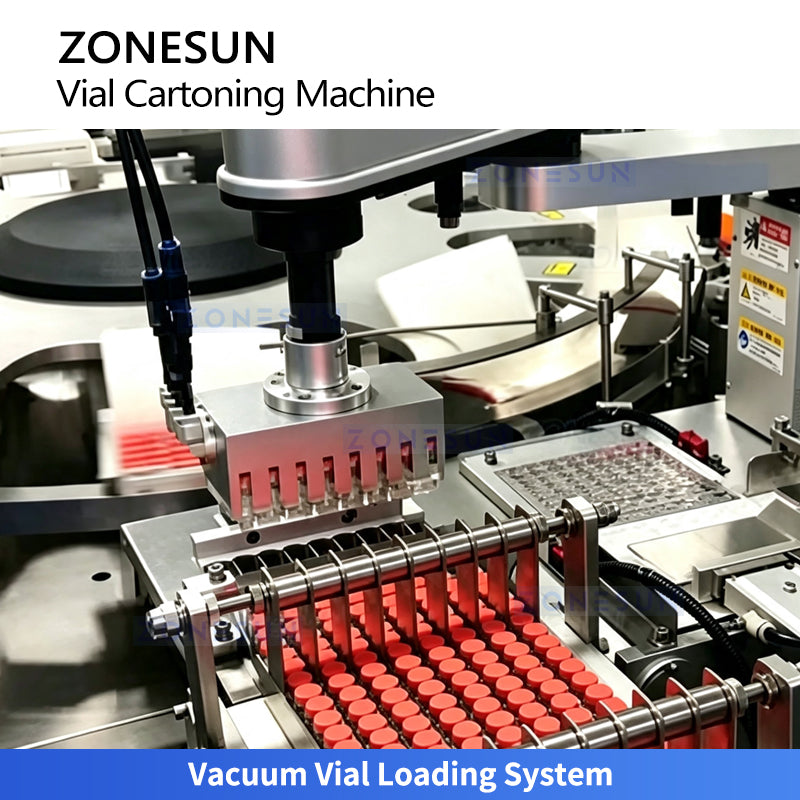

Vacuum Vial Loading System
Vacuum gripper gently picks and places vials into formed cartons with precise positioning; optional tray loading arranges multiple vials into protective trays before cartoning.

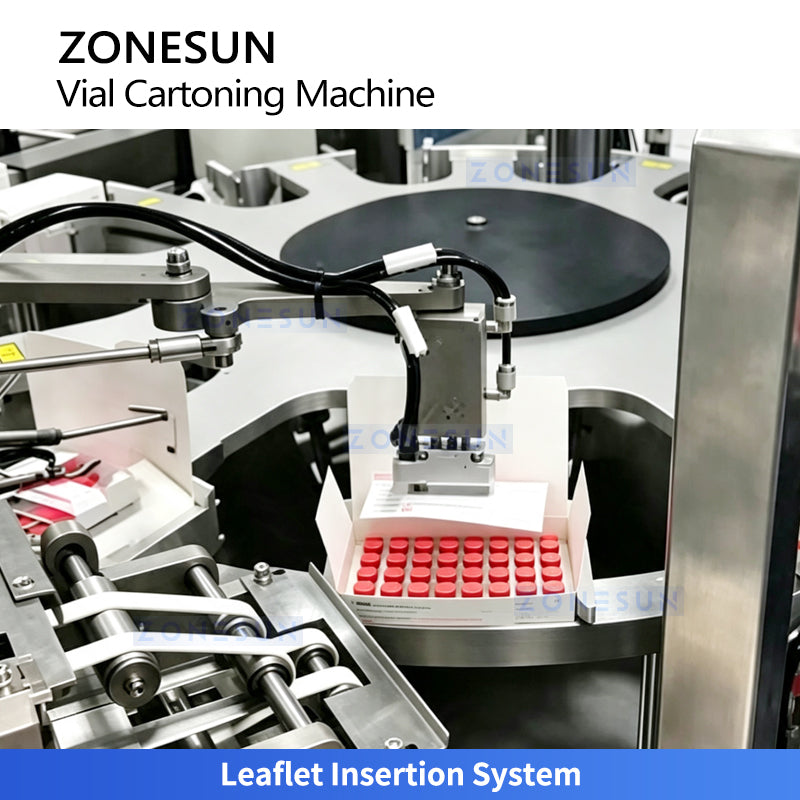

Leaflet Insertion System
Inserts pre-folded or unfolded instruction leaflets beside the vials inside the carton, supporting leaflet sizes from 80–170 × 30–260 mm and paper weights of 55–70 g/m².

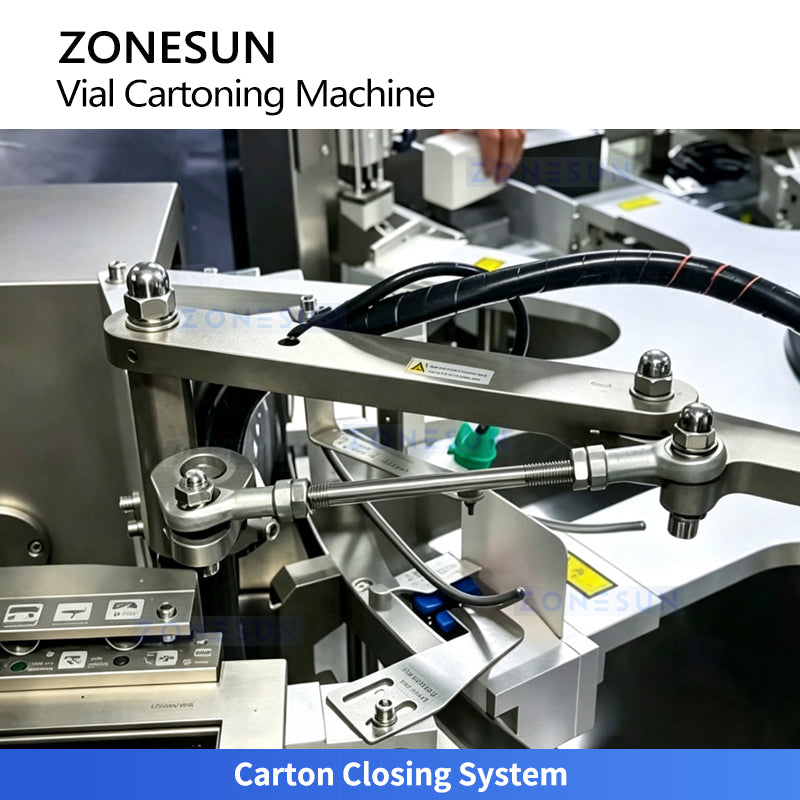

Carton Closing System
Supports mechanical tuck-in closure or hot melt glue sealing to securely close filled cartons, with options to match different pharmaceutical packaging requirements.
SUS304 GMP Construction
Stainless steel SUS304 body and food/pharma-grade contact materials meet GMP pharmaceutical production standards for hygiene, durability, and regulatory compliance.
