Description

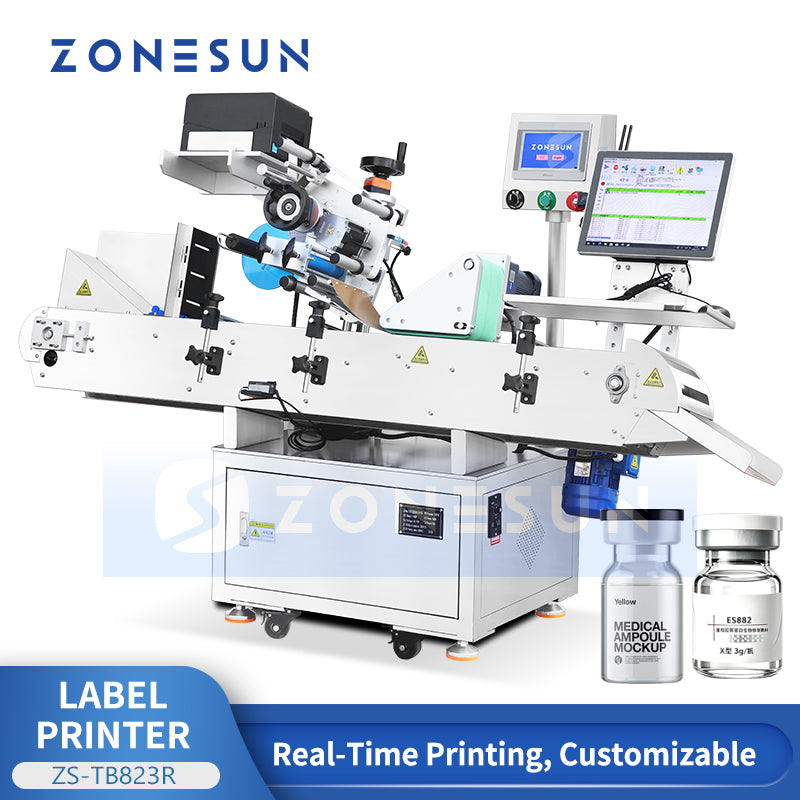

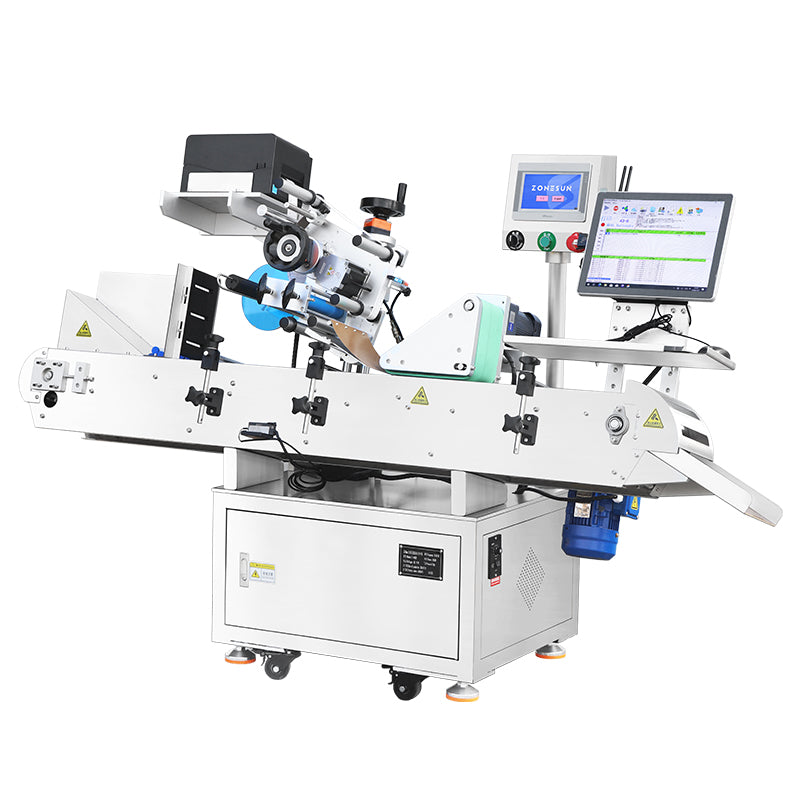

The ZONESUN ZS-TB823R is an automatic real-time print and apply labeling machine for vials and small round bottles that are difficult to convey upright. It combines bottle grouping and feeding, variable-data label printing, label peeling and horizontal application in one continuous process.
Computer software lets operators edit barcodes, QR codes, batch numbers and production information before printing and applying each label. The listed working speed is 60–170 bottles per minute, with ±1 mm labeling accuracy and a standard bottle diameter range of 13–21 mm. Full-circle and semicircle labeling can be configured to suit the container and label format.
Technical Specifications
| Model | ZS-TB823R |
|---|---|
| Power Supply | 110/220 V, 50–60 Hz |
| Working Speed | 60–170 bottles/min |
| Labeling Accuracy | ±1 mm |
| Suitable Product Diameter | Φ13–21 mm (other sizes require testing) |
| Suitable Label Size (W × H) | 20–100 × 20–130 mm |
| Label Roll Outer Diameter | Φ280 mm |
| Label Roll Inner Diameter | Φ76 mm |
| Machine Dimensions (L × W × H) | About 2100 × 800 × 1400 mm |
| Package Dimensions (L × W × H) | About 2220 × 930 × 1520 mm |
| Package Weight | About 319 kg |
Applications
- Variable-data labeling of compatible vials and small cylindrical containers.
- Small cosmetic and sample bottles requiring batch information or product codes.
- Containers needing full-circle or semicircle labels while supported horizontally.
Product Details

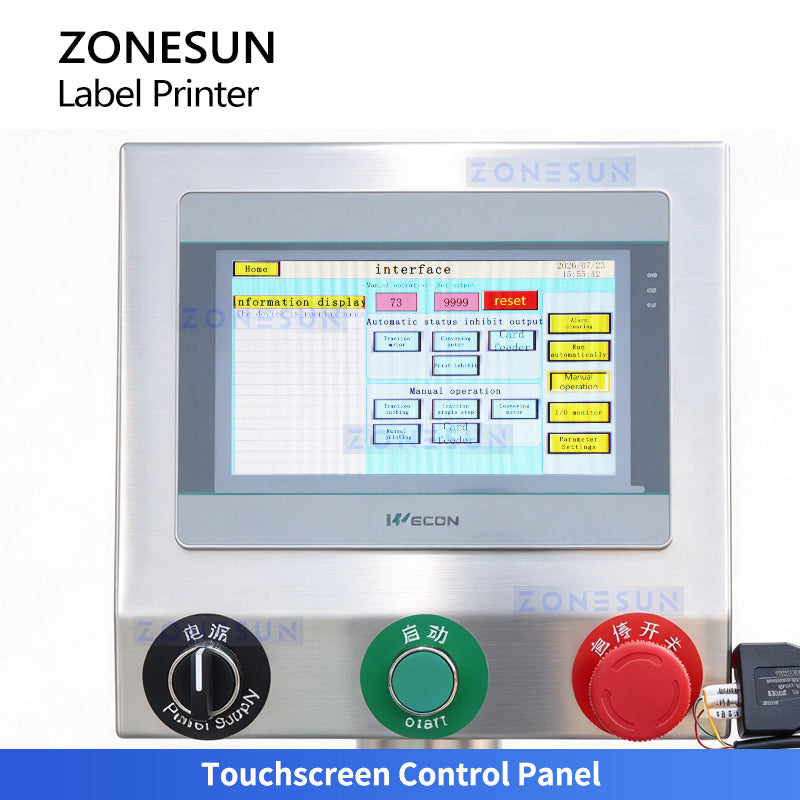

Touchscreen Control
Set labeling parameters and monitor operation. Interface languages can be customized.

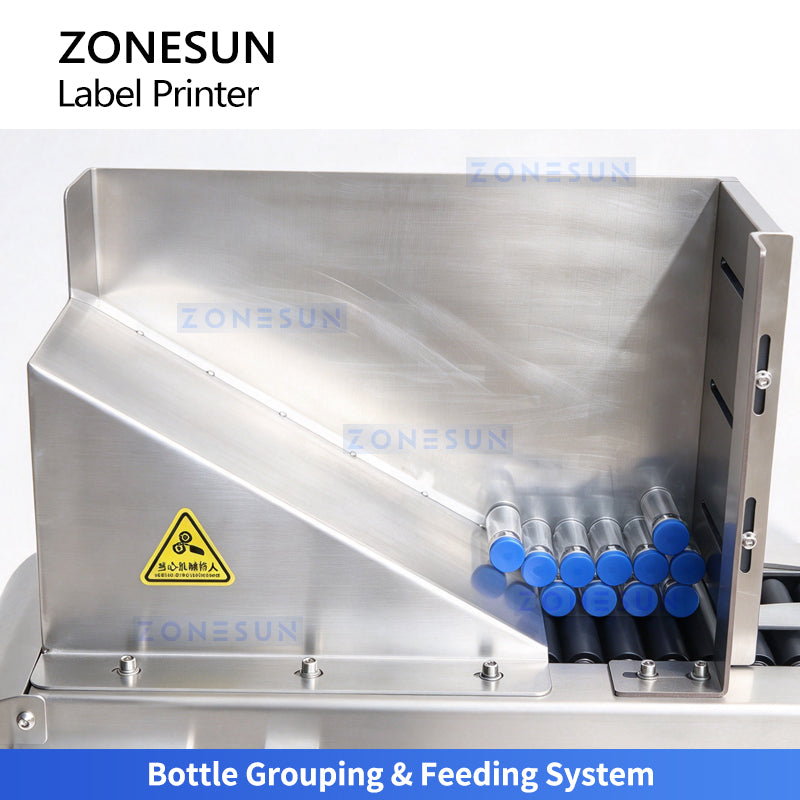

Bottle Grouping and Feeding
Organizes bottles for sequential delivery to the labeling stage; feeding tooling can be configured for the product.

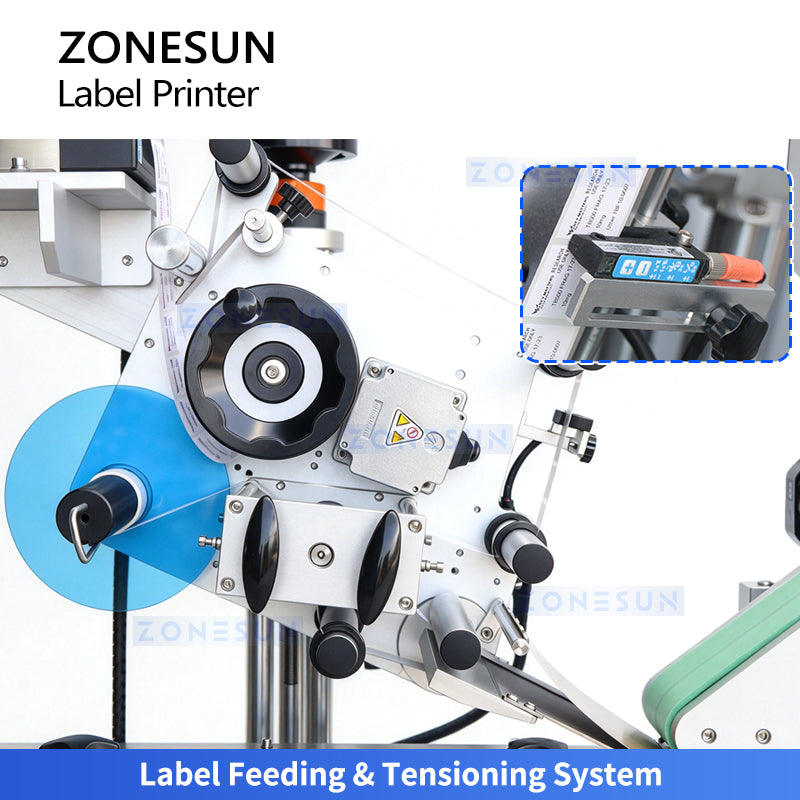

Label Feeding and Tensioning
Guides the label web and maintains tension while sensors detect label position.

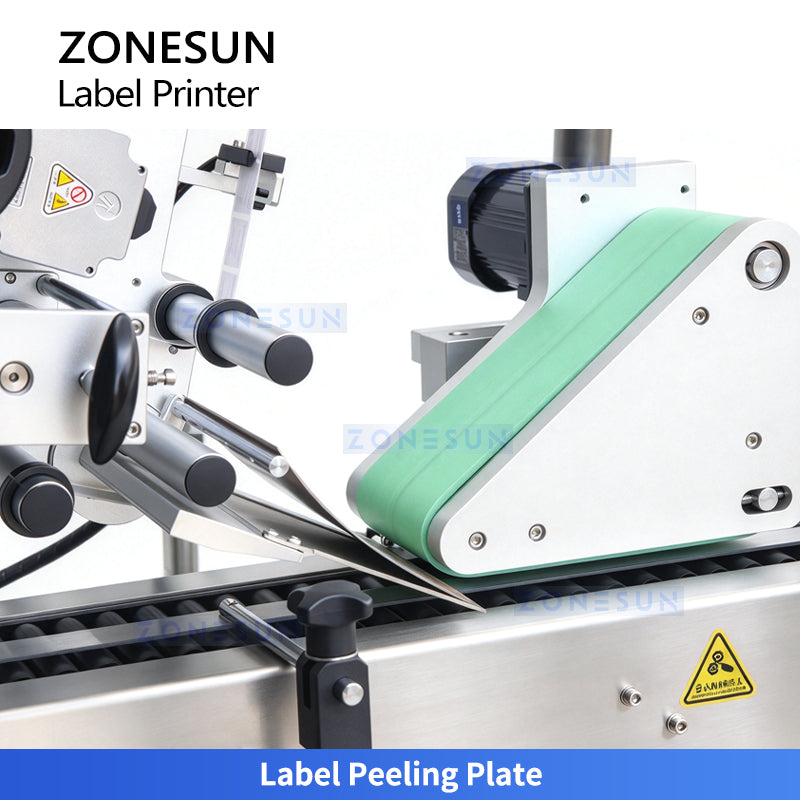

Label Peeling Plate
Separates the printed adhesive label from its backing liner for application.

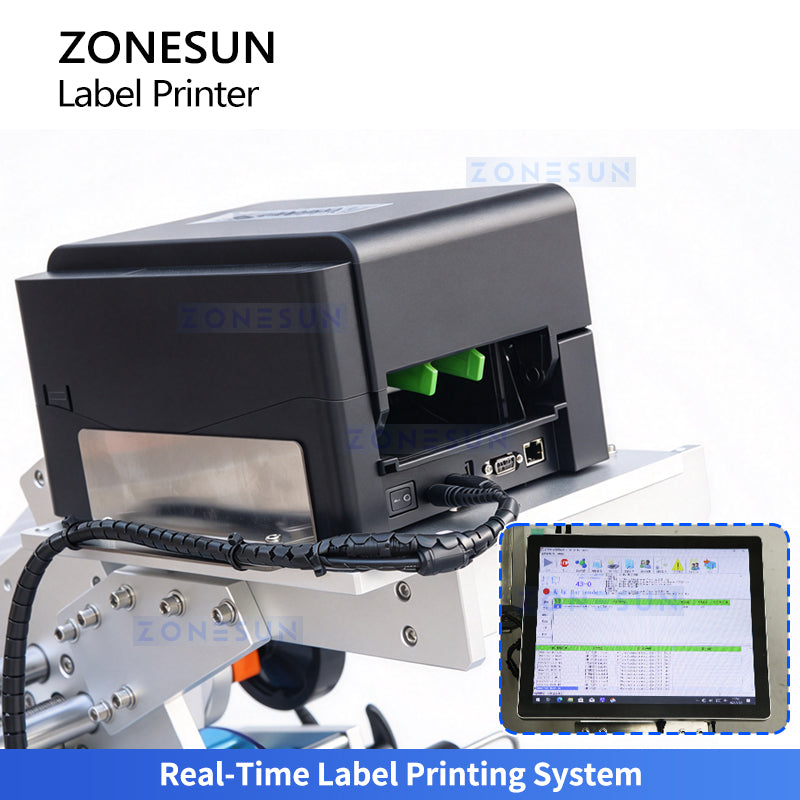

Real-Time Label Printing
Computer software edits label content, including barcodes, QR codes, batch numbers and production information.
Inclined Bottle Conveyor
Supports small bottles on one side for transport through the labeling process.
Adjustable Labeling Position
The labeling head position can be adjusted for the container and label placement.
Key Features
- Printing and application in one sequence: Adds variable information to labels before applying them to bottles.
- Horizontal bottle handling: Supports narrow containers that are difficult to keep upright.
- Software-edited content: Allows label layouts with product information, batch codes, barcodes and QR codes.
- Controlled label transport: Web tensioning and label detection coordinate printing, peeling and application.
- Adjustable placement: Labeling head settings support different compatible bottle and label formats.
- Automatic grouping and feeding: Organizes containers before application using the configured feeding structure.
How It Works
- Set the bottle guides and labeling position, then load compatible label stock.
- Edit the label layout and variable information in the computer software.
- Feed bottles into the grouping and horizontal transport system.
- Print the label, guide it through the tensioning system and peel it from the liner.
- Apply the printed label to the bottle and discharge it for inspection or downstream handling.
Choosing Your Configuration
Share bottle diameter, length, material and a sample, together with label dimensions, artwork, barcode or QR-code requirements and target output. Specify the source of variable data and any required software connection so printer configuration and integration scope can be evaluated.
Frequently Asked Questions
Does it print directly onto the bottle?
It prints information onto the label and then applies that label to the bottle.
Which bottle diameters are supported?
The standard listed range is 13–21 mm. Other diameters require product testing and a suitable handling configuration.
Can it print barcodes and QR codes?
The described software supports editing these elements along with batch numbers and production information. Label size, print resolution and code layout should be selected for the required readability.
Does it verify every printed code?
An automatic vision inspection or code-verification system is not listed. Specify inspection and rejection requirements separately.
Will every label run at 170 bottles per minute?
The listed working range is 60–170 bottles per minute. Bottle handling, label length, print content and printer settings affect the practical speed.
Can it connect to an ERP or database?
The product description establishes computer-based label editing. ERP, database or serialization connections need separate interface assessment.
Is ±1 mm the print resolution?
No. It is the listed labeling placement accuracy. Printer resolution is a separate specification.
