Description

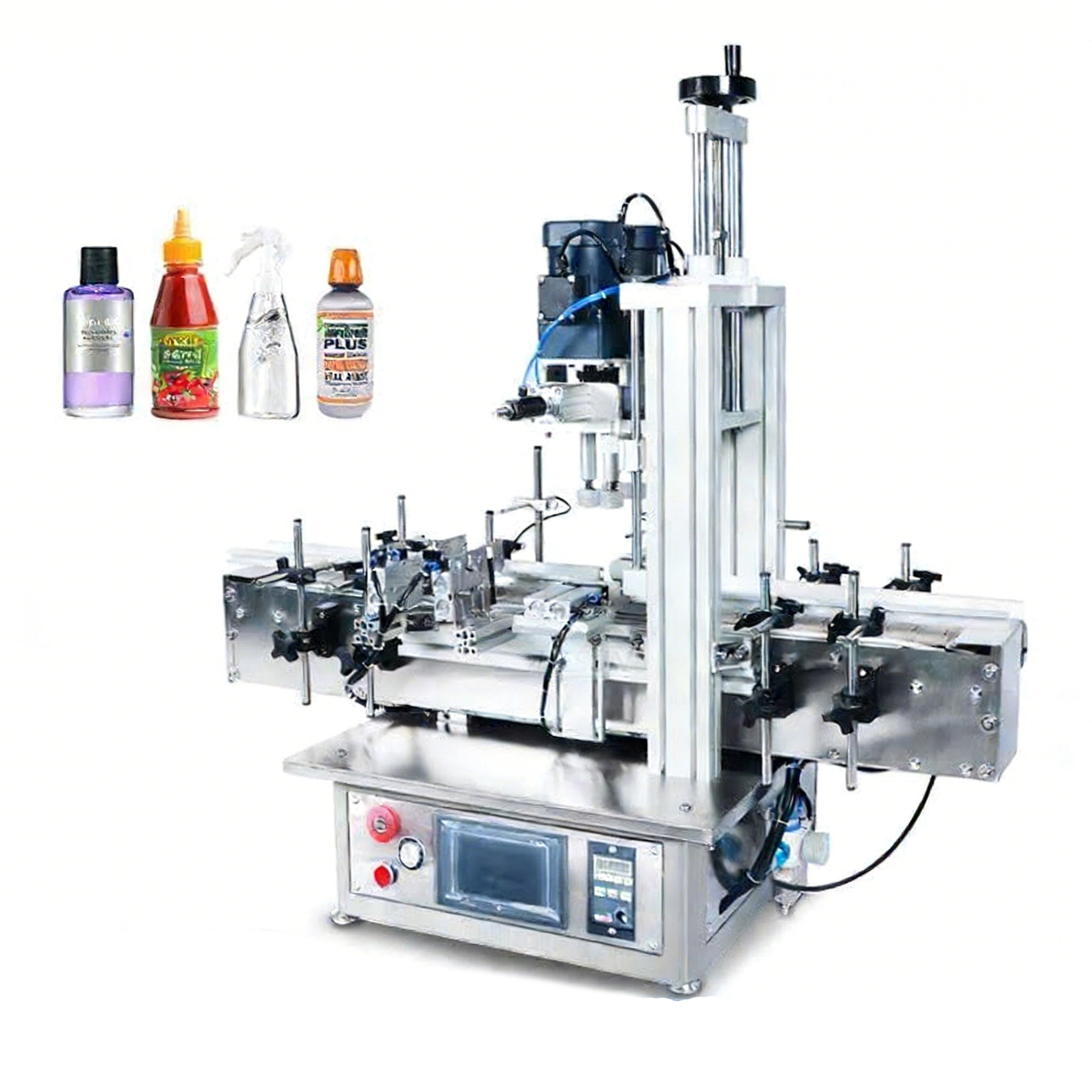

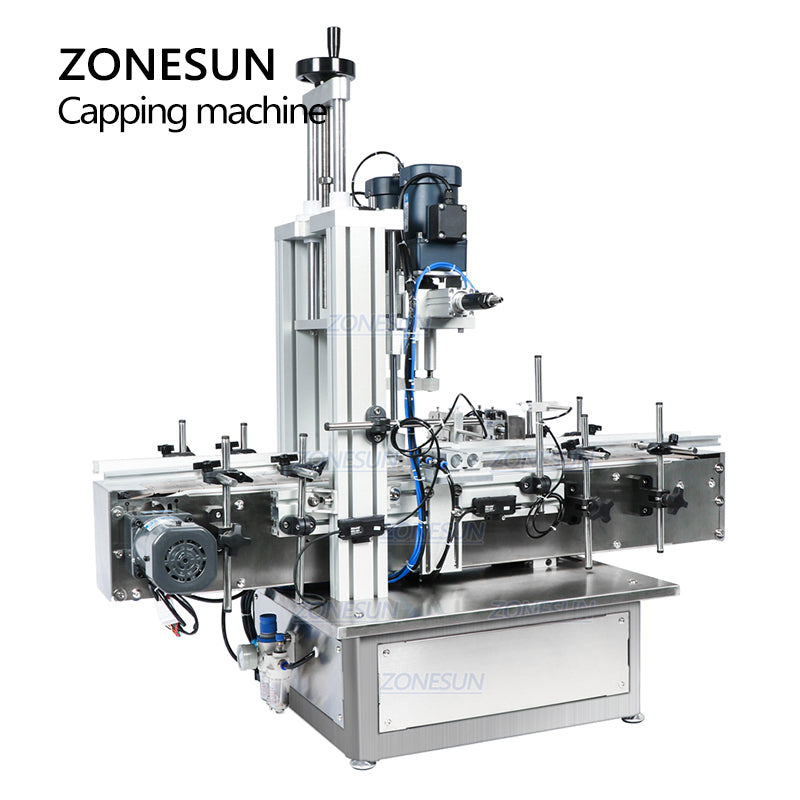

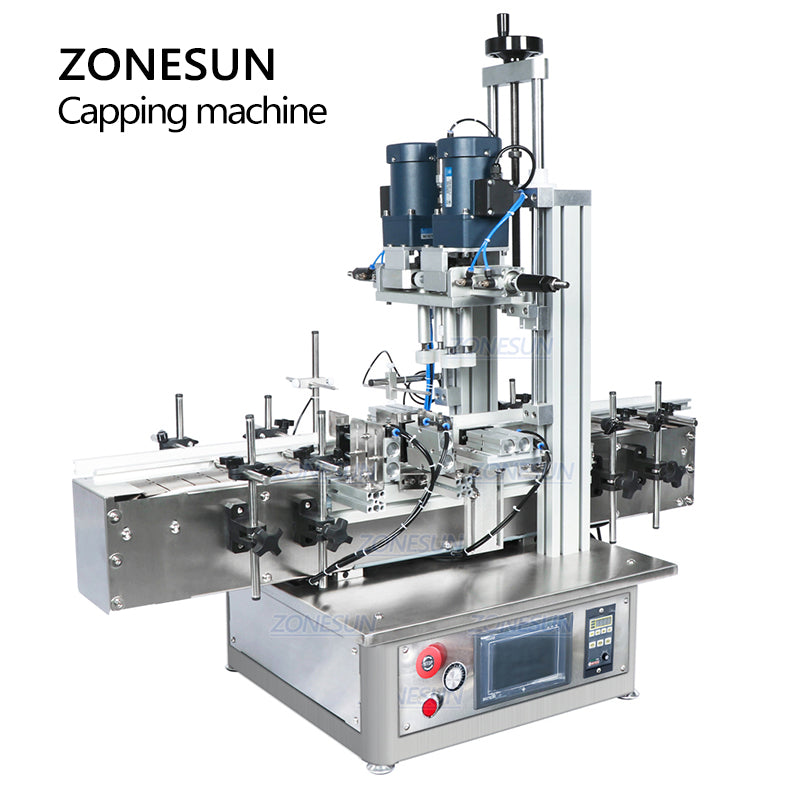

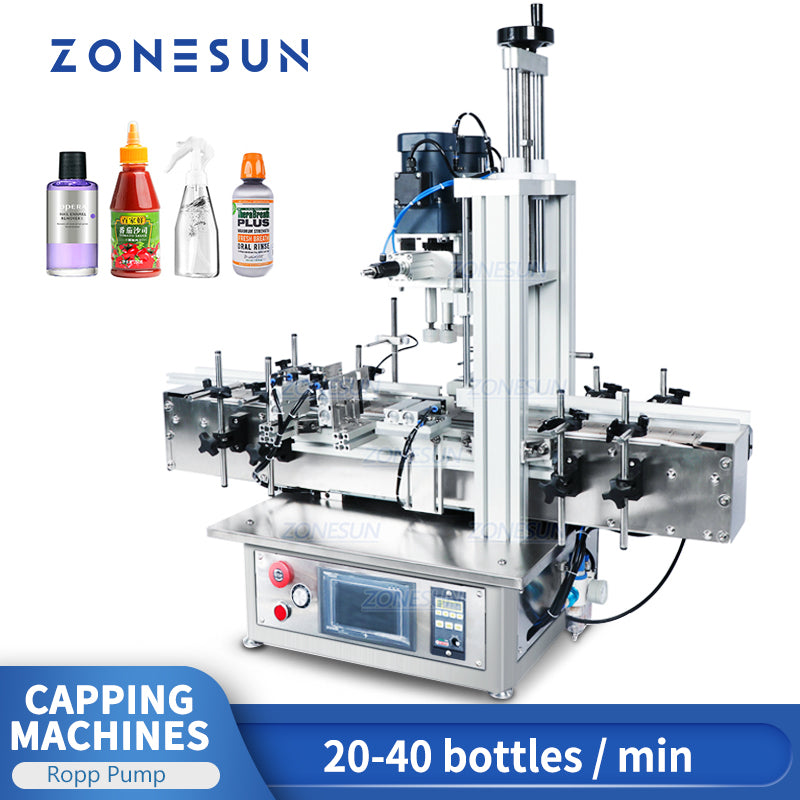

This desktop automatic capping machine can work with our desktop filling machine,labeling machine and become the production line.Spent less money but get powerful machine like the full automatic machine,this one can cap about 40 bottles/min.Ensure the high working efficiency and save working space.
Parameter
- Bottle height：60-270mm
- Bottle Caps Diameter：18-70mm
- Working speed：20-40 bottles/minute(depending on bottle and caps)
- Working voltage：AC220V/110V 50-60HZ
- Working pressure：0.4-0.6 MPa
- Dimension：1120* 580* 1110mm
- Conveyor Length：1117mm
Why Choose the ZS-XG1870?

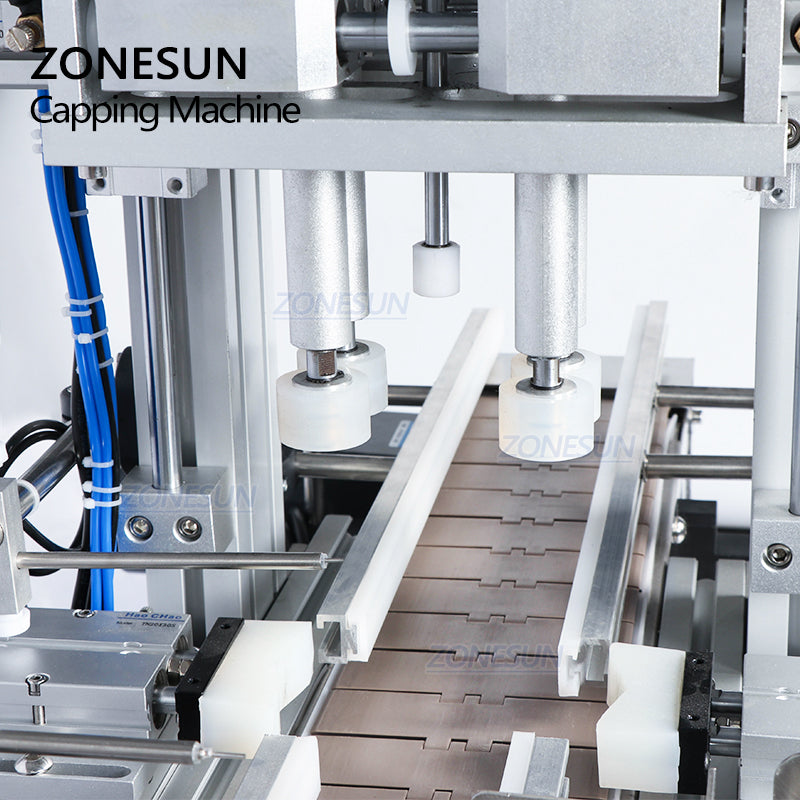

- Designed for pump and screw caps: Four-wheel spindle capping provides stable tightening for many lotion pumps, spray pumps, screw caps and similar closures.
- Wide cap range: Suitable for caps approximately 18–70 mm in diameter, covering a broad range of cosmetic, personal-care and household bottles.

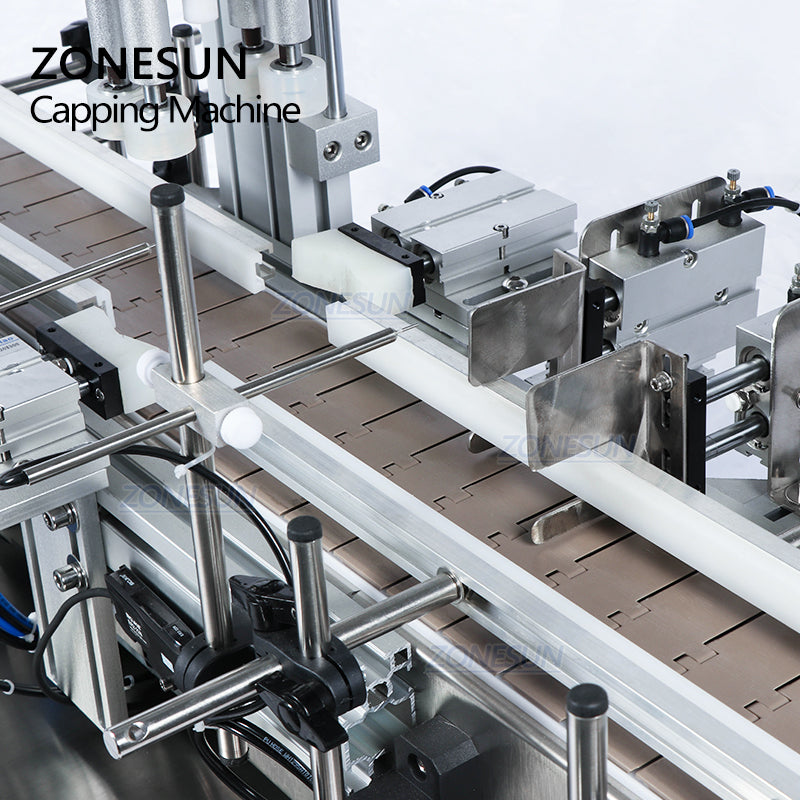

- Compact inline design: The tabletop conveyor format saves floor space and can be combined with a filling or labeling machine for a small production line.
- Adjustable for different bottles: Suitable for bottles around 60–270 mm high, making changeover easier when producing multiple bottle formats.
- Production speed up to 20–40 bottles/min: Actual output depends on cap type, bottle stability and operator setup.
Typical Applications
The ZS-XG1870 is suitable for screw-type closures used on products such as shampoo, lotion, hand sanitizer, cleaning liquid, essential oil, cosmetic products and other bottled liquids. It is especially useful when a compact capping station is required between filling and labeling processes.
Before Ordering, Please Confirm
- Bottle height and bottle diameter
- Cap outer diameter and cap height
- Cap type: screw cap, lotion pump, spray pump or other closure
- Target production speed
- Voltage: 110V or 220V
- Available compressed-air supply (recommended working pressure: 0.4–0.6 MPa)
Important: Bottle and cap samples or clear dimensioned photos are recommended before ordering so the capping setup can be checked for compatibility.
Frequently Asked Questions
Does this machine require an air compressor?
Yes. The ZS-XG1870 uses pneumatic components and requires a stable compressed-air source. The air compressor is normally prepared separately.
Can it cap pump bottles?
Yes, it is suitable for many screw-type pump closures. Compatibility depends on the pump shape, cap diameter and bottle stability.
Can it work with a filling and labeling machine?
Yes. Its conveyor design makes it suitable for building a compact filling-capping-labeling line.
How do I confirm whether my cap can be used?
Send us the bottle and cap photos, dimensions and target speed. Our team can check the application before you order.
Need Help Confirming Your Bottle & Cap?
Send us your bottle dimensions, cap dimensions, cap type and target speed. We can help confirm whether the ZS-XG1870 is suitable for your packaging process. Use the chat window on this page to contact ZONESUN.
