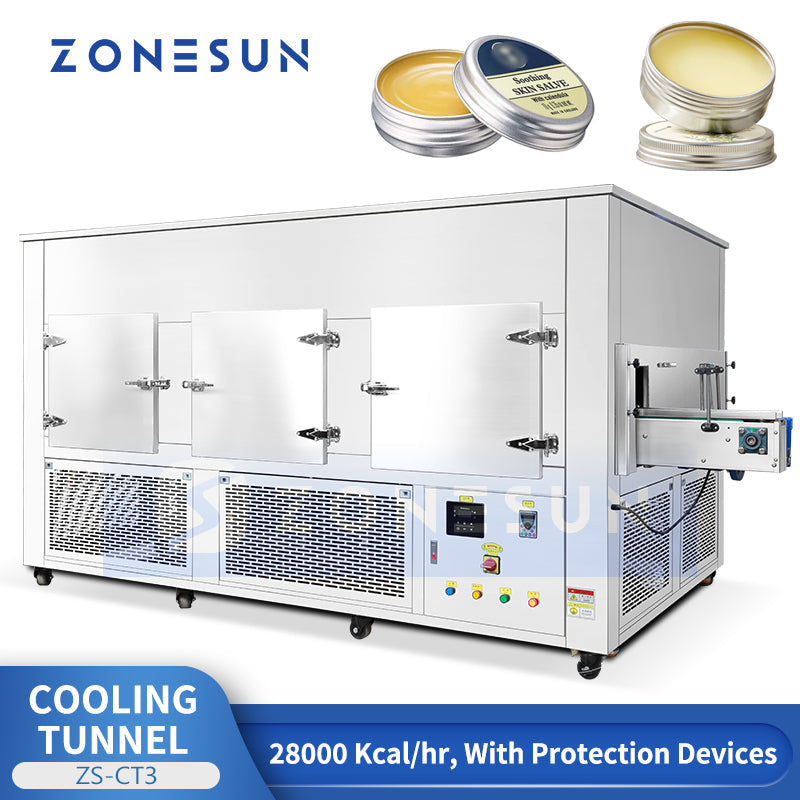

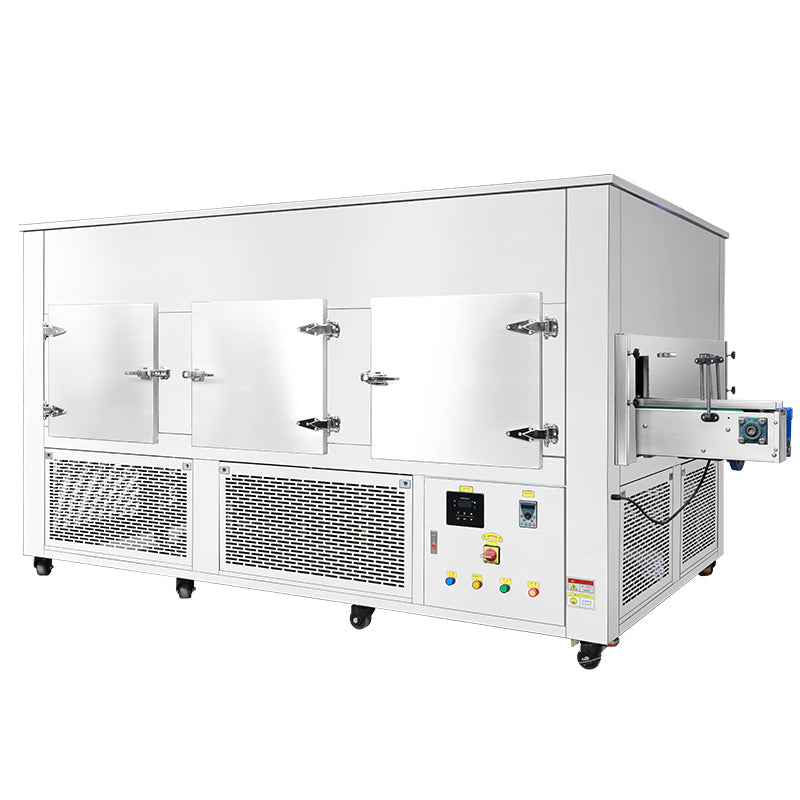

ZONESUN ZS-CT3 Industrial Cooling Tunnel with Reciprocating Conveyor for Waxes, Creams, Chocolate
Description
The ZONESUN ZS-CT3 is an industrial cooling tunnel designed for continuous cooling and solidification of hot-filled semi-solid products and processed foods. With a cooling capacity of 28,000 Kcal/hr, it provides controlled and uniform cooling for stable product forming.
Its reciprocating conveyor system extends the cooling path and residence time without requiring a longer production area. Operators can adjust the conveying system according to the product, container and required cooling time.
The stainless steel structure offers durability, hygiene and convenient maintenance. An efficient piston compressor and comprehensive protection devices support reliable operation in continuous production environments.
Parameter
-
Machine Model: ZS-CT3
-
Cooling Capacity: 28000 Kcal/hr
-
Input Power: 8.5 kW
-
Running Current: 16 A
-
Starting Current: 25 A
-
Capacity Control: 0,100%
-
Compressor Type: Piston type
-
Refrigeration Oil Charge Volume: 1.9 L
-
Refrigerant Charge Volume: 12 kg
-
Evaporator Air Volume: 9000 m³/h
-
Condenser Cooling Air Volume: 18000 m³/h
-
Protection Devices: High/low pressure switch, fusible plug, overload protection device, coil overheat protector, automatic temperature switch, phase reverse protector
-
Dimensions (LWH): 3000 * 1800 * 1583 mm
-
Machine Weight: 1100 kg
Key Features
- 28,000 Kcal/hr cooling capacity
- Continuous cooling and solidification
- Space-saving reciprocating conveyor
- Adjustable cooling and conveying time
- Efficient piston compressor
- Stainless steel construction
- Integrated operational protection devices
- Suitable for production-line integration
Applications
Suitable for balms, salves, ointments, waxes, creams and other hot-filled semi-solid products. It can also cool chocolate, confectionery and bakery products after forming, coating or processing

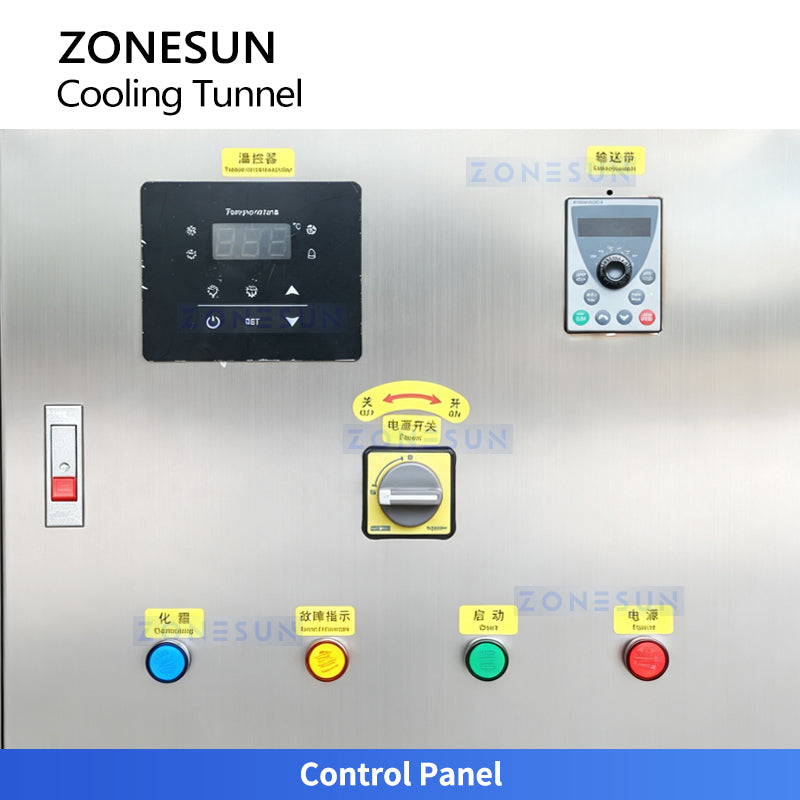

Control Panel
Controls the cooling tunnel’s operating status and parameters, enabling start, stop, and adjustment of cooling and conveying functions for precise control and stable operation.

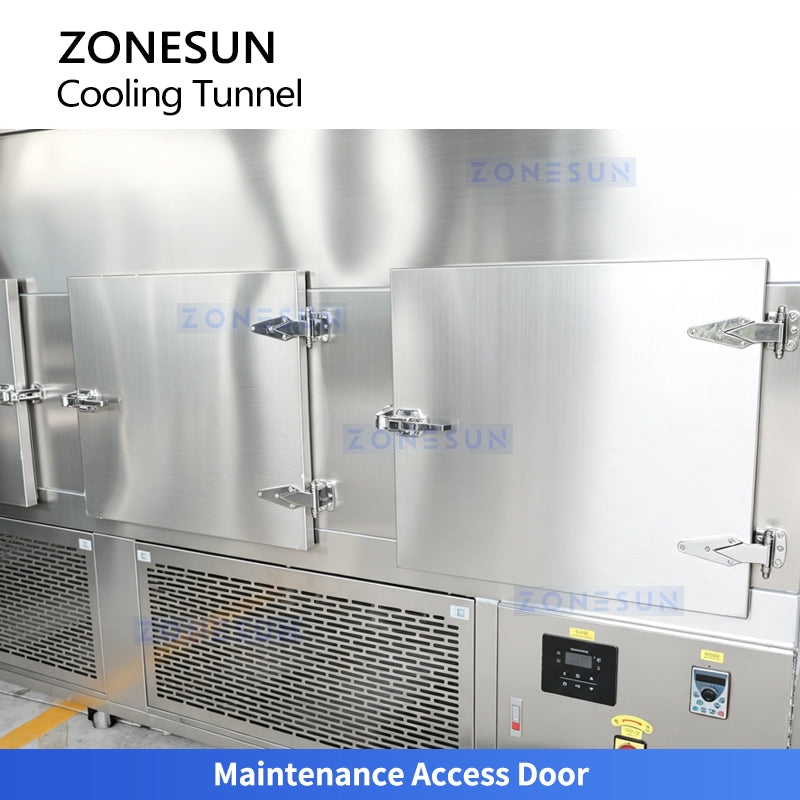

Maintenance Access Door
Provides access to the inside of the cooling tunnel for cleaning, inspection, and maintenance. The sealed design helps prevent cold air leakage and improves refrigeration efficiency.

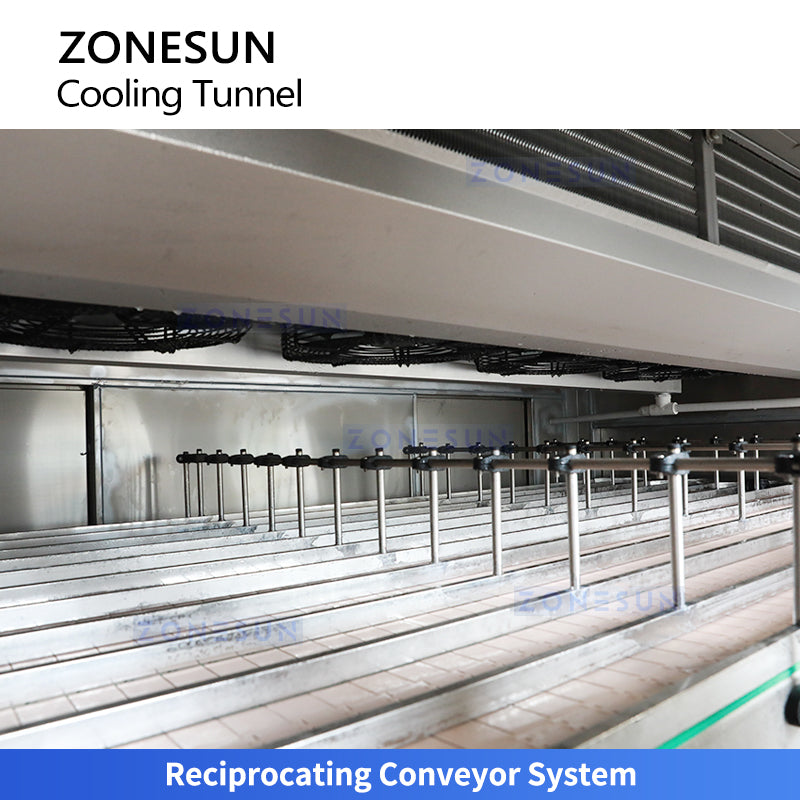

Reciprocating Conveyor System
Extends the product travel distance and cooling time inside the tunnel through a back-and-forth conveying path, ensuring more uniform and sufficient cooling while saving space.

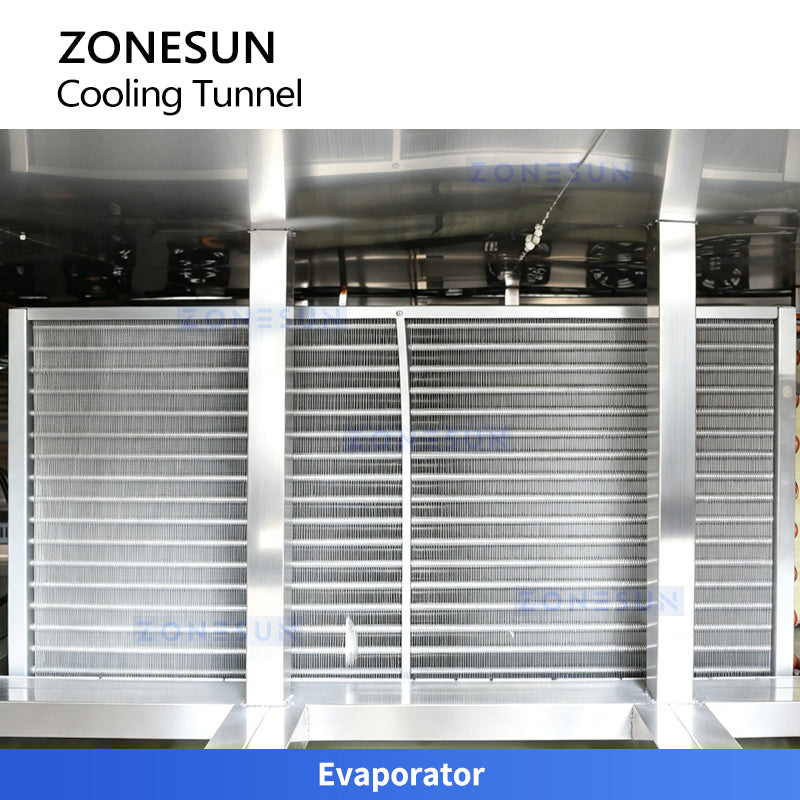

Evaporator
Generates cold air through refrigerant circulation and heat exchange, providing stable cooling for fast and uniform product temperature reduction.

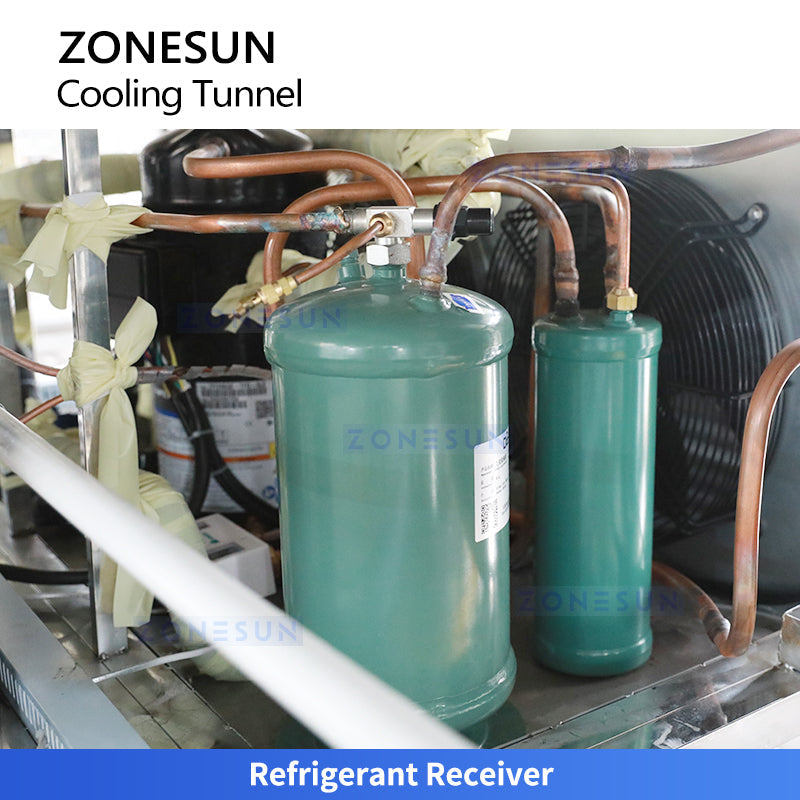

Refrigerant Receiver
Stores and regulates liquid refrigerant to ensure a stable refrigerant supply, reduce fluctuations, and improve the stability and efficiency of the refrigeration cycle.
Condenser Fan
Enhances condenser heat dissipation by forcing airflow, helping refrigerant release heat and complete the condensation process for efficient and stable refrigeration performance.
Why Choose the ZONESUN ZS-CT3?
✅ 28,000 Kcal/hr Cooling Capacity — Powerful Cooling Performance: Designed for efficient continuous cooling, the high-capacity refrigeration system provides rapid and stable temperature reduction while ensuring consistent cooling results.
✅ Reciprocating Conveyor System — Extended Cooling Performance: Equipped with a back-and-forth conveying system that extends the product travel distance and cooling time inside the tunnel, ensuring more sufficient and uniform cooling without increasing the machine footprint.
✅ 9,000 m³/h Evaporator Airflow — Uniform Cold Air Circulation: Provides strong and consistent cold air circulation throughout the cooling chamber, helping products achieve fast and even temperature reduction during continuous production.
✅ Piston-Type Compressor — Reliable Refrigeration Efficiency: Features a dependable piston compressor designed to maintain stable refrigeration performance, supporting continuous operation in demanding food processing environments.
✅ Comprehensive Protection System — Safe & Stable Operation: Equipped with high/low pressure protection, overload protection, coil overheat protection, automatic temperature control, phase reverse protection, and other safety devices for reliable operation.
✅ Maintenance Access Door — Easy Cleaning & Servicing: The convenient access design allows operators to inspect, clean, and maintain the internal cooling system easily while the sealed structure helps minimize cold air loss.
✅ Production Line Integration — Efficient Continuous Processing: Designed for integration with upstream processing and downstream packaging equipment, allowing products to move continuously through cooling and subsequent production processes.
Ideal Applications
Chocolate & Confectionery: Ideal for cooling and solidifying chocolate, candies, coated confectionery, and other products requiring controlled and uniform temperature reduction before packaging.
Bakery Products: Suitable for cooling bread, cakes, cookies, pastries, and other baked products after processing to prepare them for subsequent handling or packaging.
Food Processing: Applicable for various processed food products requiring stable and continuous cooling before entering downstream production or packaging processes.
Beverage & Food Products: Provides an efficient cooling solution for suitable beverage and food products requiring controlled temperature reduction during continuous production.
Heat-Processed Products: Designed for products that require rapid and uniform temperature reduction after heating, cooking, coating, or other thermal processing operations.
Industrial Production Lines: Provides a reliable continuous cooling solution for medium to large-scale production lines where cooling efficiency, uniformity, extended cooling time, and equipment integration are required.
