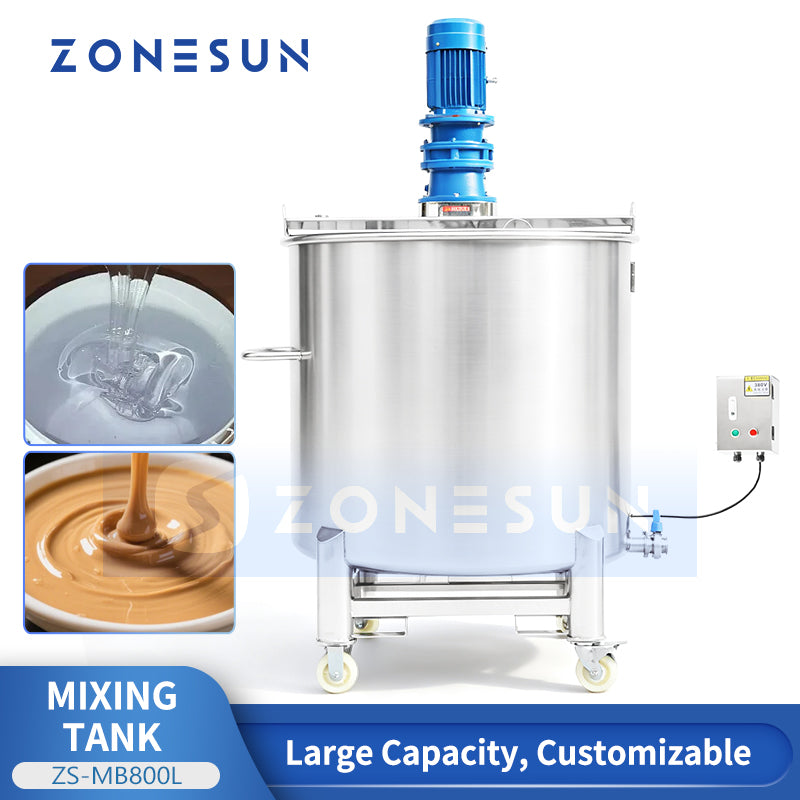

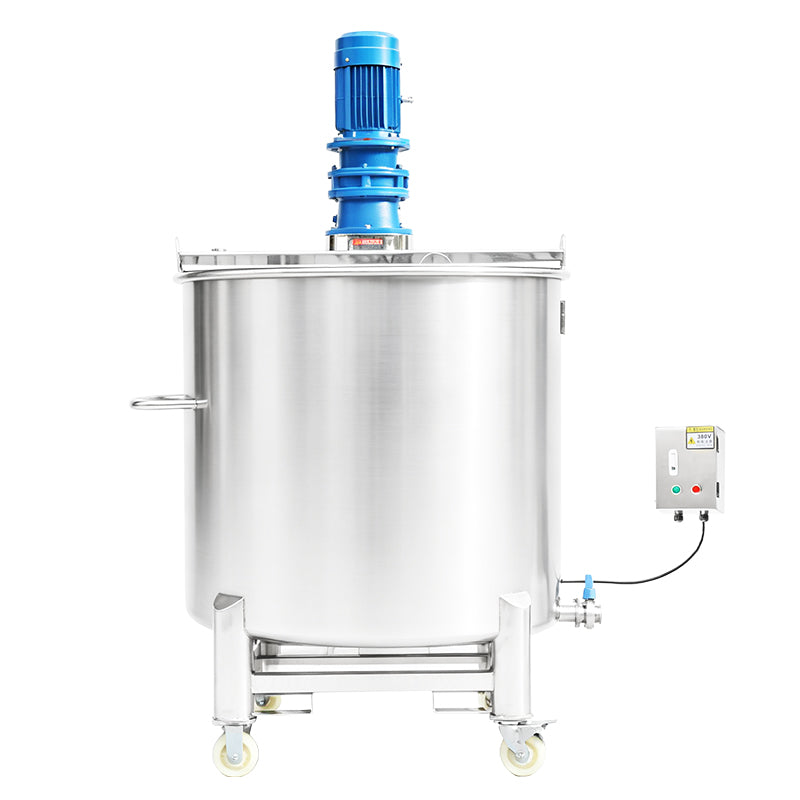

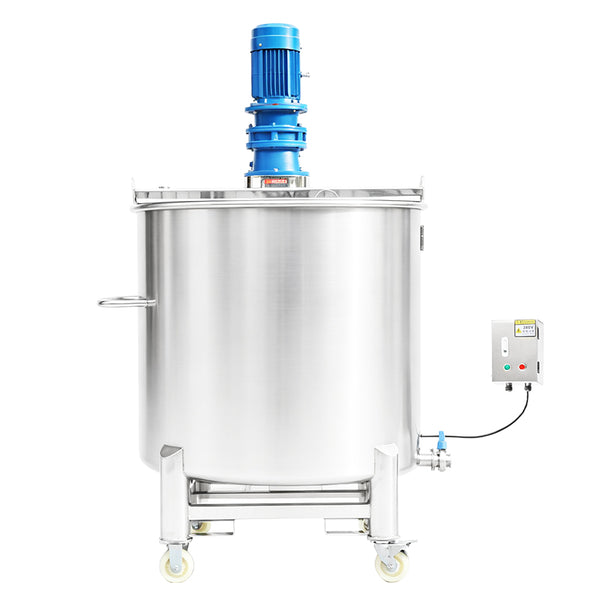

ZS-MB800L 800L SUS316 Industrial Liquid & Paste Mixing Tank
The ZONESUN ZS-MB800L is an 800L SUS316 stainless steel mixing tank designed for large-batch preparation and premixing of compatible liquids and pastes. It is suitable for upstream processing in food, cosmetic, personal care, detergent, and other liquid-production applications where consistent batch mixing and convenient material discharge are required.
The tank uses a frame-type agitator driven by a 2.2kW motor. Standard stirring speed is 40 r/min and can be customized within 0–80 r/min according to production requirements. A sloped bottom directs material toward the 50mm bottom outlet, while four caster-equipped support legs make the tank easier to reposition within the production area.
Technical Specifications
- Model: ZS-MB800L
- Tank Capacity: 800 L
- Tank Design: Flat top, sloped bottom
- Agitator Type: Frame-type agitator
- Stirring Power: 2.2 kW
- Stirring Speed: 40 r/min (customizable: 0–80 r/min)
- Power Supply: 380V
- Bottom Outlet Diameter: 50 mm
- Outlet Height from Ground: 300 mm
- Support Legs: 4 legs with casters
- Tank Material: SUS 316 stainless steel
- Plate Thickness: 3 mm

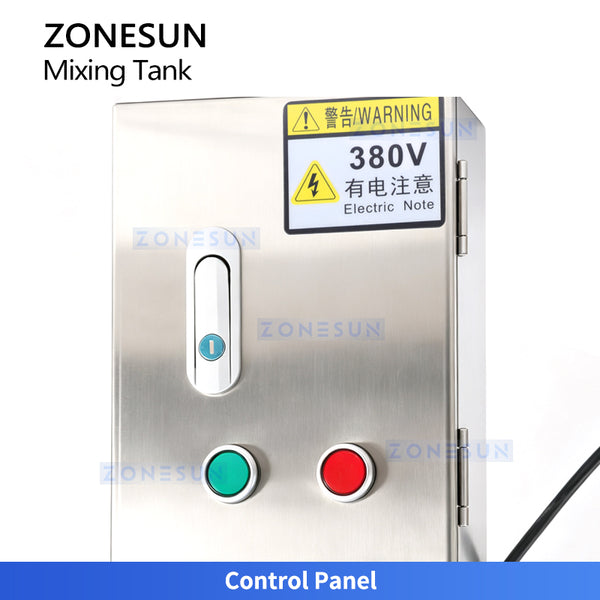

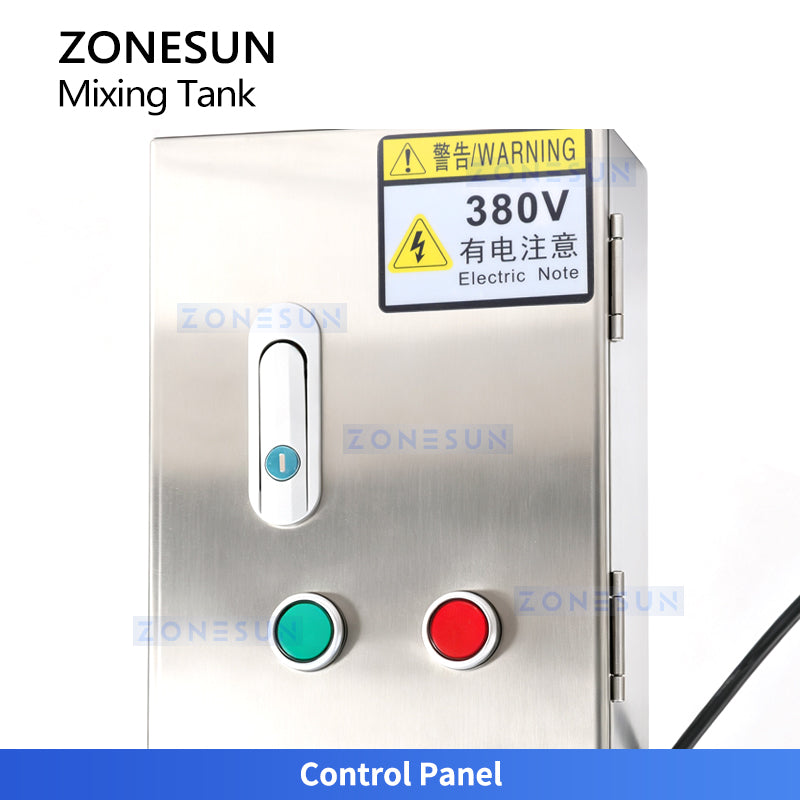

Control Panel
Provides convenient control of the mixing system for straightforward operation.

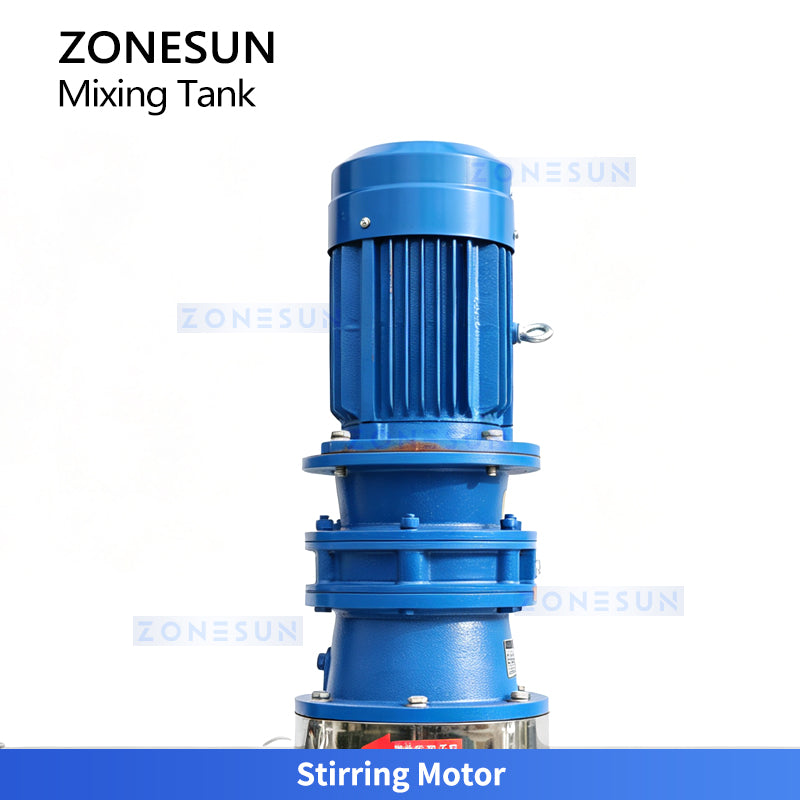

Stirring Motor
The 2.2kW motor drives the frame agitator for continuous batch mixing.

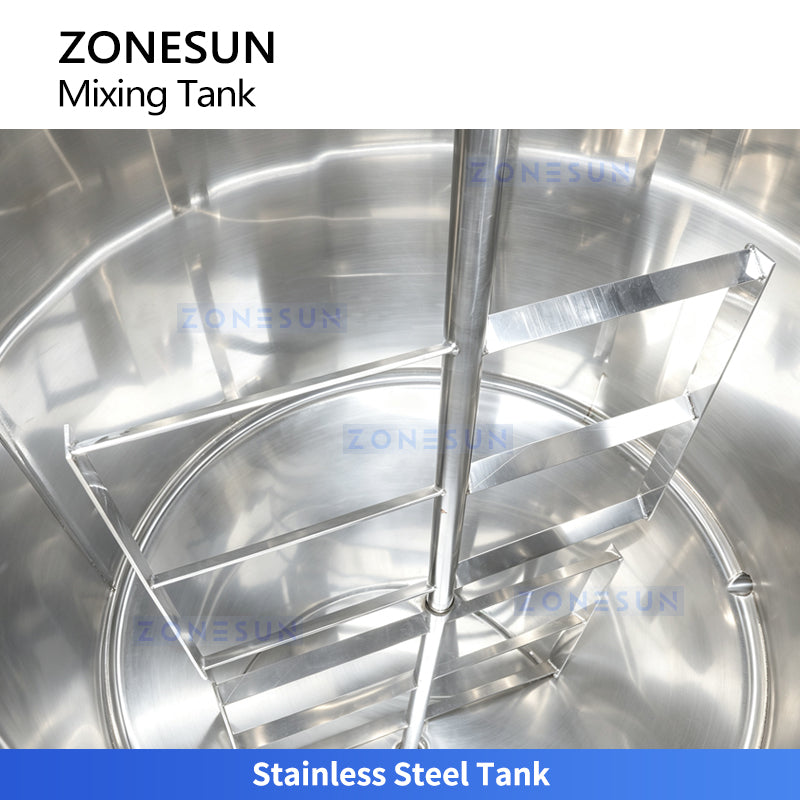

SUS316 Stainless Steel Tank
The large-capacity stainless steel vessel is designed for industrial batch preparation and premixing.

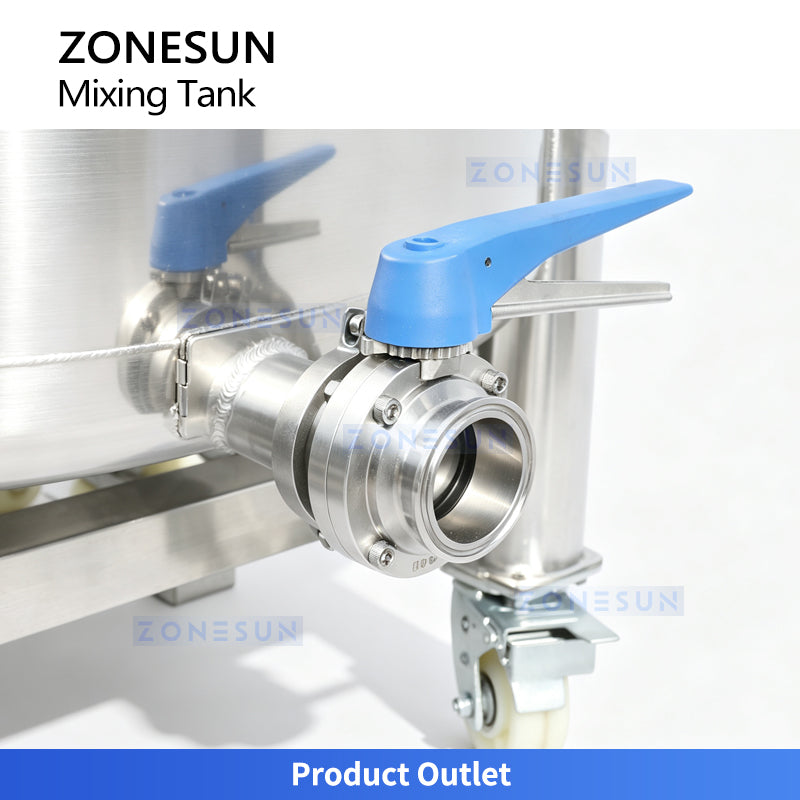

Bottom Product Outlet
The bottom-mounted outlet supports controlled discharge and transfer of mixed material.

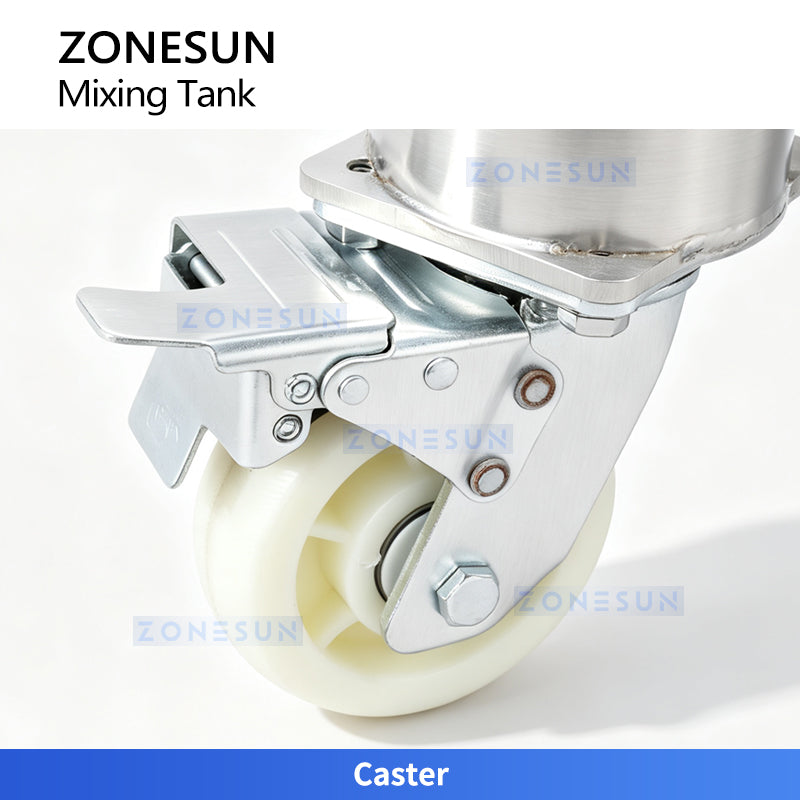

Mobile Casters
Heavy-duty swivel casters help operators reposition the tank within the production area.
Key Features
800L SUS316 Stainless Steel Tank
The 800-liter tank is made from SUS316 stainless steel with a 3mm plate thickness, providing a durable large-capacity vessel for batch mixing and material preparation.
Frame-Type Agitator
The frame agitator promotes material circulation throughout the tank and is suitable for mixing compatible low- and higher-viscosity liquids and pastes.
Adjustable Mixing Speed
The 2.2kW stirring system operates at 40 r/min as standard and can be customized within 0–80 r/min to suit different materials and process requirements.
Sloped Bottom for Easier Discharge
The sloped tank bottom guides material toward the 50mm outlet, helping reduce residual material and simplify transfer to downstream processing or filling equipment.
Mobile Production-Floor Design
Four support legs with swivel casters allow the tank to be moved and repositioned more easily between production, filling, and cleaning areas.
How Does the ZS-MB800L Work?
- Add the required liquid or paste ingredients into the tank.
- Set the mixing system according to the production requirement.
- The frame agitator circulates and blends the material inside the 800L vessel.
- Continue mixing until the required batch consistency is reached.
- Discharge the mixed product through the bottom outlet.
- The material can then be transferred to downstream processing or filling equipment.
Actual mixing performance depends on factors such as material viscosity, batch volume, formulation, temperature, and required mixing time.
Suitable Applications
The ZS-MB800L is designed for large-batch preparation of compatible liquid and paste products, including:
- Sauces and liquid food preparations
- Syrup and beverage bases
- Edible oil blends
- Shampoo and body wash
- Lotion and cosmetic premixes
- Liquid detergent
- Cleaning products
- Fabric-care liquids
- Other compatible liquid and paste formulations
Is the ZS-MB800L Suitable for Your Process?
| Requirement | ZS-MB800L |
| Large-batch mixing | Yes, 800L capacity |
| Liquid products | Yes |
| Paste or higher-viscosity products | Yes, subject to material evaluation |
| Adjustable stirring speed | Yes, customizable 0–80 r/min |
| Bottom discharge | Yes, 50mm outlet |
| Mobile tank | Yes, 4 caster-equipped legs |
| Heating or advanced processing functions | Available depending on customization requirements |
Choosing the Right Mixing Tank
Before selecting a mixing tank, consider the following production information:
- Product type and formulation
- Material viscosity
- Required batch volume
- Mixing time
- Required stirring speed
- Whether heating, insulation, or other processing functions are needed
- Required discharge and transfer method
- Downstream filling or processing equipment
Providing this information helps determine whether the standard ZS-MB800L configuration is suitable or whether a customized setup is required.
Customization Options
The tank configuration can be adapted according to the material and production process. Depending on the project, customization may include stirring speed, tank structure, processing functions, discharge configuration, or integration with downstream equipment.
Frequently Asked Questions
What is the capacity of the ZS-MB800L?
The tank has a nominal capacity of 800 liters.
What material is the tank made from?
The tank is made from SUS316 stainless steel with a specified plate thickness of 3 mm.
What type of agitator does it use?
The ZS-MB800L uses a frame-type agitator driven by a 2.2kW motor.
Can the stirring speed be adjusted?
The standard stirring speed is 40 r/min, and the machine can be customized for a range of 0–80 r/min.
Can it mix high-viscosity products?
It can be used with compatible higher-viscosity liquids and pastes, but suitability should be confirmed according to the actual material viscosity and process requirements.
How is the mixed product discharged?
The tank uses a sloped bottom with a 50mm bottom outlet for material discharge.
Can this tank connect to a filling machine?
Yes. The bottom outlet can support material transfer to downstream filling or processing equipment, subject to the required transfer method and line configuration.
Can ZONESUN customize the tank?
Yes. Configuration can be evaluated according to product characteristics, batch requirements, processing functions, and downstream production needs.
