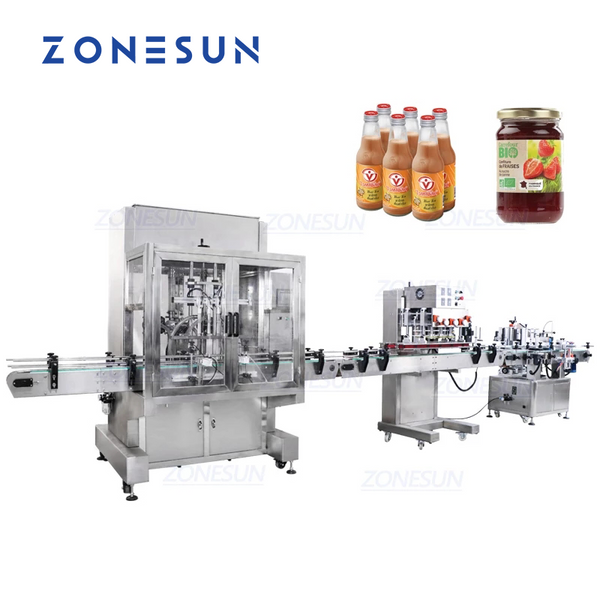

Revolutionize your honey syrup production with this fully automatic 6-head servo-controlled piston pump filling, capping, and labeling production line. Engineered for precision and efficiency, this system handles the entire packaging process from filling individual containers to applying tamper-evident labels. The servo-controlled piston pumps ensure consistent and accurate filling volumes, minimizing waste and maximizing output. Built for durability and easy maintenance, this line significantly increases production capacity and reduces labor costs, making it an ideal investment for honey producers of all sizes seeking to streamline their operations and enhance product quality. Increase your efficiency and profitability today!
TECHNICAL SPECIFICATIONS – ZS-LP800N
- Machine Model: ZS-LP800N
- Power Supply: 220V/110V, 50–60Hz, 200W
- Turntable Diameter: 800mm
- Suitable Bottle Diameter: 20–100mm
- Suitable Bottle Height: 30–320mm
- Working Speed: 40–60 bottles/min (varies by bottle size)
- Package Size: Approx. 1230 × 1010 × 1260mm
- Gross Weight: Approx. 141kg
TECHNICAL SPECIFICATIONS – ZS-YT6T-6PXD
- Machine Model: ZS-YT6T-6PXD
- Voltage: 110/220V, 50–60Hz
- Power: 2KW
- Filling Heads: 6 Heads (Customizable)
- Filling Range: 50–500ml (Customizable)
- Filling Speed: Approx. 20–70 bottles/min (depends on material and bottle size)
- Filling Accuracy: ±1%
- Air Pressure: 0.5–0.8MPa
- Memory Function: Available
- Machine Size (L×H×W): Approx. 2630 × 1000 × 2025mm
- Package Size (L×H×W): Approx. 1870 × 1030 × 2070mm
- Machine Weight: Approx. 540kg
TECHNICAL SPECIFICATIONS – ZS-XG440B
- Machine Model: ZS-XG440B
- Voltage: 220V/110V, 50–60Hz
- Power: 2KW
- Production Capacity: 2000–5000 BPH (varies by bottle and cap size)
- Suitable Cap Size: Customized
- Suitable Bottle Diameter: 35–120mm (Customizable)
- Suitable Bottle Height: 60–200mm (Customizable)
- Machine Size:
- Main Machine: Approx. 2500 × 967 × 1686mm
- Vibratory Bowl Sorter: Approx. 635 × 694 × 1976mm
- Package Size:
- Main Machine: Approx. 2060 × 1070 × 1920mm
- Vibratory Bowl Sorter: Approx. 1950 × 730 × 720mm
- Machine Weight:
- Main Machine: Approx. 614kg
- Vibratory Bowl Sorter: Approx. 165kg
TECHNICAL SPECIFICATIONS – ZS-TB200R
- Machine Model: ZS-TB200R
- Voltage: 220V/110V, 50–60Hz
- Power: 1200W
- Labeling Speed: Approx. 40–150 bottles/min (depends on bottle and label size)
- Suitable Bottle Diameter: 30–100mm
- Suitable Bottle Height: 30–200mm
- Label Size: 15–130mm (W) × 15–300mm (L)
- Label Roll Inner Diameter: Φ76mm
- Label Roll Outer Diameter: Φ350mm
- Machine Size: Approx. 2005 × 860 × 1355mm
- Machine Weight: Approx. 200kg
The support-arm control panel provides convenient, intuitive parameter settings. The anti-drip design helps prevent paste from collecting on the nozzle exterior or bottle surface. Servo piston filling allows the filling volume to be set directly for accurate output. The inline system tightens multiple screw-thread bottles during continuous production. Supports single-side labeling for round bottles and can be configured for different operating speeds. Quality electrical components support stable machine operation.
Control Panel
Filling Nozzles

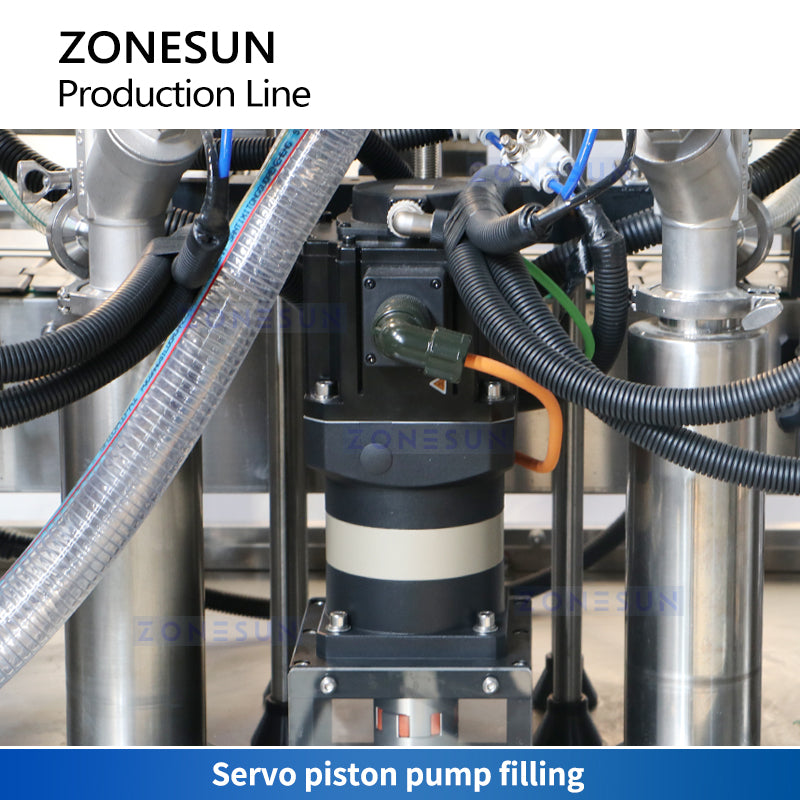

Piston Pump
Capping Structure
Labeling Structure
Part Configuration
