FEATURE
[Digital Control Panel]Through the panel, you can set filling speed and filling time. Easy to operate.
[Peristaltic Pump]With peristaltic pump, the liquid won't pass through the pump, ensuring product's quality.
[Suitable for small-volume filling]With mini filling head, it is suitable for trace filling. The recommended filling range of this machine is 1-100ml.
[Waterproof Conveyor Belt]With waterproof function, it can ensure production cleanliness.
[Automatic Production]With intelligent electric eye, it can detect bottles precisely and control the machine to work, saving labor cost. The machine is in small size, which is an ideal choice for small workshop.
APPLICATION
This machine is suitable for filling low-viscosity liquid, such as ink, perfume, essential oil, etc. The machine can be widely used in medicine, cosmetic, beverage industries.
PARAMETER
- Machine Model: ZS-DTPP100C
- Voltage: 220V/110V, 50–60Hz
- Power: 75W
- Pump Type: Peristaltic Pump
- Recommended Filling Range: 5–100ml
- Max Flow Rate: 700ml/min (based on water)
- Filling Speed: Approx. 10 bottles/min (50ml perfume)
- Conveyor Size: 600mm (L) × 100mm (W) — Optional 1200mm (L)
- Filling Nozzle Diameter: Outer Diameter 3.3mm & 8.3mm
- Suitable Liquid Temperature: ≤100°C
- Collecting Tray Size: 210mm × 100mm (L × W)

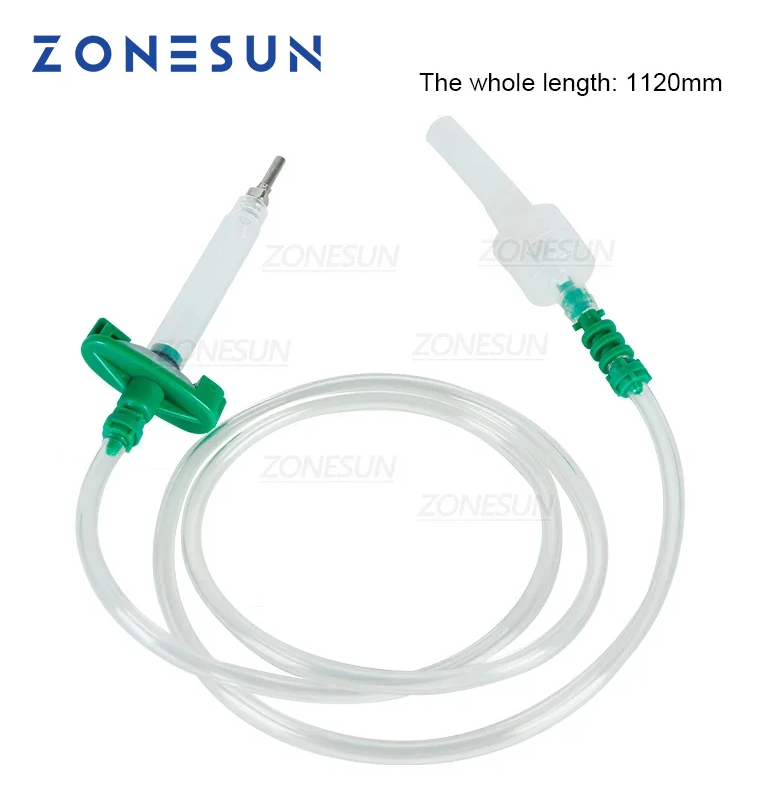

- Liquid Inlet Pipe Size: 7.2mm (ID) × 9.9mm (OD)
- Pump Tube Size: 4.8mm (ID) × 8mm (OD)
- Main Machine Dimensions: Approx. 180mm × 128mm × 95mm (L × W × H)
- Machine Weight: 4.3kg
- Package Dimensions: Approx. 655mm × 160mm × 185mm (L × W × H)
- Package Weight: 5kg
Control Panel
The control panel provides a clear interface for setting filling volume, speed, and other operating parameters.
Peristaltic Pump
The peristaltic pump moves liquid through the tubing without direct contact with the pump mechanism, making tubing replacement and cleaning easier.
Filling Head
The filling head dispenses liquid into the container and can be positioned to suit different bottle sizes.
Electric Eye
The electric eye detects passing bottles and controls automatic filling. Its sensitivity can be adjusted as needed.
Conveyor Belt
The conveyor belt transports bottles steadily through the filling station.
