Description

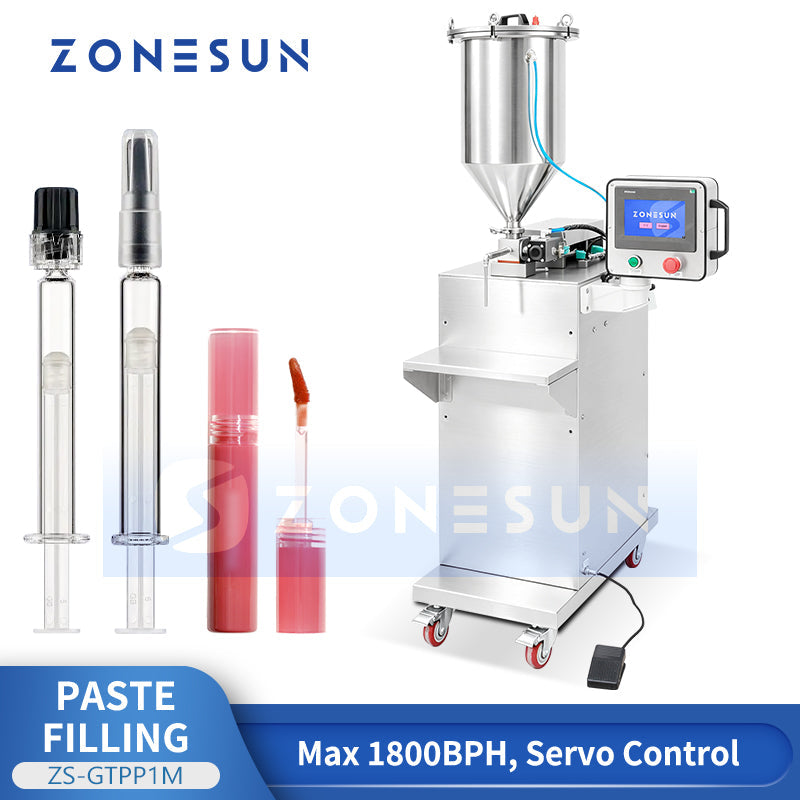

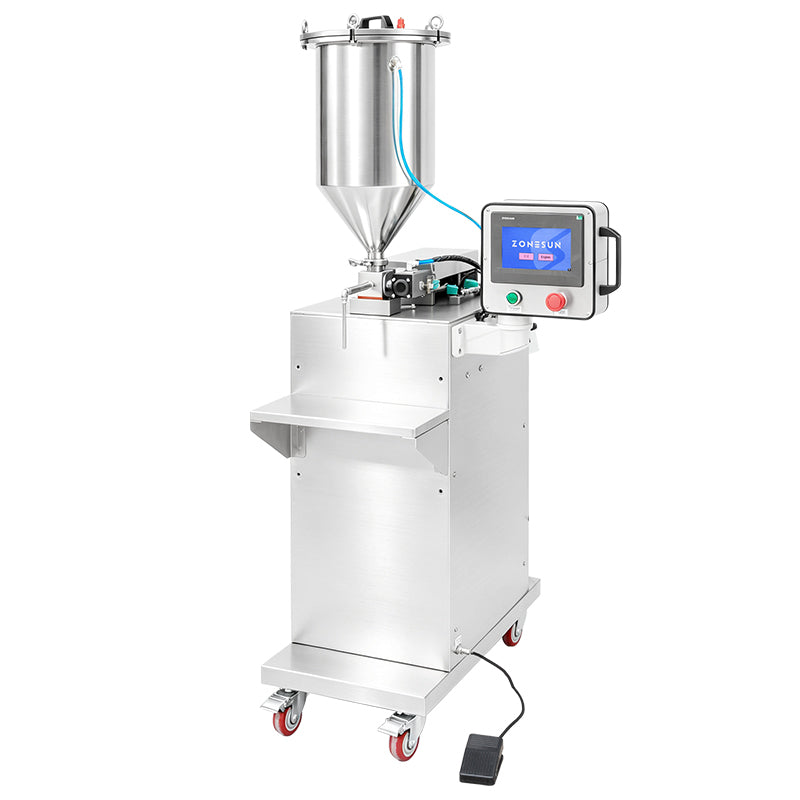

The ZONESUN ZS-GTPP1M is a semi-automatic servo piston filling machine designed for mascara, lip gloss, liquid foundation, cosmetic creams and other compatible paste-like products. The servo-driven piston system controls piston movement and filling volume for repeatable dosing, while the pressurized hopper helps feed higher-viscosity material into the filling system.
The machine is equipped with an 18 L pressurized hopper, touchscreen control, customizable filling nozzle and foot-pedal operation. Optional hopper mixing and heating can be configured according to product characteristics and production requirements.
Technical Specifications
- Model: ZS-GTPP1M
- Voltage: 110/220 V, 50–60 Hz
- Power: 100 W
- Air Pressure: 0.3–0.6 MPa
- Hopper Size: 18 L (customizable)
- Filling Range: Starting from 1 ml; configuration depends on product and filling requirement
- Specified Filling Accuracy: ±0.1 ml
- Working Capacity: 1200–1800 BPH
- Filling System: Servo-driven piston system
- Operation: Semi-automatic / pedal switch
- Machine Size: About 410 × 770 × 1550 mm
- Machine Weight: About 85 kg
Key Features

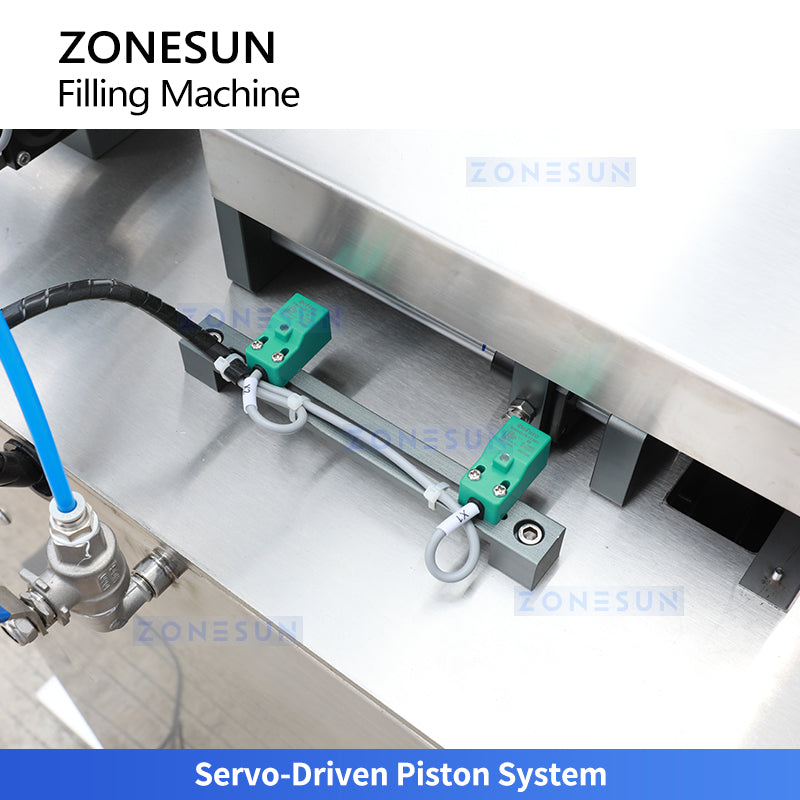

Servo-Driven Piston Filling
The servo system controls piston stroke for repeatable dispensing and convenient adjustment of filling parameters.

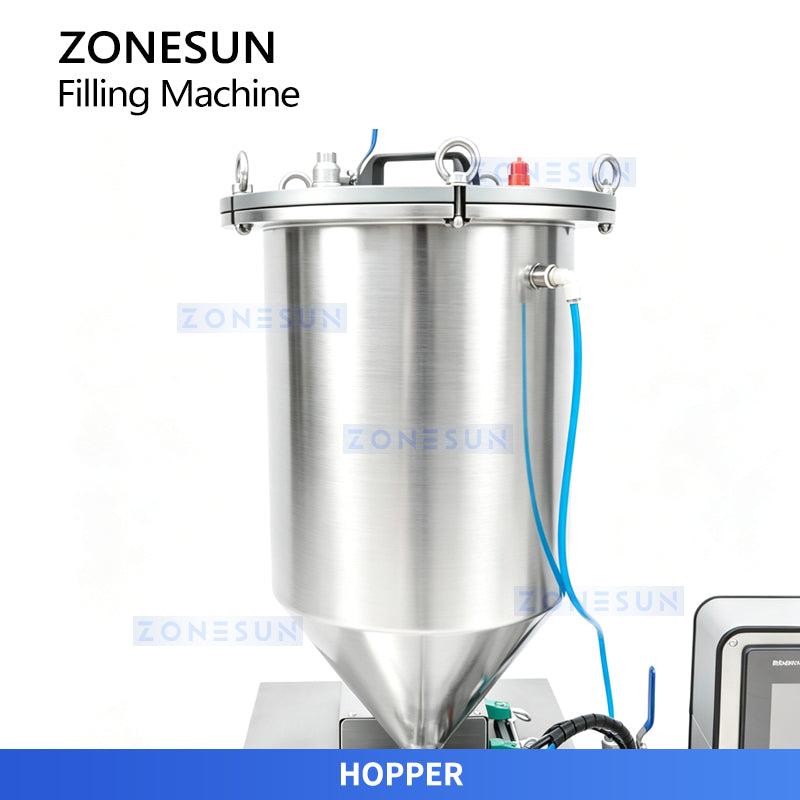

18 L Pressurized Hopper
The hopper helps maintain stable material supply to the piston filling system. Optional stirring and heating can be added for compatible products that require mixing or temperature control.

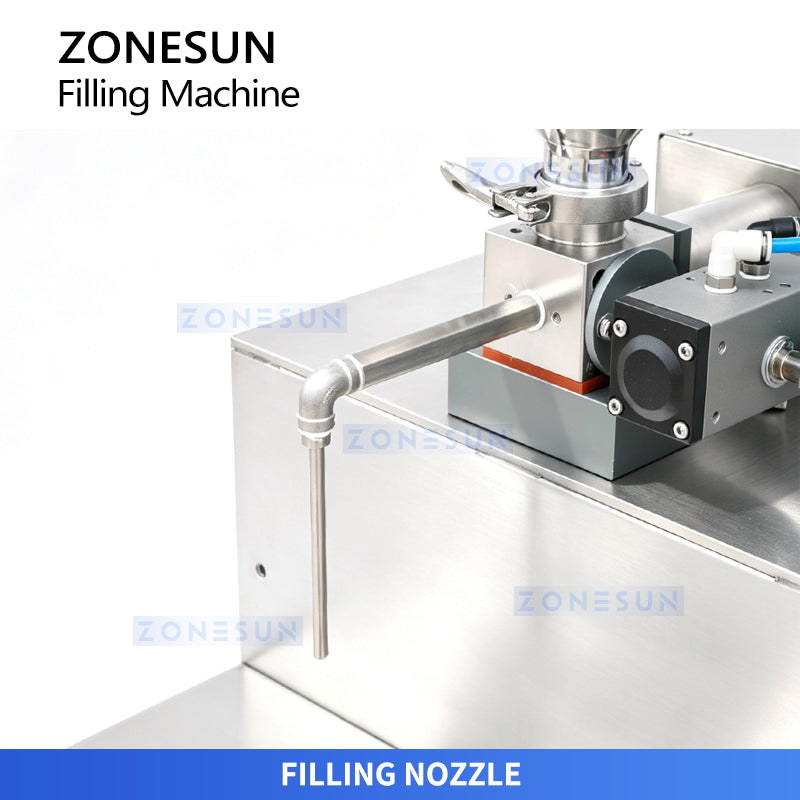

Customizable Filling Nozzle
The filling nozzle can be configured according to the product characteristics, container opening and required filling method.

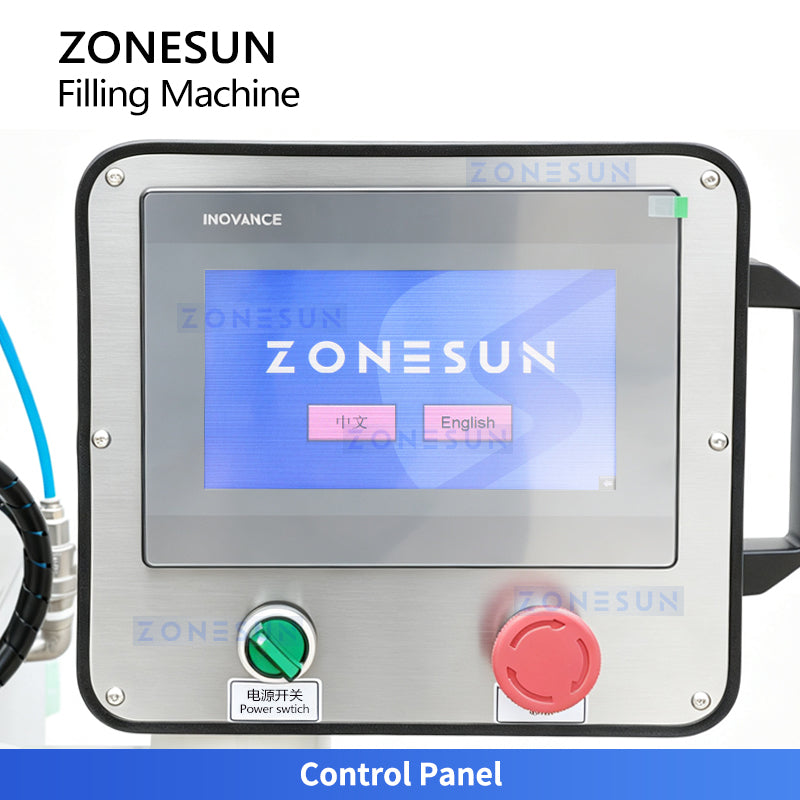

Touchscreen Control
The control panel allows convenient adjustment of filling and servo parameters for daily operation.

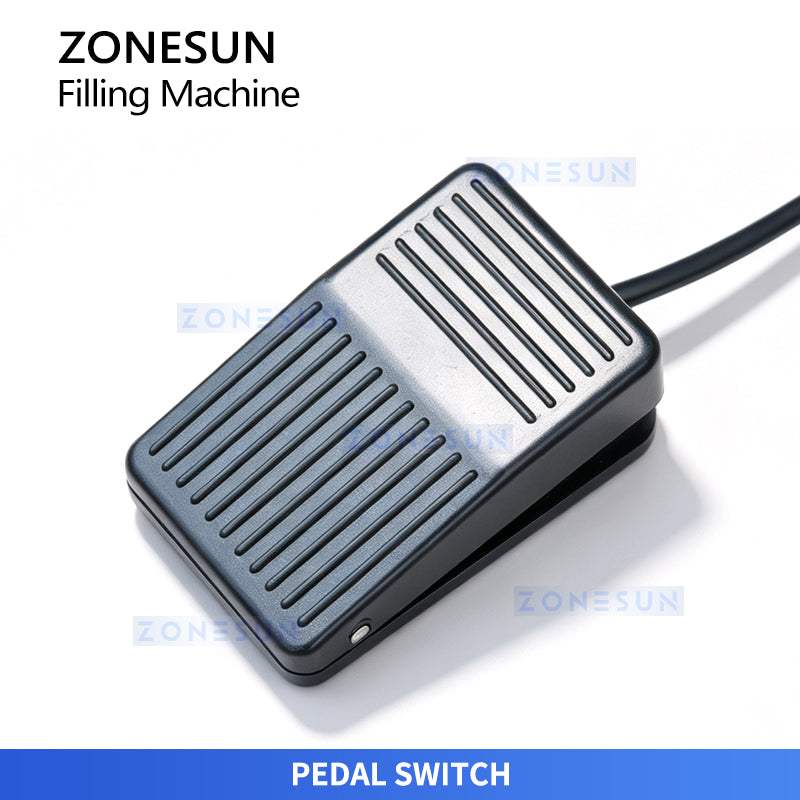

Foot-Pedal Operation
The operator can position the container by hand and activate each filling cycle using the pedal, making the machine suitable for flexible semi-automatic production.
Suitable Applications
- Mascara formulations
- Lip gloss
- Liquid foundation
- Cosmetic creams and gels
- Other compatible viscous cosmetic products
- Small-batch production and product trials
Application note: Actual suitability depends on viscosity, temperature, particle content, container opening and required filling volume. Product and container samples are recommended for confirmation.
FAQ
Is the ZS-GTPP1M fully automatic?
No. It is a semi-automatic filling machine. Containers are positioned by the operator and each filling cycle can be activated with the foot pedal.
Can the hopper be heated or mixed?
Yes. Optional heating and stirring functions can be customized according to compatible product requirements.
What products are suitable for this filling system?
It is designed for compatible creams, gels, mascara, lip gloss, foundation and other paste-like cosmetic products that can be handled by the servo piston system.
Can the nozzle be customized?
Yes. Nozzle configuration can be matched to the product characteristics and container opening.
Does the stated filling accuracy apply to every product?
The specified accuracy is a reference value. Actual performance depends on product properties, filling volume, machine settings and operating conditions.
