DESCRIPTION

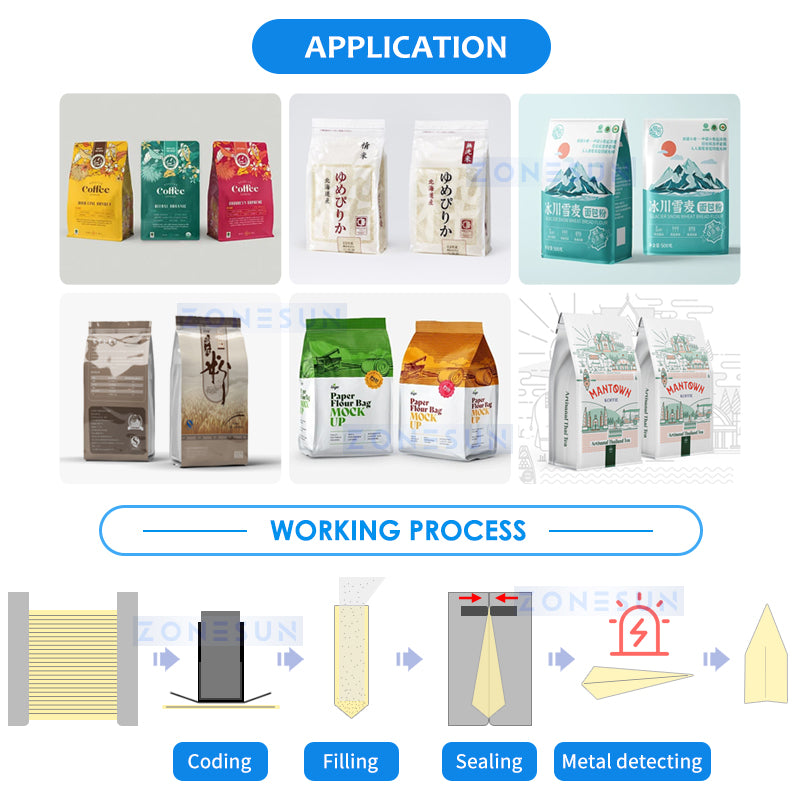

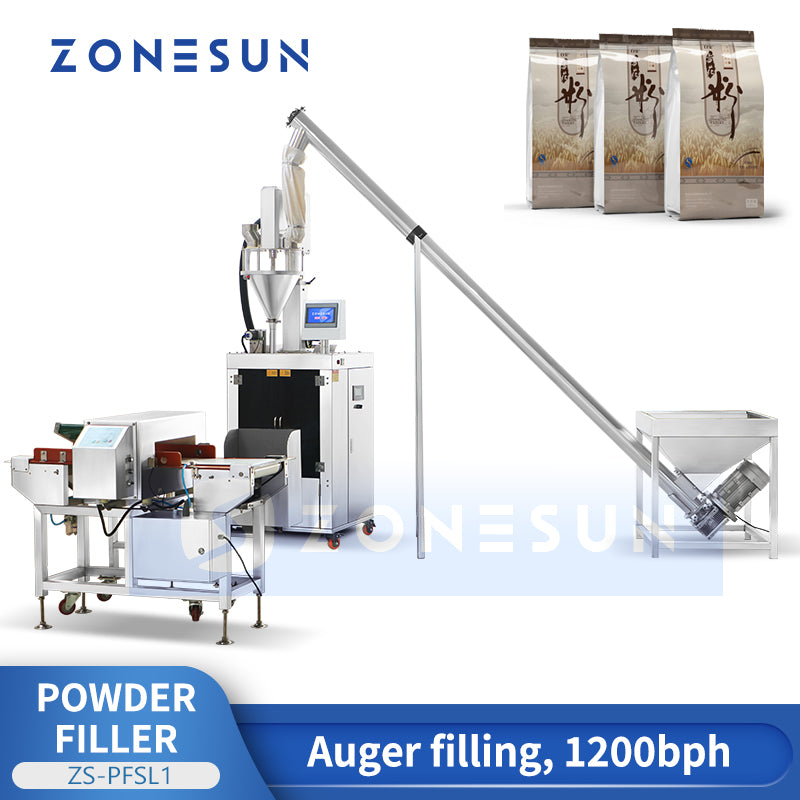

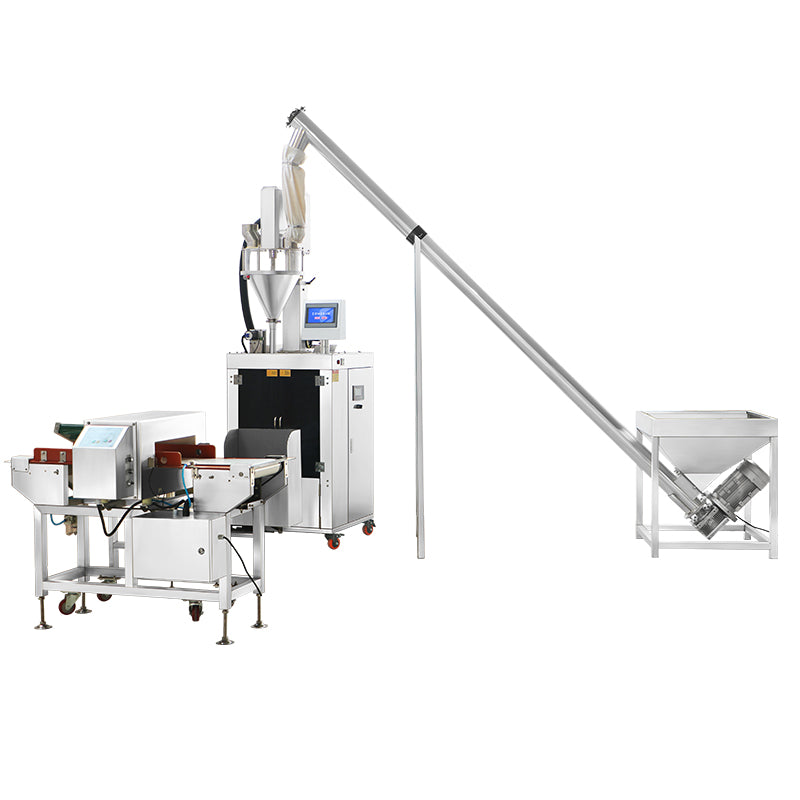

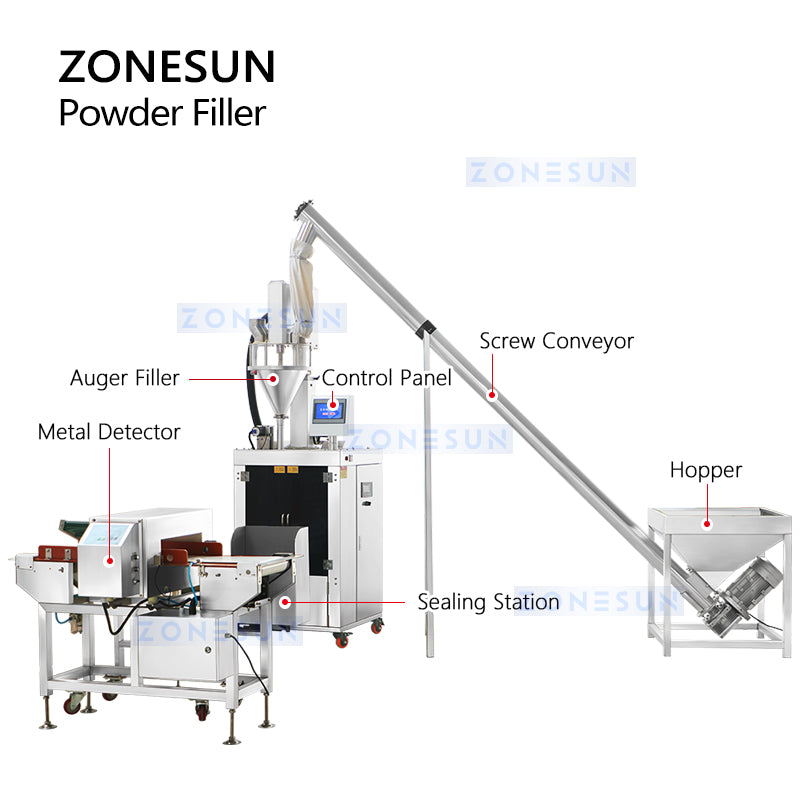

Introducing our versatile powder packaging combo, complete with a screw conveyor, powder filling and sealing machine, and a metal detection system. The screw conveyor efficiently transfers powder to the main unit, which handles bag feeding, coding, filling, and sealing with multiple stations. Simply place the pre-made bags on the rack, and the suction gripper will pick them up, apply codes, fill them with powder, and seal the bag opening. Once sealed, the bags are transported on a conveyor belt to the metal detection machine, where any presence of metal triggers an air nozzle to remove the contaminated bag. Streamline your powder packaging process with this all-in-one solution for efficiency and quality control.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Machine Model: ZS-PFSL1
- Voltage: 220V/110V 50-60Hz
- Power: About 1.2kW
- Measuring Type: Auger Filling
- Packing Speed: About 16-20pcs/min (Depending on bag size and filling materials)
- Filling Range: Can be customized
- Bag Size: Can be customized

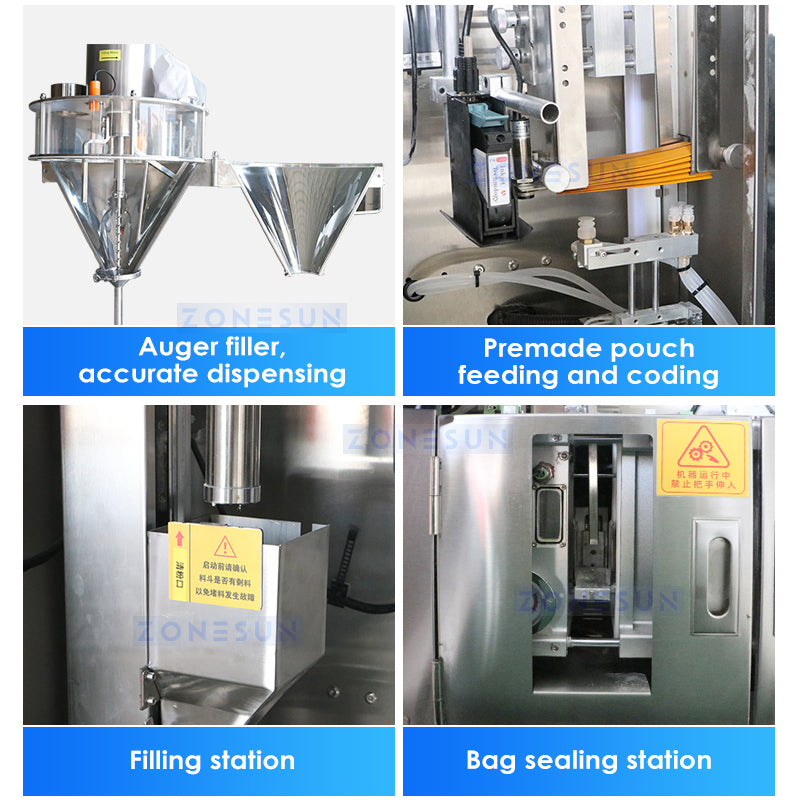

Integrated Auger Filling and Bag Sealing
The auger filler provides accurate powder dosing, while the premade-pouch feeding, coding, filling, and sealing stations complete the packaging process.

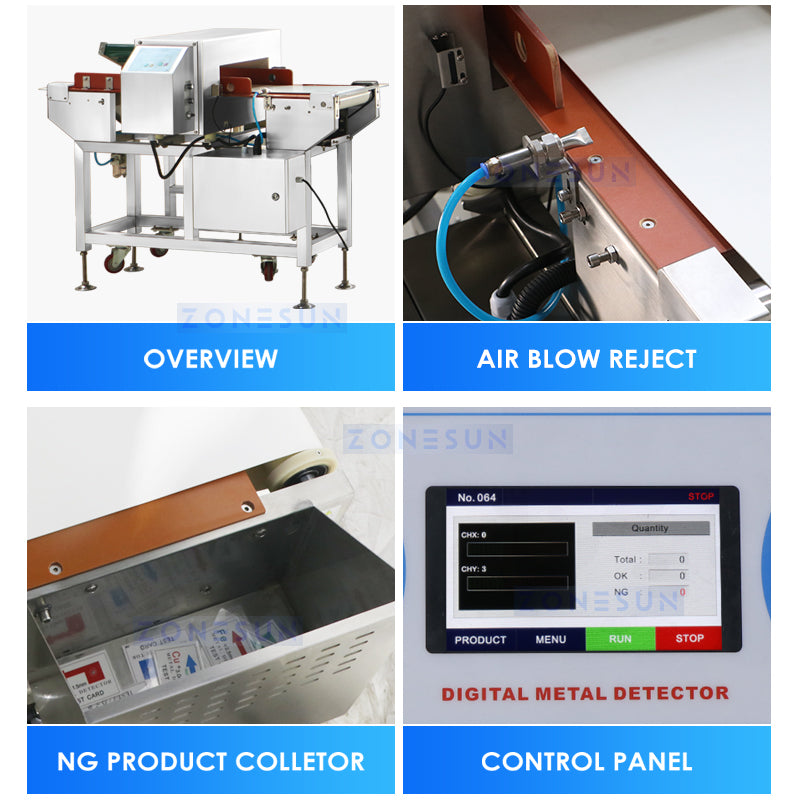

Metal Detection and Reject Collection
The digital metal detector identifies nonconforming packs, uses air-blow rejection, and directs rejected products to the collection area.

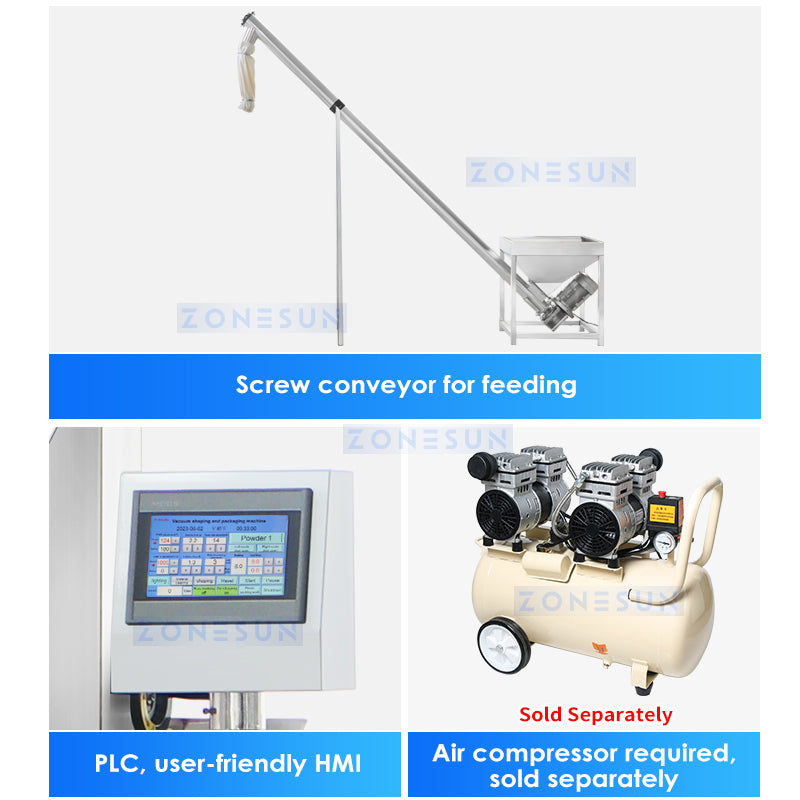

Screw Conveyor and PLC Control
The screw conveyor supplies powder to the filling system. The PLC touchscreen provides user-friendly control; an external air compressor is required and sold separately.
