DESCRIPTION

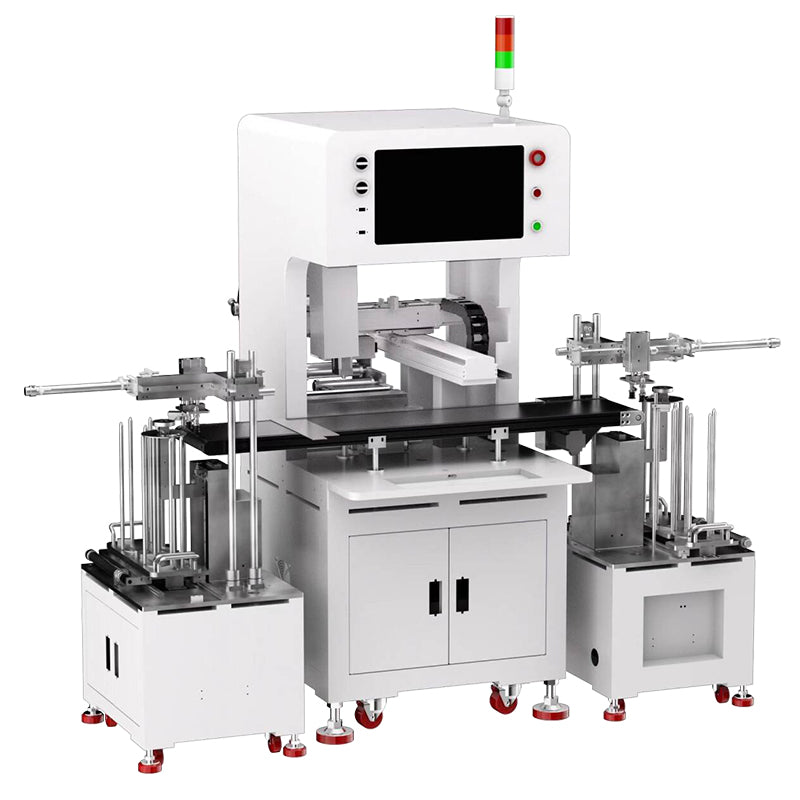

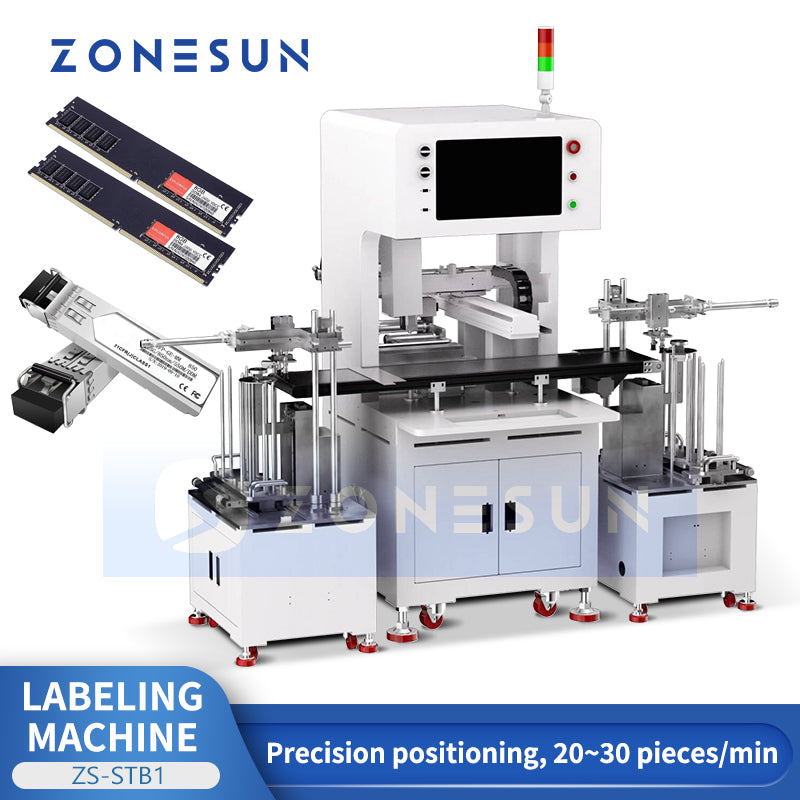

The Visual Inspection Labeling Machine with Feeder and Accumulator is a comprehensive solution for automated labeling of flat objects, designed for high-volume production lines. This machine features an integrated feeder system to automatically feed products into the labeling area, followed by a vision inspection system that accurately identifies the product's position and orientation. The labeling head then precisely applies labels to the specified location. Finally, an accumulator system collects the labeled products, ensuring a smooth and efficient workflow.
Parameter
- Model: ZS-STB1
- Capacity: 20–30 pieces/min
- Accuracy: ±0.05mm
- Qualified rate: ≥99.5%
- Label specifications:
- Length: 20–180mm
- Width: 22–104mm
- Label diameter: Max 265mm (76mm reel core)
- Labeling accuracy: ±1mm
- Overall dimensions (L×W×H): 700×700×1700mm
- Overall weight: 350kg
- Power supply: AC100–240V, 5A, 50–60Hz
- Method of pasting labels: Real-time printing of labels
- Print resolution: 203 / 305 / 609dpi

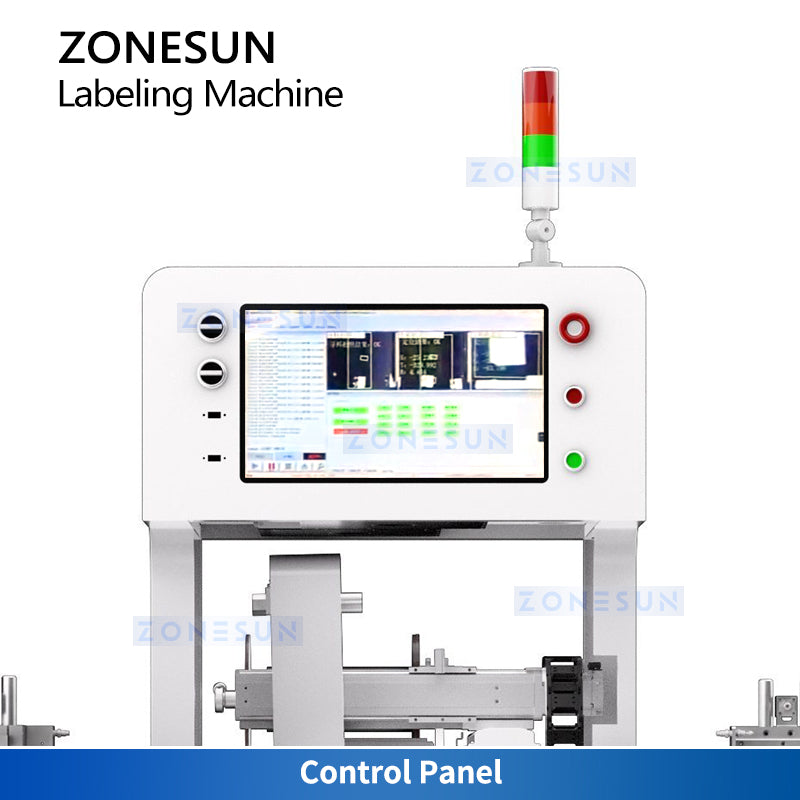

Control Panel
The interface allows operators to set parameters, monitor labeling, and make adjustments in real time.

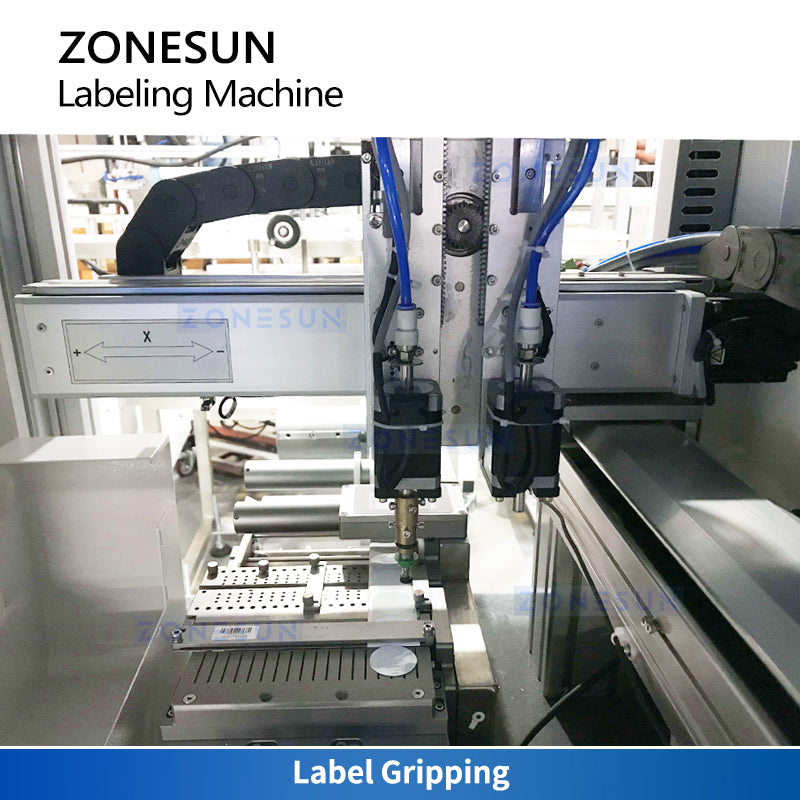

Label Gripping Mechanism
The gripping mechanism handles labels precisely to reduce waste and support accurate placement.

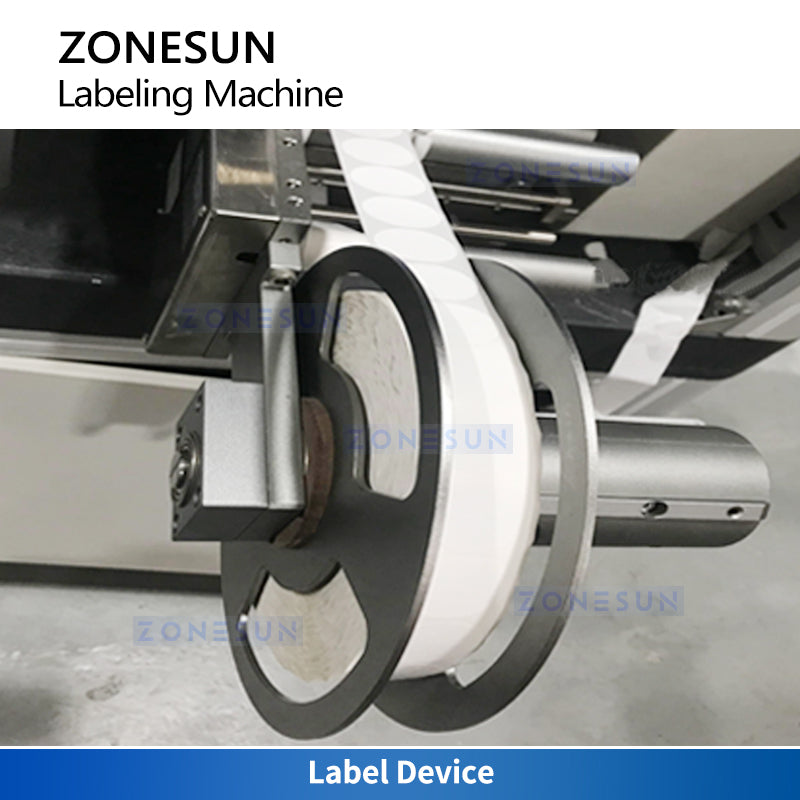

Label Application Device
The label device applies labels evenly and consistently across products.

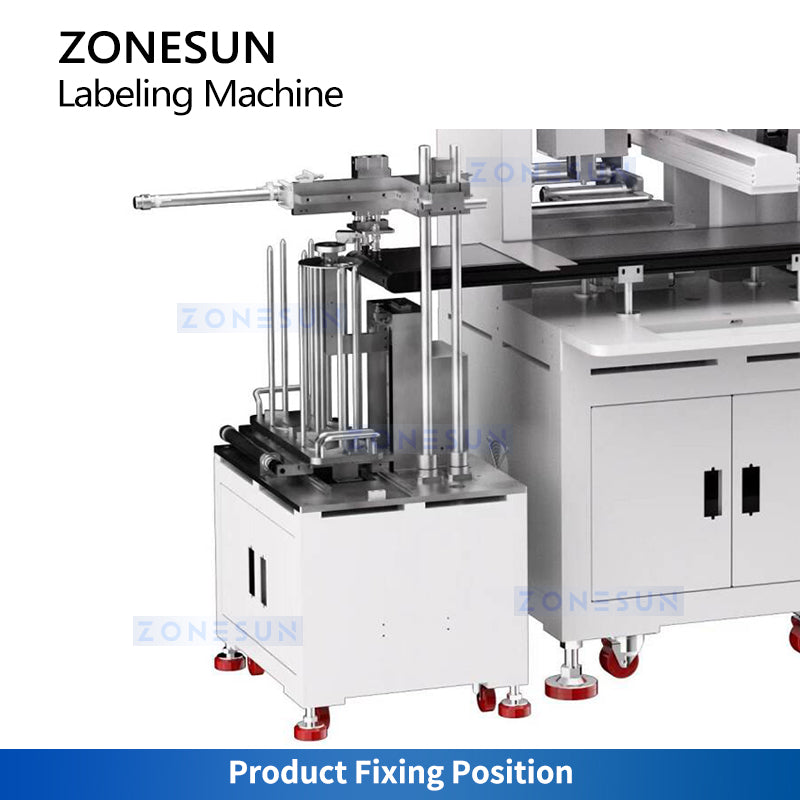

Product Fixing Position
The positioning assembly holds products securely during labeling to help prevent misalignment.

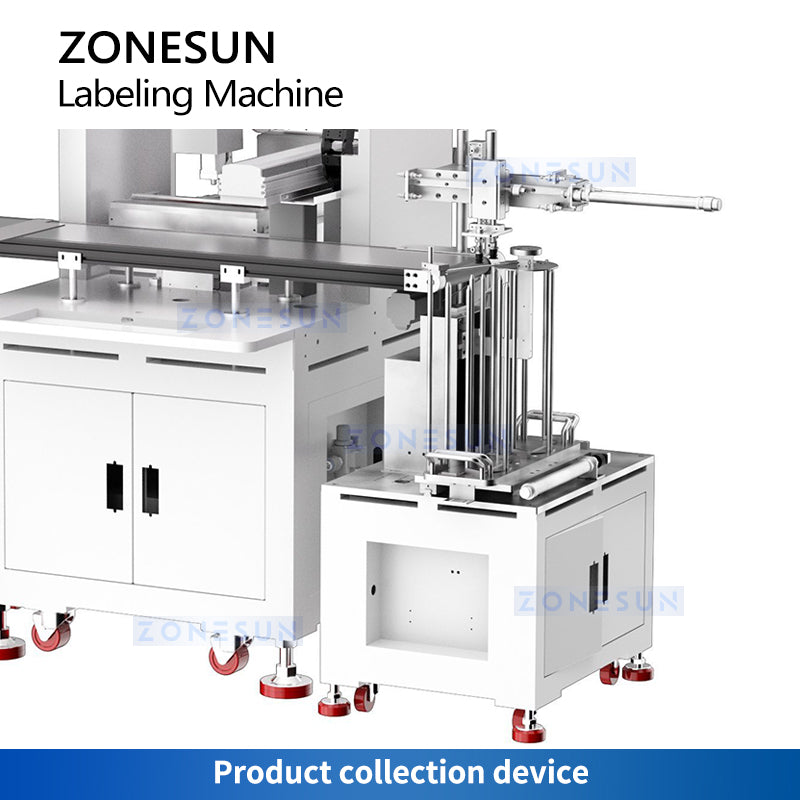

Collection Device
Labeled products are collected automatically after passing through the labeling station.
