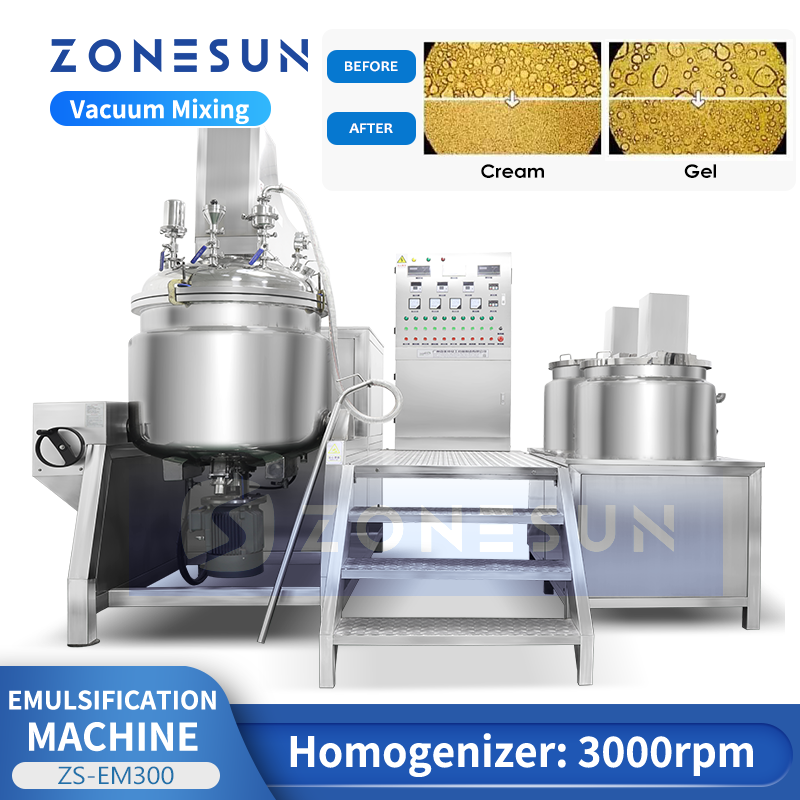

DESCRIPTION
This is a set of machines for emulsification. It includes an emulsifying tank, a water tank and an oil tank. It adopts vacuum sealing technique. The emulsifying tank is equipped with a custom paddle and a homogenizer. The great shearing power makes the emulsion stable. It is a great solution in the cosmetic and food industry.
ZONESUN ZS-EM300 Emulsifying Machine – Technical Specifications
| Component | Volume | Mixing Power | Mixing Speed | Heating Power | Heating Limit |
|---|---|---|---|---|---|
| Emulsification Tank | 300L | 2.2kW | ≤63 r/min | 18kW | ≤140°C |
| Homogenizer | — | 7.5kW | ≤3000 r/min | — | — |
| Oil Tank | 100L | 750W | 1440 r/min | 9kW | ≤140°C |
| Water Tank | 240L | 750W | 1440 r/min | 9kW | ≤140°C |
Emulsification Process Benefits
The emulsifying system is designed to improve dispersion, refine particle size, support uniform batches, and reduce manual work and processing time.
Cosmetic and Food Applications
The emulsifying machine is used for ointments, cosmetics, creams, lotions, and food products shown in the application examples.

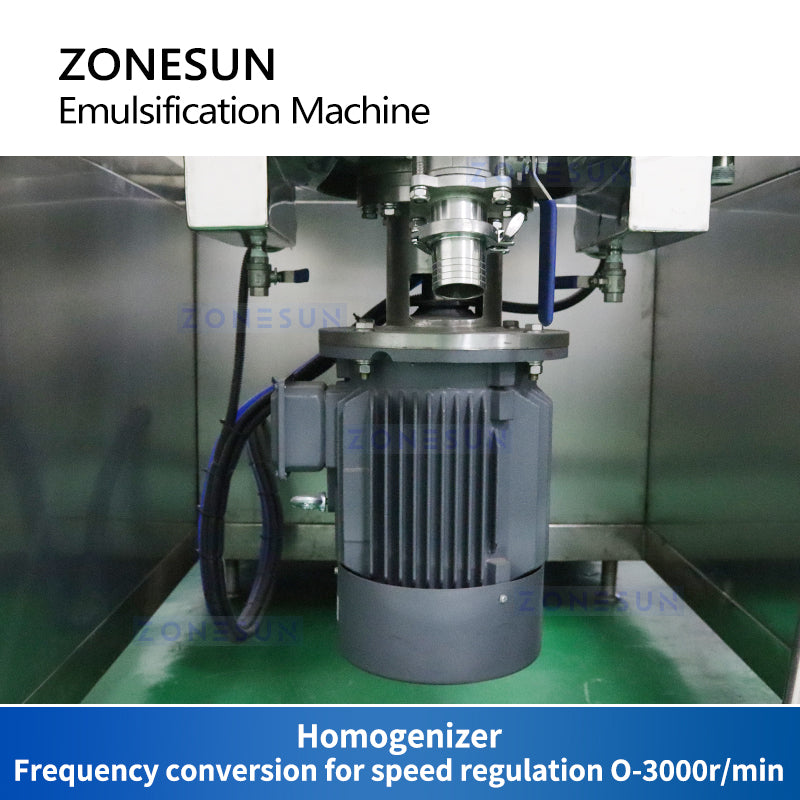

Mixing and Homogenizing
Variable-speed mixing is adjusted for the material, while the homogenizer provides high-speed shear mixing for emulsification.
Emulsifying Effect
High-speed emulsification disperses the oil and water phases into a more uniform mixture.

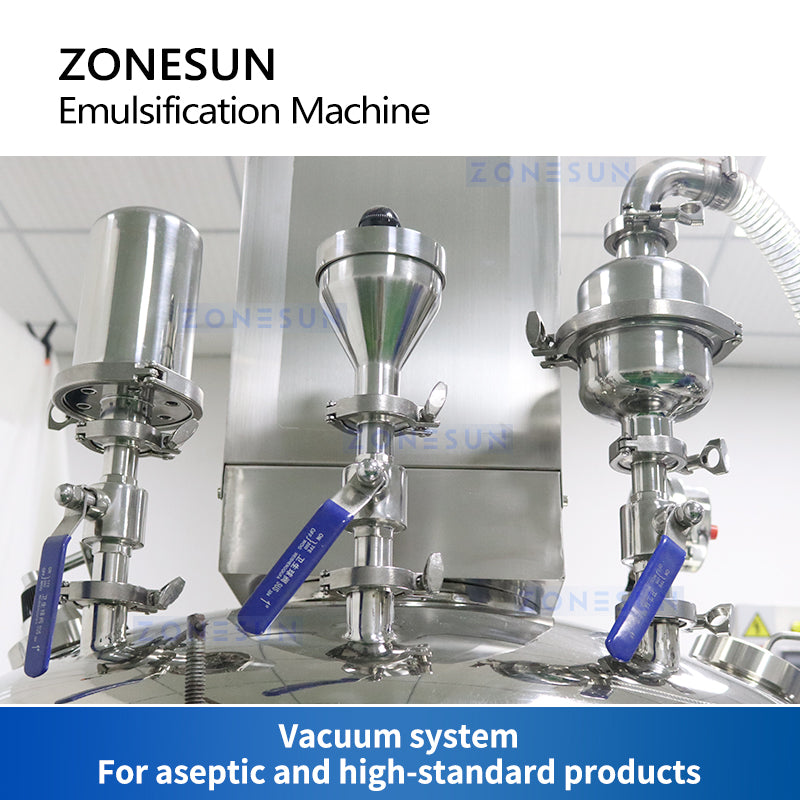

Vacuum System and Oil-Water Tanks
The vacuum system removes air during processing, while the oil and water tanks support material pretreatment before transfer to the main emulsifying tank.

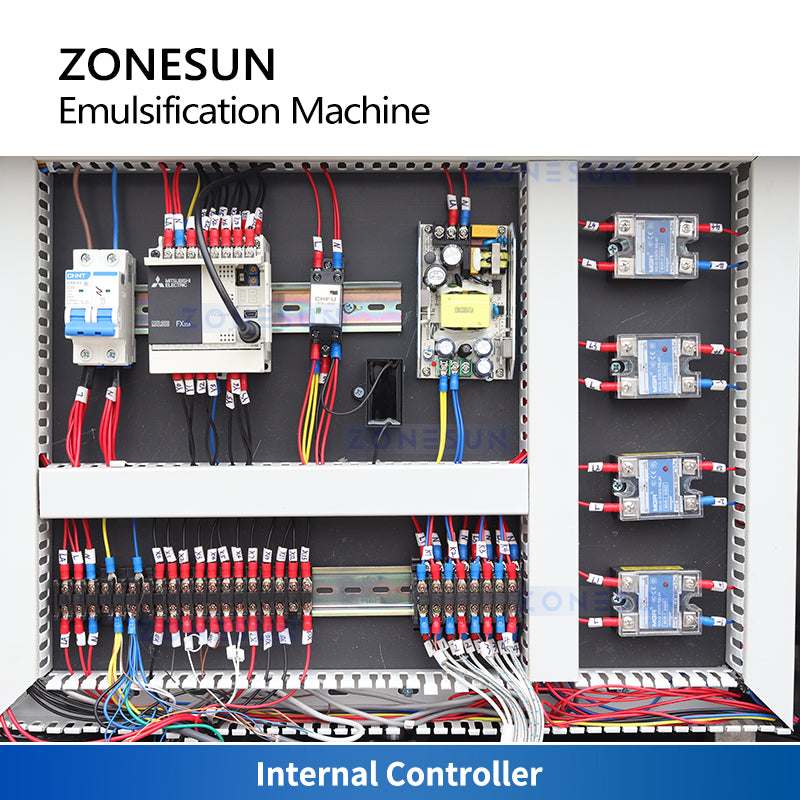

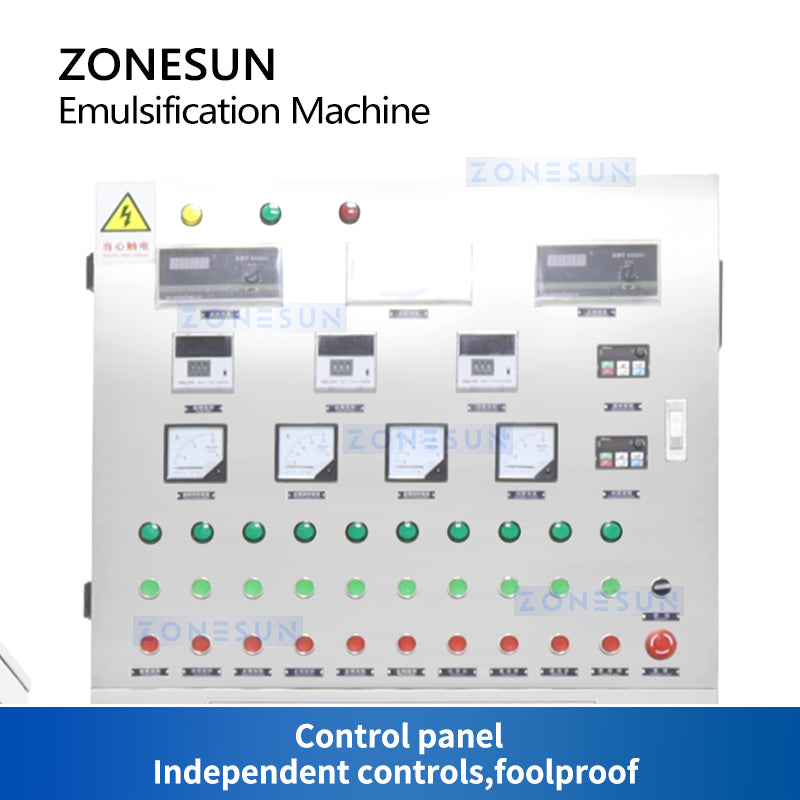

Control Console and Electrical Box
The console displays and controls operating functions, while the electrical box contains the control components.
