DESCRIPTION

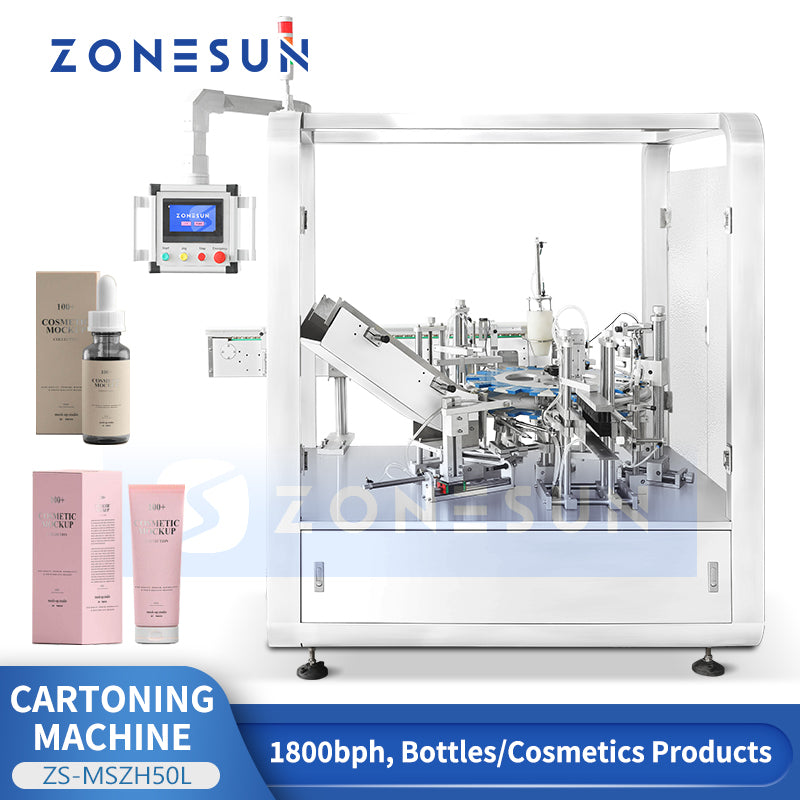

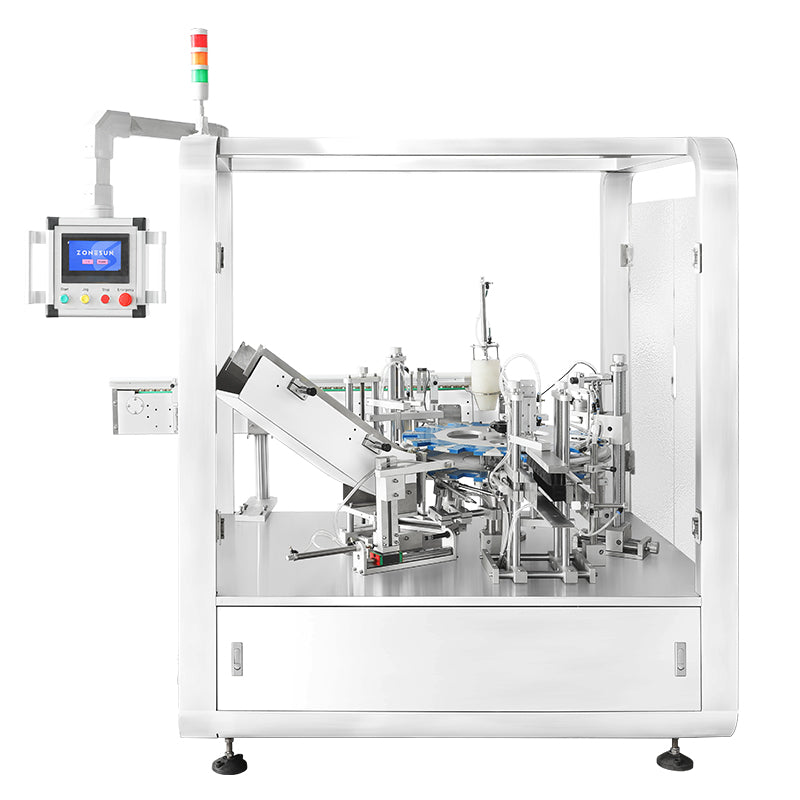

Introducing our new vertical cartoning machine with an intermittent motion system, designed to efficiently pack your products into paper boxes. With a star wheel rotary structure, the machine has four stations: the paper box feeding station, bottom folding station, product feeding station, and top folding station. This machine is perfect for businesses looking to streamline their packaging process and improve efficiency, especially for reverse tuck cartons, lock bottom cartons, and crash bottom cartons.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model: ZS-MSZH50L
- Packaging Speed: From 5 to 30 boxes/min
-
Box Dimensions:
- Height: 52–195mm
- Width: 35–185mm
- Thickness: 25–80mm
- Motor Power: 0.3–0.5kW
- Voltage: 220V or 110V
- Compressed Air Pressure: 0.7–0.8MPa
- Compressed Air Consumption: 200L/min (12m³/h)
- Equipment Dimensions: 1100 × 1550 × 1900mm
- Weight: 500kg

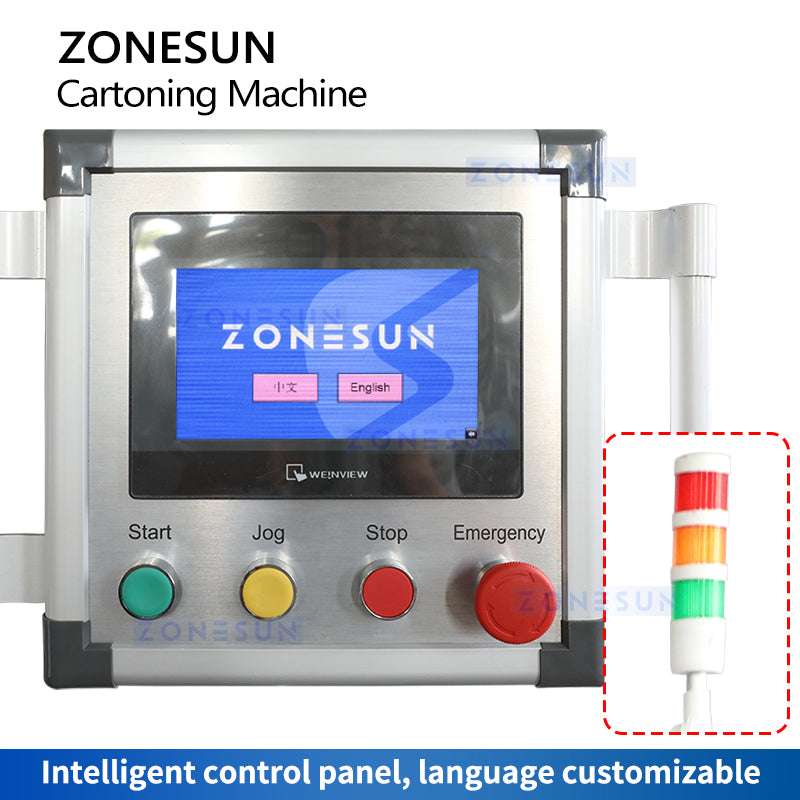

Touchscreen Control
The color touchscreen allows easy parameter adjustment and can store multiple product settings for convenient changeovers.

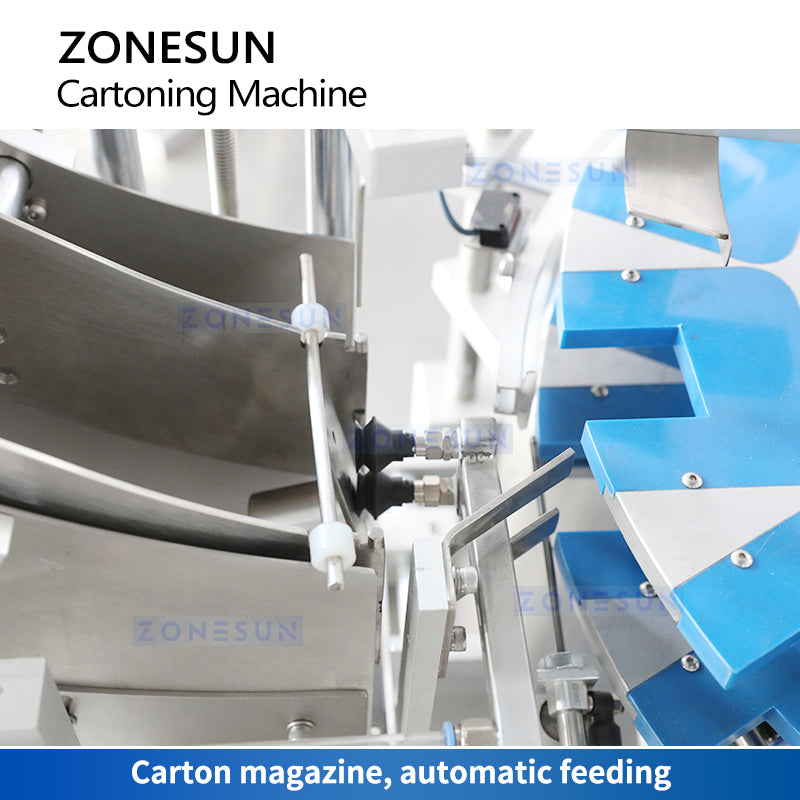

Automatic Carton Loading
The loading mechanism positions cartons accurately and transfers them into the star-wheel system.

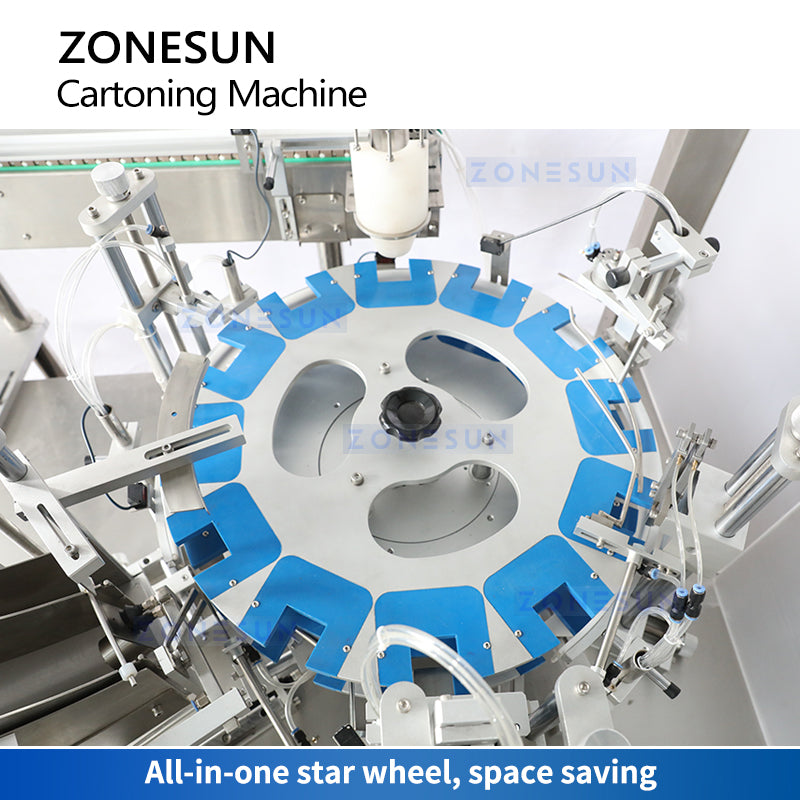

Customizable Star Wheel
The star wheel guides cartons through the machine and can be customized for compatible carton dimensions.
Carton Flap Tucking
The tucking mechanism folds the minor and major carton flaps before the closure is secured.
