Description
The ZONESUN ZS-TB100SW is a semi-automatic labeling machine engineered for round bottles, supporting both single-side and double-side labeling. It can be optionally equipped with a date coder to print production dates or batch numbers directly onto labels. With a wide labeling range and adjustable bottle compatibility (φ10–150mm diameter, ≤380mm height), this compact desktop unit is ideal for cosmetics, food, beverage, and pharmaceutical packaging. Its user-friendly design, precise ±1mm labeling accuracy, and stable performance make it a reliable choice for small to medium-scale production.
Important Notice
If you require a coding/printing function, please confirm and purchase it together with the machine. The coding system requires customized integration based on the machine structure, and it cannot be added by purchasing and installing a separate coder after the machine has been shipped. Please confirm all required functions and configurations before placing your order to ensure the machine meets your production requirements.
Parameter Specification
-
Machine Model：ZS-TB100SW
-
Main Feature Wider：Labeling
-
Power Supply：110V / 220V, 50–60Hz
-
Working Speed：15–35 pcs/min
-
Labeling Accuracy：±1mm
-
Air Pressure：0.4–0.6MPa
-
Label Output Direction：Right
-
Labeling Object Diameter：φ10–150mm
-
Labeling Object Height：≤380mm
-
Suitable Label Size：≤200mm (Width)
-
Label Roll Outer Diameter：φ220mm
-
Label Roll Inner Diameter：φ75mm
-
Air Compressor Connector：OD 8mm
-
Machine Size Approx.：415 × 420 × 690mm
-
Packing Size Approx.：480 × 575 × 685mm
-
Net/Gross Weight Approx.：32kg / 42kg

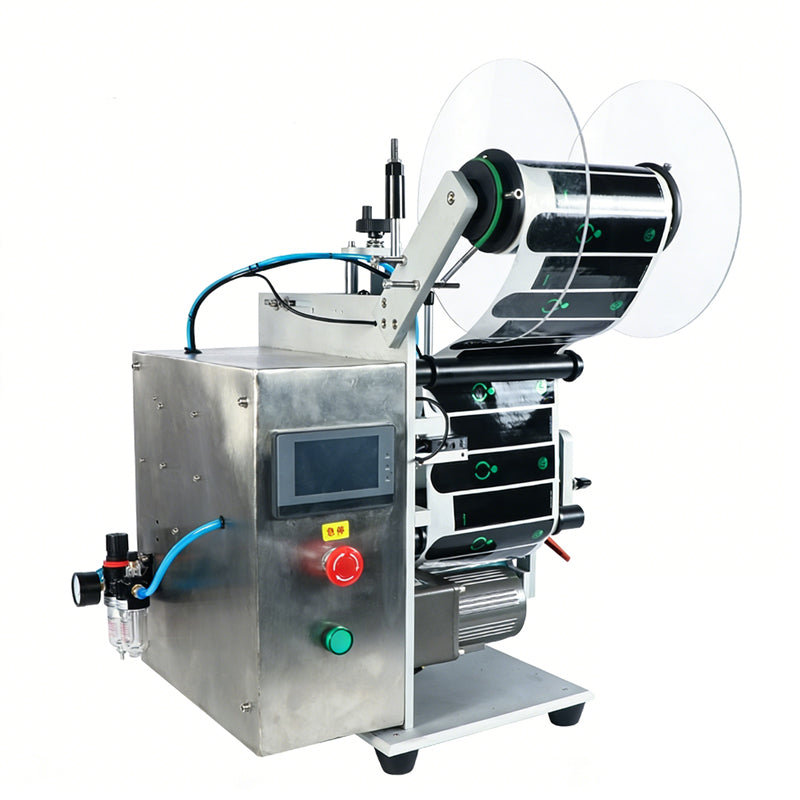

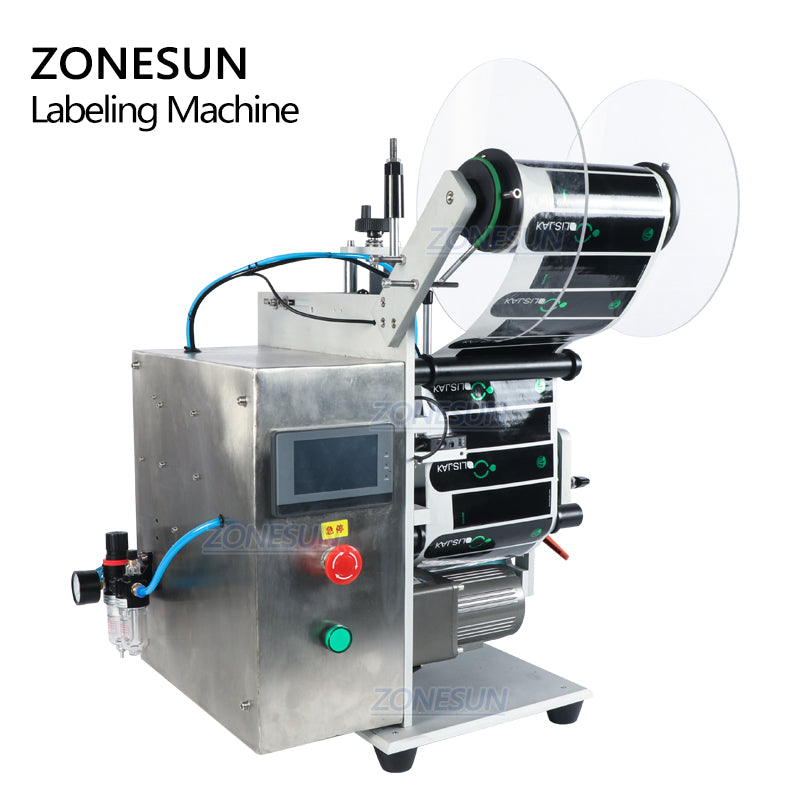

Semi-Automatic Round Bottle Labeling Machine
This desktop machine applies labels to round bottles and supports single-side or double-side labeling.
Wide Range of Applications
The machine is suitable for round bottles used in cosmetics, food, beverages, pharmaceuticals, and other industries.

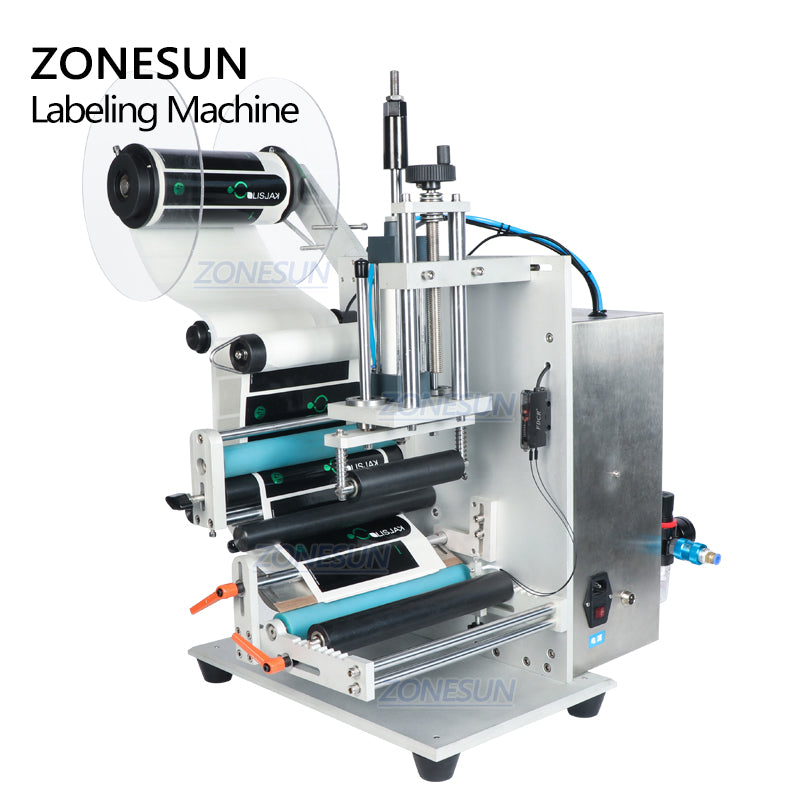

Adjustable Labeling Position
The labeling mechanism can be adjusted for round bottles of different diameters and heights.

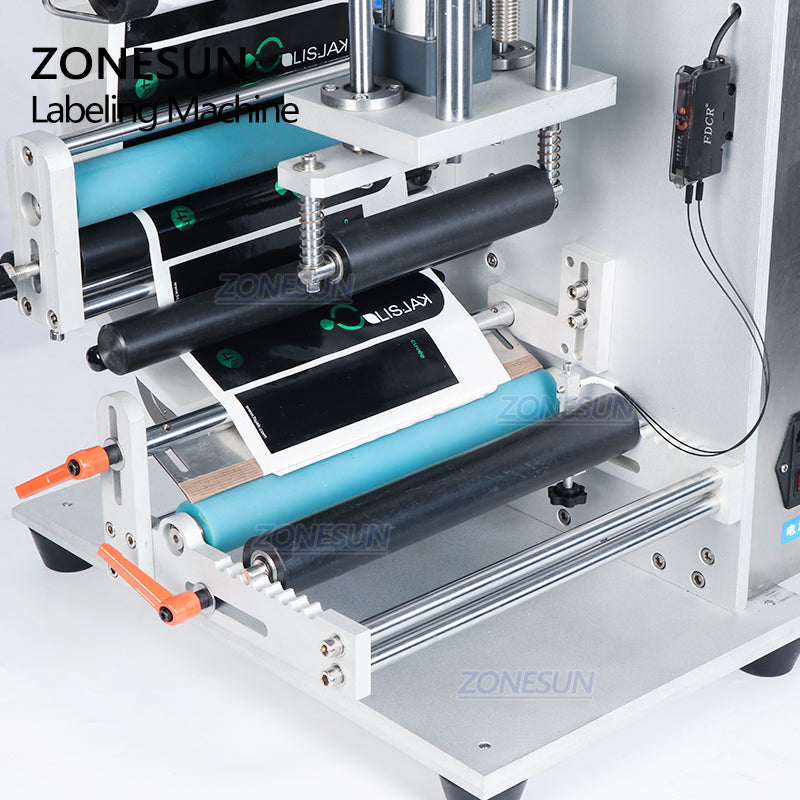

Accurate Label Application
The machine provides stable label feeding and accurate placement with labeling accuracy up to ±1 mm.
Optional Date Coding Function
An integrated date coder can be configured to print production dates or batch numbers on labels.
Convenient Desktop Operation
The compact structure and straightforward controls make the machine suitable for small and medium production runs.
