DESCRIPTION

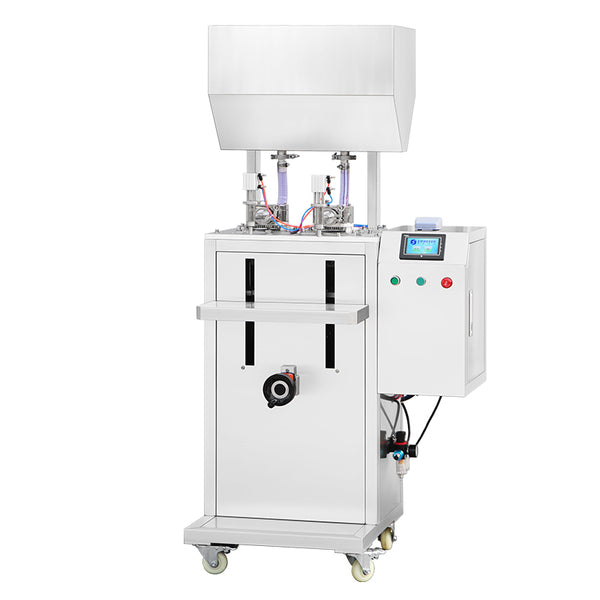

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
- Machine Model：ZS-GTRP2
- Voltage：110/220V, 50-60HZ, 2kW
- Filling Pump：Rotor pump*2
- Filling Drive：Servo motor*2, 3000rpm
- Recommend Filling Volume：5-5000ml
- Filling Accuracy：≤ ±1%
- Filling Nozzle Size：Φ8mm
- Hopper Size：600*360*400mm(LWH) / 60L
- Working Speed：About 30 bottles/min (1L)
- Machine Size：About 820*620*1700mm(LWH)
- Machine Weight：About 128kg
Servo-Driven Rotor Pump Filling
Two servo-driven rotor pumps support accurate filling of compatible viscous liquids. Pneumatic nozzles help control dispensing and reduce dripping.
PLC Control, Large Hopper, and Footswitch
The customizable PLC touchscreen controls the filling process. A 60 L hopper stores material, footswitch operation is available, and an external air compressor is required and sold separately.
