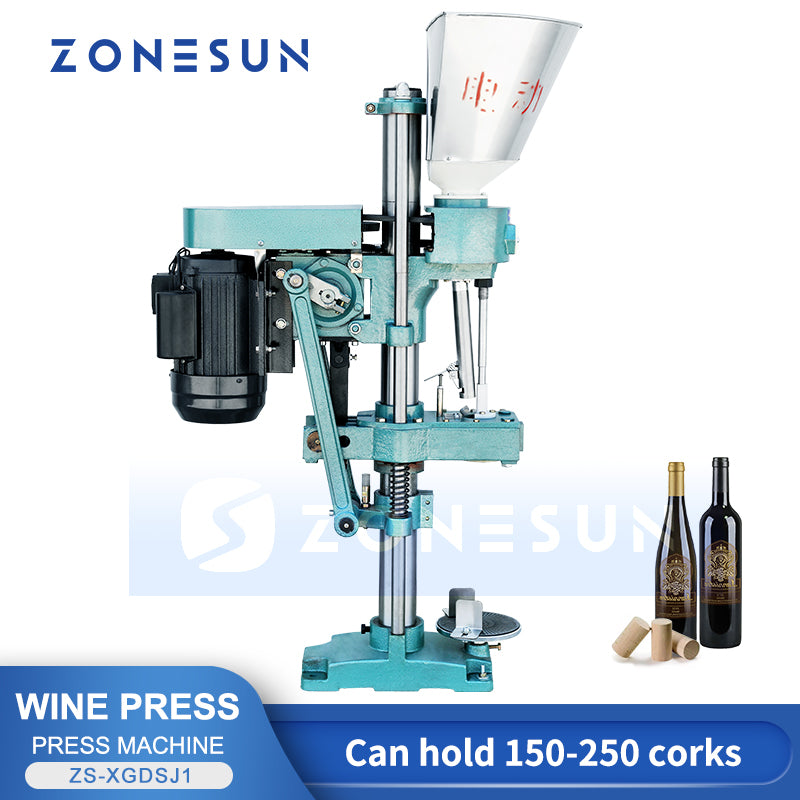

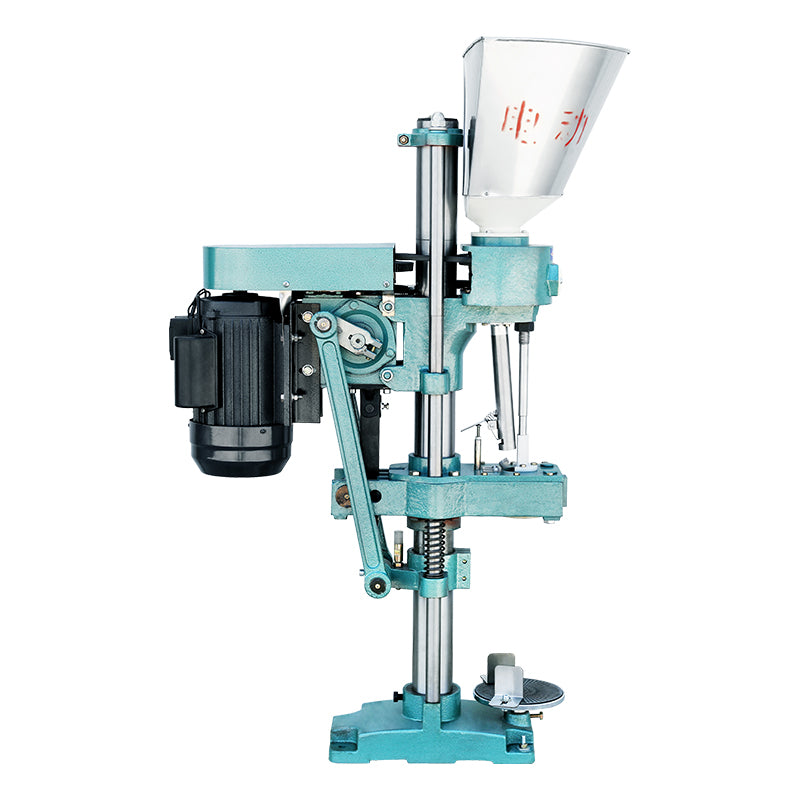

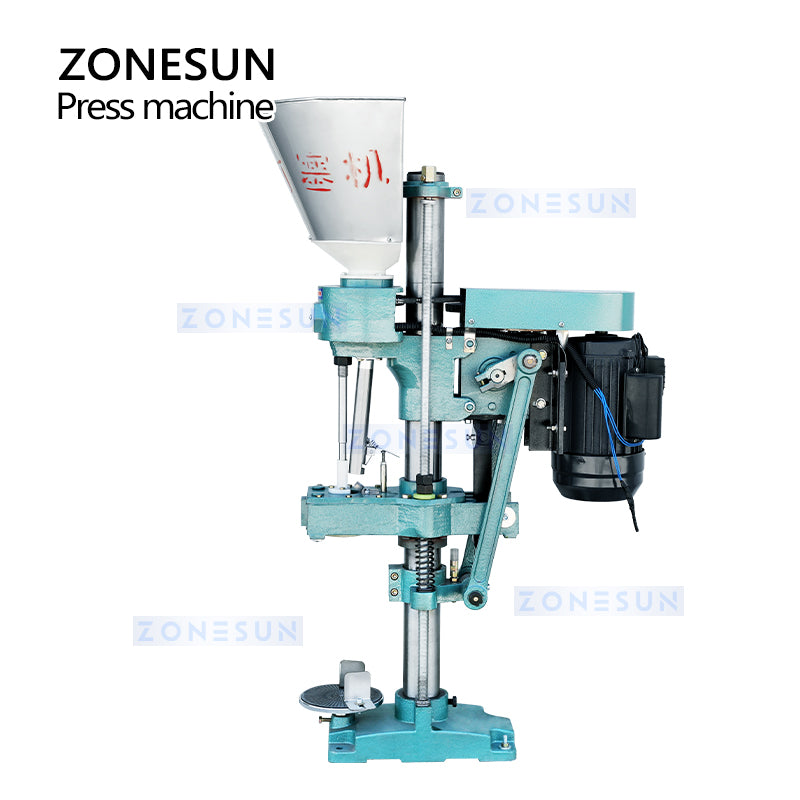

The ZONESUN ZS‑XGDSJ1 Semi‑Automatic Corking Machine is designed to automatically feed corks and press them securely into wine bottles. Built for precision and efficiency, it handles bottles with diameters of 50–110 mm and heights of 280–350 mm, accommodating corks sized 22–25 mm in diameter and 36–48 mm in height. With a production capacity of up to 1500 bottles per hour, this durable unit is ideal for wineries and beverage producers. It can be integrated into a complete automated bottling line for streamlined production.
ZONESUN ZS‑XGDSJ1 Corking Machine — Specifications
Parameter Details
Model ZS‑XGDSJ1
Applicable Bottle Size Diameter: 50 – 110 mm; Height: 280 – 350 mm
Cork Size Diameter: 22 – 25 mm; Height: 36 – 48 mm
Production Efficiency 1200 – 1500 bottles/hour
Motor Power 0.75 kW
Voltage 110 V / 220 V / 380 V
Motor Speed 1450 rpm
Frequency 50 Hz
Machine Weight 130 kg
Dimensions 650 × 250 × 1150 mm

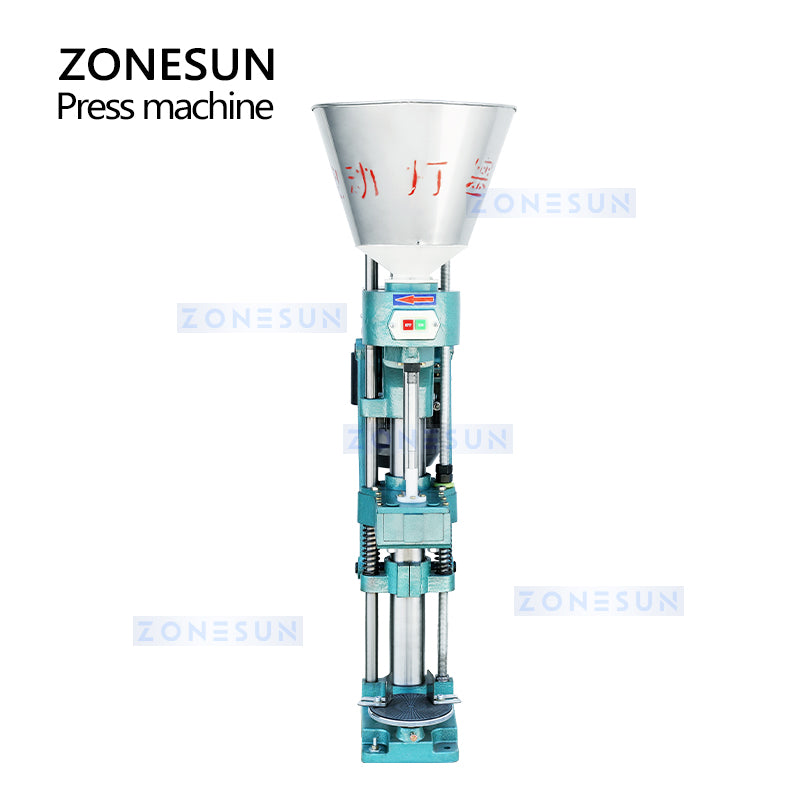

Large Cork Hopper
The large hopper holds approximately 150–250 corks for continuous feeding.

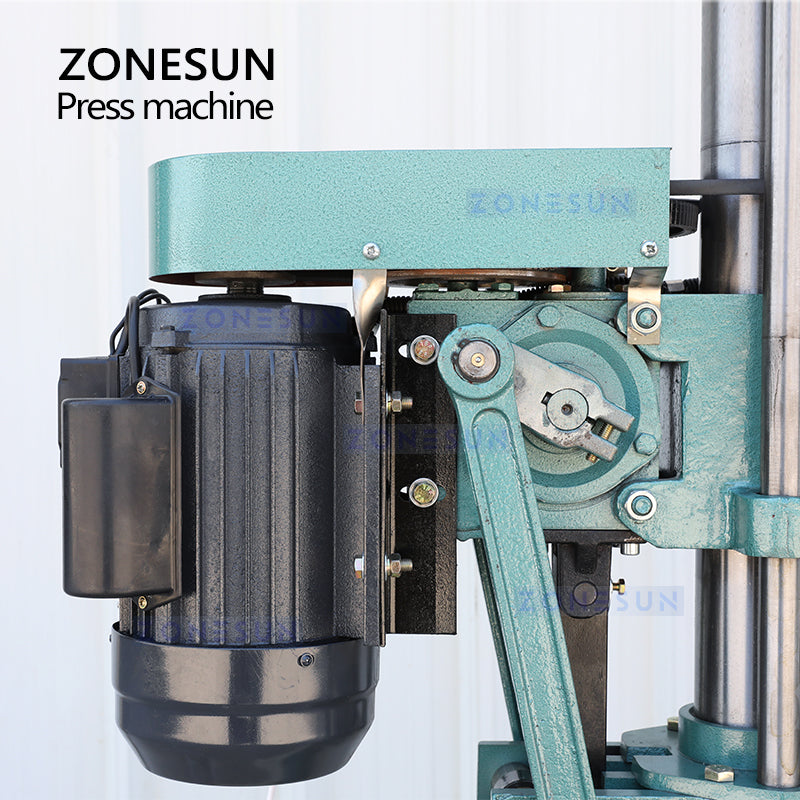

High-Power Motor
The high-power motor provides the force required to press corks into bottles.

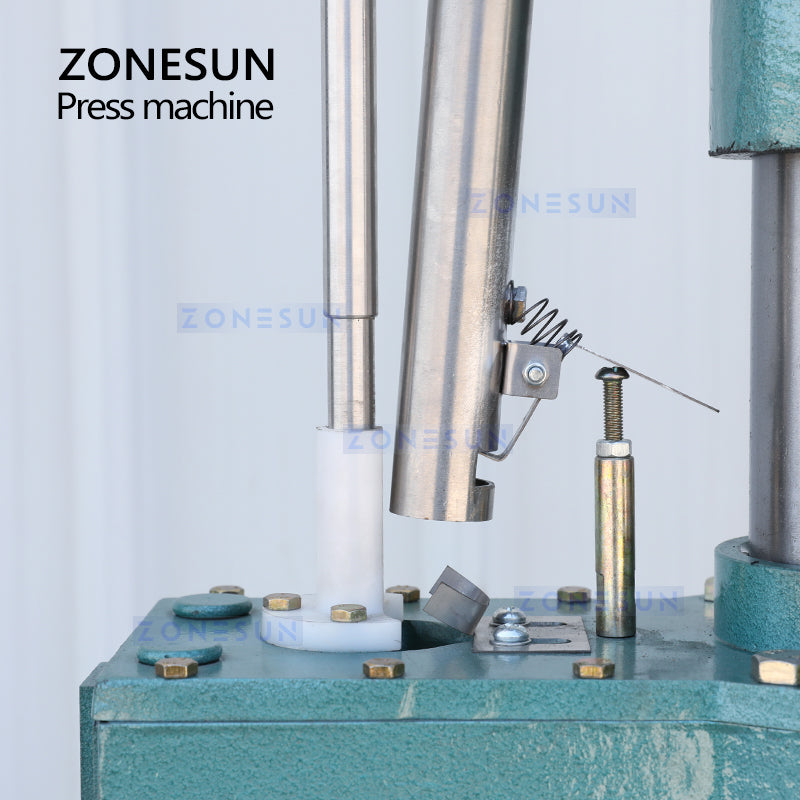

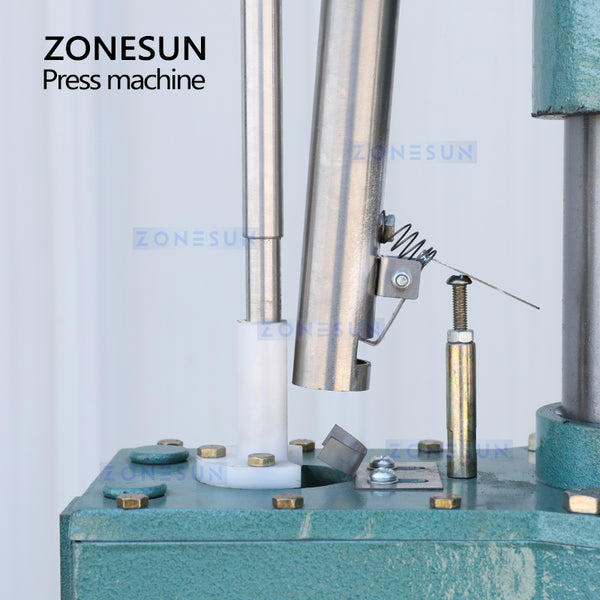

Stamping Bar
The high-strength stamping bar presses the cork into the bottle opening.

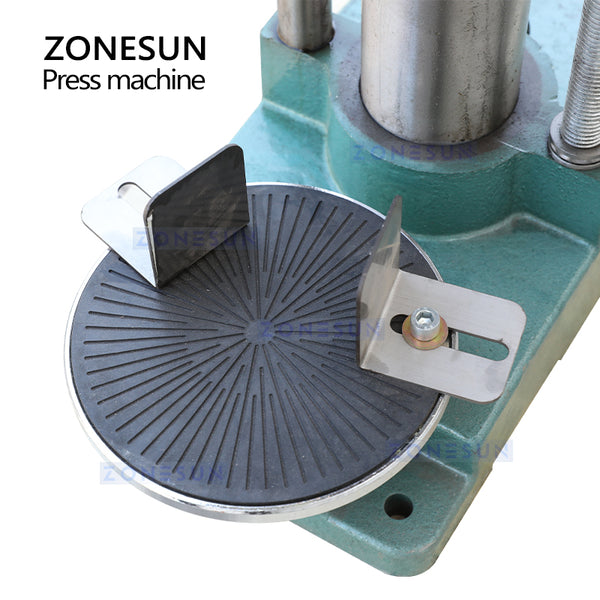

Positioning Chuck
The positioning chuck and weighted base hold the bottle securely during cork pressing.
