This automated production line includes bottle unscrambling, piston filling, capping, round bottle labeling, and sorting functions. Designed with a U-shaped conveyor, it maximizes space efficiency while reducing labor costs. Ideal for cosmetics, pharmaceuticals, and daily chemical industries, the system supports customization to meet specific production needs.
tem Details

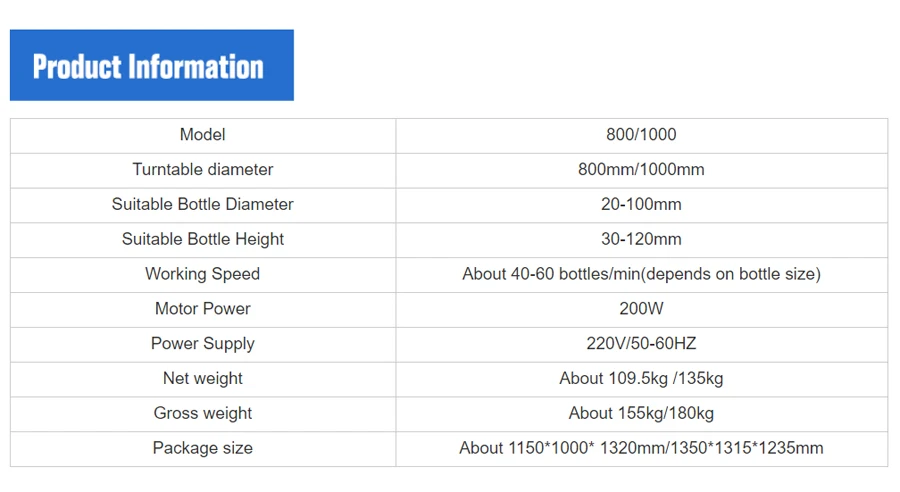

Model 800 / 1000
Turntable Diameter 800 mm / 1000 mm
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed About 40–60 bottles/min (depends on bottle size)
Motor Power 200W
Power Supply 220V / 50–60Hz
Net Weight About 109.5 kg / 135 kg
Gross Weight About 155 kg / 180 kg
Package Size About 1150 × 1000 × 1320 mm / 1350 × 1315 × 1235 mm
| Item | ZS-YT2T-2Y | ZS-YT4T-4Y | ZS-YT6T-6Y | ZS-YT8T-8Y |
|---|---|---|---|---|
| Voltage | 110/220V, 50–60Hz, 300W | 110/220V, 50–60Hz, 300W | 110/220V, 50–60Hz, 300W | 110/220V, 50–60Hz, 300W |
| Filling Range | 5–5000 ml × 2 | 5–5000 ml × 4 | 5–5000 ml × 6 | 5–5000 ml × 8 |
| Working Speed | 10–30 bottles/min | 20–40 bottles/min | 30–40 bottles/min | 35–45 bottles/min |
| Filling Accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% | ≤ ±1% |
| Size of Air Compressor Connector | OD 10 mm | OD 10 mm | OD 10 mm | OD 10 mm |
| Conveyor Length | 2050 mm (standard) | 2050 mm (standard) | 2050 mm (standard) | 2050 mm (standard) |
| Conveyor Material | Plastic (standard) / Stainless Steel (custom version) | Same | Same | Same |
| Machine Weight | 220 kg | 300 kg | 360 kg | 500 kg |
| Package Size | 2100 × 860 × 1460 mm | 2100 × 860 × 1460 mm | 2100 × 860 × 1460 mm | 2100 × 860 × 1460 mm |

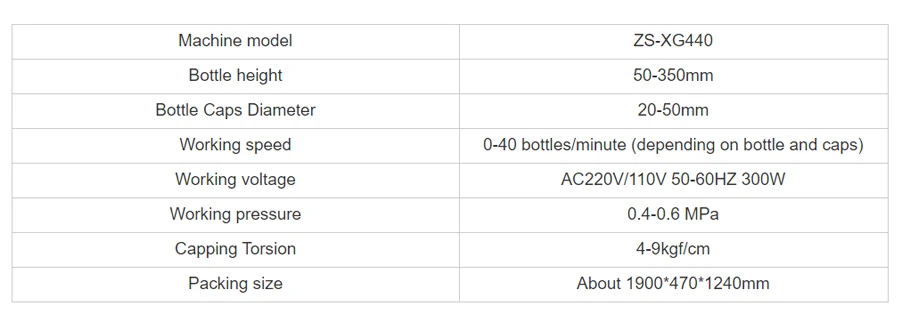

Item Details
Machine Model ZS-XG440
Bottle Height 50–350 mm
Bottle Caps Diameter 20–50 mm
Working Speed 0–40 bottles/min (depending on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz, 300W
Working Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Packing Size About 1900 × 470 × 1240 mm

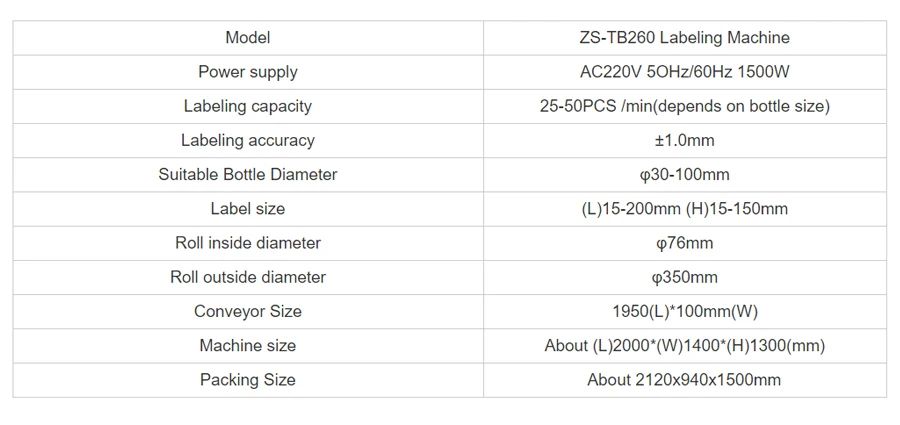

Item Details
Machine Model ZS-TB260
Power Supply AC 220V, 50Hz
Labeling Capacity 25–50 pcs/min (depends on bottle)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size (L)15–200 mm × (W)15–200 mm
Roll Inside Diameter φ76 mm
Roll Outside Diameter φ350 mm
Conveyor Size 1950 mm (L)
Machine Size About 2000 mm (L) × 1000 mm (W) × 1300 mm (H)
Packing Size About 2120 mm × 1050 mm × 1350 mm

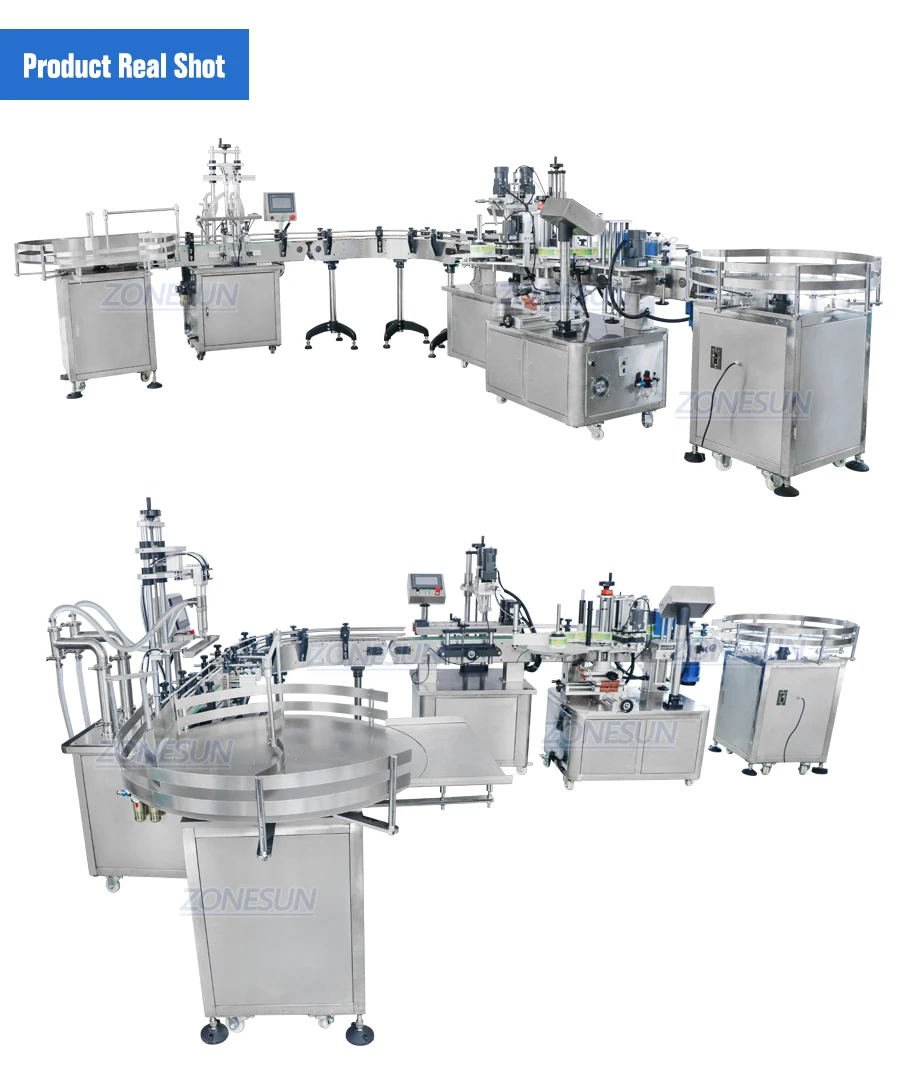

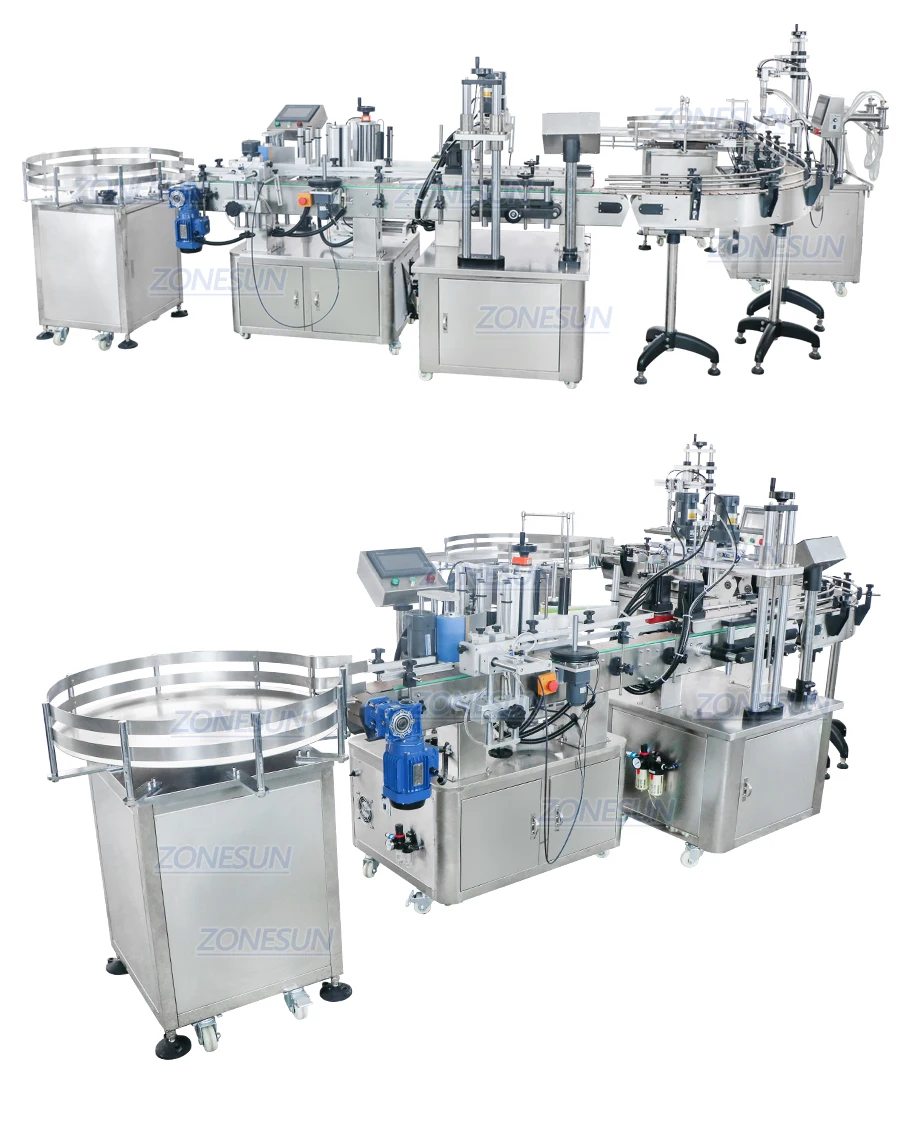

Full Automatic Production Line
The line supports automated bottle handling, filling, capping, labeling, and sorting. It is suitable for round bottles with different caps and supports single- or double-sided labeling.
Suitable Applications
Designed for bottled products in cosmetics, pharmaceuticals, beverages, and daily chemical production.

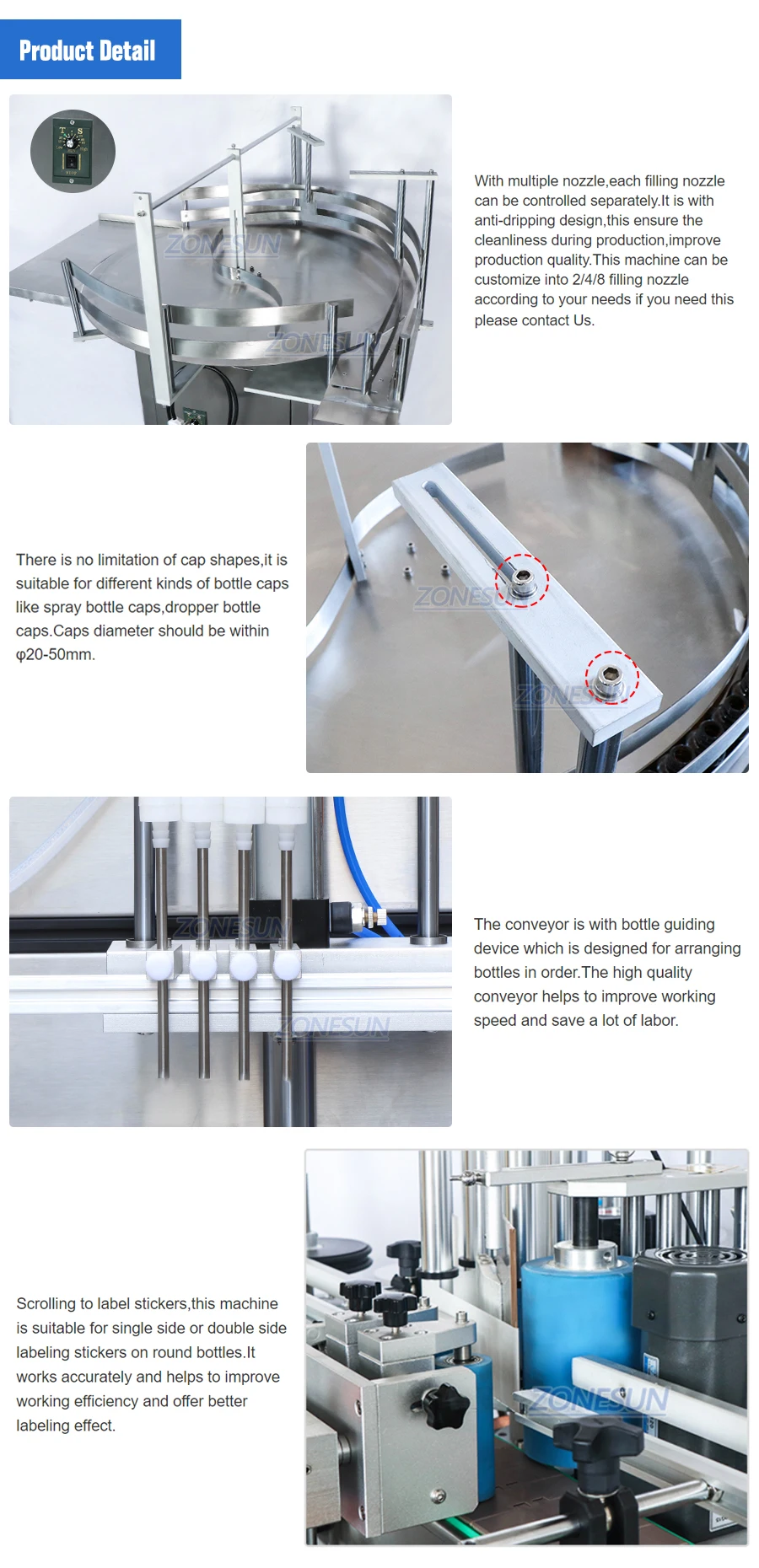

Customizable Filling Nozzles
Each filling nozzle can be controlled separately and uses an anti-drip design. The number of filling nozzles can be customized according to production needs.

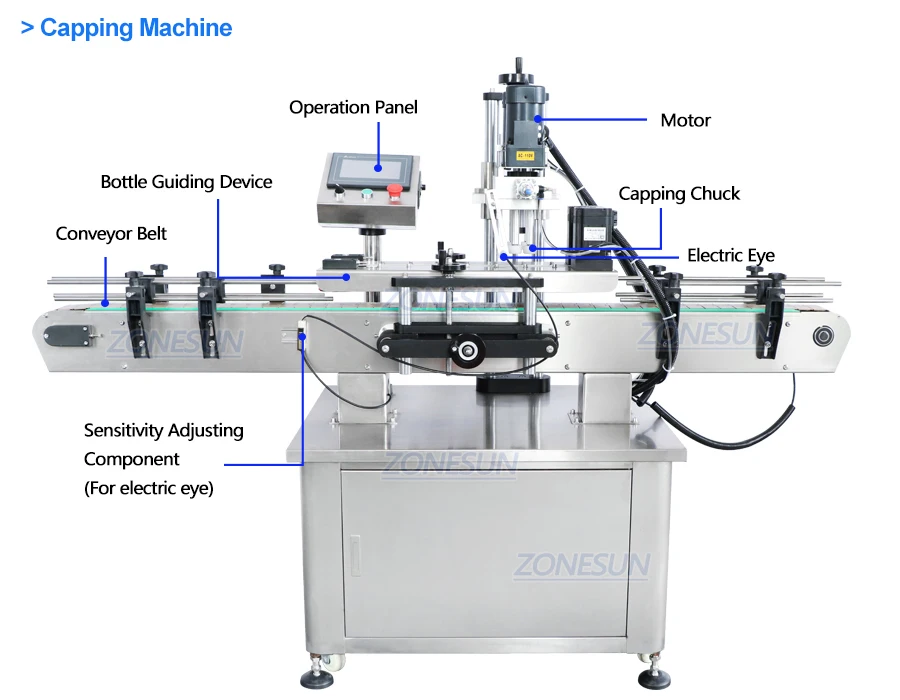

Versatile Capping System
The capping system is suitable for different cap shapes, including dropper bottle caps, spray bottle caps, and beverage bottle caps.
Bottle-Guiding Conveyor
The conveyor is equipped with a bottle-guiding device that arranges bottles in order and supports smooth transfer.

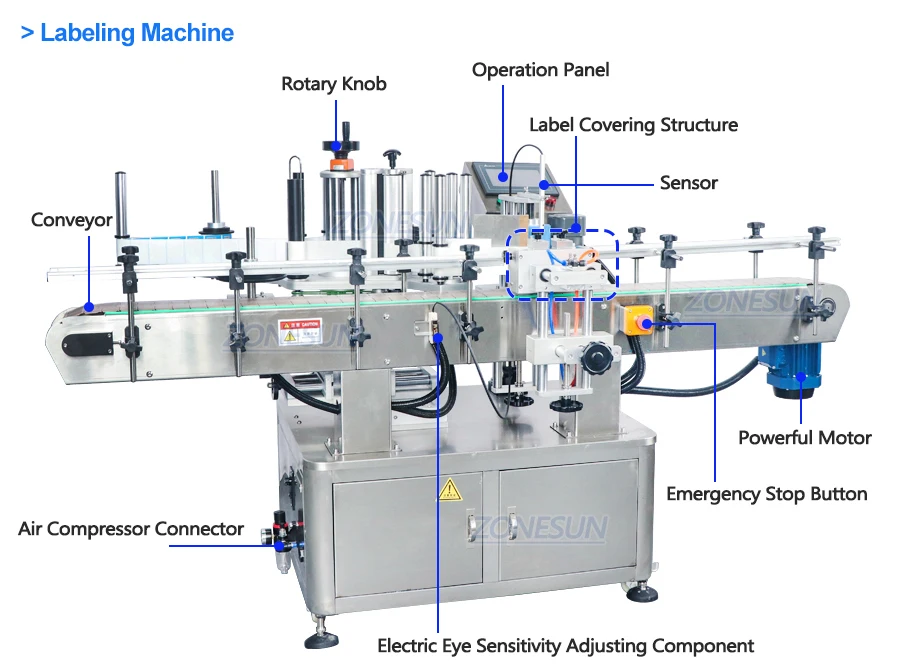

Three-Wheel Labeling Structure
Three labeling wheels rotate the bottle during labeling, supporting stable single- or double-sided label application.
