DESCRIPTION

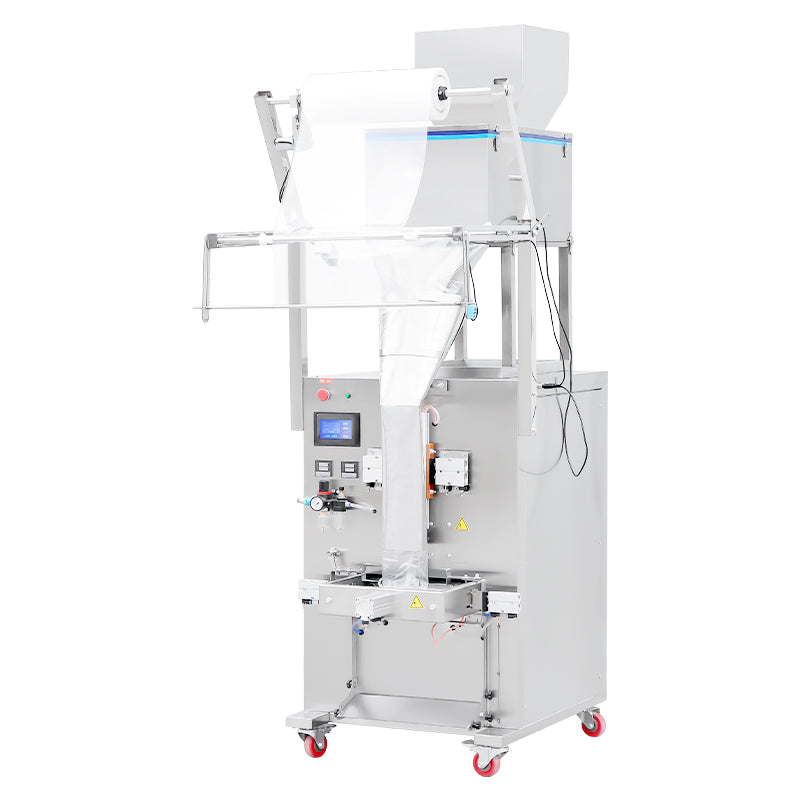

Introducing our innovative Back-Sealed Gusset Bag Packaging Machine, designed to streamline your packaging process. This versatile machine features a top-mounted vibratory weigh filler with a range of 50-1000g, offering precise measurements. The user-friendly interface allows for easy control via physical buttons. The machine is equipped with a customizable bag forming mechanism that accommodates a maximum film width of 420mm. The bag forming molds can be tailored to fit various bag sizes and are interchangeable for versatility. The back-sealing structure ensures a secure seal with adjustable temperature settings, while the end-sealing mechanism provides additional sealing options.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model: ZS-FSK1000
- Voltage: 220V/110V 50–60Hz
- Power: 1000W
- Package Speed: 5–15 bags/min
- Filling Range: 50–1000g (Customizable)
- Filling Error: ±1g
- Suitable Film Material: OPP / CPP / PE / PET
- Sealing Method: Gusset Bag (Customizable)
- Film Roll Width: ≤420mm (Customizable)
- Bagging Length: ≤280mm (Customizable)
- Machine Size: Approx. 1300 × 770 × 2150mm
-
Package Size:
- Filling Machine: Approx. 720 × 440 × 830mm
- Main Part: Approx. 760 × 1130 × 1130mm
-
Gross Weight:
- Filling Machine: Approx. 43kg
- Main Part: Approx. 122kg
Vibratory Granule Feeder
The vibratory feeder supplies granules consistently to the weighing section.
Packaging Film Feeding
The film-feeding system guides material into the bag-forming section.
Automatic Bag Forming
The forming mechanism shapes packaging film before filling.
Heat-Sealing Structure
The sealing unit closes filled pouches with controlled heat and pressure.
