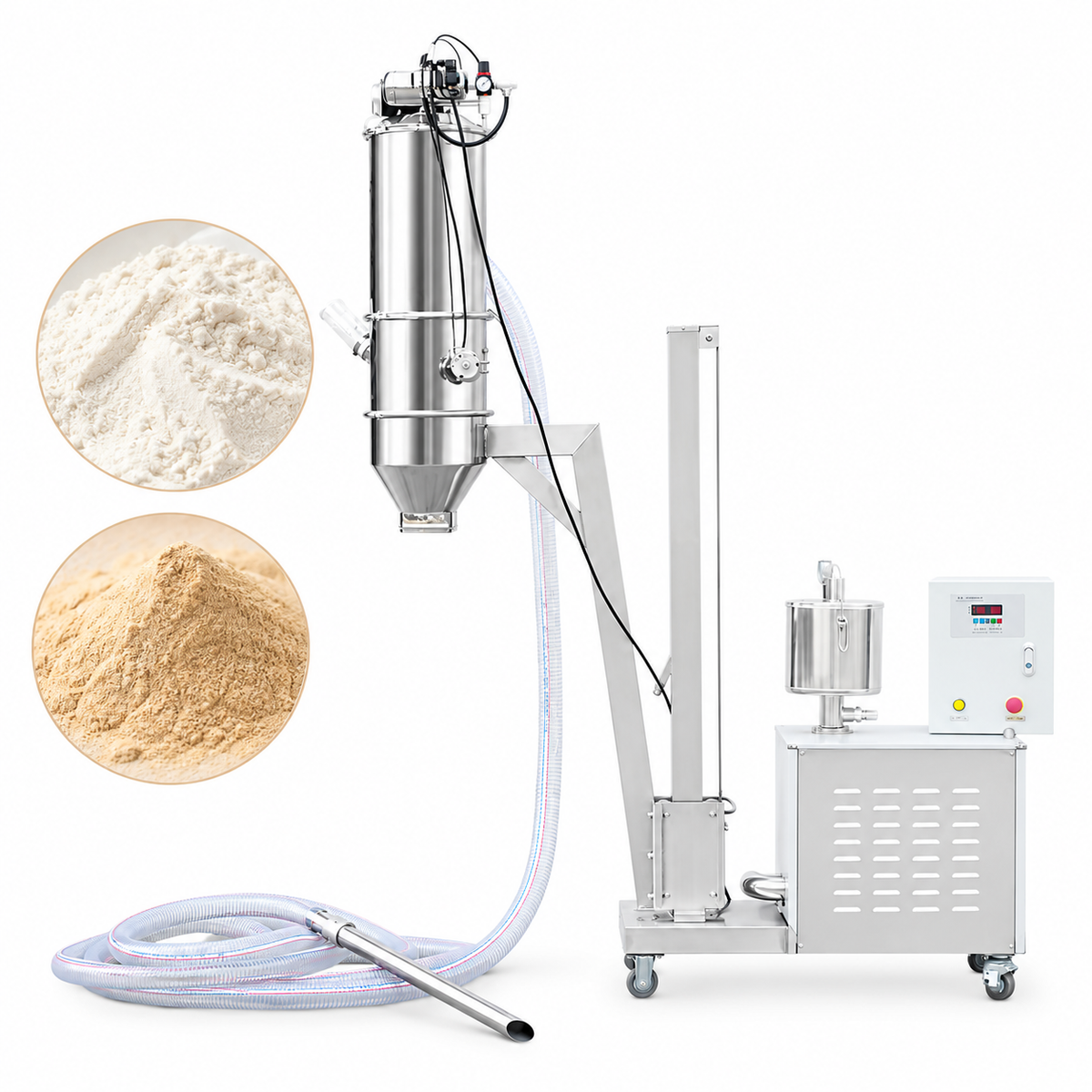

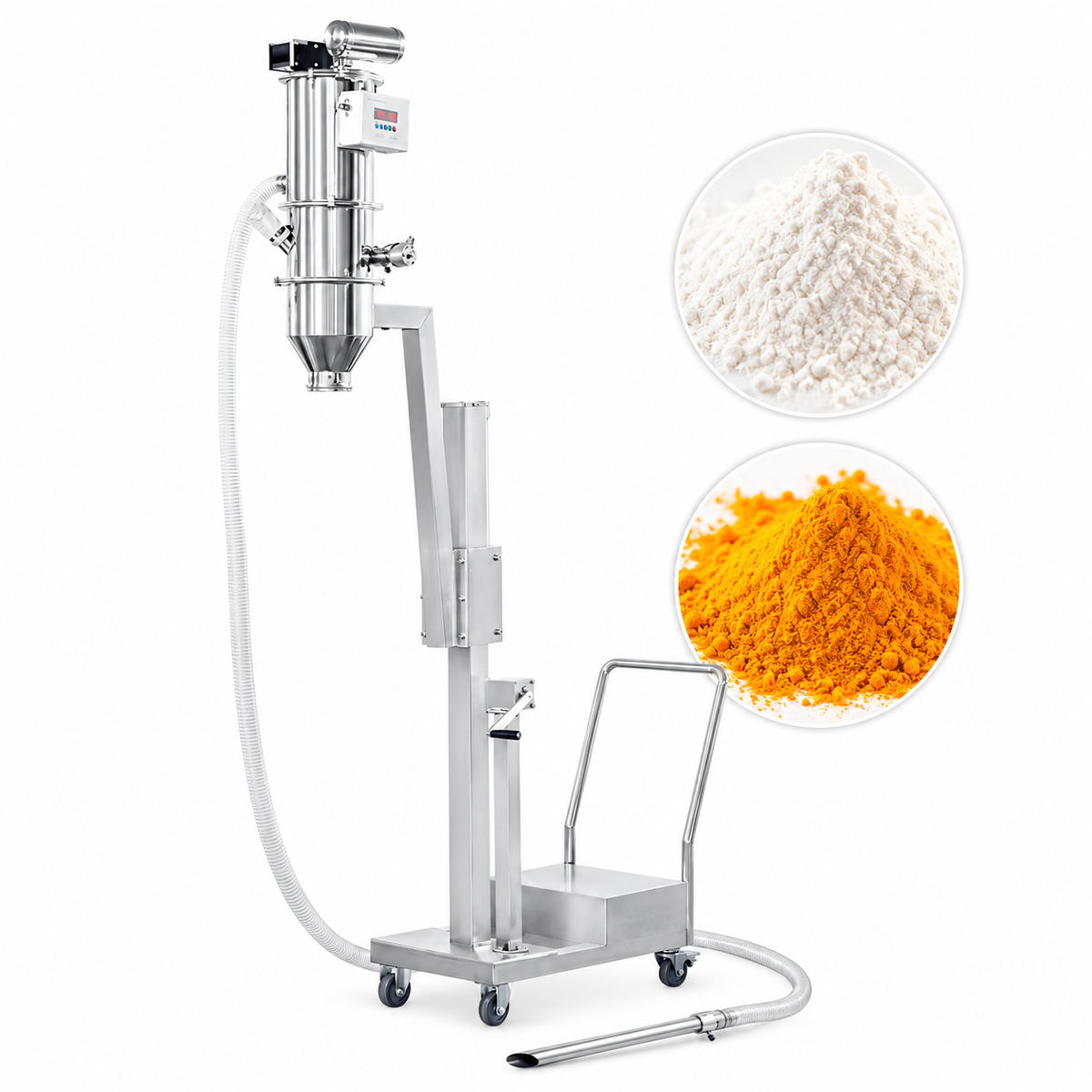

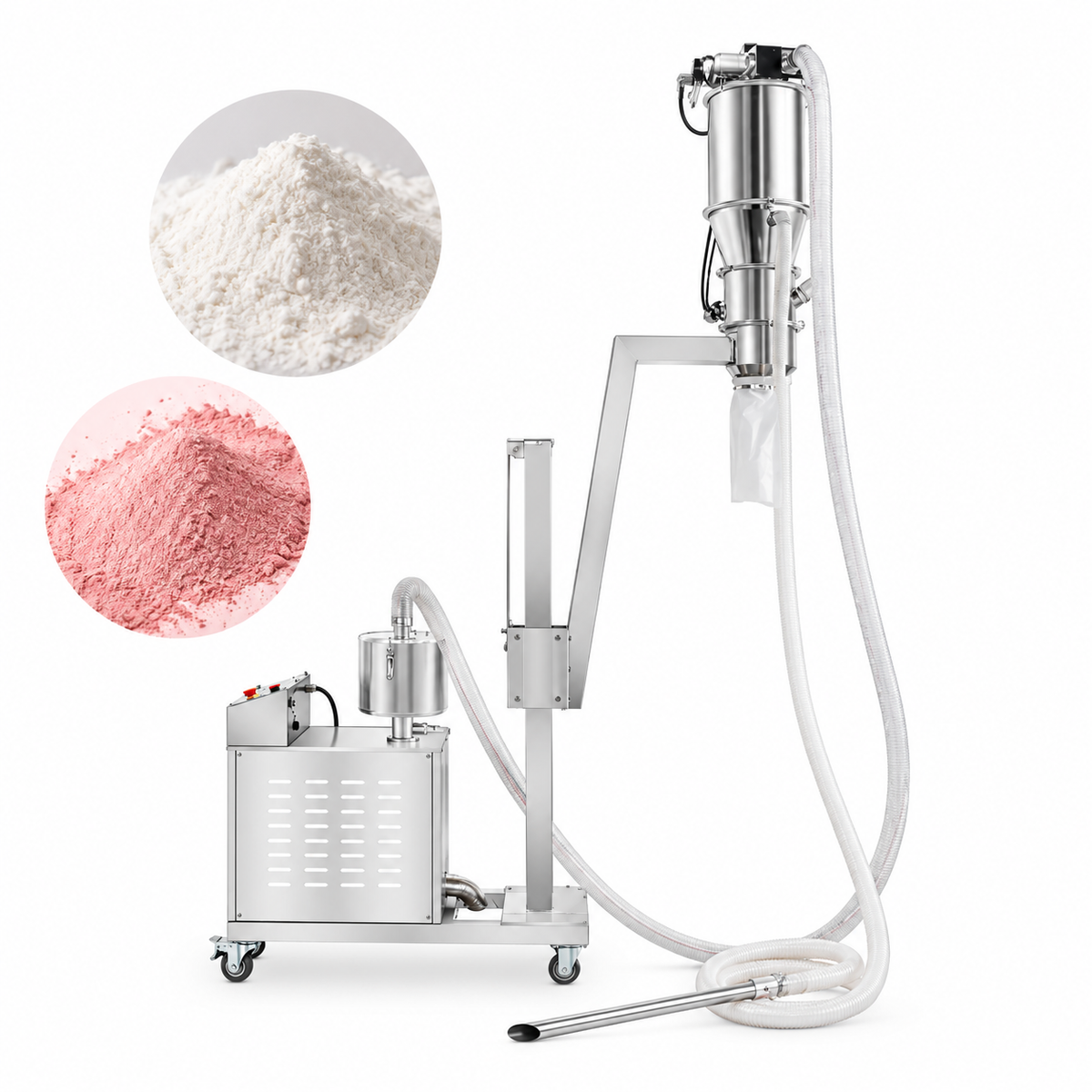

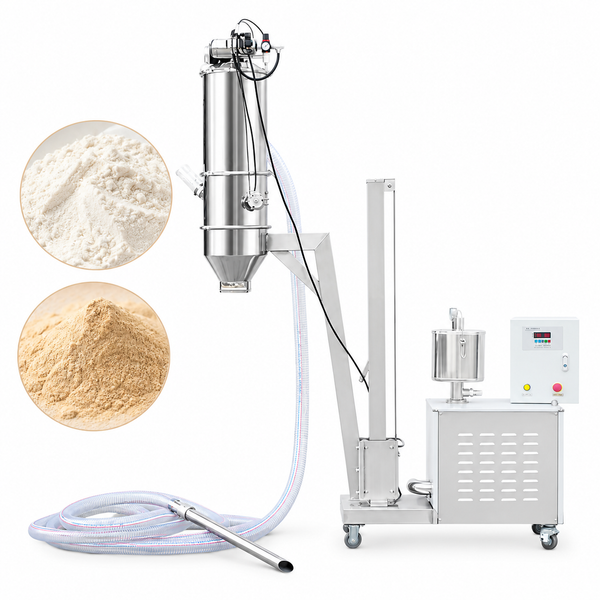

ZONESUN ZS-VFP1 Automatic Vacuum Powder Feeding Conveyor
The ZONESUN ZS-VFP1 vacuum powder feeding conveyor is designed to transfer compatible dry and fine powders in industrial production. Vacuum suction draws material through the conveying arrangement to the feeding unit, supporting automated powder handling and helping reduce exposed manual transfer.
The system includes a separate control box, filter cartridge, compressed-air back-blow feature, customizable suction nozzle and vacuum generator. Model and performance must be selected according to the powder properties, bulk density, conveying height, conveying distance and required output.
Important Ordering Information
This feeder requires application-specific configuration. Before ordering, provide the conveying height, distance, material bulk density and required capacity through the on-page chat. Confirm the final model, specifications, supply scope and quotation with ZONESUN. Reference specifications may vary with the selected configuration.
Specifications & Configuration
| Model Series | ZS-VFP1 |
|---|---|
| Listed Model Options | ZS-VFP1-A / ZS-VFP1-B / ZS-VFP1-C |
| Listed Voltage Options | 220 V / 380 V; confirm phase, frequency and complete configuration |
| Transfer Method | Vacuum powder conveying |
| Material Type | Compatible dry and fine powders; suitability subject to material assessment |
| Configuration Basis | Material properties, bulk density, conveying height, conveying distance and required output |
| Filter Cleaning Feature | Compressed-air back blow |
| Suction Nozzle | Customizable according to material-handling requirements |
| Final Capacity and Utilities | To be confirmed for the selected material, model and installation |
Applications
Designed for compatible chemical, dry and fine powders requiring transfer to downstream production equipment. Provide the material name, particle characteristics, flow behavior and bulk density so filtration, suction arrangement and conveying performance can be assessed. Connection to a filling machine or other receiver requires a separate interface and installation check.
Machine Details
Independent Control Box
The separate control box provides convenient access to feeder settings.
Compressed-Air Back Blow
The back-blow system helps clear residual powder from the filter.
Filter Cartridge
The filter helps separate powder from the conveying airflow.
Customizable Suction Nozzle
The suction nozzle can be adapted to different material-handling requirements.
Integrated Vacuum Feeder
The compact feeding unit supports automatic powder transfer to downstream equipment.
Vacuum Generator
The vacuum generator provides suction for continuous material conveying.
Key Features
- Vacuum transfer for application-specific powder handling
- Independent control box for convenient access to feeding settings
- Filter cartridge to separate powder from the conveying airflow
- Compressed-air back blow to help clear residual powder from the filter
- Customizable suction nozzle for different material-handling arrangements
- Compact feeding unit for integration with compatible downstream equipment
How the Vacuum Feeding Process Works
- Confirm the material, selected model, conveying route, utilities and receiving-equipment connection.
- Install the suction nozzle, conveying arrangement and receiver according to the supplied operating manual.
- Set the available feeding and filter-cleaning controls for the approved configuration.
- The vacuum generator creates suction to transfer powder into the feeder, while the filter separates powder from conveying airflow.
- The feeding unit supplies material to the connected receiving equipment according to the configured sequence.
- Check material transfer and filter condition during trials, then confirm output before routine production.
How to Choose the Right Vacuum Feeder
Provide the powder name, particle size, bulk density, flow characteristics, conveying height, horizontal distance, route layout and target output. Include receiving-equipment drawings or photos, inlet details, available electricity and compressed-air supply, and cleaning requirements. Confirm the model, filter, suction nozzle, controls, utility requirements and final quotation before purchase.
Frequently Asked Questions
What powders can the ZS-VFP1 convey?
It is designed for compatible dry and fine powders, including industrial chemical powder applications. Actual suitability depends on the material properties and the selected conveying and filtration configuration.
What information is required for a quotation?
At minimum, provide the conveying height, conveying distance, material bulk density and required capacity or output. Material details and receiving-equipment information help confirm the correct configuration.
What is the conveying capacity?
Capacity is application-dependent and must be confirmed for the selected model, powder and route. A single fixed throughput is not specified in the current written description.
What is the difference between the A, B and C options?
The product lists ZS-VFP1-A, ZS-VFP1-B and ZS-VFP1-C options, but their complete technical differences are not stated in the written description. Share your application so ZONESUN can confirm the correct model and specifications.
How does the filter-cleaning feature work?
The supplied description identifies compressed-air back blow to help clear residual powder from the filter. Confirm the required air supply, settings and maintenance procedure for the selected configuration.
Can it feed a powder filling machine?
The integrated feeder is described as supporting powder transfer to downstream equipment. Provide the filling-machine inlet, receiver position and required feed rate so the connection and controls can be assessed before integration.
Related Powder Handling Equipment
Compare an alternative screw-feeding method or downstream powder packaging equipment. Compatibility and supply scope must be confirmed for the project:
- ZONESUN ZS-PFSL1 Automatic Powder Auger Filling Sealing Machine
- ZONESUN ZS-SLJ3 Automatic Powder Auger Screw Feeder Conveyor
For model selection, material assessment or an accurate quotation before ordering, use the online chat window on this page to speak with ZONESUN.
