Description

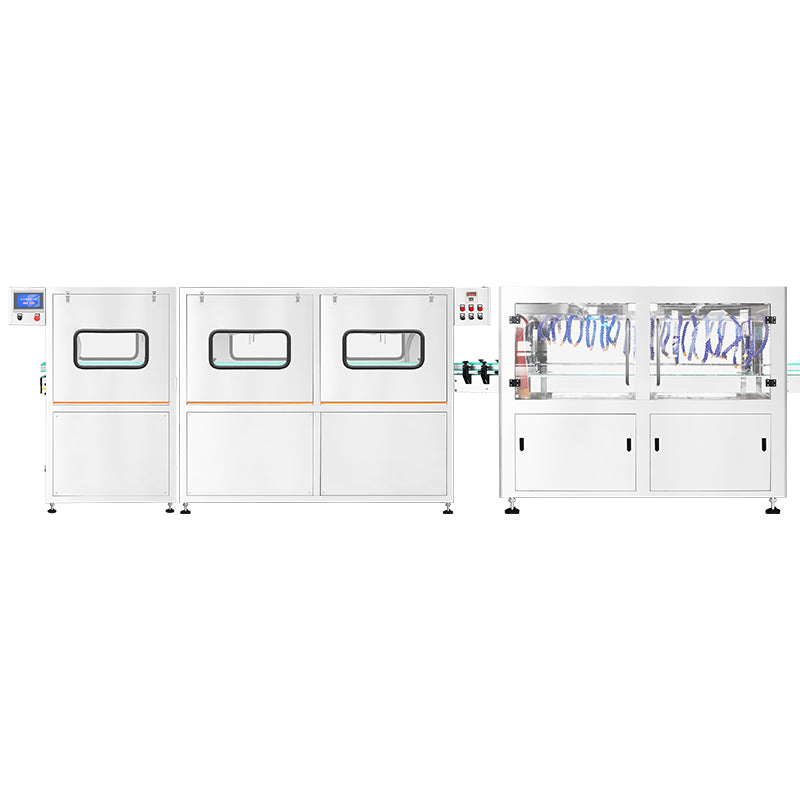

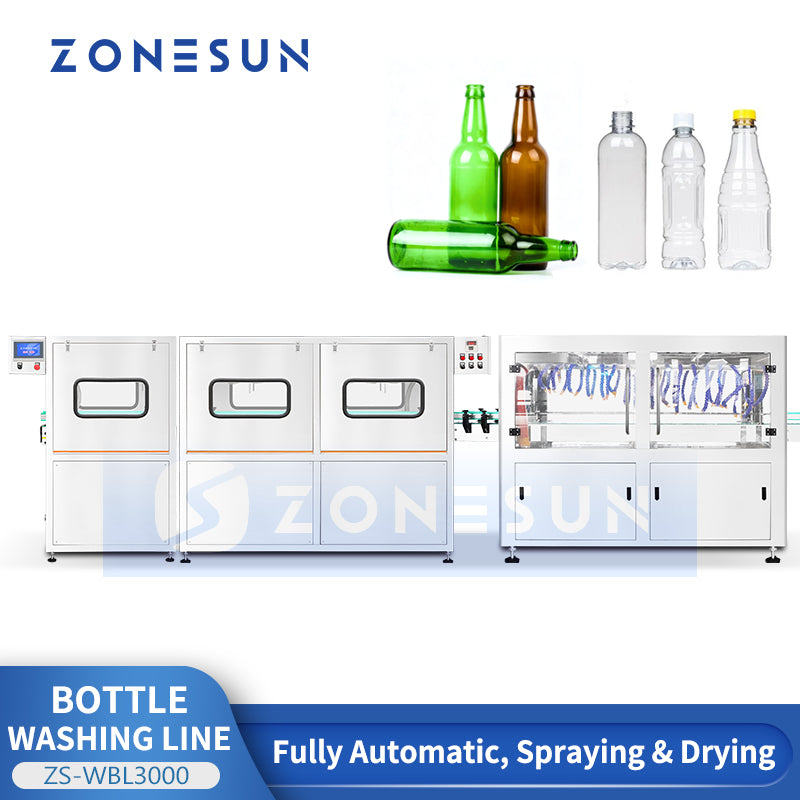

The ZONESUN ZS-WBL3000 is a fully automatic bottle washing line that integrates circulating hot-water & warm-water spraying and high-efficiency drying into one continuous system. Designed for filling and labeling production lines, it removes dust, residues, and moisture from bottles to ensure clean, dry surfaces ready for filling and labeling.
With precise temperature control, uniform multi-nozzle spraying, and powerful drying, the ZS-WBL3000 delivers stable, efficient, and consistent cleaning performance across a wide range of bottle types — glass, plastic, and more.
Parameter
- Model: ZS‑WB8
- Machine Size (L×W×H): 1000 × 700 × 1600 mm
- Voltage: AC 380 V (three‑phase)
- Power: 500 W
- Spray Type: Linear fan‑shaped / column spray
- Installation Method: Mounted above conveyor line

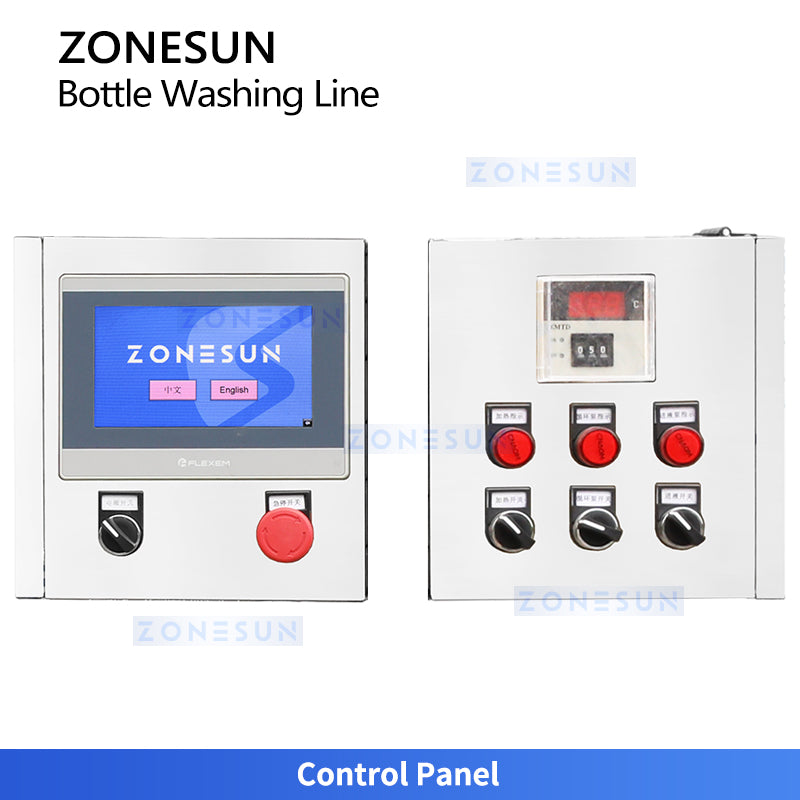

CONTROL PANEL
Controls the hot and warm water spray system, ensuring accurate temperature and spray timing for efficient bottle washing performance.

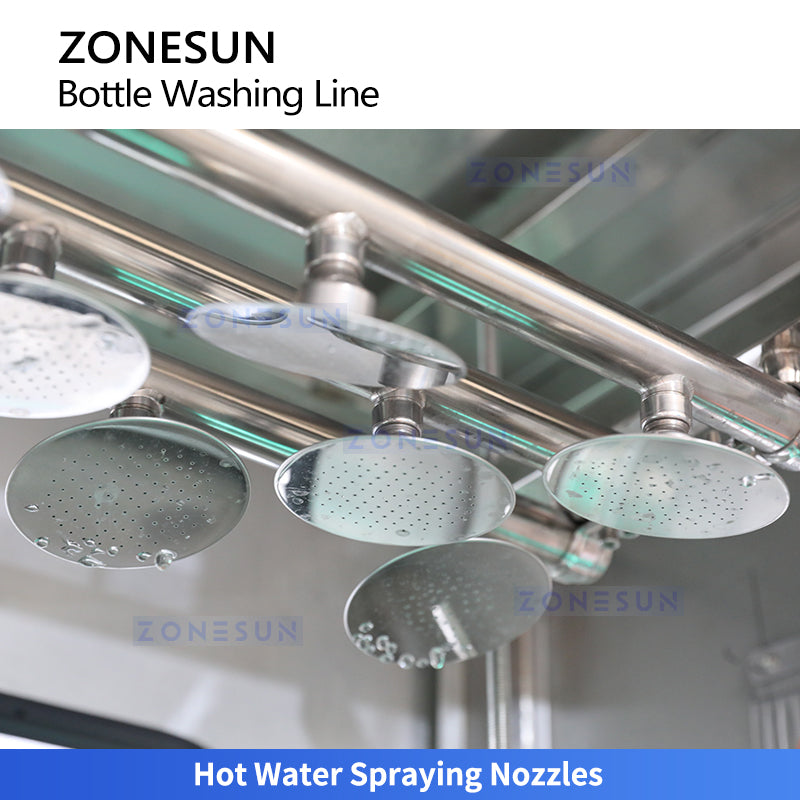

HOT WATER SPRAYING
Deliver high-temperature water evenly onto bottles, improving cleaning intensity, loosening residues, and enhancing overall washing efficiency.

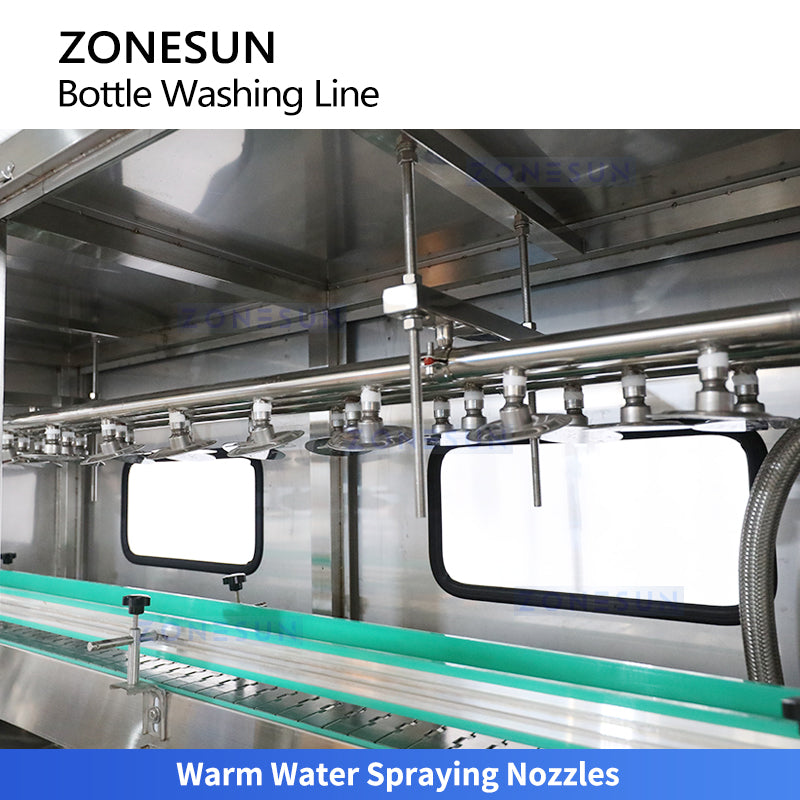

WARM WATER SPRAYING
Provide a gentle post-rinse after hot-water spraying, removing remaining residues, reducing bottle temperature, and preparing bottles for efficient drying.

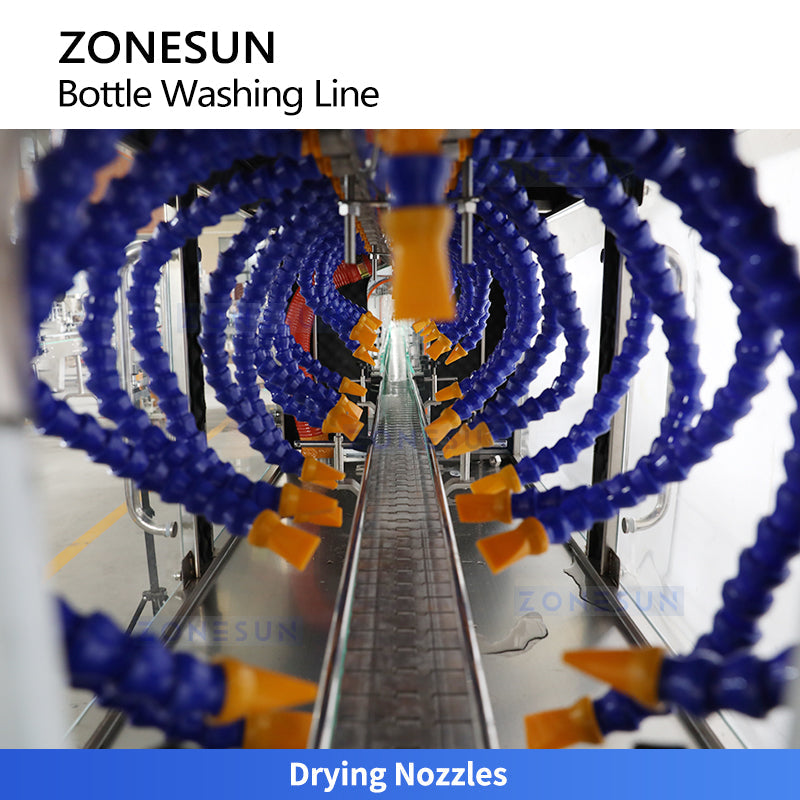

DRYING NOZZLES
Blows high-velocity air through multi-outlet spider-arm nozzles to remove moisture quickly, ensuring dry bottles and better label adhesion.

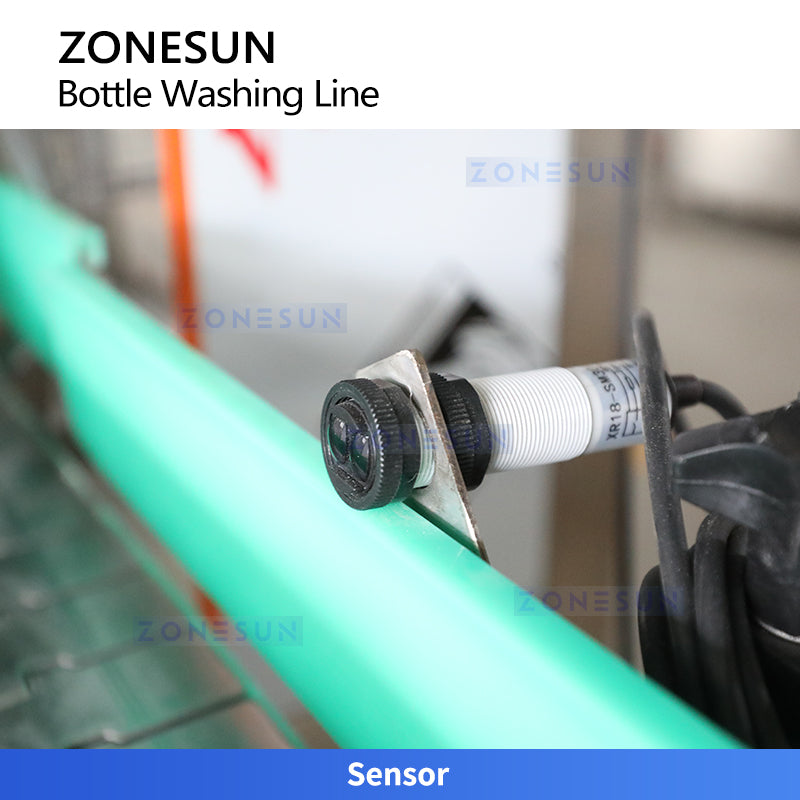

SENSOR
Detects the presence of bottles on the conveyor to trigger spraying and drying actions accurately, preventing missed or empty cycles and ensuring stable line operation.
Why Choose the ZS-WBL3000?
- ✅ 3-Stage Cleaning System: Hot water circulation, warm water spraying, and air-knife drying in one continuous inline process
- ✅ Precise Temperature Control: Maintains consistent water temperature for effective removal of dust, residues, and contaminants
- ✅ Uniform Multi-Nozzle Spraying: Full-coverage spray pattern ensures every bottle surface is thoroughly cleaned
- ✅ High-Efficiency Drying: Powerful air-knife system removes moisture completely before filling or labeling
- ✅ Wide Bottle Compatibility: Handles glass and plastic bottles, jars, and containers of various shapes and sizes
- ✅ Inline Integration: Designed to connect seamlessly with filling, capping, and labeling lines
- ✅ Stable Continuous Operation: Fully automated workflow minimizes downtime and manual intervention
Ideal Applications
- Food & Beverage: Water bottles, juice bottles, sauce jars, condiment containers pre-filling cleaning
- Pharmaceutical: Medicine bottles, syrup containers requiring high-hygiene pre-fill washing
- Daily Chemical: Shampoo, body wash, detergent, and cleaning product bottles
- Cosmetics: Lotion bottles, toner bottles, serum containers before filling and labeling
- Industrial & Chemical: Specialty chemical containers, reagent bottles, lubricant packaging
