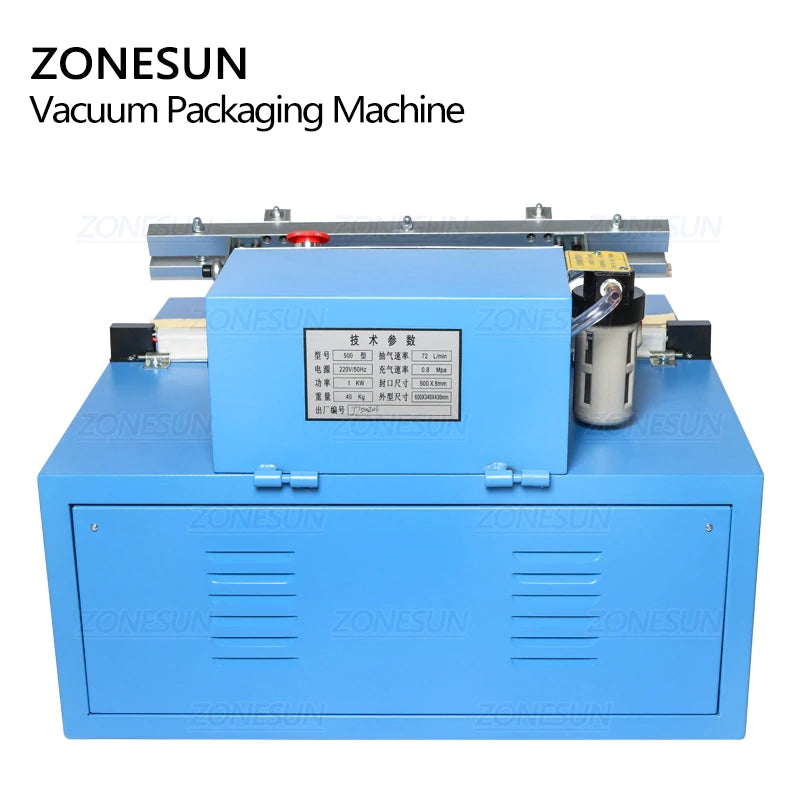

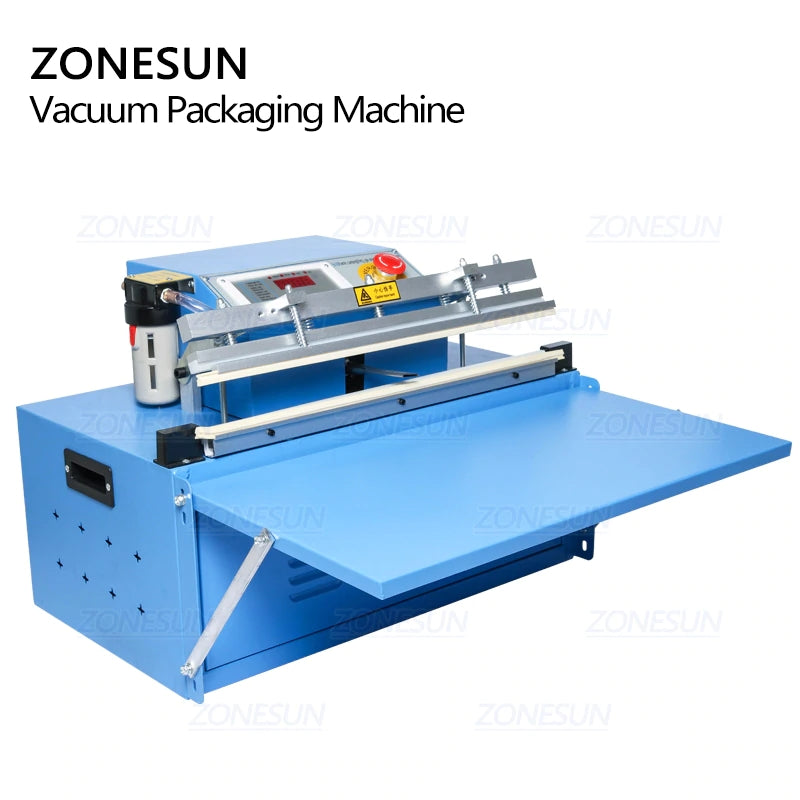

ZONESUN ZS-500T External Suction Vacuum Packaging Machine
The ZONESUN ZS-500T external suction vacuum packaging machine combines vacuum, sealing, and inflation functions for compatible packaging bags. It can vacuumize and seal in one process, or operators can select an individual function according to the packaging requirement.
The machine provides a 500 mm sealing length, an 8 mm sealing width, and a 500 × 300 mm workbench. Its digital function panel allows process times to be adjusted, while an enlarged air filter, vacuum pump, and emergency-stop button support operation. It is suitable for sealing or packaging compatible foods such as meat, fruit, nuts, vegetables, and grains.
Technical Specifications
| Model | ZS-500T |
|---|---|
| Voltage options | 220V / 110V |
| Power | 1 kW |
| Inflation pressure | 0.8 MPa |
| Working speed (source listing) | 4.3 m²/h — unit requires confirmation |
| Sealing size (length × width) | 500 × 8 mm |
| Workbench size | 500 × 300 mm |
Applications
- Food vacuum packaging: Compatible meat, fruit, nuts, vegetables, and grains, subject to product and bag confirmation.
- Bag sealing: Heat sealing for suitable packaging materials with openings that fit the 500 mm sealing length.
- Inflation packaging: An inflation function is available; confirm the required supply, gas suitability, and configuration for the proposed product.
Product Images and Machine Details

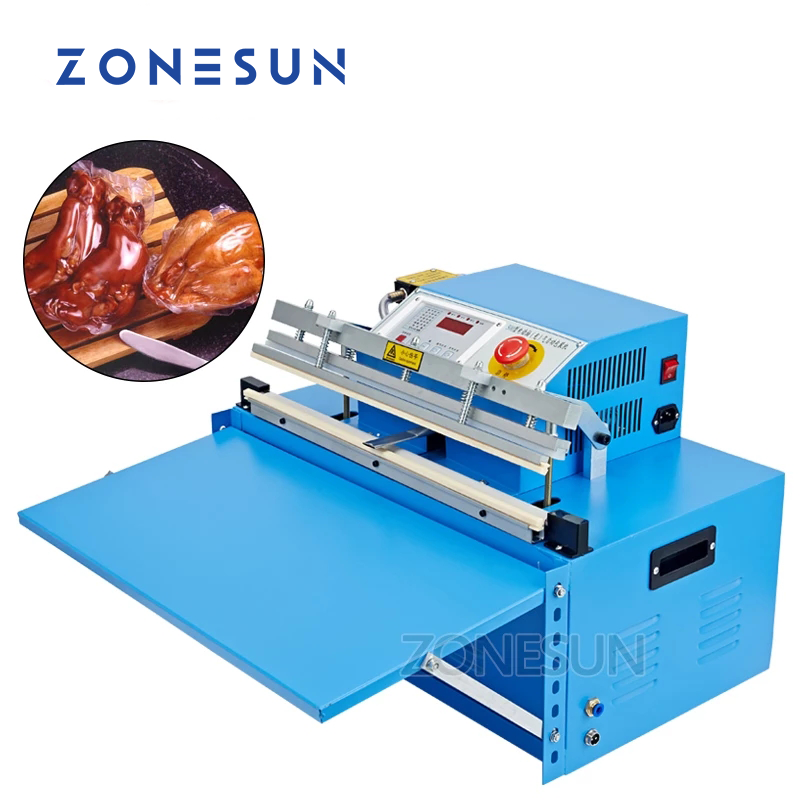

Food Packaging Applications
The machine is suitable for vacuum sealing or packaging compatible foods such as meat, fruit, nuts, vegetables, and grains.

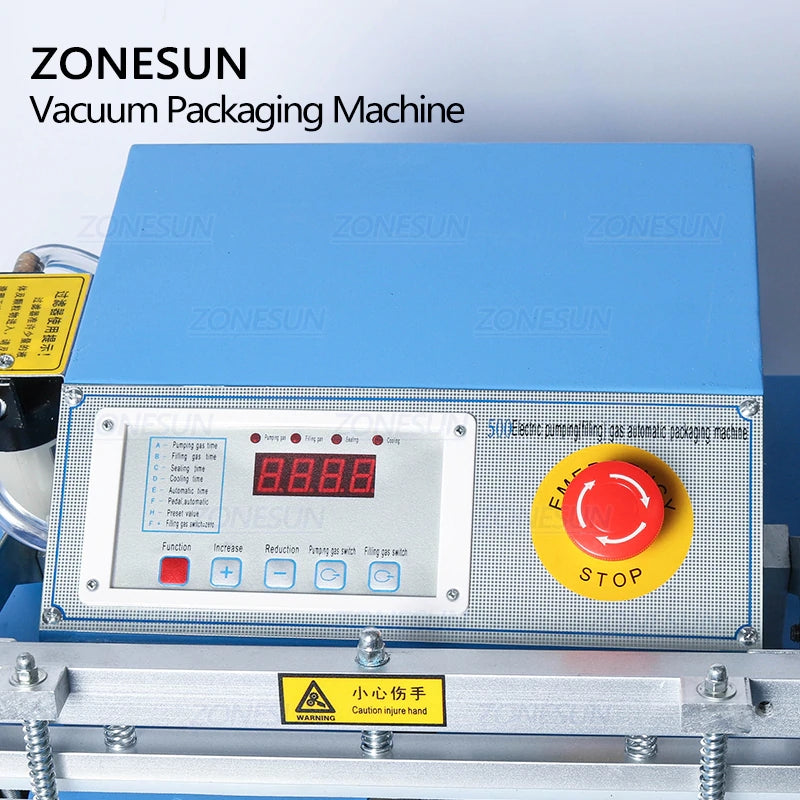

Digital Function Panel
The panel allows the vacuum, sealing, inflation, cooling, and operating times to be adjusted and includes an emergency-stop button.

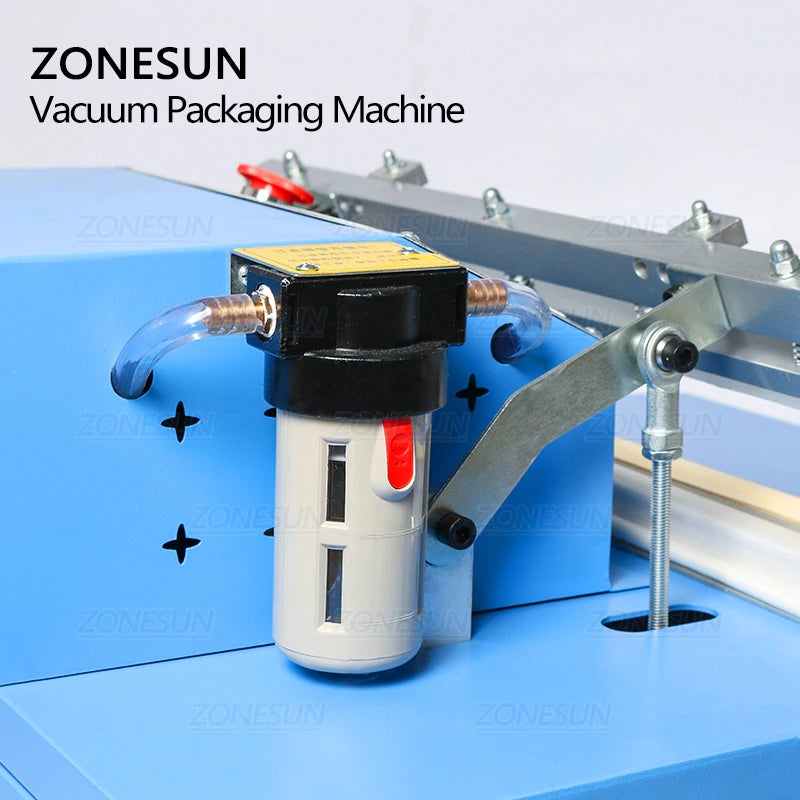

Large Air Filter
The enlarged air filter supports stable vacuum operation.

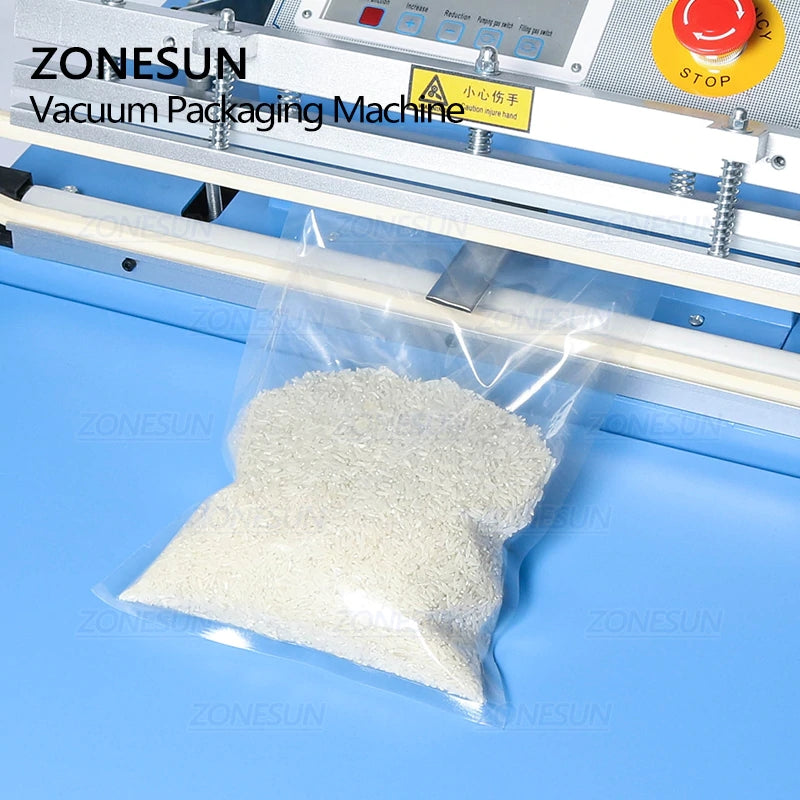

Wide Sealing Area
The 500 mm sealing bar accommodates compatible packaging bags and supports firm sealing.
Large Vacuum Pump
The enlarged vacuum pump provides strong suction for vacuum packaging.
Key Features
- Three functions: Vacuum, sealing, and inflation can be selected for the intended process.
- Vacuum and sealing in one cycle: Coordinates air removal and package closure.
- Adjustable digital settings: Controls vacuum, sealing, inflation, cooling, and operating times.
- 500 × 8 mm sealing area: Accommodates compatible bag openings within the listed sealing length.
- Enlarged filter and vacuum pump: Support vacuum packaging operation.
- Emergency-stop button: Provides an operator stop control.
Operating Process
- Confirm product and bag suitability and select the correct 110V or 220V version.
- Choose the required vacuum, sealing, or inflation process and adjust the related times.
- Position the filled package on the workbench and align the bag opening with the sealing area according to the machine instructions.
- Run the selected process. When vacuum and sealing are selected together, the machine removes air and seals the bag.
- Allow the configured cooling stage to complete, then remove and inspect the finished package.
Selection and Configuration
Share your product type, bag material and thickness, bag opening width, filled package dimensions, and target output. Confirm compatibility with the 500 × 8 mm sealing area and 500 × 300 mm workbench. Select the required voltage and discuss supply requirements for inflation, including the listed 0.8 MPa pressure. Agree on suitable process times using sample trials, and ask ZONESUN to clarify the original working-speed unit before using that figure for production planning.
Frequently Asked Questions
What functions does the ZONESUN ZS-500T provide?
The ZS-500T provides vacuum, sealing, and inflation functions. It can vacuumize and seal in one process, or an individual function can be selected according to the packaging task.
What is the sealing size?
The listed sealing size is 500 × 8 mm: 500 mm sealing length and 8 mm sealing width. The workbench size is 500 × 300 mm. Confirm the bag opening and filled package fit for your application.
What products can it package?
The original description lists compatible foods such as meat, fruit, nuts, vegetables, and grains. Confirm product handling and bag material suitability using your actual package samples.
Which operating settings can be adjusted?
The digital panel allows vacuum, sealing, inflation, cooling, and operating times to be adjusted. Set these according to trials with the selected product and bag.
What voltage and inflation pressure are listed?
The machine has 110V and 220V options, a listed power rating of 1 kW, and an inflation pressure specification of 0.8 MPa. Confirm the required external gas or air supply and connections for the intended inflation process.
How many bags can it process per hour?
A verified bag-count output is not provided. The original working-speed entry is 4.3 m²/h, with the unit requiring clarification. Actual cycle output should be confirmed for your bag size and selected vacuum, sealing, inflation, and cooling times.
