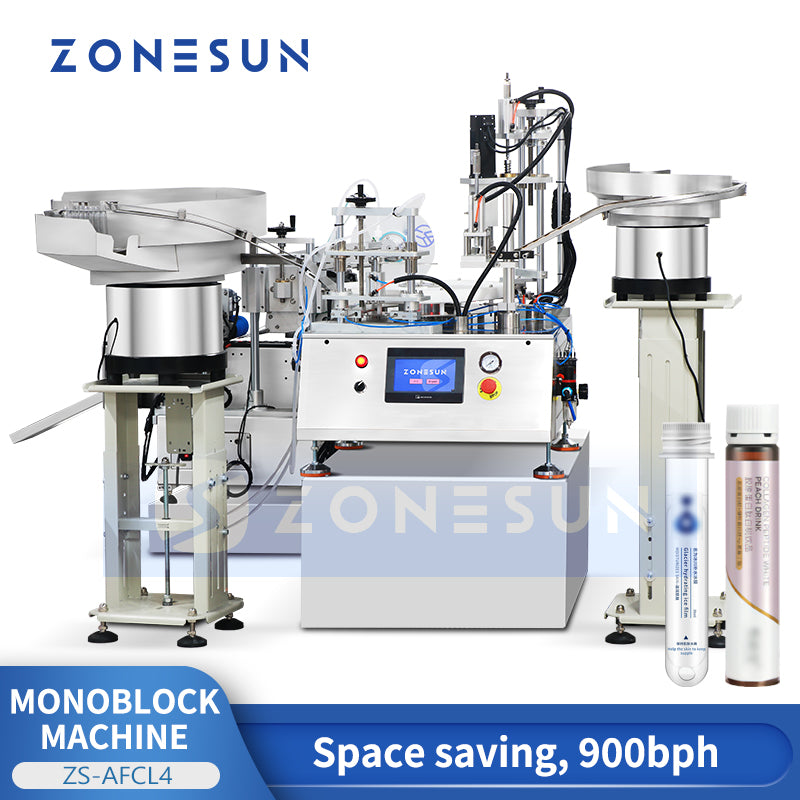

ZONESUN ZS-AFCL4 Automatic Test Tube Monoblock Machine Filling Capping Machine

Price
$16,527

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:220V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

Introducing the ultimate solution for efficient and precise vial filling, capping, and labeling: the Desktop Vial Filling and Capping Machine with Integrated Labeler and Dual Vibration Bowls. This compact system seamlessly combines a desktop filling and capping machine, a desktop horizontal labeling machine, and two vibration bowls to streamline your vial packaging process.

Parameter

  • Machine model: ZS-AFC35
  • Machine voltage: 220V 50-60Hz
  • Power: About 400W
  • Filling pump: Peristaltic pump
  • Production Capacity: About 10-15pcs/min (depending on liquid and bottle size)
  • Filling Range: Customized
  • Filling Accuracy: ± ≤1%
  • Suitable Bottle Size: Customized
  • Air Pressure: 0.4-0.6MPa
  • Machine size: About 1800 × 750 × 1020mm
  • Package size:
  • About 750 × 680 × 1130mm (Vibratory Bowl Sorter)
  • About 420 × 750 × 990mm (Lift table for vibratory bowl sorter)
  • About 860 × 1190 × 820mm (Filling Capping Machine)
  • Package weight:
  • About 111kg (Vibratory Bowl Sorter)
  • About 61kg (Lift table for vibratory bowl sorter)
  • About 159kg (Filling Capping Machine)

Parameter

  • Machine model: ZS-TB800
  • Machine voltage: 110/220V 50-60HZ
  • Working speed: About 30-50 bottles/min
  • Label object size: H ≤ 150mm, Φ ≤ 10-30mm
  • Label size: 15-150mm (H)
  • Roll inside diameter (mm): Φ76mm
  • Roll outside diameter (mm): Φ350mm
  • Machine size: About 1500 × 600 × 940mm
  • Machine weight: About 145kg

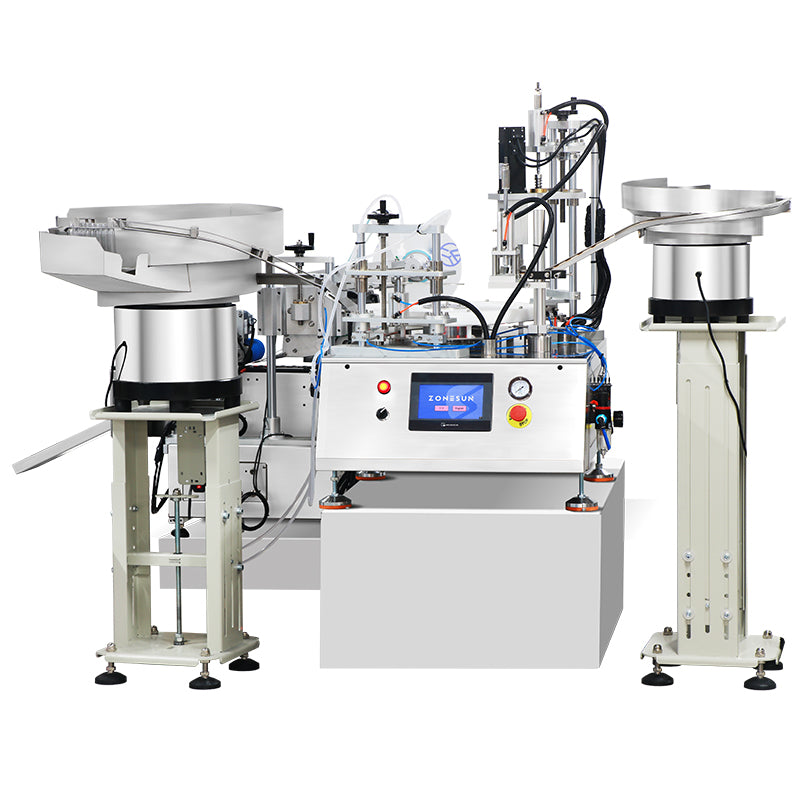

ZONESUN Automatic Test Tube Monoblock Machine
ZONESUN Automatic Test Tube Monoblock Machine
ZONESUN Automatic Test Tube Monoblock Machine
ZONESUN Automatic Test Tube Monoblock Machine
ZONESUN Automatic Test Tube Monoblock Machine

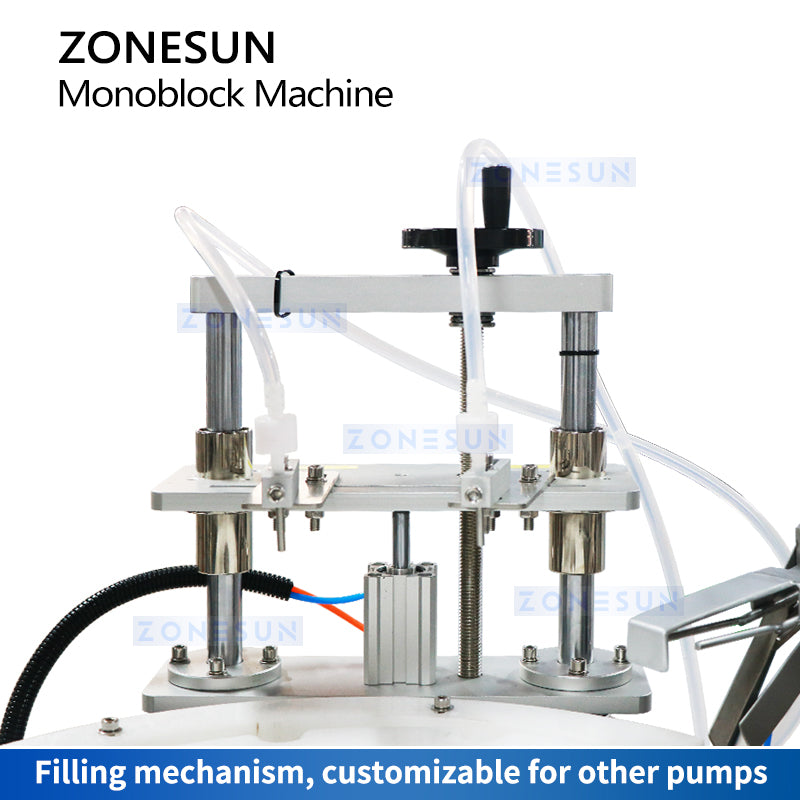

Dual Filling Heads

Two filling heads operate together for efficient dosing while minimizing cross-contamination.

ZONESUN Automatic Test Tube Monoblock Machine

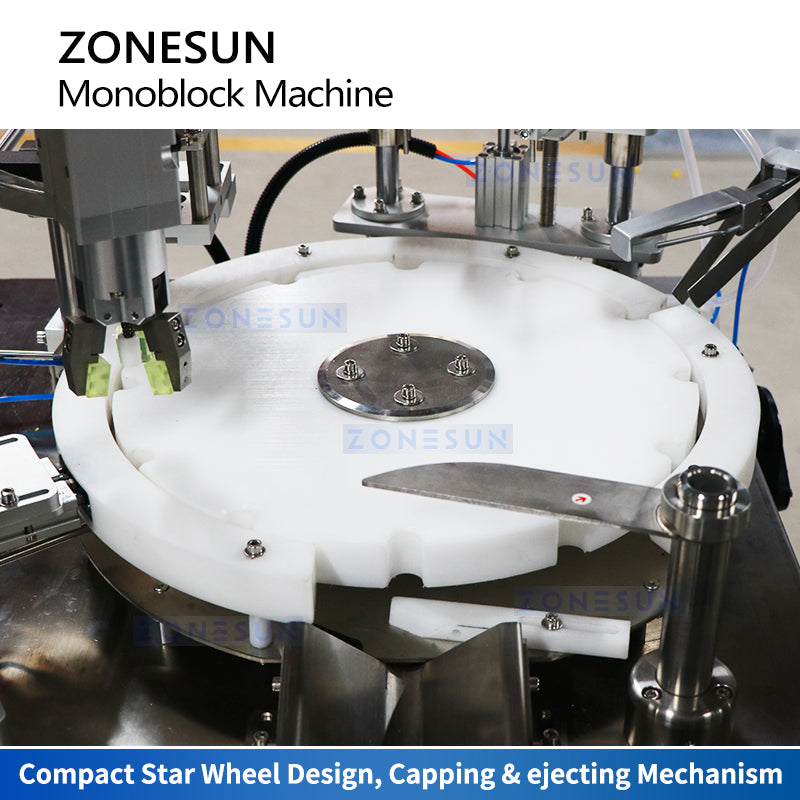

Precision Starwheel

The starwheel positions containers consistently as they move through the machine.

ZONESUN Automatic Test Tube Monoblock Machine

Servo-Controlled Capping

Servo torque control helps apply caps securely without over-tightening.

ZONESUN Automatic Test Tube Monoblock Machine

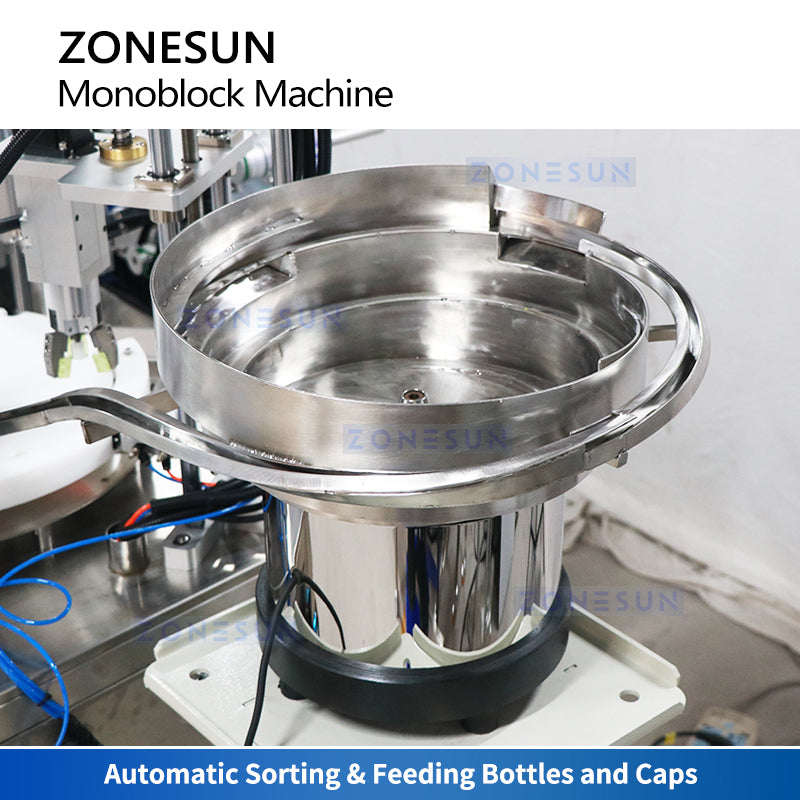

Customizable Vibratory Bowls

The cap and container feeding bowls can be configured for different product sizes.

ZONESUN Automatic Test Tube Monoblock Machine

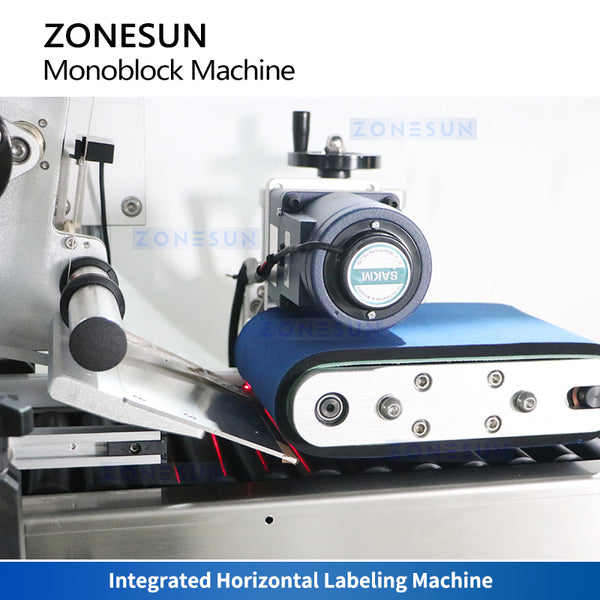

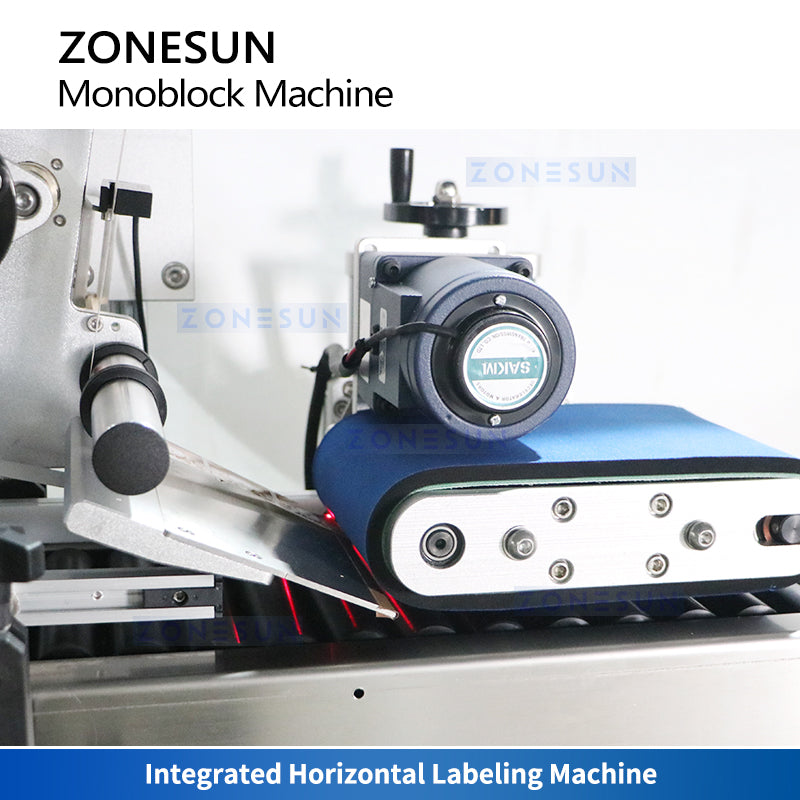

Integrated Labeling

The labeling unit applies labels accurately while supporting continuous production.

ZONESUN Automatic Test Tube Monoblock Machine

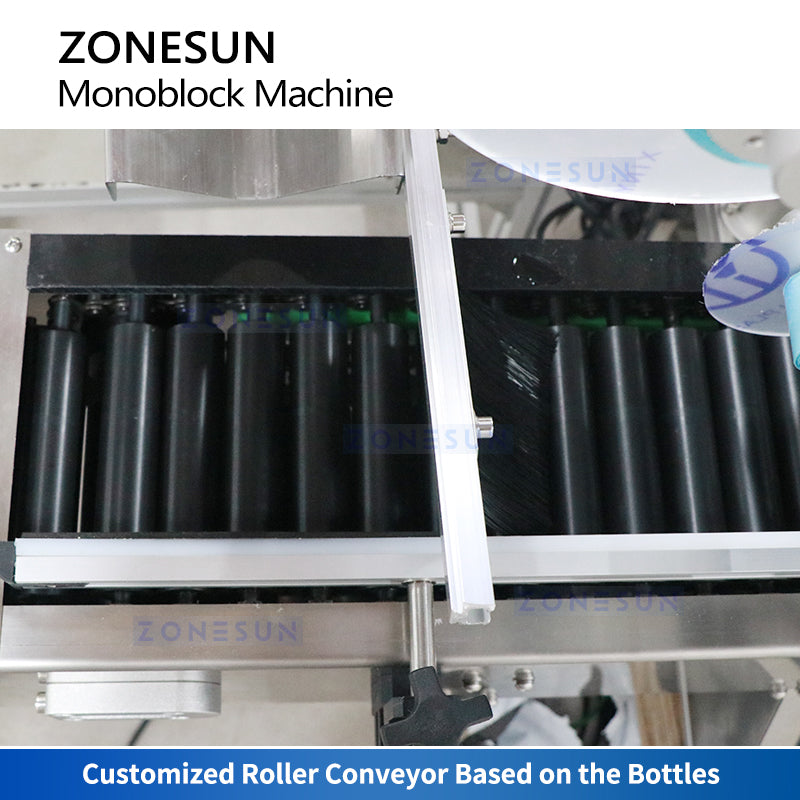

Coordinated Roller Conveyor

The conveyor integrates filling, capping, and labeling while accommodating different test-tube diameters.

ZONESUN Automatic Test Tube Monoblock Machine

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
