DESCRIPTION

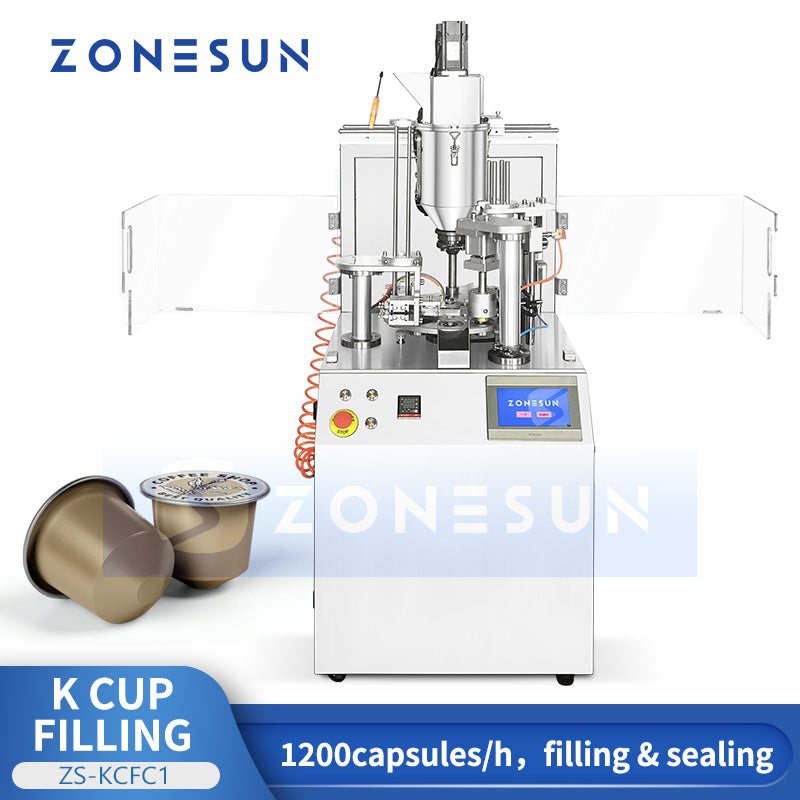

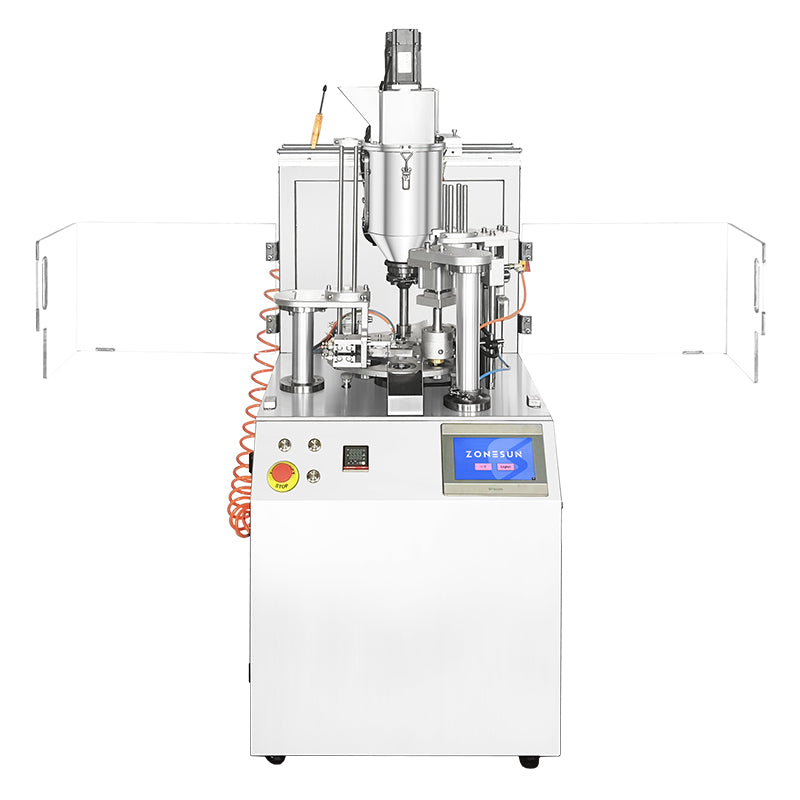

Introducing our single-head powder filling and sealing machine, an all-in-one solution for efficient coffee capsule production. This state-of-the-art machine automatically feeds cups, fills them with powder, caps them, seals them, and unloads the finished product. Ideal for Nespresso, Dolce Gusto and K-Cup formats, it streamlines the filling and sealing process, ensuring consistent quality and maximizing productivity. Enhance your coffee production line with this reliable and versatile piece of equipment.
Parameter
- Model: ZS-KCFC1
- Power: 3Phase, 220/380V, 50/60HZ, 1.2 KW
- Air Consumption: 0.1m³/min
- Air Supply: ≥0.6Mpa
- Filling Accuracy: ±0.1g
- Capacity: 20 capsules/minute
- Filling Weight: 0–20g
- Weight: 120Kg
- Dimension: 602 × 820 × 1653mm

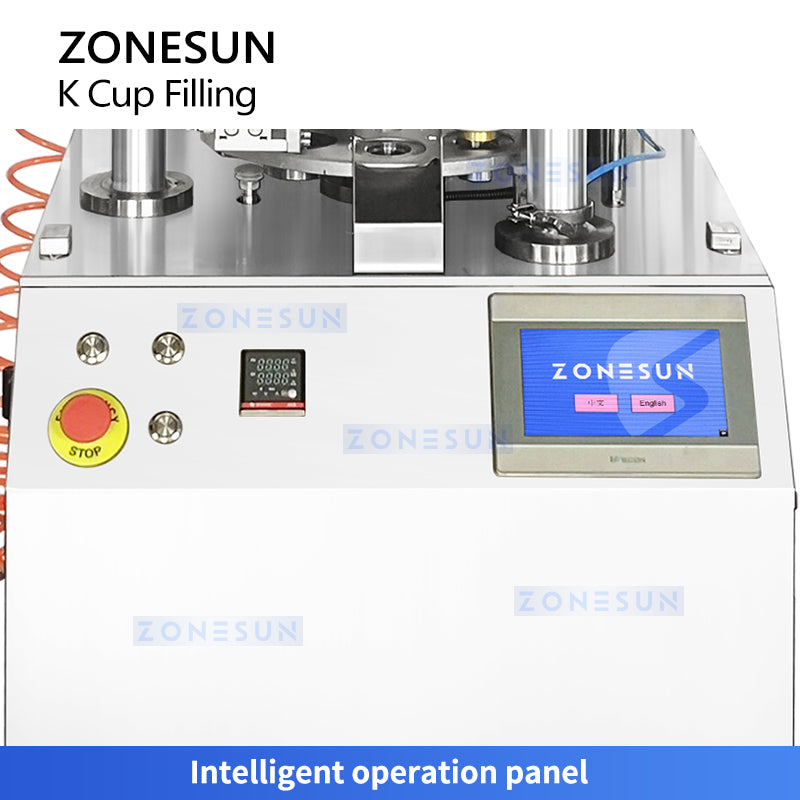

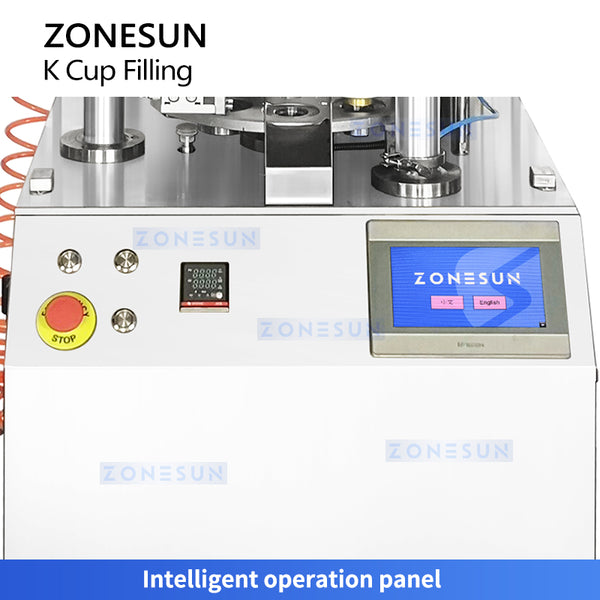

Intuitive Touchscreen Control
The clear touchscreen interface and simple parameter settings make the machine easy to operate.

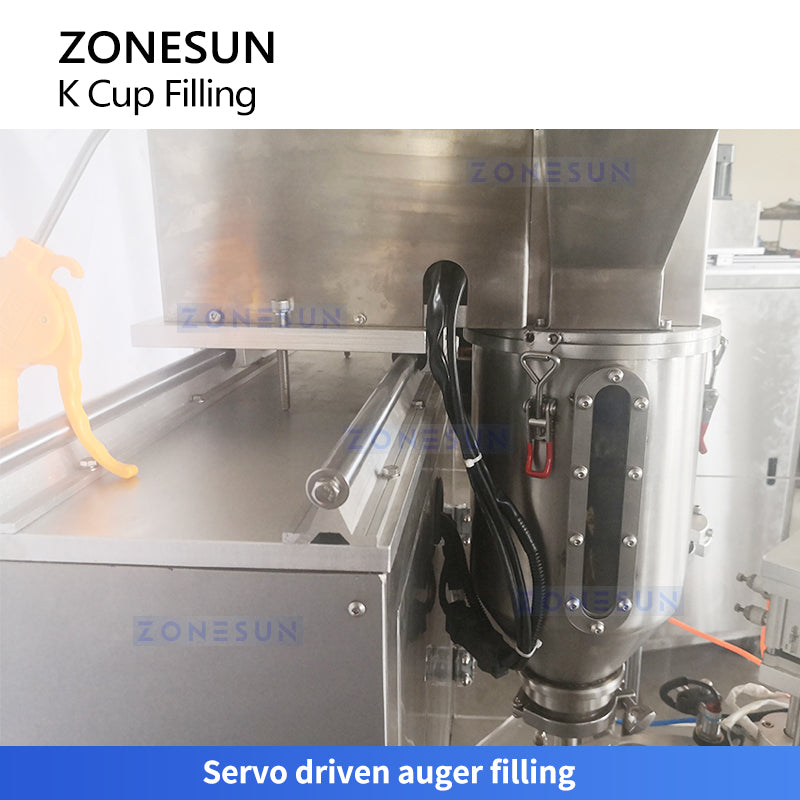

Servo-Driven Auger Filling
The servo-driven metering screw provides adjustable filling volume for controlled powder dispensing.

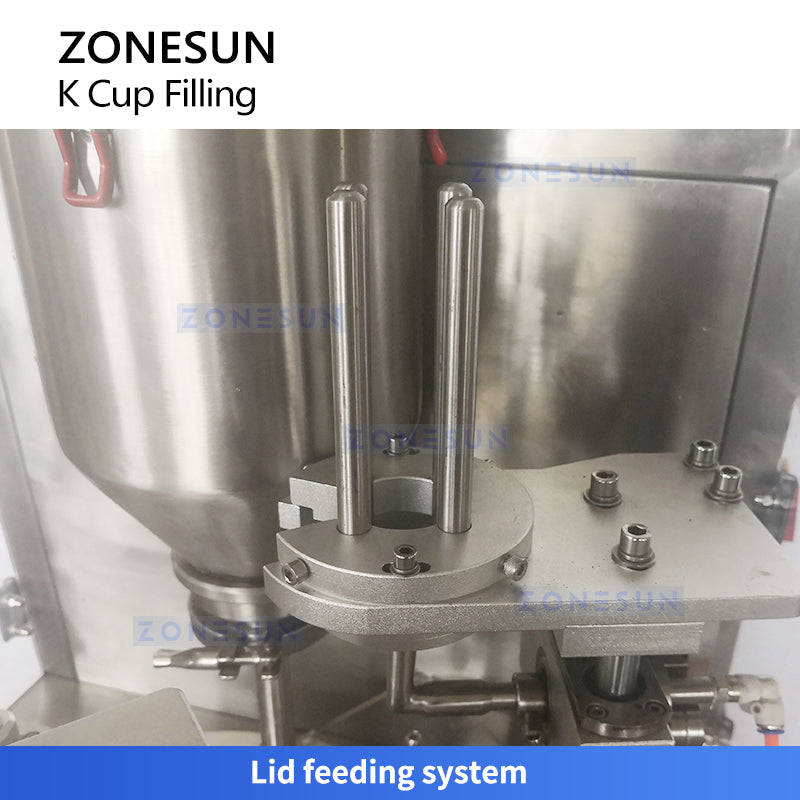

Vacuum Lid Positioning
The vacuum suction positioning device places each lid accurately on the coffee capsule.

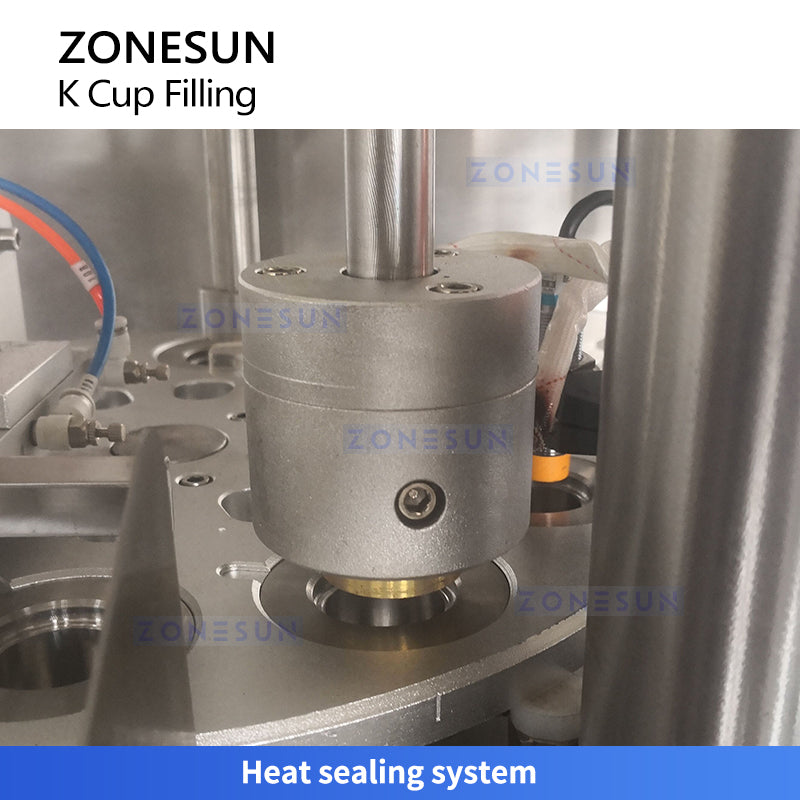

Temperature-Controlled Heat Sealing
Consistent temperature control provides even heating, while the correction mechanism adjusts the sealing position for a firm seal.

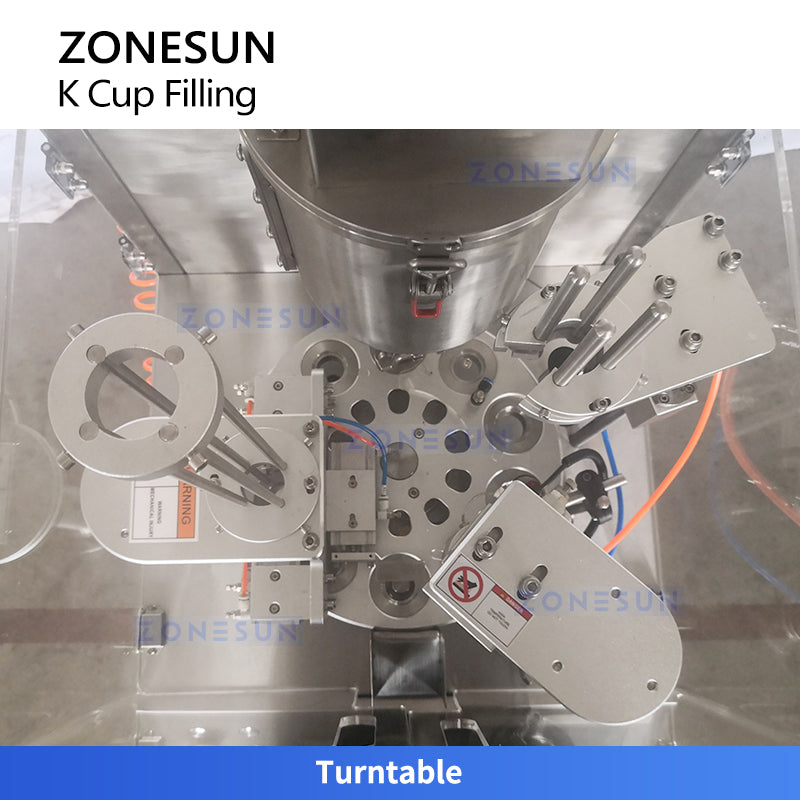

304 Stainless Steel Turntable
The turntable is made of food-grade 304 stainless steel for corrosion resistance and easy cleaning.
