ZONESUN ZS-MSZH60 Automatic Vertical Tuck-in Carton Sealer For Bottles Jars and Tubes

Price
$62,000

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

Description

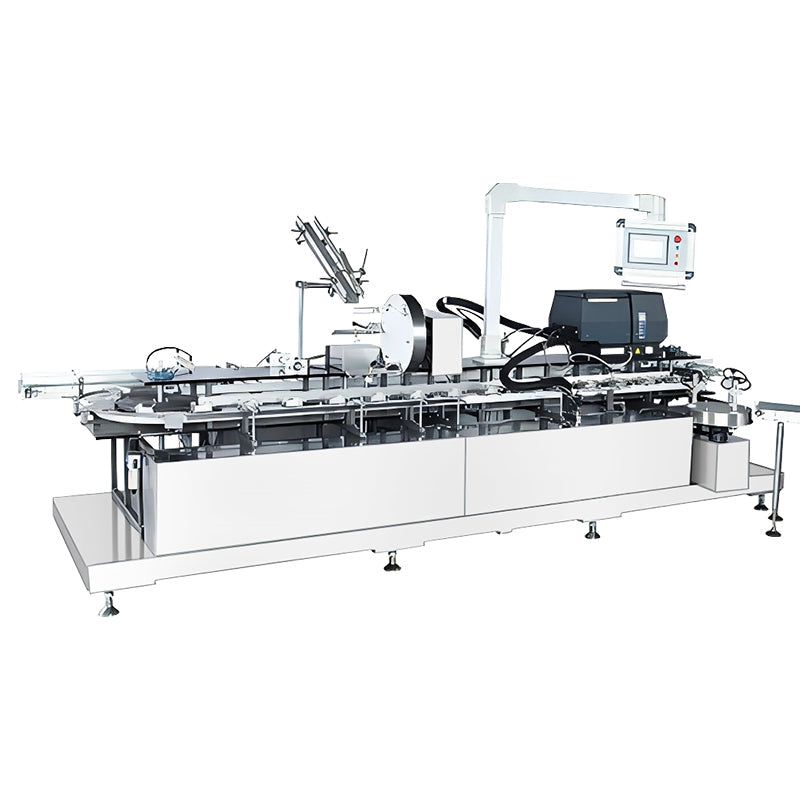

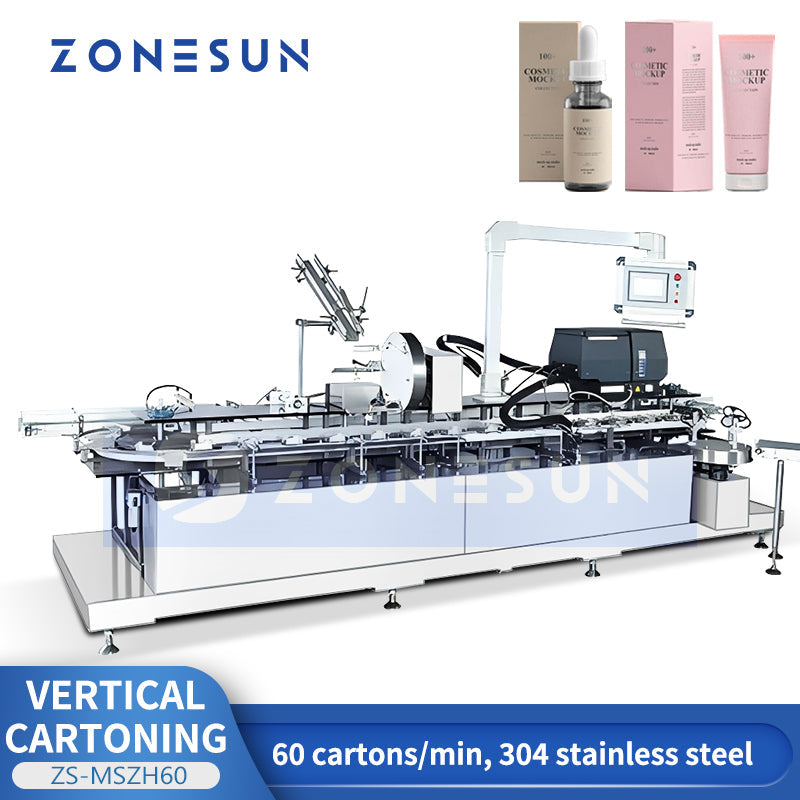

The ZONESUN ZS-MSZH60 is an automatic top-loading vertical cartoning machine designed for packing bottles, jars, and tubes in cosmetic and pharmaceutical industries. With a maximum output of 60 cartons per minute, it features 304 stainless steel construction and supports multiple sealing methods, including tuck-in and hot-melt glue. Its integrated rotary table, servo-driven conveying system, multi-step flap folding mechanism, and synchronized loading star wheel ensure smooth, accurate, and scratch-free high-speed operation. The compact, ergonomic design meets GMP requirements and fits seamlessly into modern production lines.

 Parameter

  • Model: ZS‑MSZH60
  • Max. Output: 60 cartons/min
  • Max. Box Size: Customized
  • Motion Type: Intermittent motion
  • Carton Quality Requirement: 250–400 g/m², pre‑folded with deep crease
  • Max. Power: 8 kW
  • Compressed Air Working Pressure: 0.6–0.8 MPa
  • Compressed Air Consumption: 150–200 L/min
  • Machine Dimensions: 2700 × 2020 × 1800 mm
  • Weight: About 1500 kg
High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & Jars
High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & Jars
High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & Jars
High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & Jars

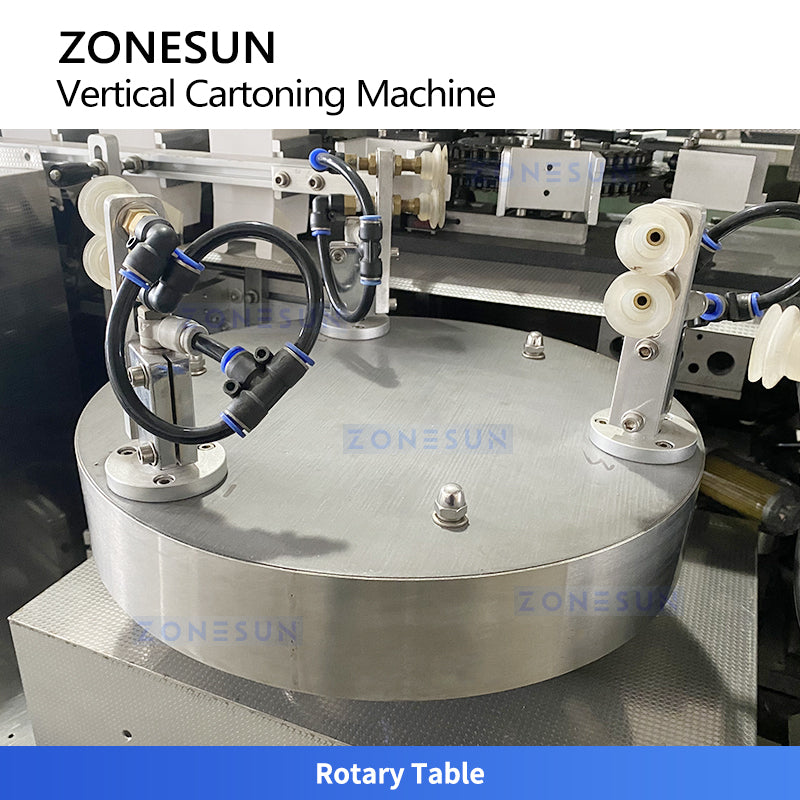

High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & JarsROTARY TABLE
Feeds flat cartons into the forming and loading stations with accurate positioning, supporting quick, tool-less adjustments for multiple carton sizes.

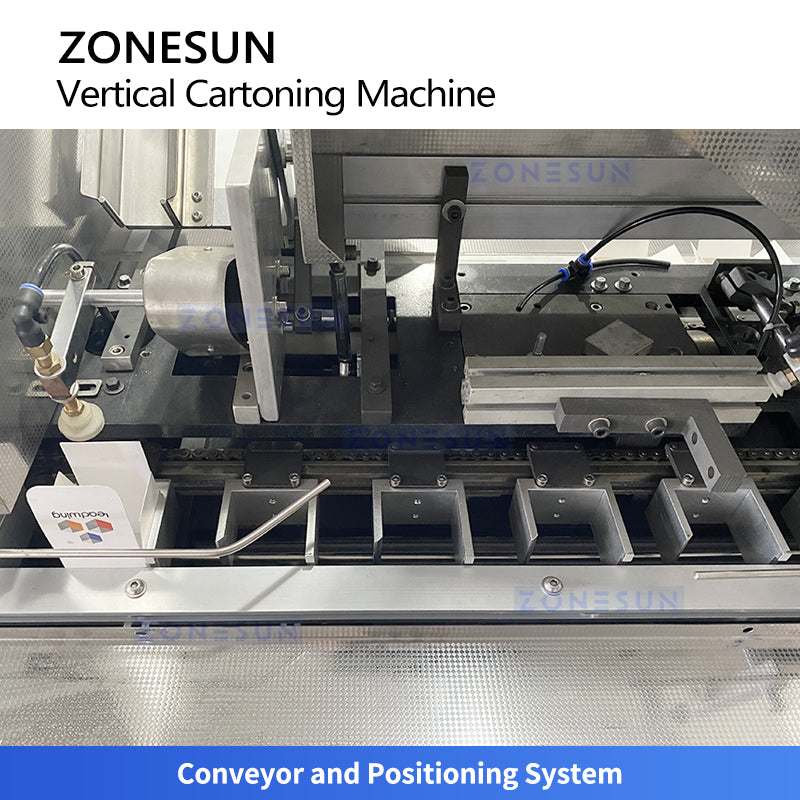

High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & JarsCONVEYOR & POSITIONING
Conveys & positions cartons with servo-driven intermittent motion, ensuring millimetric accuracy and scratch-free handling at high speed.

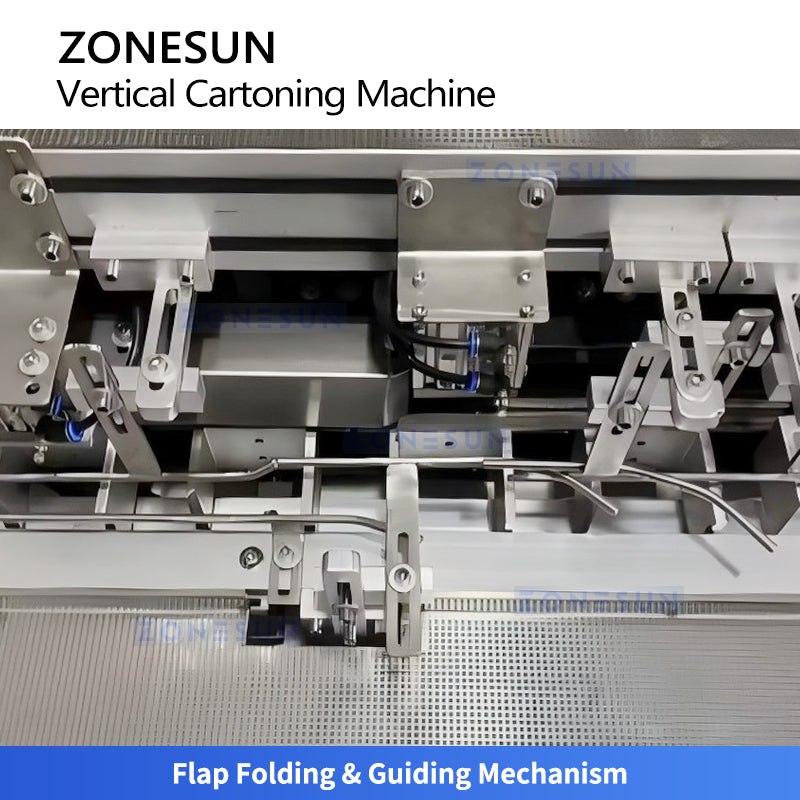

High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & JarsFLAP FOLDING & GUIDING
 Folds and guides carton flaps through multi-step mechanisms with micro-adjustable folders, ensuring consistent, high-quality tuck-in sealing.

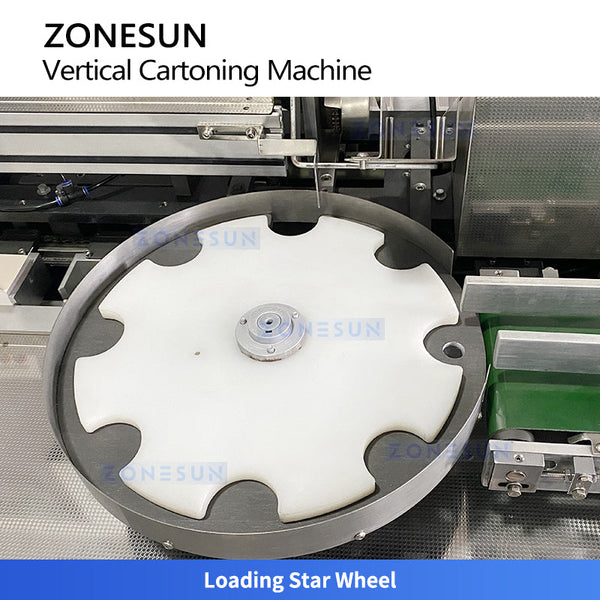

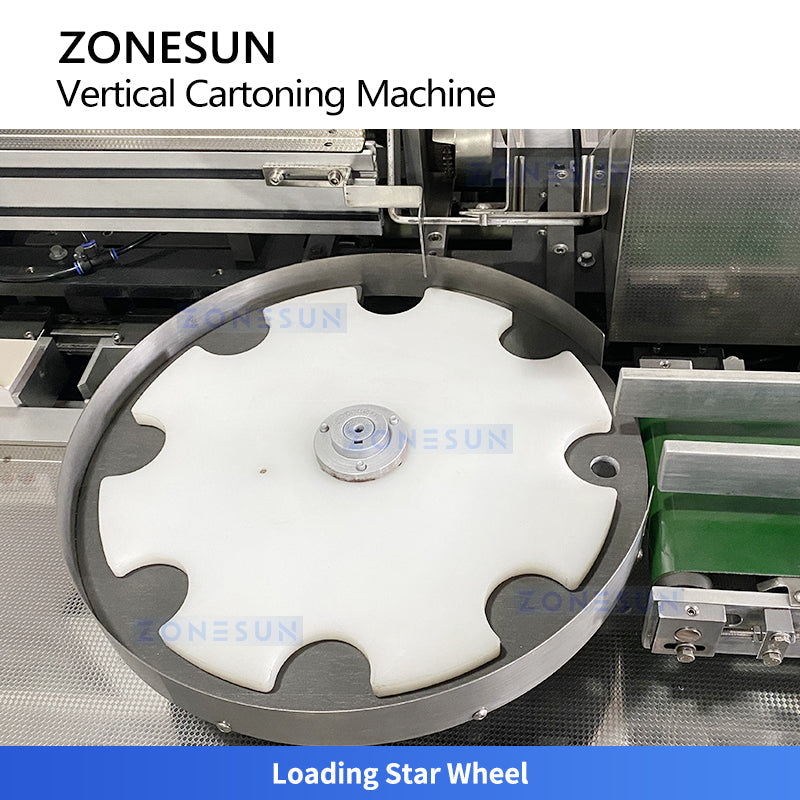

High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & JarsLOADING STARWHEEL
Positions and guides products into the open cartons with synchronized rotary motion, ensuring smooth, accurate loading at high speed.
High-Speed Packaging: ZONESUN ZS-MSZH60 Automatic Vertical Cartoning Machine for Bottles & Jars

About ZONESUN

ZONESUN is a China-based manufacturer specializing in custom packaging machinery solutions.

We offer fully tailored OEM & ODM services — from production capacity and automation level to branding and machine design — engineered precisely to your requirements.

Contact us today to discuss your custom project and explore the best solution for your production needs.
